Electronic Test
Electronic test is a category focused on evaluating the functionality and performance of electronic devices. This includes testing methods such as automated testing, manual testing, and simulation to ensure that electronic components meet quality standards and specifications. Electronic test equipment like oscilloscopes, multimeters, and signal generators are commonly used to measure and analyze electronic signals. This category covers a wide range of industries including telecommunications, automotive, aerospace, and consumer electronics. Whether testing PCBs, integrated circuits, or electronic systems, Electronic Test plays a crucial role in verifying the proper operation and reliability of electronic devices.
-
Mallory M500PK Potentiometer 500 Ohm 4 Watt Wirewound Rotary V12 USA
Mallory
$15.00Was: $30.00Mallory M500PK Potentiometer 500 Ohm 4 Watt Wirewound Rotary V12 USA A wirewound rotary potentiometer manufactured by Mallory. This panel-mount component provides variable resistance control in...41495- SKU:
- 41495
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Mallory
- Model:
- M500PK
- MPN:
- M500PK
- Type:
- Wirewound Rotary Potentiometer
- SKU:
- 41495
- Resistance:
- 500 Ohm
- Power Rating:
- 4 Watt
- Taper:
- Linear (wirewound)
- Mounting Type:
- Panel Mount
- Terminal Type:
- Solder Lug
- Shaft Type:
- Knurled Brass
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Inspected
- Seller Notes:
- Includes original Mallory box. V12 date/lot code visible on unit.
- Condition Notes:
- New, unused. Light storage oxidation on housing. Shaft, bushing, terminals intact. Original Mallory box included with shelf wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$15.00Was: $30.00 -
Advance Relay GHA/2C/6VDC DPDT Medium Power Relay 6V DC 25 Ohm 1.5W 5A
Advance Relay
$18.00Was: $40.00Advance Relay GHA/2C/6VDC DPDT Medium Power Relay 6V DC 25 Ohm 1.5W 5AElectromechanical relay with dual pole, dual throw contact configuration. Operates on 6V DC with 5A contact rating, suitable for...41493- SKU:
- 41493
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Advance Relay
- Model:
- GHA/2C/6VDC
- MPN:
- GHA/2C/6VDC
- Type:
- Electromechanical DPDT Relay
- SKU:
- 41493
- Coil Voltage:
- 6V DC
- Coil Resistance:
- 25 Ohms
- Coil Power:
- 1.5 Watts
- Contact Configuration:
- DPDT (Double Pole Double Throw)
- Contact Rating (Current):
- 5 Amps
- Contact Rating (Voltage):
- 26.5 VDC or 115 VAC
- Power Rating:
- 1.5 Watts
- Manufacturer:
- Elgin National Watch Company, Electronics Division
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes original Advance Relay box (box shows wear)
- Form Factor:
- Open Frame / PCB Mount
- Condition Notes:
- Advance Relay GHA/2C/6VDC DPDT relay inspected and in good condition. Includes original box showing age wear. Relay body shows normal age patina; contact terminals and leads intact. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$18.00Was: $40.00 -

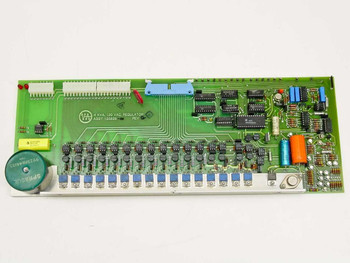

Varian 135935 4 kVA 120VAC Power Supply Regulator Board Assy Rev G
Varian
$150.00Was: $300.00Varian 135935 4 kVA 120VAC Power Supply Regulator Board Assy Rev GThe Varian 135935 is a 4 kVA, 120 VAC power supply regulator board used in Varian scientific and industrial systems. This type of...41354- SKU:
- 41354
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Varian
- Model:
- 135935
- MPN:
- 135935-68
- Type:
- Power Supply Regulator Board
- SKU:
- 41354
- Assembly Number:
- ASSY 135935-68
- Revision:
- Rev G
- Power Rating:
- 4 kVA
- Input Voltage:
- 120 VAC
- Form Factor:
- PCB / Card Module
- Connector Type:
- Multi-pin card edge connectors (J1, J2, J3)
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Board only; pulled from a working environment.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Varian 135935 4 kVA 120VAC Regulator Board pulled from a working environment, inspected and in good used condition. PCB shows normal wear; no visible damage, burnt components, or broken traces. Board only.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00 -
Varian Digital Interface PCB Assy 01002375-00 Rev A Circuit Board
Varian
$75.00Was: $150.00Varian Digital Interface PCB Assy 01002375-00 Rev A Circuit BoardDigital interface circuit board assembly designed for Varian analytical and industrial instrumentation systems. This card module...41344- SKU:
- 41344
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Varian
- Model:
- 01002375-00
- MPN:
- 01002375-00
- Secondary Model:
- 01002375
- Type:
- Digital Interface PCB
- Hardware Revision:
- Rev A
- Assembly Number:
- 01002375-00 Rev A
- Form Factor:
- Card/Module
- Connector Type:
- Gold edge connectors (dual row)
- PCB Color:
- Green
- Condition:
- Used – Inspected and Pulled from Working Environment
- SKU:
- 41344
- Seller Notes:
- Board only; no cables or mounting hardware included.
- Condition Notes:
- Varian Digital Interface PCB 01002375-00 Rev A. Inspected and in good used condition. Board shows normal handling wear; PCB surface clean, gold edge connectors intact, traces and solder joints appear undamaged.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$75.00Was: $150.00 -
Varian 01000031 Rev H Control Logic Board HPA Satcom RF Transmitter PCB
Varian
$150.00Was: $300.00Varian 01000031 Rev H Control Logic Board HPA Satcom RF Transmitter PCBControl logic board designed for Varian HPA Satcom RF transmitter systems. This PCB module manages transmitter operation and RF...41342- SKU:
- 41342
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Varian
- Model:
- 01000031
- MPN:
- 01000031
- Secondary Model:
- 01000031 Rev H
- Hardware Revision:
- Rev H
- Type:
- Control Logic Board / PCB
- SKU:
- 41342
- Compatible With:
- Varian HPA Satcom RF Transmitter
- Application:
- HPA Satcom RF Transmitter Control
- Form Factor:
- PCB Card / Module
- Connector Type:
- Gold-edge card connector
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Board only; pulled from a working HPA Satcom RF Transmitter
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Varian 01000031 Rev H Control Logic Board for HPA Satcom RF Transmitter. Inspected and in good used condition. Pulled from a working environment where it was in active use and functional. Board and gold-edge connector appear clean and intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00 -
Varian 01002599 MUX Adapter PCB Card Rev B Teltec 01V 01002598A
Varian
$75.00Was: $150.00Varian 01002599 MUX Adapter PCB Card Rev B Teltec 01V 01002598AThe Varian 01002599 is a MUX (Multiplexer) Adapter PCB card used in Varian Teltec 01V systems. Assembly number 01002598A, the board...41340- SKU:
- 41340
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Varian
- Model:
- 01002599
- MPN:
- 01002599-00
- Secondary Model:
- 01002598A
- Type:
- MUX Adapter PCB Card
- SKU:
- 41340
- Revision:
- Rev B
- Assembly Number:
- ASSY 01002599-00 Rev B
- Compatible With:
- Varian Teltec 01V system
- Connector Type:
- Multi-pin D-sub style edge connector (approx. 36-pin)
- Form Factor:
- PCB Card / Module
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- PCB card only; pulled from a working Varian Teltec system
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Varian 01002599 MUX Adapter PCB (01002598A Rev B) — inspected, good used condition. Pulled from a working Varian Teltec system. Normal light service wear. Connector contacts clean and intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$75.00Was: $150.00 -
CLI 410588-01 MPEG-2 Audio Encoder Card AES/EBU Digital Analog w/ Cables
CLI
$90.00Was: $175.00CLI 410588-01 MPEG-2 Audio Encoder Card AES/EBU Digital Analog w/ CablesChassis-mounted MPEG-2 audio encoder card designed for broadcast and professional video encoding systems. Processes...41326- SKU:
- 41326
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 7.00 LBS
- Brand:
- CLI
- Model:
- 410588-01
- MPN:
- 410588-01
- Type:
- MPEG-2 Audio Encoder Card / Board
- SKU:
- 41326
- Condition:
- Used – Inspected and in Good Condition
- Form Factor:
- Card / Module (chassis-mounted)
- Audio Standard:
- AES/EBU
- Video Standard:
- MPEG-2
- Audio Channels:
- 2 (Channel 0 and Channel 1)
- Input Types:
- Digital/Analog Channel 0, Digital/Analog Channel 1
- AES/EBU Connectors:
- AES/EBU Channel 0 (BNC), AES/EBU Channel 1 (BNC)
- Digital Video Outputs:
- Digital Video 0 (BNC), Digital Video 1 (BNC)
- Analog/Digital I/O Connectors:
- 2x DB15 (Digital/Analog Ch 0 and Ch 1)
- Status Indicators:
- Power On, On-Line, Backup, Transmit (front edge LEDs)
- Test/Reset Ports:
- Reset button; 2x DB9 TEST ports on edge connector
- Main DSP Chip:
- Motorola DSP56001AFC27
- Gain Controls:
- Left Gain, Right Gain (per channel, on card edge)
- Backplane Connector:
- Large multi-pin card-edge / DIN-style backplane connector
- Includes:
- Two multi-pin XLR/locking cables
- Application:
- Broadcast / Professional Video Encoding System
- Seller Notes:
- Includes two multi-pin cables; no user guide included.
- Condition Notes:
- CLI 410588-01 MPEG-2 Audio Encoder card inspected and in good condition. PCB and connectors clean with normal handling wear. Includes two multi-pin cables; no user guide. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$90.00Was: $175.00 -
Hughes 3878540-100 Ku-Band Command Upconverter 14180 MHz Satcom AUSSAT 4U
Hughes
$600.00Was: $1,200.00Hughes 3878540-100 Ku-Band Command Upconverter 14180 MHz Satcom AUSSAT 4UKu-Band command upconverter designed for AUSSAT satellite ground equipment. Converts IF signals at 248/248.5 MHz to 14180 MHz...41247- SKU:
- 41247
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 33.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3878540-100
- MPN:
- 3878540-100
- Type:
- Ku-Band Command Upconverter
- SKU:
- 41247
- System Compatibility:
- AUSSAT Expansion Rev. D
- Output Frequency:
- 14180 MHz
- IF Frequency:
- 248 / 248.5 MHz
- Frequency Band:
- Ku-Band
- Power Requirements:
- 240 VAC, 1A, 50/60 Hz
- DC Voltages:
- +28V, -15V, +24V, GND, 0V
- Form Factor:
- 4U Rackmount
- Monitor Ports:
- Input, Output, 14180 MHz, 248 MHz, 248.5 MHz, Sweep
- RF Connectors:
- J2 RF IN, J3 RF OUT, J4 248.5 MHz Output (BNC)
- Control Interface:
- J5 Status & Control – DB9 Serial (9-pin)
- Power Connector:
- J1 IEC 240VAC inlet with 1A fuse
- Chassis Ground:
- E1 Chassis GND binding post
- LED Indicators:
- Sweep Loss / Freq Shift, Phase Unlocked
- Voltage Indicators:
- +28V, -15V, +24V LED status lights
- Front Panel Controls:
- Sweep Deviation knob, Sweep Rate knob, Level Set switch, SPOT/OMNI switch
- Sweep Features:
- Adjustable Sweep Deviation and Sweep Rate
- Serial Number:
- 011
- Revision:
- Rev. D
- Division:
- Hughes Satellite Ground Equipment Division
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Powers On, Pulled from Working Environment
- Seller Notes:
- Unit powers on at our warehouse. Sold as pictured; no accessories included.
- Condition Notes:
- Hughes 3878540-100 Ku-Band Command Upconverter. Inspected, good used condition. Pulled from working satcom environment; powers on at our warehouse. Normal service wear. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$600.00Was: $1,200.00 -
Hughes Aircraft 3878521-100 FM Data Detector AUSSAT Satellite Ground System Rev
Hughes
$300.00Was: $600.00Hughes Aircraft 3878521-100 FM Data Detector AUSSAT Satellite Ground System Rev CFM data detector unit designed for AUSSAT satellite ground station systems. Processes composite telemetry input and...41246- SKU:
- 41246
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 18.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3878521-100
- MPN:
- 3878521-100
- Type:
- FM Data Detector
- SKU:
- 41246
- Revision:
- Rev C
- System Compatibility:
- AUSSAT Satellite Ground System
- Division:
- Hughes Satellite Ground Equipment Division
- Form Factor:
- Rack Mount
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Missing bottom plate; sold as-is with noted cosmetic deficiency
- Front Panel Indicators:
- PS1, MIP, EX status LEDs
- Front Panel Controls:
- Nutation Offset knob, Gain selector (100 Hz/V, 10 kHz/V), Analog Data switch (Nutation/Earth)
- Connector J1:
- Composite TM In – BNC
- Connector J2:
- Detected TM Data Out – D-Sub (DB-25 style, green)
- Connector J3:
- PSI Out – BNC
- Rear Interface:
- RS-Out connector, IEC AC power inlet, On/Off toggle, GND terminal
- Internal Power Module:
- Acopian AC to DC Power Module
- Crystal Oscillator:
- Vectron Laboratories C023L, 10 kHz
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Hughes Aircraft 3878521-100 FM Data Detector pulled from a working environment, inspected, in good used condition. Bottom plate is missing — noted in title and reflected in price. PCBs and internal components present and visually intact. Light wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$300.00Was: $600.00 -
Hughes Aircraft 3878526-100 AUSSAT HS-601 Satellite Simulator 70MHz RF Satcom
Hughes
$350.00Was: $700.00Hughes Aircraft 3878526-100 AUSSAT HS-601 Satellite Simulator 70MHz RF SatcomGround support equipment simulator for AUSSAT HS-601 satellite systems. Generates 70MHz RF test signals and processes...41235- SKU:
- 41235
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 50.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3878526-100
- MPN:
- 3878526-100
- Type:
- Satellite Simulator / RF Satcom Ground Support Equipment
- SKU:
- 41235
- Condition:
- As-Is / For Parts or Not Working
- Revision:
- Rev B
- System:
- AUSSAT HS-601
- Division:
- Hughes Satellite Ground Equipment Division
- Output Frequency:
- 70 MHz (Selected Out)
- Power Input:
- 240V AC, 2A
- Interface - Computer:
- RS-232 (DB-25, J3); Computer port DB-25 (J2)
- Telemetry Inputs - PCM 1:
- NRZ-L (J10), Clock (J9), BI-Phase (J8)
- Telemetry Inputs - PCM 2:
- NRZ-L (J13), Clock (J12), BI-Phase (J11)
- Telemetry Monitor:
- D-sub connector J7
- Command Interface:
- CMD Tone In (J16), Monitor (J15, D-sub), Execute Out (J14)
- Real Time Inputs:
- Spin Sync J21, Sun J20, Composite J19, Nutation J18
- Range In:
- BNC connector J17
- Monitor Bus:
- D-sub J22
- Selected RF Output:
- A/B switch, 70 MHz, BNC connectors J6/J5/J4
- Front Panel Display:
- CRT/LCD screen with status readout
- Front Panel Controls:
- FAIL/RESET button
- Known Fault:
- 70 MHz output level fixed; attenuator inoperative
- Form Factor:
- Rackmount Enclosure
- Seller Notes:
- Sold AS-IS for parts or repair. Crack in corner of screen.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Hughes 3878526-100 AUSSAT Satellite Simulator sold AS-IS for parts/repair. 70 MHz attenuator inoperative; output level fixed. Crack in screen corner. Not tested. No functionality guaranteed.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$350.00Was: $700.00 -
Hughes 3878523-100 Synchronous Command Generator 240VAC Satcom 19" Rack
Hughes
$350.00Was: $700.00Hughes 3878523-100 Synchronous Command Generator 240VAC Satcom 19" Rack A 19" rackmount synchronous command generator manufactured by Hughes Aircraft Company for satellite ground station use. This...41233- SKU:
- 41233
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 35.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3878523-100
- MPN:
- 3878523-100
- Type:
- Synchronous Command Generator
- SKU:
- 41233
- Condition:
- As-Is / For Parts or Not Working
- System:
- AUSSAT Satellite Ground Station
- Division:
- Hughes Satellite Ground Equipment Division
- Power Requirements:
- 240VAC
- Form Factor:
- 19" Rackmount
- Front Panel Designation:
- CMD GEN 1
- Internal Assembly A2:
- Hughes A2 Assy 3814102 Rev F
- Internal Assembly A3 (1):
- Hughes A3 Assy 1404473 Rev (Synchronous Cmd Gen)
- Internal Assembly A3 (2):
- Hughes A3 Assy 3808473 Rev — (Synchronous Cmd Gen)
- Crystal Oscillator:
- Vectron SC-235T-3, 4.1Hz (ref), Vectron Labs
- SPD Part Number:
- SPD Industrial Electronic Engineers 04202-01
- SPD Code Ident:
- 05464
- Front Panel Controls:
- Clear Decoder, Transmit Command, Critical Enable, Fail/Reset, Execute
- Front Panel Display:
- Integrated display screen (appears dark/non-operational)
- Seller Notes:
- Sold AS-IS for parts or repair. Multi-board rackmount assembly.
- Country/Region of Manufacture:
- United States
- Application:
- Satellite ground station command generation, AUSSAT system
- Compatible With:
- AUSSAT satellite ground station system
- Condition Notes:
- Hughes 3878523-100 Synchronous Command Generator sold AS-IS for parts or repair. Not tested, no functionality guaranteed. Front display appears non-operational. Internal PCBs intact. Unit shipped may vary from photo.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$350.00Was: $700.00 -
CLI 410588-01 MPEG-2 Audio Encoder Card DirecTV Satellite Broadcast AES/EBU
CLI
$100.00Was: $200.00CLI 410588-01 MPEG-2 Audio Encoder Card DirecTV Satellite Broadcast AES/EBUBlade-style encoder card for satellite broadcast systems. Encodes 2-channel audio to MPEG-2 standard for DirecTV and General...41183- SKU:
- 41183
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 7.00 LBS
- Brand:
- CLI
- Model:
- 410588-01
- MPN:
- 410588-01
- Type:
- MPEG-2 Audio Encoder Card
- SKU:
- 41183
- Form Factor:
- Card / Module (blade-style)
- Audio Input Types:
- AES/EBU digital, Digital/Analog (DB-15)
- Audio Channels:
- 2 channels (Channel 0 and Channel 1)
- Video Interface:
- Digital Video (BNC) — 2x inputs (Video 0, Video 1)
- AES/EBU Connectors:
- 2x BNC (Channel 0 and Channel 1)
- Analog Audio Connectors:
- 2x DB-15 (Digital/Analog Channel 0 and Channel 1)
- Gain Controls:
- Left Gain and Right Gain trimmers per channel
- Front Panel Indicators:
- Power On, On-Line, Backup, Transmit, Alarm LEDs
- Test/Service Ports:
- 2x DB-9 TEST ports, RESET button on faceplate
- Application:
- Satellite broadcast encoding, DirecTV uplink systems
- Compatible System:
- DirecTV / General Instrument satellite broadcast platform
- Encoding Standard:
- MPEG-2
- Seller Notes:
- Includes cables and General Instruments documentation/manual
- Condition:
- Used – Inspected and in Good Condition
- Country/Region of Manufacture:
- Japan
- Condition Notes:
- CLI 410588-01 MPEG-2 Audio Encoder card inspected and in good condition. PCB clean, no visible damage. Faceplate shows light wear. Includes cables and General Instruments manual. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$100.00Was: $200.00 -
Scientific Atlanta A931 DS3/DS1 Waveform Test Set w/ Travel Case DSX T3 T1
Scientific Atlanta
$95.00Was: $200.00Scientific Atlanta A931 DS3/DS1 Waveform Test Set w/ Travel Case DSX T3 T1 Portable waveform test set for DS3 and DS1 signal analysis. Measures voltage peak-to-peak, symmetry, and pulse width on...41182- SKU:
- 41182
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 12.00 LBS
- Brand:
- Scientific-Atlanta
- Model:
- A931
- MPN:
- A931
- Type:
- DS3/DS1 Waveform Test Set
- SKU:
- 41182
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Includes built-in travel case; probes not included
- Country/Region of Manufacture:
- United States
- Form Factor:
- Portable / Handheld Case
- Measurement Type:
- DS3/DS1 Waveform Analysis (Vp-p, Symmetry, Width)
- Signal Standards:
- DS1 (T1), DS3 (T3)
- Input Impedance:
- DS1: 100Ω Balanced; DS3: 75Ω
- Select Modes:
- DSX1, DSX3, DSX1-MON, DSX3-MON, DS3-HI
- Measurement Parameters:
- +Vp, -Vp, +Width, -Width, Symmetry, dBx, Audible
- Display:
- LED numeric readout with PASS/FAIL indicators (Vp-p, SYM, WIDTH)
- Power:
- 120V AC Recharge input; internal battery operation
- Battery Indicator:
- Low Battery LED indicator
- Fuse:
- 1/10 Amp fuse (per front panel label)
- Publication Number:
- PN 328119 (operating guide label)
- Serial Number (Label):
- 689AI
- Compatible With:
- DSX-1 and DSX-3 cross-connect and monitor points
- Includes:
- Integral metal travel case with latches and carry handle
- Probes Included:
- No
- Condition Notes:
- Scientific Atlanta A931 DS3/DS1 Waveform Test Set. Powers on and passes self-test; further signal testing not performed. Good used condition. Metal travel case included; probes not included. Wear consistent with field use.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$95.00Was: $200.00 -
Industrial Instruments RC 16B1 Conductivity Bridge Resistance Electrolytic 115V
Industrial Instruments
$120.00Was: $250.00Industrial Instruments RC 16B1 Conductivity Bridge Resistance Electrolytic 115V Analog conductivity bridge designed to measure resistance and electrolytic conductivity. Operates on 115V, 50-60Hz...41116- SKU:
- 41116
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 7.00 LBS
- Brand:
- Industrial Instruments Inc.
- Model:
- RC 16B1
- MPN:
- RC 16B1
- Type:
- Conductivity Bridge
- SKU:
- 41116
- Measurement Type:
- Resistance and Electrolytic Conductivity
- Power Requirements:
- 115V, 50-60Hz, 20W
- Frequency Selection:
- 50-60 CPS or 1000 CPS (switchable)
- Multiply By Range:
- .01, .1, 1, 10, 100, 1000
- Display Type:
- Analog meter, 0-100-2 scale
- Controls:
- Multiply By knob, Dial Control knob, Sensitivity knob, On/Off switch
- Form Factor:
- Portable Benchtop, Wood Carry Case
- Case Material:
- Wood
- Connector Type:
- Banana-style probe connector on front panel
- Condition:
- Used – Inspected
- Seller Notes:
- Includes original instruction sheet mounted inside lid; wood carry case included
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Industrial Instruments RC 16B1 Conductivity Bridge inspected and in good used condition. Wood case shows age wear and scratching; front panel intact with all controls present. Includes original instruction sheet inside lid.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$120.00Was: $250.00 -
Micro-Coax Components 1029 WR-62 Ku-Band Waveguide Delay Line 12.4-18 GHz
Micro~Coax Components
$250.00Was: $500.00Micro-Coax Components 1029 WR-62 Ku-Band Waveguide Delay Line 12.4-18 GHzWR-62 flexible waveguide delay line for Ku-band microwave systems. Operates across 12.4–18.0 GHz with coiled configuration and...40929- SKU:
- 40929
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Micro-Coax Components
- Model:
- 1029
- MPN:
- 1029-11
- Type:
- WR-62 Ku-Band Waveguide Delay Line
- SKU:
- 40929
- Frequency Range:
- 12.4–18.0 GHz
- Waveguide Size:
- WR-62
- Waveguide Band:
- Ku-Band
- Inner Dimensions:
- 9/32 x 19/32 in
- Flange Type:
- UG-419/U (square cover flange, WR-62 standard)
- Configuration:
- Flexible, coiled long run with flanged ends
- Manufacturer Part Number:
- 1029-11
- Mfr Code:
- 64639
- Application:
- Radar, ECM, microwave altimeters, amplifiers, LMR
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Inspected, Good Condition
- Seller Notes:
- Unit only — no additional accessories included
- Condition Notes:
- Micro-Coax 1029-11 WR-62 Ku-Band waveguide delay line. Inspected and in good used condition. Flanged ends intact, body shows normal wear. Label legible. No significant damage visible.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$250.00Was: $500.00 -
CCI Duplexer 190-CU391-F1V6 FC3062607505 RF N-Type TNC Cavity Filter
CCI
$150.00Was: $300.00CCI Duplexer 190-CU391-F1V6 FC3062607505 RF N-Type TNC Cavity FilterRF cavity duplexer for signal separation and filtering in telecom and base station applications. Aluminum enclosure construction...40914- SKU:
- 40914
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 14.00 LBS
- Brand:
- CCI
- Model:
- 190-CU391-F1V6
- MPN:
- 190-CU391-F1V6
- Secondary Model:
- FC3062607505
- Type:
- RF Cavity Duplexer
- SKU:
- 40914
- Condition:
- Used – Inspected
- Connector Type:
- N-Type, TNC
- Construction:
- Aluminum cavity enclosure
- Seller Notes:
- Unit only; no cables or accessories included.
- Form Factor:
- Flat panel / cavity module
- Application:
- RF signal separation, base station, telecom
- Country/Region of Manufacture:
- United States
- Condition Notes:
- CCI Duplexer 190-CU391-F1V6 inspected and in good used condition. Aluminum enclosure shows light surface soiling and minor scuffs. N-type and TNC connectors intact. Unit only, no cables included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00 -
Keithley ERB-24 Relay I/O Rackmount Enclosure 61300 PC6132 Crydom D2425 SSR
Keithley
$200.00Was: $400.00Keithley ERB-24 Relay I/O Rackmount Enclosure 61300 PC6132 Crydom D2425 SSRRackmount relay control enclosure designed for industrial automation and test equipment applications. Houses relay...40901- SKU:
- 40901
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 43.00 LBS
- Brand:
- Keithley
- Model:
- ERB-24
- MPN:
- 61300 9504/M
- Secondary Model:
- PC6132 14010 REV G
- Type:
- Relay I/O Rackmount Enclosure
- SKU:
- 40901
- Form Factor:
- Rackmount Enclosure
- Condition:
- Used – Inspected
- Board Part Number:
- 61300 9504/M
- Secondary Board:
- 62200 9502/C (PC6222 REV C, copyright 1984)
- Solid State Relay:
- Crydom D2425 – 240V Output, 25A, 3-32V DC Input
- Power Supply 1:
- Astec ACV5N9-1 – 5V / 9.0A output
- Power Supply 2:
- Astec ACV12N5 – 12V / 5.1A output
- EMI Filter:
- Corcom 10VK7
- Front Panel Indicators:
- AC Power, Arc Power, CCD Shutter, Mask Vacuum, Arc Lamp Shutter
- Power Input:
- AC mains via IEC inlet; 15A fuse; isolated ground outlet
- Rear Connectors:
- J4 (50-pin SCSI-style), J5, J6 (XLR), J7, J8, J9, J10 (circular multipin)
- Fuse Rating:
- 15 Amp
- Seller Notes:
- Includes ERB-24 relay board, 62200 board, Astec dual PSUs, Crydom SSR, Corcom EMI filter
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Keithley ERB-24 Relay I/O Rackmount Enclosure (61300) inspected and in good used condition. All internal components present — dual Astec PSUs, ERB-24 board, Crydom D2425 SSR, Corcom EMI filter. Normal wear for age.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$200.00Was: $400.00 -
Nokia CS7299413 WBVB BTS Mast Head Amplifier Module BTS PITA ANT
Nokia
$75.00Was: $150.00Nokia CS7299413 WBVB BTS Mast Head Amplifier Module BTS PITA ANTMast head amplifier (MHA) module for Nokia BTS cellular base transceiver stations. Mounts at the antenna to amplify RF signals in the...40900- SKU:
- 40900
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Nokia
- Model:
- WBVB
- MPN:
- CS7299413...01
- Secondary Model:
- CS7299413_01
- Type:
- Mast Head Amplifier (MHA) Module
- SKU:
- 40900
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes original Nokia box. MHA switch not included.
- Country/Region of Manufacture:
- Finland
- Manufacturer:
- Filtronic (for Nokia)
- Application:
- Cellular BTS Base Transceiver Station RF Front End
- Connections:
- BTS, PITA, ANT
- Connector Type:
- 7/16 DIN (RF), 4-pin circular (PITA/control)
- Certifications:
- UL Listed, CE
- Form Factor:
- Compact Module / Mast-Mounted
- Compatible With:
- Nokia BTS systems with WBVB MHA interface
- Date Code / Print Date:
- 2005-11-18
- Interface:
- BTS port, ANT port, PITA control port
- Condition Notes:
- Nokia CS7299413 WBVB mast head amplifier in good used condition. Pulled from a working environment. Comes in original box. MHA switch not included. Minor oxidation on one RF port contact face — see photos.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$75.00Was: $150.00 -
Nokia CS7299413 WBVB Bias Tee T900 VSWR BTS Antenna Cables Original Box
Nokia
$75.00Was: $150.00Nokia CS7299413 WBVB Bias Tee T900 VSWR BTS Antenna Cables Original BoxThe Nokia CS7299413 WBVB is a bias tee designed for use in Nokia T900 base transceiver station (BTS) antenna feed lines. A bias...40899- SKU:
- 40899
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Nokia
- Model:
- CS7299413
- MPN:
- CS7299413...01
- Secondary Model:
- WBVB
- Type:
- Bias Tee
- SKU:
- 40899
- Application:
- VSWR Monitoring, BTS Antenna Feed
- Compatible With:
- Nokia T900 BTS, Nokia Base Transceiver Station
- Frequency Band:
- 900 MHz (T900)
- Connector Type (BTS Side):
- 7-16 DIN (BTS/PITA port)
- Connector Type (Antenna Side):
- 7-16 DIN (ANT port)
- Connector Type (Control):
- Multi-pin circular connector (BTS PITA)
- Certifications:
- UL Listed, CE
- Country/Region of Manufacture:
- Finland
- Manufacturer:
- Filtronic (manufactured for Nokia)
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes cables (in ESD bag) and original Nokia box
- Form Factor:
- Inline Module / Block Assembly
- Condition Notes:
- Nokia CS7299413 WBVB Bias Tee pulled from a working BTS environment, inspected and in good used condition. Housing clean; some oxidation on ANT-side flange. Cables in ESD bag and original Nokia box included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$75.00Was: $150.00 -
Rosenberger 994531a SMA Right Angle Male to N Male 50 Ohm RF Coax Cable 40 ft
Rosenberger
$90.00Was: $175.00Rosenberger 994531a SMA Right Angle Male to N Male 50 Ohm RF Coax Cable 40 ftRF coaxial cable assembly connecting SMA right angle male to N-type male connectors. Designed for 50 ohm impedance...40885- SKU:
- 40885
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Rosenberger
- Model:
- 994531a
- MPN:
- 994531a
- Type:
- RF Coaxial Cable Assembly
- SKU:
- 40885
- Connector 1:
- SMA Male Right Angle
- Connector 2:
- N-Type Male
- Impedance:
- 50 Ohm
- Cable Length:
- Approximately 40 ft (approx. 12 m)
- Cable Type:
- Coaxial
- Gender:
- Male to Male
- Seller Notes:
- Cable only; open box, no original packaging
- Country/Region of Manufacture:
- Germany
- Condition:
- Open Box
- Condition Notes:
- Rosenberger 994531a SMA right angle to N male 50 ohm coax cable, approx. 40 ft. Open box, no original packaging. Jacket intact, both connectors clean and undamaged. Good condition overall.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$90.00Was: $175.00
