CLI

CLI 410588-01 MPEG-2 Audio Encoder Card DirecTV Satellite Broadcast AES/EBU

(No reviews yet) Write a Review
SKU:
41183
MPN:
410588-01
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout
  • CLI 410588-01 MPEG-2 Audio Encoder card – full PCB top view showing multiple ICs including DSP and memory chips
  • CLI 410588-01 Audio Encoder card – shielded metal back cover and label with CLI logo and part number
  • CLI 410588-01 PCB close-up showing silkscreen label 'AUDIO ENCODER MPEG2' with barcode and part number 410588-01-G1102
  • CLI 410588-01 Audio Encoder faceplate showing AUDIO label and LED indicators: Power On, On-Line, Backup, Transmit, Alarm with DirecTV asset tag
  • CLI 410588-01 Audio Encoder faceplate opposite edge showing RESET button and two DB-9 TEST ports
  • CLI 410588-01 Audio Encoder card – close-up of backplane connector edge showing large multi-pin card edge connector
  • CLI 410588-01 Audio Encoder I/O panel showing two BNC Digital Video connectors (Video 0, Video 1) and AES/EBU Channel 1 BNC with Right Gain trimmer
  • CLI 410588-01 Audio Encoder I/O panel showing AES/EBU Channel 1 BNC, Right Gain, Digital/Analog Channel 1 DB-15, Left Gain, Right Gain, and partial second channel connector
  • CLI 410588-01 Audio Encoder I/O panel showing Digital/Analog Channel 0 DB-15, Left Gain, Right Gain trimmers, and AES/EBU Channel 0 BNC
  • CLI 410588-01 MPEG-2 Audio Encoder card shown with included cables and General Instruments documentation manual
  • CLI Audio Encoder MPEG2 410588-01
  • CLI Audio Encoder MPEG2 410588-01
  • CLI Audio Encoder MPEG2 410588-01
  • CLI Audio Encoder MPEG2 410588-01
$100.00
Was: $200.00
Current Stock: 2

Sold Out

Description

CLI 410588-01 MPEG-2 Audio Encoder Card DirecTV Satellite Broadcast AES/EBU

Blade-style encoder card for satellite broadcast systems. Encodes 2-channel audio to MPEG-2 standard for DirecTV and General Instrument uplink platforms.

Specifications & What's Included

  • 2-channel MPEG-2 audio encoder (Channel 0 and Channel 1)
  • Audio inputs: AES/EBU digital (2x BNC) and analog (2x DB-15)
  • Video inputs: 2x BNC digital video connectors
  • Adjustable gain controls per channel
  • Front panel LEDs: Power On, On-Line, Backup, Transmit, Alarm
  • Test/Service: 2x DB-9 ports and RESET button
  • Includes cables and General Instruments documentation

Applications

This card type was used in DirecTV satellite uplink facilities and General Instrument broadcast systems to encode audio signals for satellite transmission. It processes both digital and analog audio sources and integrates with broader video encoding chains in broadcast operations. Commonly found in telecom and satellite distribution centers.

Condition: Used
This CLI 410588-01 MPEG-2 Audio Encoder card has been inspected and appears to be in good condition. The PCB and components look clean with no visible damage. The faceplate and I/O panel show normal light wear consistent with prior rack use. The unit comes with cables and a General Instruments documentation manual, as visible in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
CLI
Model:
410588-01
MPN:
410588-01
Type:
MPEG-2 Audio Encoder Card
SKU:
41183
Form Factor:
Card / Module (blade-style)
Audio Input Types:
AES/EBU digital, Digital/Analog (DB-15)
Audio Channels:
2 channels (Channel 0 and Channel 1)
Video Interface:
Digital Video (BNC) — 2x inputs (Video 0, Video 1)
AES/EBU Connectors:
2x BNC (Channel 0 and Channel 1)
Analog Audio Connectors:
2x DB-15 (Digital/Analog Channel 0 and Channel 1)
Gain Controls:
Left Gain and Right Gain trimmers per channel
Front Panel Indicators:
Power On, On-Line, Backup, Transmit, Alarm LEDs
Test/Service Ports:
2x DB-9 TEST ports, RESET button on faceplate
Application:
Satellite broadcast encoding, DirecTV uplink systems
Compatible System:
DirecTV / General Instrument satellite broadcast platform
Encoding Standard:
MPEG-2
Seller Notes:
Includes cables and General Instruments documentation/manual
Condition:
Used – Inspected and in Good Condition
Country/Region of Manufacture:
Japan
Condition Notes:
CLI 410588-01 MPEG-2 Audio Encoder card inspected and in good condition. PCB clean, no visible damage. Faceplate shows light wear. Includes cables and General Instruments manual. Please contact us with any questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

CLI 410588-01 MPEG-2 Audio Encoder card shown with two included multi-pin locking cables – front overview CLI 410588-01 Audio Encoder board – top view showing full PCB with multiple ICs and Motorola DSP chip
Add to Cart
Quick view

CLI 410588-01 MPEG-2 Audio Encoder Card AES/EBU Digital Analog w/ Cables

CLI

$90.00
Was: $175.00
CLI 410588-01 MPEG-2 Audio Encoder Card AES/EBU Digital Analog w/ CablesChassis-mounted MPEG-2 audio encoder card designed for broadcast and professional video encoding systems. Processes...
41326
SKU:
41326
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Brand:
CLI
Model:
410588-01
MPN:
410588-01
Type:
MPEG-2 Audio Encoder Card / Board
SKU:
41326
Condition:
Used – Inspected and in Good Condition
Form Factor:
Card / Module (chassis-mounted)
Audio Standard:
AES/EBU
Video Standard:
MPEG-2
Audio Channels:
2 (Channel 0 and Channel 1)
Input Types:
Digital/Analog Channel 0, Digital/Analog Channel 1
AES/EBU Connectors:
AES/EBU Channel 0 (BNC), AES/EBU Channel 1 (BNC)
Digital Video Outputs:
Digital Video 0 (BNC), Digital Video 1 (BNC)
Analog/Digital I/O Connectors:
2x DB15 (Digital/Analog Ch 0 and Ch 1)
Status Indicators:
Power On, On-Line, Backup, Transmit (front edge LEDs)
Test/Reset Ports:
Reset button; 2x DB9 TEST ports on edge connector
Main DSP Chip:
Motorola DSP56001AFC27
Gain Controls:
Left Gain, Right Gain (per channel, on card edge)
Backplane Connector:
Large multi-pin card-edge / DIN-style backplane connector
Includes:
Two multi-pin XLR/locking cables
Application:
Broadcast / Professional Video Encoding System
Seller Notes:
Includes two multi-pin cables; no user guide included.
Condition Notes:
CLI 410588-01 MPEG-2 Audio Encoder card inspected and in good condition. PCB and connectors clean with normal handling wear. Includes two multi-pin cables; no user guide. Please contact us with any questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
CLI Compression Labs Magnitude MPEG-2 DVB satcom multiplexer chassis — three-quarter front-left view showing full populated card cage on pallet CLI Compression Labs Magnitude 410111-01 multiplexer system — rear three-quarter view showing rear card connectors, lower power supply bay, and AC power cable
Add to Cart
Quick view

CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Satcom Multiplexer System

CLI

$850.00
Was: $1,700.00
CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Satcom Multiplexer SystemRackmount MPEG-2 DVB satellite multiplexer and encoder system designed for video contribution and DVB uplink applications...
39800
SKU:
39800
Availability:
Usually ships within 3-5 business days due to size and weight.
Weight:
265.00 LBS
Brand:
CLI Compression Labs Inc.
Model:
Magnitude
MPN:
410111-01
Type:
MPEG-2 DVB Satellite Multiplexer / Encoder System
SKU:
39800
Form Factor:
Rackmount Chassis
Standard:
DVB, MPEG-2
Application:
Satellite Broadcasting, DVB Uplink, Video Contribution
Power Requirements:
120 VAC, 60 Hz, 12 A (chassis label)
Power Connector:
30A 250V Twist-Lock
Power Supply Model:
Tectrol TO620/11-1054 Rev.E
Power Supply Input:
115/230 VAC, 60/50 Hz, 10A
Power Supply Output:
620W Max., CSA Level 6
Number of Power Supplies:
4 (hot-swap)
Video Encoder Module:
CLI Video Encoder M1, P/N 410444 / 410538 (x6)
Audio Encoder Module:
CLI Audio Encoder MPEG2, P/N 410588 (x7)
Remux Input Unit:
General Instrument RIU Remux Input Unit, P/N 410774-01
Chassis Interface Module:
CLI Chassis I/F M1, P/N 410002-01
Fan Assembly:
Comair Rotron Muffin-XL MX2A1, 6-fan, 115V 50/60Hz
Audio Encoder Chipset:
Motorola DSP56001AFC27; SGS-Thomson SF9701P
Seller Notes:
Complete system: 6x video encoders, 7x audio encoders, RIU, chassis I/F, 4x hot-swap PSUs, 6-fan assembly
Country/Region of Manufacture:
USA
Interface Type:
BNC, DB-25, RJ45
Condition:
Used – Inspected
Condition Notes:
CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Multiplexer system inspected and in good used condition. Fully populated with 6 video encoders, 7 audio encoders, RIU, chassis I/F, 4 hot-swap PSUs, and 6-fan assembly. Normal rack wear.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
General Instrument CLI Magnitude MPEG Encoder 410111-01 — three-quarter front view of full rackmount chassis with encoder cards installed, shown on pallet General Instrument CLI Magnitude MPEG Encoder — left-side panel showing Video Compressor module with indicator labels: Analog, PAL, Normal, Composite, Serial D1, Line Lock, Field Lock, Field Filter Alarm, Power On, On-Line, Backup, Transmit
Add to Cart
Quick view

General Instrument CLI Magnitude MPEG Encoder 410111-01 100-240V NTSC PAL

General Instrument

$575.00
Was: $1,200.00
General Instrument CLI Magnitude MPEG Encoder 410111-01 100-240V NTSC PALThe General Instrument CLI Magnitude Compression Systems MPEG Encoder, part number 410111-01, is a large rackmount multi-card...
39498
SKU:
39498
Availability:
Usually ships within 1-2 business days.
Weight:
140.00 LBS
Brand:
General Instrument
Model:
410111-01
MPN:
410111-01
Secondary Model:
410444-01
Type:
MPEG Video Encoder Chassis
SKU:
39498
Condition:
Used – Inspected and Appears in Good Condition
Series:
Magnitude Compression Systems
Manufacturer Division:
CLI (Cable Television Laboratories Inc. / GI)
Assembly Number:
410111-01
Serial Number (Unit):
2274
Manufacture Date:
September 1997
Power Requirements:
AC 100/240V, 12-6 Amps, 50-60 Hz
Wiring Configuration:
Wired for 120VAC only (per label warning)
Certifications:
UL Listed (95AT)
Country/Region of Manufacture:
United States
Form Factor:
Rackmount Chassis (large multi-slot card cage)
Video Standard:
NTSC / PAL / Composite / Serial D1
Signal Indicators:
Analog, PAL, Normal, Composite, Serial D1, Line Lock, Field Lock, Field Filter Alarm
Status Indicators:
Power On, On-Line, Backup, Transmit
Encoder Card:
CLI Video Encoder M1, P/N 410444-01, Rev A
Channel Configuration:
Multi-channel; Chan 2 visible with Abort/Reset controls
Front Panel Connectors:
Dual DB25 (Monitor), DB9 (Test) on Chan 2 module
Rear Connectors:
BNC video outputs, DB connectors, power harness
Power Supply:
Internal power supply unit with multi-rail outputs (+V, +15V, -15V, -5.2V visible)
Compliance:
DVB (Digital Video Broadcasting) compliant (per label)
Application:
Broadcast headend, cable TV, satellite video encoding
Seller Notes:
Chassis with multiple encoder/compressor cards installed. Separate power supply unit included.
Condition Notes:
General Instrument CLI Magnitude MPEG Encoder 410111-01 inspected, good used condition. Typical wear on exterior panels. Cards, backplane, and power harness appear intact. Unit wired for 120VAC only per label. Photos available.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

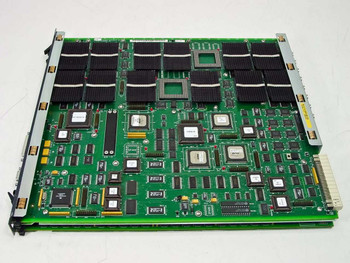

Next Level CLI 410024-01 Video Compressor board — top view showing main PCB with large ICs, memory arrays, and Video Encoder M1 sub-board 410444-01 Next Level CLI 410024-01 Video Compressor — rear sheet-metal cover view with label and BNC connectors visible at left edge
