CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Satcom Multiplexer System

(No reviews yet) Write a Review
SKU:
39800
MPN:
410111-01
Condition:
Used
Availability:
Usually ships within 3-5 business days due to size and weight.
Weight:
265.00 LBS
Shipping:
Calculated at Checkout

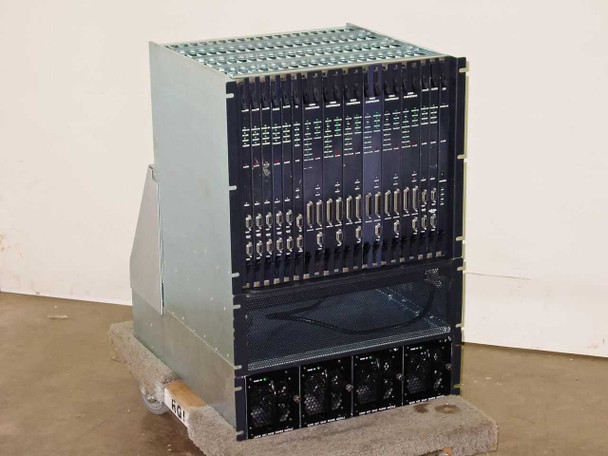

  • CLI Compression Labs Magnitude MPEG-2 DVB satcom multiplexer chassis — three-quarter front-left view showing full populated card cage on pallet
  • CLI Compression Labs Magnitude 410111-01 multiplexer system — rear three-quarter view showing rear card connectors, lower power supply bay, and AC power cable
  • CLI Compression Labs Magnitude chassis rating label showing model 410111-01, 120VAC 60Hz 12A, UL Listed 5T41, serial number 2173, Made in USA
  • Close-up of 30A 250V twist-lock power inlet connector on CLI Magnitude chassis lower panel
  • CLI Magnitude rear card cage panel showing rows of BNC, DB-25, and other connectors across all installed modules, numbered slot positions visible
  • CLI Magnitude front panel showing populated card slots — Audio and Video Compressor module faceplates with LED status indicators and DB-25 monitor connectors
  • CLI Magnitude lower chassis showing four Tectrol hot-swap 620W power supply modules installed, fan grilles visible
  • CLI Audio Encoder MPEG2 module PCB — P/N 410588, showing Motorola DSP56001AFC27 DSP and SGS-Thomson SF9701P ICs
  • General Instrument Remux Input Unit (RIU) PCB — P/N 410774-01, barcode label 410774-01*1303, Magnitude Compression System Inc. logo visible
  • CLI Video Encoder M1 PCB — P/N 410444-01, barcode label 410538-11*1198, video compression ICs visible
  • CLI Chassis Interface M1 module PCB — P/N 410002-01, barcode label 410002-01*N2029
  • Tectrol switching power supply label — P/N TO620/11-1054 Rev.E, 115/230VAC 60/50Hz 10A input, 620W Max output, CSA Level 6, Made in Canada
  • Comair Rotron Muffin-XL fan label — Model MX2A1, 115V, 0.20/0.18A, 50/60Hz, assembled in Mexico
  • Comair Rotron Muffin-XL fan assembly tray — 6 fans mounted in 1U rackmount tray, rack ear visible
  • CLI Magnitude front panel close-up showing Audio and Video Compressor module faceplates with green/red LED status indicators and RESET/TEST/MONITOR controls
$850.00
Was: $1,700.00
Current Stock: 2

Sold Out

Description

CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Satcom Multiplexer System

Rackmount MPEG-2 DVB satellite multiplexer and encoder system designed for video contribution and DVB uplink applications. Processes multiple video and audio streams for satellite broadcast distribution.

Specifications & What's Included

  • 6x CLI Video Encoder M1 modules (P/N 410444 / 410538)
  • 7x CLI Audio Encoder MPEG2 modules (P/N 410588)
  • General Instrument RIU Remux Input Unit (P/N 410774-01)
  • CLI Chassis Interface Module M1 (P/N 410002-01)
  • 4x hot-swap Tectrol power supplies, 620W max each
  • 6-fan Comair Rotron cooling assembly
  • Interfaces: BNC, DB-25, RJ45
  • Power: 120 VAC 60Hz, 12A (30A twist-lock connector)

Applications

DVB satellite multiplexer systems like this were used in broadcast contribution chains to encode and multiplex live video and audio feeds for transmission via satellite uplink. Typically found in regional broadcast centers, satellite news gathering operations, and teleport facilities processing multiple program feeds. Supports standard DVB and MPEG-2 workflows common in satellite broadcasting infrastructure from the late 1990s through mid-2000s.

Condition: Used
This CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Satcom Multiplexer system has been inspected and appears to be in good used condition. The chassis is fully populated with all modules as described: six CLI Video Encoder M1 cards (P/N 410444/410538), seven CLI Audio Encoder MPEG2 cards (P/N 410588), one General Instrument RIU Remux Input Unit (P/N 410774-01), one CLI Chassis I/F M1 (P/N 410002-01), four Tectrol hot-swap 620W power supplies (P/N TO620/11-1054), and the six-fan Comair Rotron Muffin-XL cooling assembly (P/N MX2A1). The unit shows normal wear consistent with rack-mounted broadcast equipment. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
CLI Compression Labs Inc.
Model:
Magnitude
MPN:
410111-01
Type:
MPEG-2 DVB Satellite Multiplexer / Encoder System
SKU:
39800
Form Factor:
Rackmount Chassis
Standard:
DVB, MPEG-2
Application:
Satellite Broadcasting, DVB Uplink, Video Contribution
Power Requirements:
120 VAC, 60 Hz, 12 A (chassis label)
Power Connector:
30A 250V Twist-Lock
Power Supply Model:
Tectrol TO620/11-1054 Rev.E
Power Supply Input:
115/230 VAC, 60/50 Hz, 10A
Power Supply Output:
620W Max., CSA Level 6
Number of Power Supplies:
4 (hot-swap)
Video Encoder Module:
CLI Video Encoder M1, P/N 410444 / 410538 (x6)
Audio Encoder Module:
CLI Audio Encoder MPEG2, P/N 410588 (x7)
Remux Input Unit:
General Instrument RIU Remux Input Unit, P/N 410774-01
Chassis Interface Module:
CLI Chassis I/F M1, P/N 410002-01
Fan Assembly:
Comair Rotron Muffin-XL MX2A1, 6-fan, 115V 50/60Hz
Audio Encoder Chipset:
Motorola DSP56001AFC27; SGS-Thomson SF9701P
Seller Notes:
Complete system: 6x video encoders, 7x audio encoders, RIU, chassis I/F, 4x hot-swap PSUs, 6-fan assembly
Country/Region of Manufacture:
USA
Interface Type:
BNC, DB-25, RJ45
Condition:
Used – Inspected
Condition Notes:
CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Multiplexer system inspected and in good used condition. Fully populated with 6 video encoders, 7 audio encoders, RIU, chassis I/F, 4 hot-swap PSUs, and 6-fan assembly. Normal rack wear.
