General Instrument

General Instrument 410691-02 Magnitude MPEG Multiplexer 1U Rack 120/230VAC Rev F

(No reviews yet) Write a Review
SKU:
39794
MPN:
410691-02
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
16.00 LBS
Shipping:
Calculated at Checkout

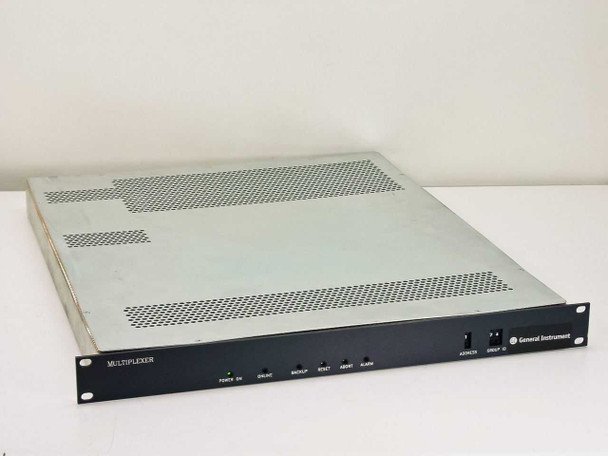

  • General Instrument 410691-02 Magnitude MPEG Multiplexer – front panel and full chassis view, 1U rackmount
  • General Instrument Magnitude Multiplexer – front panel LED indicators: Power On, Online, Backup, Reset, Abort, Alarm
  • General Instrument 410691-02 Multiplexer – front panel right side showing Address and Group ID rotary switches with GI logo
  • General Instrument Magnitude Multiplexer – front bezel close-up showing MULTIPLEXER label and rack mount ears
  • General Instrument 410691-02 Magnitude MPEG Multiplexer – rear panel overview showing application bus ports and I/O connectors

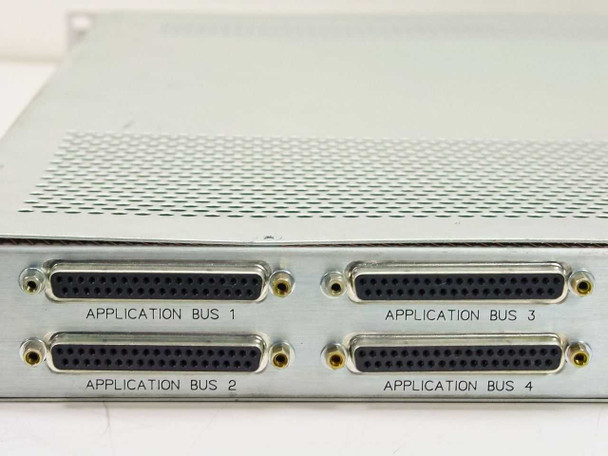

  • General Instrument Magnitude Multiplexer – rear panel close-up of four Application Bus DB25 ports (Application Bus 1–4)
  • General Instrument 410691-02 Multiplexer – rear panel right side showing System Sup In/Out, CAE In, Modem Out, Test, Monitor Out, Black Burst In, Alarm Relay, and IEC power inlet labeled 110V 60Hz
  • General Instrument 410691-02 Magnitude MPEG Multiplexer – bottom label showing part number 410691-02, serial number GI1295, Rev F, 120/230VAC 60Hz 1.5/0.75A, Made in USA, UL/CE/GS marks
  • General Instrument Magnitude Multiplexer – internal main PCB view showing multiple ICs and internal power supply
  • General Instrument Magnitude Multiplexer – internal PCB label: CLI MUX MPEG2, P/N 410594-01, Rev F
$75.00
Was: $150.00
Current Stock: 2

Sold Out

Description

General Instrument 410691-02 Magnitude MPEG Multiplexer 1U Rack 120/230VAC Rev F

The General Instrument 410691-02 is a 1U rackmount MPEG multiplexer from the Magnitude Compression Systems product line, manufactured by General Instrument (GI). It is designed to combine multiple MPEG-2 video and audio transport streams into a single composite output for distribution in broadcast and cable TV headend systems. The unit is revision F and carries UL, CE, GS (TÜV Rheinland), and EMV certifications.

Specifications & What's Included

  • Manufacturer: General Instrument / Magnitude Compression Systems Inc.
  • Part Number: 410691-02
  • Internal Board Part Number: 410594-01 (CLI MUX MPEG2)
  • Revision: Rev F
  • Signal Standard: MPEG-2 multiplexing
  • Form Factor: 1U rackmount
  • Power: 120/230VAC, 60Hz, 1.5A (120V) / 0.75A (230V)
  • Country of Manufacture: USA
  • Front Panel Indicators: Power On, Online, Backup, Reset, Abort, Alarm LEDs
  • Front Panel Controls: ADDRESS rotary switch (set to 1), GROUP ID rotary switch (set to 74)
  • Rear — Application Bus: 4x DB25 connectors labeled Application Bus 1, 2, 3, 4
  • Rear — I/O (DB9): System Sup In, System Sup Out, CAE In, Modem Out, Test, Monitor Out
  • Rear — Other: Black Burst In (BNC), Alarm Relay connector, IEC C14 AC inlet with rocker switch
  • Certifications: UL Listed 95AT, CE, GS (TÜV Rheinland), EMV/EMC
  • FCC: Part 15, Class A
  • Unit only — no additional accessories included

Applications

The General Instrument Magnitude series was a widely deployed platform in cable television and broadcast headend facilities during the mid-to-late 1990s. MPEG multiplexers in this family combine individual MPEG-2 encoded program streams — from encoders, satellite receivers, or storage servers — into a single MPEG-2 transport stream (MPTS) for downstream modulation and distribution over cable or broadcast RF infrastructure. The Application Bus ports on the rear connect directly to Magnitude encoders and other GI Magnitude system components, allowing centralized multiplexing within a GI headend rack. The black burst input provides house sync reference, and the modem and supervisory ports support remote monitoring and control typical of professional headend environments. This platform was a core part of GI's digital cable headend solution before the transition to IP-based transport and remains sought after for legacy cable system maintenance and spares.

Condition: Used
This General Instrument 410691-02 Magnitude MPEG Multiplexer has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use. The chassis shows light surface wear consistent with rack-mount service use; the front panel LEDs, address switch, and Group ID switch are intact and the labeling is clear and legible. The rear Application Bus ports, DB9 connectors, and IEC power inlet all appear undamaged. The bottom label is clean and fully readable, confirming part number 410691-02, Rev F, and Made in USA. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
