General Instrument

General Instrument Magnitude 00-410809-01 DVB Scrambling Unit 19" Rackmount

(No reviews yet) Write a Review
SKU:
39790
MPN:
00-410809-01
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
19.00 LBS
Shipping:
Calculated at Checkout

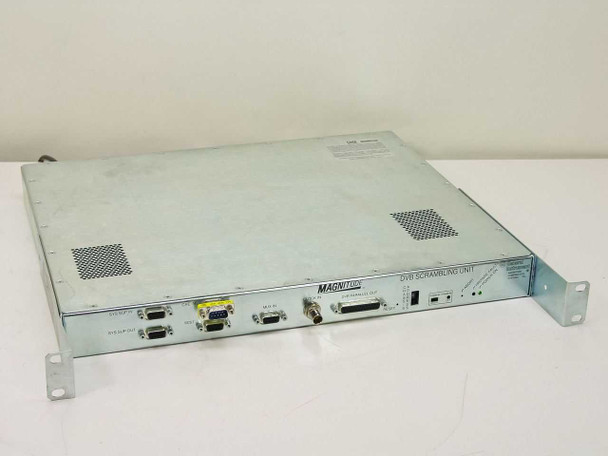

  • General Instrument Magnitude 00-410809-01 DVB Scrambling Unit – front panel view showing MAGNITUDE label, DB-9 ports, and rack ears
  • General Instrument Magnitude DVB Scrambling Unit – left side panel detail showing SYS SUP IN, SYS SUP OUT, CAE IN, TEST, and MUX IN DB-9 connectors and CLOCK IN BNC
  • General Instrument Magnitude DVB Scrambling Unit – front panel close-up showing DVB SCRAMBLING UNIT label, RESET button, chassis address switches, scrambling on/off switch, and indicator LEDs
  • General Instrument Magnitude 00-410809-01 DVB Scrambling Unit – rear panel showing IEC AC power inlet, ventilation, and General Instrument Magnitude Compression Systems label
  • General Instrument Magnitude 00-410809-01 DVB Scrambling Unit – rating plate label showing Assembly Number 00-410809-01, AC 100-240V 0.8/0.4A 50-60Hz, Made in U.S.A., Serial Number 1250
$100.00
Was: $200.00
Current Stock: 3

Sold Out

Description

General Instrument Magnitude 00-410809-01 DVB Scrambling Unit 19" Rackmount

DVB conditional access scrambling unit designed for satellite headend operations. Handles DVB parallel output and clock synchronization for encrypted content distribution.

Specifications & What's Included

  • Model: Magnitude 00-410809-01
  • Form Factor: 19" 1U Rackmount
  • Power: AC 100-240V, 0.8/0.4A, 50-60Hz
  • Connectors: DB-9, DB-25, BNC; SYS SUP IN/OUT, CAE IN, TEST, MUX IN, CLOCK IN, DVB Parallel Out
  • Standard: DVB (Digital Video Broadcasting)
  • Unit only; no accessories included

Applications

Used in broadcast satellite headend systems to apply conditional access scrambling to DVB streams. Integrates with multiplexing and modulation chains in DVB-S environments. Typical deployment involves encryption of premium or pay-per-view content before satellite transmission. Compatible with General Instrument Magnitude Compression Systems product line and standard DVB infrastructure.

Condition: Used
This General Instrument Magnitude 00-410809-01 DVB Scrambling Unit has been inspected and is in good used condition. It was pulled from a working satellite headend environment where it was actively in use. The chassis shows light surface wear consistent with normal rack service life. All visible connectors and front-panel controls appear intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
General Instrument
Model:
Magnitude 00-410809-01
MPN:
00-410809-01
Type:
DVB Scrambling Unit
SKU:
39790
Product Line:
Magnitude Compression Systems
Form Factor:
19" 1U Rackmount
Power Requirements:
AC 100-240V, 0.8/0.4A, 50-60Hz
Country/Region of Manufacture:
United States
Interface Type:
DB-9, DB-25, BNC
Ports / Connectors:
SYS SUP IN, SYS SUP OUT, CAE IN, TEST, MUX IN, CLOCK IN, DVB Parallel Out
Application:
DVB conditional access scrambling, satellite headend
Standards:
DVB (Digital Video Broadcasting)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; pulled from a working satellite headend environment.
Condition Notes:
General Instrument Magnitude 00-410809-01 DVB Scrambling Unit. Inspected, in good used condition. Pulled from a working headend environment where it was in active use. Light surface wear. Connectors and controls intact.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
