Compression Labs, Inc

CLI Compression Labs Magnitude 410802-01 Multiplexer Modulator Interface DVB

(No reviews yet) Write a Review
SKU:
39417
MPN:
410802-01
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout

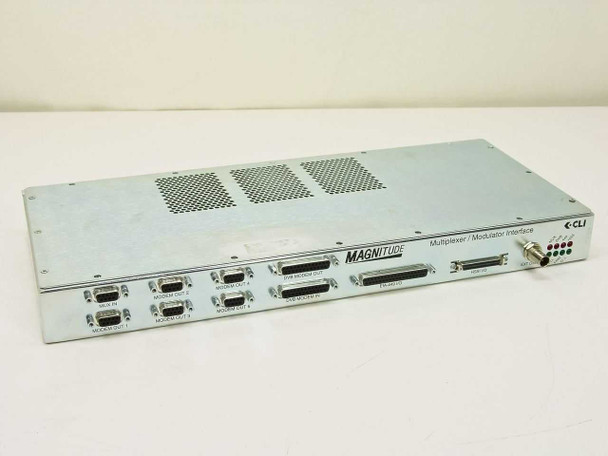

  • CLI Compression Labs Magnitude 410802-01 Multiplexer Modulator Interface – front panel angled view showing DB9 ports and product label
  • CLI Magnitude 410802-01 Multiplexer Interface – rear panel showing IEC AC inlet, power switch, and ventilation
  • CLI Magnitude 410802-01 – engraved chassis number 410785-01 IA visible on top cover
  • CLI Magnitude 410802-01 – front panel port detail: MUX In and Modem Out 1–5 DB9 connectors labeled
  • CLI Magnitude 410802-01 – front panel section showing DVB Modem Out, DVB Modem In (DB25), and EIA-449 I/O connectors with Magnitude branding
  • CLI Magnitude 410802-01 – right section of front panel showing HSSI I/O, EXT OSC BNC, CLI logo, and LED status indicator array (MUX, DVB, 449, HSS, CLK, PLL, FRM, O.L.)
  • CLI Magnitude 410802-01 – barcode label on chassis side reading 410B02-01 M30843
  • CLI Compression Labs Magnitude – rear chassis label reading 'Manufactured in U.S.A. by CLI Compression Labs, Inc.'
  • CLI Magnitude 410802-01 – rear power entry detail: IEC inlet, rocker switch, and AC INPUT spec label (90–250 VAC, 47–63 Hz, 2A-110V / 1A-220V)
$95.00
Was: $200.00
Current Stock: 2

Sold Out

Description

CLI Compression Labs Magnitude 410802-01 Multiplexer Modulator Interface DVB HSSI

Rackmount multiplexer and modulator interface unit designed for video conferencing and satellite uplink applications. Combines multiple input signals and routes them through DVB, HSSI, and EIA-449 interfaces.

Specifications & What's Included

  • Model: 410802-01 (Secondary: 410785-01)
  • Form Factor: 1U rackmount
  • Power: 90–250 VAC, 47–63 Hz, 2A@110V / 1A@220V
  • Interfaces: HSSI (DB50), DVB (DB25), EIA-449 (DB37), HSSI I/O, EXT OSC (BNC)
  • Ports: 1x MUX In, 5x Modem Out (DB9), DVB Modem In/Out, EIA-449 I/O
  • Status indicators: LED array for MUX, DVB, 449, HSS, CLK, PLL, FRM, O.L.
  • Unit only; no accessories included

Applications

This interface unit was used in broadcast and telecom infrastructure for satellite video conferencing uplinks and multiplexed signal distribution. The DVB and HSSI interfaces supported compatibility with legacy video compression and transmission systems from the 1990s-2000s. Typically deployed in teleport facilities and broadcast centers requiring high-speed serial data handling and modulation control across multiple output channels.

Condition: Used
This CLI Compression Labs Magnitude 410802-01 Multiplexer/Modulator Interface has been inspected and appears to be in good used condition. The chassis is clean overall with light surface scuffs consistent with normal handling. The front panel DB9 and DB25 connectors look intact, and the LED indicator array is undamaged. The rear IEC power inlet and rocker switch are in good shape. No cracked plastic, bent connector pins, or significant damage was observed. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Compression Labs Inc (CLI)
Model:
410802-01
MPN:
410802-01
Secondary Model:
410785-01
Type:
Multiplexer / Modulator Interface
Product Line:
Magnitude
SKU:
39417
Condition:
Used – Inspected
Form Factor:
Rackmount, 1U
Power Requirements:
90–250 VAC, 47–63 Hz, 2A@110V / 1A@220V
Interface Type:
HSSI, EIA-449, DVB, DB9
Ports / Interfaces:
MUX In, Modem Out 1–5, DVB Modem Out, DVB Modem In, HSSI I/O, EIA-449 I/O, EXT OSC
MUX Inputs:
1x MUX In (DB9)
Modem Outputs:
5x Modem Out (DB9): Modem Out 1–5
DVB Interfaces:
DVB Modem Out (DB25), DVB Modem In (DB25)
High-Speed Serial Interface:
HSSI I/O (DB50-style)
Parallel Data Interface:
EIA-449 I/O (DB37)
External Clock:
EXT OSC (BNC)
Status Indicators:
LED array: MUX, DVB, 449, HSS, CLK, PLL, FRM, O.L.
Application:
Video conferencing satellite uplink multiplexing
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; no accessories included. Inspected, good condition.
Condition Notes:
CLI Compression Labs Magnitude 410802-01 Multiplexer/Modulator Interface. Inspected and in good used condition. Chassis clean with light handling scuffs; connectors and LED indicators intact. No significant damage observed.
