Electronic Test
Electronic test is a category focused on evaluating the functionality and performance of electronic devices. This includes testing methods such as automated testing, manual testing, and simulation to ensure that electronic components meet quality standards and specifications. Electronic test equipment like oscilloscopes, multimeters, and signal generators are commonly used to measure and analyze electronic signals. This category covers a wide range of industries including telecommunications, automotive, aerospace, and consumer electronics. Whether testing PCBs, integrated circuits, or electronic systems, Electronic Test plays a crucial role in verifying the proper operation and reliability of electronic devices.
-

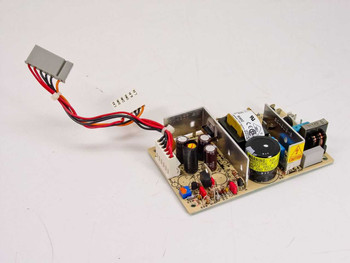

Computer Products NFS40-7912 12VDC 4A Switching Power Supply 100-230VAC Open
Computer Products
$40.00Was: $80.00Computer Products NFS40-7912 12VDC 4A Switching Power Supply 100-230VAC Open FrameOpen-frame switching power supply that converts 100-230VAC input to regulated 12VDC at 4A output. Board-level unit...39953- SKU:
- 39953
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Computer Products
- Model:
- NFS40-7912
- MPN:
- NFS40-7912
- Secondary Model:
- 720132-34
- SKU:
- 39953
- Type:
- Open-Frame Switching Power Supply
- Output Voltage:
- 12V DC
- Output Current:
- 4A
- Output Power:
- 48W
- Input Voltage:
- 100-230V AC
- Input Current:
- 1.3-0.65A
- Input Frequency:
- 50/60Hz
- Form Factor:
- Open Frame / Board-Level (No Enclosure)
- Power Requirements:
- 100-230VAC, 1.3-0.65A, 50/60Hz
- Output Connector:
- Multi-pin wire harness
- Revision:
- Rev Y
- Compatible With:
- Pacesetter APSu 3251 Portable Thermal Printer
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Open-frame board only, no enclosure. Tested — outputs 12VDC confirmed.
- Country/Region of Manufacture:
- China
- Certifications:
- UL Listed, CE, CSA
- Condition Notes:
- Computer Products NFS40-7912 switching power supply tested good — confirmed 12VDC output on our multimeter. Good working order. Open-frame board only, no enclosure. Normal wear. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$40.00Was: $80.00 -
Varian VZC6961D7A1 C-Band TWTA 5.9-6.4 GHz 50dB Gain Satcom Upconverter
Varian
$1,500.00Was: $3,000.00Varian VZC6961D7A1 C-Band TWTA 5.9-6.4 GHz 50dB Gain Satcom Upconverter TransmitterC-Band traveling wave tube amplifier (TWTA) for satellite uplink transmission. Provides 50 dB gain across 5.9–6.4...39941- SKU:
- 39941
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 45.00 LBS
- Brand:
- Varian
- Model:
- VZC6961D7A1
- MPN:
- VZC6961D7A1
- Type:
- C-Band Traveling Wave Tube Amplifier (TWTA)
- SKU:
- 39941
- Frequency Range:
- 5.9 – 6.4 GHz
- Frequency Band:
- C-Band
- Gain:
- 50 dB
- RF Output Interface:
- Waveguide (WR-137 flange)
- RF Input Connector:
- Type N (front panel)
- RF Sample Connector:
- Type N (front panel)
- Control Interface:
- Local/Remote switch; 25-pin D-Sub connector
- TWT Type:
- VTC-6161H4
- Heater Voltage (Ef):
- 6.3 V
- Collector Voltage (Eb):
- 2400 Vdc
- Helix-GND Voltage (Ew):
- 4800 Vdc
- Upconverter Module:
- Western Microwave ICW-9070
- TWT P/N:
- 113798-03
- Code Ident:
- 59782
- Form Factor:
- Rackmount, 2U
- Country/Region of Manufacture:
- United States
- Application:
- Satellite uplink, C-band earth station transmitter
- Front Panel Indicators:
- Power, Filtd, Stdby, HV ON, Fault; Temp, VSWR, Int, Ext, Helix
- Front Panel Controls:
- POWER switch, HV ON/OFF/RESET switch, IND RESET button, RF Gain Adj knob, Helix Current meter
- Condition:
- Used – Inspected and in good condition
- Seller Notes:
- Unit only; no cables or accessories observed. Western Microwave ICW-9070 upconverter installed internally.
- Condition Notes:
- Varian VZC6961D7A1 C-Band TWTA inspected and in good used condition. Front panel controls, indicators, and meters intact. Waveguide output shows minor surface wear. Interior TWT and upconverter assembly present and complete.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,500.00Was: $3,000.00 -
Cylix DB25-PARLL Isolated Loop DB25 Data Line Surge Protector All Pins
Cylix
$24.80Was: $50.00Cylix DB25-PARLL Isolated Loop DB25 Data Line Surge Protector All PinsInline surge and transient protection device for DB25 parallel and RS-232 serial data connections. Protects all 25 pins using...39868- SKU:
- 39868
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Cylix
- Model:
- DB25-PARLL
- MPN:
- DB25-PARLL
- Type:
- Isolated Loop Data Line Surge Protector
- SKU:
- 39868
- Connector Type:
- DB25 (25-Pin D-Sub)
- Pin Protection:
- All 25 Pins
- Protection Type:
- Isolated Loop / Surge & Transient
- Interface:
- DB25 Parallel / RS-232 Serial
- Ground Connection:
- Earth Ground Wire (Green, Spade Lug)
- UL Listed:
- Yes
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Includes ground wire with spade lug connector. Unit only — no additional accessories.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Inline / Pass-Through
- Condition Notes:
- Cylix DB25-PARLL Isolated Loop Surge Protector inspected and in good condition. Housing intact, DB25 connectors clean, ground wire present. Minor normal surface wear. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$24.80Was: $50.00 -
APC PSP25 ProtectNet Serial Parallel Port Surge Protector DB25 All 25 Lines
APC
$11.90Was: $25.00APC PSP25 ProtectNet Serial Parallel Port Surge Protector DB25 All 25 LinesThe APC PSP25 ProtectNet is an inline isolated loop circuit protector designed to safeguard serial and parallel port data...39867- SKU:
- 39867
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- APC
- Model:
- PSP25
- MPN:
- PSP25
- Type:
- Serial/Parallel Port Surge Protector
- SKU:
- 39867
- Connector Type:
- DB25 (25-pin) Male to Female
- Number of Lines Protected:
- 25
- Protection Type:
- Isolated Loop Circuit Protection
- Compatible With:
- Serial and Parallel port devices, DB25 interfaces
- Certifications:
- UL Listed (13KA)
- Country/Region of Manufacture:
- China
- Form Factor:
- Inline Adapter
- Seller Notes:
- Unit only — no packaging or accessories.
- Condition:
- Used – Inspected
- Condition Notes:
- APC PSP25 ProtectNet Serial/Parallel Port Surge Protector. Inspected and in good used condition. Housing shows minor surface scuffing; DB25 connectors clean and intact, retention screws present.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$11.90Was: $25.00 -
Varian VZC-6965F7 700W C-Band TWTA & Power Supply 01008290-00 RF Assy For Parts
Varian
$750.00Was: $1,500.00Varian VZC-6965F7 700W C-Band TWTA & Power Supply 01008290-00 RF Assy For PartsThis is a matched, serialized two-unit set consisting of a Varian VZC-6965F7 700-watt C-Band traveling wave tube...39838- SKU:
- 39838
- Availability:
- This item requires freight shipping. Please contact us for a shipping quote or to arrange local pickup.
- Weight:
- 305.00 LBS
- Brand:
- Varian
- Model:
- VZC-6965F7
- Secondary Model:
- 01008290-00
- MPN:
- VZC-6965F7
- RF Assembly P/N:
- 01007747-03
- Power Supply Model:
- 01008290-00
- RF Assembly Model:
- VZC6965F7-7SR
- SKU:
- 39838
- Type:
- C-Band Traveling Wave Tube Amplifier (TWTA)
- Frequency Band:
- C-Band
- Output Power:
- 700 W
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Matched set: TWTA amplifier + power supply. Tube tested bad, no RF output. AS-IS.
- Filament Hours:
- 32082 hours (per front-panel meter)
- Power Input:
- 120 VAC (per rear panel label)
- Connectors - RF:
- RF IN, RF OUT (waveguide flange on rear)
- Connectors - Control:
- JSA, JSB (D-sub), J2, J3, J4, J5 (circular)
- Cooling:
- Forced air — dual large axial fans
- Form Factor:
- Rackmount / Freestanding Chassis, 2-unit stacked set
- Country/Region of Manufacture:
- United States
- Manufacturer:
- Varian Microwave Equipment Products, Santa Clara, CA
- Application:
- Satellite uplink, C-Band RF amplification
- Includes:
- TWTA amplifier unit + matched TWTA power supply
- Shipping:
- Freight shipping required — contact seller for quote
- Condition Notes:
- Varian VZC-6965F7 700W C-Band TWTA — TWT tube tested bad, no RF output. Sold AS-IS for parts or repair. Matched set with power supply 01008290-00. Freight shipping required. Contact us for quote.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$750.00Was: $1,500.00 -
Sony ANL-42 1-689-131-11 PCB Card 4A 125V Internal Circuit Board Module
Sony
$20.00Was: $40.00Sony ANL-42 1-689-131-11 PCB Card 4A 125V Internal Circuit Board ModuleInternal circuit board card designed for Sony industrial and telecom equipment. This PCB module handles power distribution and...39827- SKU:
- 39827
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Sony
- Model:
- ANL-42
- MPN:
- 1-689-131-11
- Type:
- Internal PCB Circuit Board Card
- SKU:
- 39827
- Voltage Rating:
- 125V
- Current Rating:
- 4A
- Country/Region of Manufacture:
- Japan
- Form Factor:
- Card / Module
- Certifications:
- UL (mark visible on board)
- Condition:
- Used – Inspected and Pulled from Working Environment
- Seller Notes:
- Board only; no enclosure or cables included.
- Condition Notes:
- Sony ANL-42 1-689-131-11 PCB card inspected and in good used condition. No visible damage, burnt components, or broken traces. Pulled from equipment. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$20.00Was: $40.00 -
CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Satcom Multiplexer System
CLI
$850.00Was: $1,700.00CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Satcom Multiplexer SystemRackmount MPEG-2 DVB satellite multiplexer and encoder system designed for video contribution and DVB uplink applications...39800- SKU:
- 39800
- Availability:
- Usually ships within 3-5 business days due to size and weight.
- Weight:
- 265.00 LBS
- Brand:
- CLI Compression Labs Inc.
- Model:
- Magnitude
- MPN:
- 410111-01
- Type:
- MPEG-2 DVB Satellite Multiplexer / Encoder System
- SKU:
- 39800
- Form Factor:
- Rackmount Chassis
- Standard:
- DVB, MPEG-2
- Application:
- Satellite Broadcasting, DVB Uplink, Video Contribution
- Power Requirements:
- 120 VAC, 60 Hz, 12 A (chassis label)
- Power Connector:
- 30A 250V Twist-Lock
- Power Supply Model:
- Tectrol TO620/11-1054 Rev.E
- Power Supply Input:
- 115/230 VAC, 60/50 Hz, 10A
- Power Supply Output:
- 620W Max., CSA Level 6
- Number of Power Supplies:
- 4 (hot-swap)
- Video Encoder Module:
- CLI Video Encoder M1, P/N 410444 / 410538 (x6)
- Audio Encoder Module:
- CLI Audio Encoder MPEG2, P/N 410588 (x7)
- Remux Input Unit:
- General Instrument RIU Remux Input Unit, P/N 410774-01
- Chassis Interface Module:
- CLI Chassis I/F M1, P/N 410002-01
- Fan Assembly:
- Comair Rotron Muffin-XL MX2A1, 6-fan, 115V 50/60Hz
- Audio Encoder Chipset:
- Motorola DSP56001AFC27; SGS-Thomson SF9701P
- Seller Notes:
- Complete system: 6x video encoders, 7x audio encoders, RIU, chassis I/F, 4x hot-swap PSUs, 6-fan assembly
- Country/Region of Manufacture:
- USA
- Interface Type:
- BNC, DB-25, RJ45
- Condition:
- Used – Inspected
- Condition Notes:
- CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Multiplexer system inspected and in good used condition. Fully populated with 6 video encoders, 7 audio encoders, RIU, chassis I/F, 4 hot-swap PSUs, and 6-fan assembly. Normal rack wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$850.00Was: $1,700.00 -
General Instrument Magnitude MMI+ 410802-03 Multiplexer Modulator Interface 1U
General Instrument
$125.00Was: $250.00General Instrument Magnitude MMI+ 410802-03 Multiplexer Modulator Interface 1UThe General Instrument Magnitude MMI+ (part number 410802-03) is a 1U rackmount Multiplexer/Modulator Interface designed...39795- SKU:
- 39795
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 9.50 LBS
- Brand:
- General Instrument
- Model:
- MMI+
- MPN:
- 410802-03
- Secondary Model:
- Magnitude MMI Plus
- Type:
- Multiplexer / Modulator Interface
- SKU:
- 39795
- Condition:
- Used – Inspected
- Form Factor:
- 1U Rackmount
- Power Requirements:
- AC 100-240V, 60-50 Hz, 0.5-0.3 A
- Fuse Rating:
- 1A, 250VAC
- Interface Type:
- HSSI I/O, DVB Modem, EXT Sync, Alarm Cable
- Number of Ports:
- 8 rear ports: A/B MUX IN, Modem OUT 1/3/4/5, DVB Modem OUT/IN
- Connector Types:
- DB-15, DB-25, BNC (EXT sync), IEC AC inlet
- Front Panel Indicators:
- MUX, DVB, SS, CLK, PLL, FRM, OLL LEDs
- DIP Switch Control:
- Internal mode, frequency, packet length, loopback selectors
- Compatible With:
- General Instrument Magnitude headend systems
- Manufacturer:
- Magnitude Compression Systems, Inc.
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Unit only; no accessories included. Inspected and in good condition.
- Condition Notes:
- General Instrument Magnitude MMI+ 410802-03 Multiplexer/Modulator Interface. Inspected and in good used condition. Chassis is clean with light surface wear. All connectors appear intact. No accessories included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$125.00Was: $250.00 -
General Instrument Magnitude 00-410809-01 DVB Scrambling Unit 19" Rackmount
General Instrument
$100.00Was: $200.00General Instrument Magnitude 00-410809-01 DVB Scrambling Unit 19" RackmountDVB conditional access scrambling unit designed for satellite headend operations. Handles DVB parallel output and clock...39790- SKU:
- 39790
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 19.00 LBS
- Brand:
- General Instrument
- Model:
- Magnitude 00-410809-01
- MPN:
- 00-410809-01
- Type:
- DVB Scrambling Unit
- SKU:
- 39790
- Product Line:
- Magnitude Compression Systems
- Form Factor:
- 19" 1U Rackmount
- Power Requirements:
- AC 100-240V, 0.8/0.4A, 50-60Hz
- Country/Region of Manufacture:
- United States
- Interface Type:
- DB-9, DB-25, BNC
- Ports / Connectors:
- SYS SUP IN, SYS SUP OUT, CAE IN, TEST, MUX IN, CLOCK IN, DVB Parallel Out
- Application:
- DVB conditional access scrambling, satellite headend
- Standards:
- DVB (Digital Video Broadcasting)
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; pulled from a working satellite headend environment.
- Condition Notes:
- General Instrument Magnitude 00-410809-01 DVB Scrambling Unit. Inspected, in good used condition. Pulled from a working headend environment where it was in active use. Light surface wear. Connectors and controls intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$100.00Was: $200.00 -
HP 3712A 3793B IF/BB Receiver Diff Phase Detector Microwave Link Analyzer
HP
$173.00Was: $350.00HP 3712A 3793B IF/BB Receiver Diff Phase Detector Microwave Link AnalyzerThe HP 3712A IF/BB Receiver and HP 3793B Differential Phase Detector together form the receiver portion of the Hewlett-Packard...39762- SKU:
- 39762
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 53.00 LBS
- Brand:
- HP
- Model:
- 3712A / 3793B
- MPN:
- 3712A
- Secondary Model:
- 3793B
- Type:
- IF/BB Receiver and Differential Phase Detector
- SKU:
- 39762
- Condition:
- Used – Inspected
- Seller Notes:
- Includes HP 3712A IF/BB Receiver and HP 3793B Diff Phase Detector modules in combined chassis
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop / Rackmount Chassis
- Power Requirements:
- 220/240-1AT or 100/120-3AT, 48-66 Hz, 160 VA max
- Application / Use Case:
- Microwave link analysis, Satcom, IF/BB signal testing
- Rear Connectors:
- X-Y Recorder (5-pin DIN), D-Sub Normaliser, BNC ports
- Subsystem 1:
- HP 3712A IF/BB Receiver
- Subsystem 2:
- HP 3793B Differential Phase Detector
- Front Panel Display:
- CRT oscilloscope display with graticule
- Frequency Display:
- Digital LED frequency readout (visible on front panel)
- Measurement Type:
- IF/Baseband signal analysis, differential phase detection
- Compatible With:
- HP Microwave Link Analyzer system, Satcom test setups
- Phase Functions:
- Phase Lock/Level, BB Frequency, Diff Phase Calibration
- Power Measurement:
- Baseband power meter on front panel (analog meter)
- Condition Notes:
- HP 3712A / 3793B IF/BB Receiver and Diff Phase Detector Microwave Link Analyzer. Inspected and in good used condition. Normal lab wear; CRT, controls, and rear connectors appear intact. Property ID tag on front.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$173.00Was: $350.00 -
Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set Option 03 GPIB
Tau-Tron
$200.00Was: $400.00Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set Option 03 GPIBBenchtop test instrument for DS1, DS1C, and DS2 digital transmission line testing. Measures bit error rate, bipolar violations,...39757- SKU:
- 39757
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 25.00 LBS
- Brand:
- Tau-Tron
- Model:
- S5104
- MPN:
- S5104
- Type:
- Digital Transmission Test Set
- SKU:
- 39757
- Option:
- Option 03
- Serial Number (Internal):
- See internal fields
- Condition:
- Used – Powers On, Untested Further
- Seller Notes:
- Unit powers on. Includes GPIB and RS-232 interfaces.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop
- Manufacturer:
- Tau-Tron (A Unit of General Signal)
- Signal Standards Supported:
- DS1, DS1C, DS2
- Interface Type:
- DS1, DS1C, DS2, NRZ
- Remote Interface:
- GPIB (IEEE-488), RS-232
- Connector Types:
- BNC, DB-25 (RS-232), GPIB
- Transmitter Outputs:
- DS1/1C/2, DS1 Bipolar, NRZ Data, NRZ Clock
- Receiver Inputs:
- DS1/1C/2, NRZ Data, NRZ Clock
- Monitor Outputs:
- PR Sync, M Sync, Bit Errors, BPV Errors
- Error Inject:
- Freq, BIT, ERR Free, BPV, AMPL, INT, EXT
- Measurements:
- BIT, BPV, Jitter, Frame, Status, Recall
- Measurement Time Modes:
- Untimed, Interval, Elapsed, Single, Repeat, Stop, Set, Time, Date
- Receiver Input Patterns:
- PRBS, UNFRAME, Frame, Fixed, Live, CH1-CH4
- Programmable Fixed Word:
- Yes — front-panel DIP switch programmable
- X Bit Inject/Out:
- DS1C/DS2 X Bit Inject and X Bit Out
- Additional Inputs:
- Ext Clk In, Ext Err, Jitter In/Out
- Display Type:
- LED numeric displays (Transmitter and Receiver)
- Status Indicators:
- Loss, Detect, Signal LEDs
- Application:
- DS1/DS1C/DS2 BER testing, jitter measurement, error injection
- Condition Notes:
- Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set with Option 03. Inspected, good cosmetic condition. Powers on — Transmitter and Receiver displays active. Not tested further. GPIB and RS-232 ports intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$200.00Was: $400.00 -
Scientific Atlanta D-9110 PowerVu Digital Video Encoder MPEG2 w/ 5 Modules
Scientific Atlanta
$500.00Was: $1,000.00Scientific Atlanta D-9110 PowerVu Digital Video Encoder MPEG2 w/ 5 ModulesThe Scientific Atlanta D-9110 is a modular MPEG-2 digital video encoder chassis from the PowerVu product line, designed for...39701- SKU:
- 39701
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 39.00 LBS
- Brand:
- Scientific-Atlanta
- Model:
- D-9110
- MPN:
- D-9110
- Type:
- Digital Video Encoder
- SKU:
- 39701
- Product Line:
- PowerVu
- Encoding Standard:
- MPEG-2
- Form Factor:
- Rack Mount
- Number of Module Slots:
- 5
- Included Module 1:
- D9787 MPEG2 Video Encoder
- Included Module 2:
- D9786 Advanced Video Input
- Included Module 3:
- D9785 VBI Processor
- Included Module 4:
- D9782 Audio Encoder
- Included Module 5:
- D9711 MSYNC Control
- Power Supply Model:
- D9709 (x2, redundant)
- Power Requirements:
- 100-120V 1A / 230-200V 2A, 50-60Hz, 480W
- Fuse Rating:
- T 6.3A 250V
- Application:
- Satellite broadcast video encoding
- Connector Types:
- BNC, DB9, RJ45, XLR, terminal block
- Alarm Indicators:
- Power On, Major Alarm, Minor Alarm, Supply 1 Fail, Supply 2 Fail, Alarm Cut Off
- Certifications:
- UL Listed (12Y7), CE
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Includes 5 installed modules: D9787, D9786, D9785, D9782, D9711; two D9709 power supplies installed
- Condition Notes:
- Scientific Atlanta D-9110 PowerVu Digital Video Encoder inspected and in good condition. All 5 modules (D9787, D9786, D9785, D9782, D9711) and both D9709 power supplies installed. Normal cosmetic wear from prior rack use.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$500.00Was: $1,000.00 -
Scientific Atlanta D9261 PowerVu SWIF Distribution Amplifier 1U Rackmount
Scientific Atlanta
$145.00Was: $300.00Scientific Atlanta D9261 PowerVu SWIF Distribution Amplifier 1U Rackmount 100-240VThe Scientific Atlanta D9261 is a 1U rackmount SWIF (Satellite Wide-band Intermediate Frequency) distribution...39699- SKU:
- 39699
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 13.00 LBS
- Brand:
- Scientific-Atlanta
- Model:
- D9261
- MPN:
- D9261
- Type:
- SWIF Distribution Amplifier
- SKU:
- 39699
- Product Line:
- PowerVu
- Power Requirements:
- 100-240V AC, 47-63 Hz, 1.0/0.5A auto-ranging
- Fuse Rating:
- T 2A 250V
- Form Factor:
- 1U Rackmount
- Front Panel Indicators:
- Power, Alarm, Mode A, Mode B, PLL Lock A, PLL Lock B
- Alarm Output:
- Rear terminal block with NC, C, NO contacts
- Control Modes:
- Local (LOC), Remote (REM), External (EXT)
- Connector Type:
- F-Type (multiple rear outputs)
- Country/Region of Manufacture:
- Canada
- Seller Notes:
- Unit only; no accessories included. Rack ears installed.
- Compatible With:
- Scientific Atlanta PowerVu headend systems
- Application:
- Satellite headend signal distribution, CATV, SMATV
- Condition Notes:
- Scientific Atlanta D9261 SWIF Distribution Amplifier inspected and in good used condition. Light surface wear on chassis; front panel indicators and F-type connectors intact. Rack ears installed. Ready for deployment.
- Dual-Path Operation:
- Mode A / Mode B with PLL lock monitoring
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$145.00Was: $300.00 -
Scientific Atlanta D-9110 PowerVu MPEG2 Digital Video Encoder D9787 D9782 D9711
Digital Atlanta
$325.00Was: $650.00Scientific Atlanta D-9110 PowerVu MPEG2 Digital Video Encoder D9787 D9782 D97115U rackmount MPEG-2 digital video encoder used in broadcast, satellite, and cable TV headend applications. Encodes video...39638- SKU:
- 39638
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 36.00 LBS
- Brand:
- Scientific-Atlanta
- Model:
- D-9110
- MPN:
- D-9110
- Type:
- MPEG2 Digital Video Encoder
- SKU:
- 39638
- Product Line:
- PowerVu
- Video Encoder Module:
- Model D9787 (MPEG2 Video Encoder)
- Audio Encoder Module:
- Model D9782 (Audio Encoder)
- MSync Control Module:
- Model D9711 (MSync Control)
- Power Supply Module:
- Model D9709
- Encoding Standard:
- MPEG-2
- Application:
- Broadcast / Satellite / Cable TV Headend
- Form Factor:
- Rackmount, 5U Chassis
- Power Requirements:
- 100-120V 4A / 220-240V 3A, 50-60Hz
- Fuse Rating:
- T 6.3A 125V / T 6.3A 250V
- Front Panel Indicators:
- Power On, Major Alarm, Minor Alarm, Supply 1 Fail, Supply 2 Fail, Alarm Cut Off
- Rear Connectors:
- BNC video, XLR/RCA audio, RJ45, DB9, IEC power inlets
- Seller Notes:
- Includes D9787 video, D9782 audio, D9711 MSync modules and D9709 power supply
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Inspected and in Good Condition
- Condition Notes:
- Scientific Atlanta D-9110 PowerVu MPEG2 Digital Video Encoder inspected and in good condition. D9787, D9782, and D9711 modules all installed. Normal wear. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$325.00Was: $650.00 -
Scientific Atlanta D-9110 PowerVu Digital Video Encoder D9787 D9786 D9782 D9711
Scientific Atlanta
$300.00Was: $600.00Scientific Atlanta D-9110 PowerVu Digital Video Encoder D9787 D9786 D9782 D9711Rackmount digital video encoder for satellite television headend applications. Encodes MPEG-2 video streams and manages...39635- SKU:
- 39635
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 50.00 LBS
- Brand:
- Scientific-Atlanta
- Model:
- D-9110
- MPN:
- D-9110
- Type:
- Digital Video Encoder
- SKU:
- 39635
- Product Line:
- PowerVu
- Included Module 1:
- D9787 MPEG-2 Video Encoder
- Included Module 2:
- D9786 Advanced Video Input
- Included Module 3:
- D9782 Audio Encoder
- Included Module 4:
- D9711 MSYNC Control
- Power Supply Model:
- D9709 (dual redundant power supplies)
- Video Standard:
- MPEG-2
- Form Factor:
- Rackmount
- Power Requirements:
- 100-120V / 220-240V AC, 50-60Hz
- Current Rating:
- 6.3A @ 250V
- Certifications:
- UL Listed Professional Video Equipment, CE
- Seller Notes:
- Includes D9787, D9786, D9782, D9711 plug-in modules and D9709 power supply
- Application:
- Satellite television headend encoding
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Inspected, Not Bench-Tested
- Condition Notes:
- Scientific Atlanta D-9110 PowerVu Digital Video Encoder. Inspected, in good physical condition. Not powered on or tested at our facility. All four plug-in modules (D9787, D9786, D9782, D9711) and D9709 power supply present.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$300.00Was: $600.00 -
Scientific Atlanta D9223 PowerVu C/Ku Band Commercial Digital Satellite Receiver
Scientific Atlanta
$119.00Was: $250.00Scientific Atlanta D9223 PowerVu C/Ku Band Commercial Digital Satellite Receiver 2UThe Scientific Atlanta D9223 is a 2U rackmount commercial digital satellite receiver from Scientific Atlanta's...39587- SKU:
- 39587
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 17.00 LBS
- Brand:
- Scientific-Atlanta
- Model:
- D9223
- MPN:
- D9223 V22THDSXXXX 803-200
- Secondary Model:
- 803-200
- Type:
- Commercial Digital Satellite Receiver
- Product Line:
- PowerVu
- SKU:
- 39587
- Seller Notes:
- Unit only, no accessories. Untested, sold as-is for parts or repair.
- Country/Region of Manufacture:
- Canada
- Form Factor:
- 2U Rackmount
- Power Requirements:
- 100-240V AC, 50-60Hz, 1.4A Max
- LNB Power Output:
- 13V/19V switchable, 450mA Max
- RF Input:
- BNC (RF IN), SWIF IN
- Video Output:
- BNC Video, BNC Monitor
- Audio Output:
- Balanced Audio 1 & 2 (stereo), RCA Ch1/Ch2
- Data Interface:
- DB-9 serial (High Speed Data), AGC output
- Relay Output:
- RC8/AUTH relay contacts (terminal block)
- Expansion Port:
- Rear expansion connector
- Satellite Band:
- C-band and Ku-band selectable
- FEC Modes:
- Selectable via front panel
- Authorization ID:
- UA: 1789191-2
- Cat. No.:
- D9223 V22THDSXXXX 803-200
- Certifications:
- CSA NRTL/C LR 63109
- Compatible With:
- PowerVu satellite networks, C/Ku-band LNBF
- Application:
- Commercial broadcast satellite reception, cable headend
- Condition Notes:
- Scientific Atlanta D9223 PowerVu commercial digital satellite receiver. Sold as-is for parts or repair. Has not been tested and is not guaranteed functional. Unit only; no accessories included.
- Front Panel Controls:
- Keypad for channel/parameter selection, numeric display
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$119.00Was: $250.00 -
Matrix Systems 12924/13021 Programmable Quad 5x10x2 Wire Switching System 4204
Matrix Systems Corp
$475.00Was: $950.00Matrix Systems 12924/13021 Programmable Quad 5x10x2 Wire Switching System 4204The Matrix Systems Corporation 12924/13021 is a programmable quad wire switching system housed in a 4U rackmount...39586- SKU:
- 39586
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 30.00 LBS
- Brand:
- Matrix Systems Corporation
- Model:
- 12924/13021
- MPN:
- 12924/13021
- Secondary Model:
- 4204
- Type:
- Programmable Wire Switching Matrix System
- SKU:
- 39586
- Condition:
- Used – Inspected and in Good Condition
- Form Factor:
- Rackmount, 4U
- Switching Configuration:
- Quad 5x10x2 (four independent 5-throw, 2-wire sections)
- Relay Card Model:
- 4204 (Model 4204, MFG 07/99)
- Relay Card Part Number:
- 367-4204-01
- Number of Relay Cards:
- Multiple 4204 dual 5-throw 2-wire relay cards installed
- Relay Type:
- Dual 5-throw 2-wire relay with status indicators
- Front Panel Indicators:
- Addresser, Addressed, Addressee LEDs; +24V, +5V, -5V, PS1, PS2 status LEDs
- Rear Connectors:
- 2x Centronics-style (J2A, J3A), IEC AC inlet (J1A), 60x RJ-type jacks (J1–J60)
- Power Input Connector:
- IEC C14 (J1A)
- Power Rating:
- 85–265 VAC, 5.5A Max
- Control Interface:
- Parallel (Centronics) — J2A, J3A
- Signal Connectors:
- 60 RJ-type jacks (J1–J60) on rear panel
- Seller Notes:
- Mainframe chassis with multiple Model 4204 dual 5-throw 2-wire relay cards installed
- Country/Region of Manufacture:
- United States
- Application:
- Automated test, signal routing, relay switching matrix
- Programmable:
- Yes
- Condition Notes:
- Matrix Systems 12924/13021 Quad 5x10x2 Wire Switching System. Inspected and in good condition. Normal cosmetic wear. All 4204 relay cards present. Connectors appear clean and undamaged.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$475.00Was: $950.00 -
Scientific Atlanta D9380 PowerVu Digital Video Modulator QPSK 100-240V
Scientific Atlanta
$110.00Was: $225.00Scientific Atlanta D9380 PowerVu Digital Video Modulator QPSK 100-240VThe Scientific Atlanta D9380 is a rackmount PowerVu Digital Video Modulator designed for professional digital video distribution...39578- SKU:
- 39578
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 21.00 LBS
- Brand:
- Scientific-Atlanta
- Model:
- D9380
- MPN:
- 523136
- Secondary Model:
- PowerVu
- Type:
- Digital Video Modulator
- SKU:
- 39578
- Modulation Type:
- QPSK
- Assembly – QPSK Modulator:
- ASSY 521522
- Assembly – Encoder:
- ASSY 523446
- Assembly – Interface:
- ASSY 521533
- Assembly – Front Panel Logic:
- ASSY 521599
- Power Input:
- 100–240V AC, 47–63 Hz, 1.5A Max
- Fuse:
- Type T (Slow Blow), 250VAC, 2.0A
- IF Monitor Output:
- -20 dBm Typical (BNC)
- Rear Interfaces:
- BNC (I/Q Input/Output), DB-15 SABUS, Ethernet, SWIF
- Front Panel:
- LCD display, numeric keypad, 5 soft-key buttons
- Front Panel Indicators:
- ALARM LED, MUTE LED, IF Monitor BNC
- Form Factor:
- Rackmount, 3U
- Condition:
- Used – Powers On; Unable to Test Further
- Seller Notes:
- Includes QPSK modulator, encoder, and interface assemblies as described
- Country/Region of Manufacture:
- United States
- Manufacturer Location:
- Norcross, GA 30093, US (Network Systems Group)
- Condition Notes:
- Scientific Atlanta D9380 PowerVu Digital Video Modulator powers on and LCD/indicators light up. Unable to test further. Shows normal rack wear. Sold as-is beyond power-on confirmation. Please contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$110.00Was: $225.00 -
HP 18177A V.35 DTE/DCE Interface Panel for HP 4951C Protocol Analyzer
HP
$60.00Was: $125.00HP 18177A V.35 DTE/DCE Interface Panel for HP 4951C Protocol Analyzer The HP 18177A is a V.35 DTE/DCE interface panel designed specifically for use with the Hewlett-Packard 4951C Protocol Analyzer...39573- SKU:
- 39573
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 4.00 LBS
- Brand:
- HP
- Model:
- 18177A
- MPN:
- 18177A
- Type:
- V.35 DTE/DCE Interface Panel / Protocol Analyzer Pod
- SKU:
- 39573
- Compatible With:
- HP 4951C Protocol Analyzer
- Interface Standard:
- V.35
- Interface Type:
- DTE/DCE
- Signal Circuits:
- DTE, DCE, SCE, SCT, SCR, RS, DTR, CS, DSR, CD
- CCITT Circuits:
- 103, 104, 113, 114, 115, 105, 108/2, 106, 107, 109
- Connector Type:
- 34-pin Winchester (V.35 standard)
- Form Factor:
- External Pod / Panel Module
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Panel only; no cables included. For use with HP 4951C Protocol Analyzer.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- HP 18177A V.35 DTE/DCE Interface Panel. Inspected and in good used condition. Pulled from a working environment. Housing shows light wear; LED indicators and V.35 connectors appear intact. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$60.00Was: $125.00 -
General Instrument CLI Magnitude MPEG Encoder 410111-01 100-240V NTSC PAL
General Instrument
$575.00Was: $1,200.00General Instrument CLI Magnitude MPEG Encoder 410111-01 100-240V NTSC PALThe General Instrument CLI Magnitude Compression Systems MPEG Encoder, part number 410111-01, is a large rackmount multi-card...39498- SKU:
- 39498
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 140.00 LBS
- Brand:
- General Instrument
- Model:
- 410111-01
- MPN:
- 410111-01
- Secondary Model:
- 410444-01
- Type:
- MPEG Video Encoder Chassis
- SKU:
- 39498
- Condition:
- Used – Inspected and Appears in Good Condition
- Series:
- Magnitude Compression Systems
- Manufacturer Division:
- CLI (Cable Television Laboratories Inc. / GI)
- Assembly Number:
- 410111-01
- Serial Number (Unit):
- 2274
- Manufacture Date:
- September 1997
- Power Requirements:
- AC 100/240V, 12-6 Amps, 50-60 Hz
- Wiring Configuration:
- Wired for 120VAC only (per label warning)
- Certifications:
- UL Listed (95AT)
- Country/Region of Manufacture:
- United States
- Form Factor:
- Rackmount Chassis (large multi-slot card cage)
- Video Standard:
- NTSC / PAL / Composite / Serial D1
- Signal Indicators:
- Analog, PAL, Normal, Composite, Serial D1, Line Lock, Field Lock, Field Filter Alarm
- Status Indicators:
- Power On, On-Line, Backup, Transmit
- Encoder Card:
- CLI Video Encoder M1, P/N 410444-01, Rev A
- Channel Configuration:
- Multi-channel; Chan 2 visible with Abort/Reset controls
- Front Panel Connectors:
- Dual DB25 (Monitor), DB9 (Test) on Chan 2 module
- Rear Connectors:
- BNC video outputs, DB connectors, power harness
- Power Supply:
- Internal power supply unit with multi-rail outputs (+V, +15V, -15V, -5.2V visible)
- Compliance:
- DVB (Digital Video Broadcasting) compliant (per label)
- Application:
- Broadcast headend, cable TV, satellite video encoding
- Seller Notes:
- Chassis with multiple encoder/compressor cards installed. Separate power supply unit included.
- Condition Notes:
- General Instrument CLI Magnitude MPEG Encoder 410111-01 inspected, good used condition. Typical wear on exterior panels. Cards, backplane, and power harness appear intact. Unit wired for 120VAC only per label. Photos available.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$575.00Was: $1,200.00
