Description
Computer Products NFS40-7912 12VDC 4A Switching Power Supply 100-230VAC Open Frame
Open-frame switching power supply that converts 100-230VAC input to regulated 12VDC at 4A output. Board-level unit without enclosure, designed for industrial and telecommunications equipment integration.
Specifications & What's Included
- Output: 12V DC, 4A (48W)
- Input: 100-230VAC, 1.3-0.65A, 50/60Hz
- Connector: Multi-pin wire harness
- Form Factor: Open-frame board only
- UL Listed, CE, CSA certified
- Model NFS40-7912, Revision Y
Applications
This supply was originally designed for the Pacesetter APSu 3251 portable thermal printer and similar industrial telecom equipment requiring compact, board-level power conversion. Open-frame supplies are mounted directly into host equipment to minimize space. Typical applications include point-of-sale terminals, telecommunications infrastructure, industrial printers, and portable instrumentation requiring regulated 12V DC power from standard wall voltage.

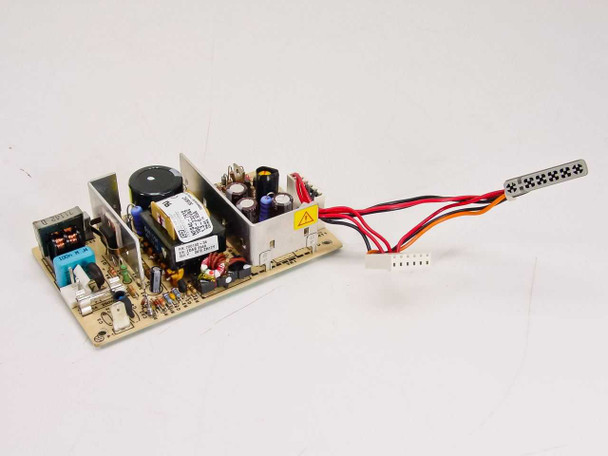

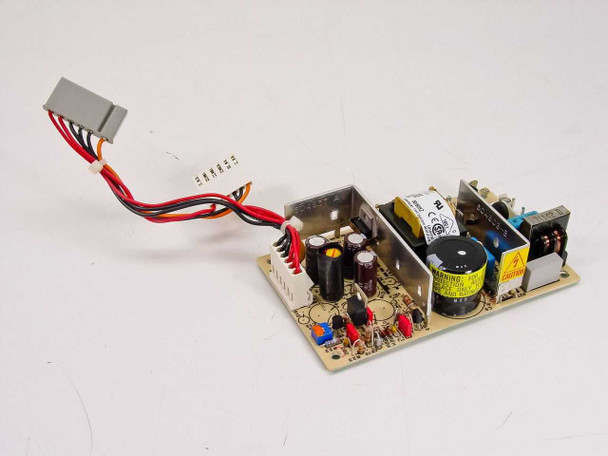

This Computer Products NFS40-7912 open-frame switching power supply has been tested at our facility and confirmed to output 12VDC on our multimeter — it is in good working order. The board shows normal wear consistent with prior installation. No enclosure is included; this is a bare open-frame board as pictured. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Computer Products |
Model: |
NFS40-7912 |
MPN: |
NFS40-7912 |

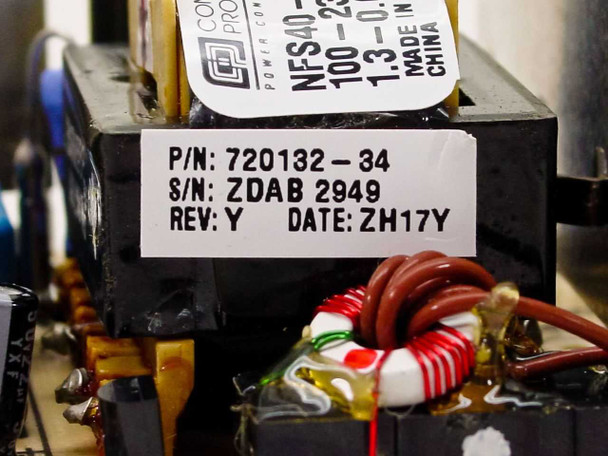

Secondary Model: |
720132-34 |
SKU: |
39953 |
Type: |
Open-Frame Switching Power Supply |
Output Voltage: |
12V DC |
Output Current: |
4A |
Output Power: |
48W |
Input Voltage: |
100-230V AC |
Input Current: |
1.3-0.65A |
Input Frequency: |
50/60Hz |
Form Factor: |
Open Frame / Board-Level (No Enclosure) |
Power Requirements: |
100-230VAC, 1.3-0.65A, 50/60Hz |
Output Connector: |
Multi-pin wire harness |
Revision: |
Rev Y |
Compatible With: |
Pacesetter APSu 3251 Portable Thermal Printer |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Open-frame board only, no enclosure. Tested — outputs 12VDC confirmed. |
Country/Region of Manufacture: |
China |
Certifications: |
UL Listed, CE, CSA |
Condition Notes: |
Computer Products NFS40-7912 switching power supply tested good — confirmed 12VDC output on our multimeter. Good working order. Open-frame board only, no enclosure. Normal wear. Please view photos and contact us with questions. |
