Sony

Sony ANL-42 1-689-131-11 PCB Card 4A 125V Internal Circuit Board Module

(No reviews yet) Write a Review
SKU:
39827
MPN:
ANL-42
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

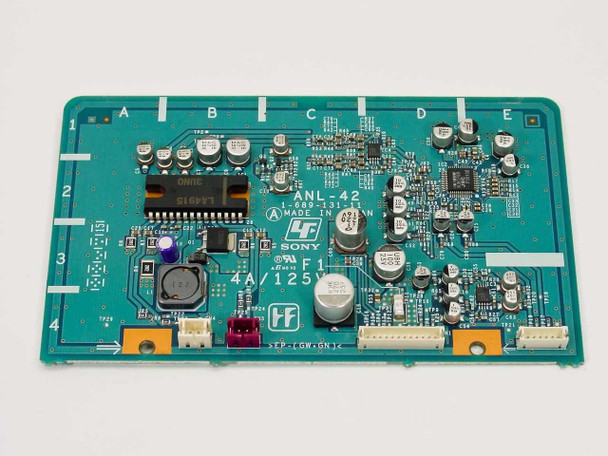

  • Sony ANL-42 1-689-131-11 PCB card front view showing components, ICs, and rating markings 4A 125V
  • Sony ANL-42 circuit board rear/solder side view showing PCB traces and connector pads
  • Sony ANL-42 1-689-131-11 close-up of board silkscreen showing model number, Sony logo, UL mark, and 4A/125V rating
$20.00
Was: $40.00
Current Stock: 1

Sold Out

Description

Sony ANL-42 1-689-131-11 PCB Card 4A 125V Internal Circuit Board Module

Internal circuit board card designed for Sony industrial and telecom equipment. This PCB module handles power distribution and circuit control functions within larger systems.

Specifications & What's Included

  • Model: ANL-42
  • MPN: 1-689-131-11
  • Voltage Rating: 125V
  • Current Rating: 4A
  • Form Factor: Card / Module
  • Manufactured in Japan
  • UL Certified
  • Board only; no enclosure or cables included

Applications

PCB cards of this type are commonly used in Sony broadcast, telecommunications, and industrial control equipment from the 1990s-2000s era. The ANL-42 series was integrated into modular systems requiring regulated power distribution and signal control. This board type supports equipment maintenance, repair, and system reconfiguration in professional broadcast and data center environments.

Condition: Used
This Sony ANL-42 (1-689-131-11) internal PCB circuit board card has been inspected and appears to be in good used condition. The board shows no obvious damage, burnt components, or broken traces. The component side is clean and all visible capacitors, ICs, and connectors appear intact. Normal minor handling marks may be present consistent with removal from equipment. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Sony
Model:
ANL-42
MPN:
1-689-131-11
Type:
Internal PCB Circuit Board Card
SKU:
39827
Voltage Rating:
125V
Current Rating:
4A
Country/Region of Manufacture:
Japan
Form Factor:
Card / Module
Certifications:
UL (mark visible on board)
Condition:
Used – Inspected and Pulled from Working Environment
Seller Notes:
Board only; no enclosure or cables included.
Condition Notes:
Sony ANL-42 1-689-131-11 PCB card inspected and in good used condition. No visible damage, burnt components, or broken traces. Pulled from equipment. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

Nordiko Limited N601109EE Extender Board top view showing green PCB, blue trim pots, and black ejector handles Nordiko Limited N601109EE board edge label showing manufacturer name and part number silkscreened on PCB
Add to Cart
Quick view

Nordiko Limited N601109EE Extender Board No Jumpers PCB Card Module

Nordiko

$65.00
Was: $125.00
Nordiko Limited N601109EE Extender Board No Jumpers PCB Card ModuleThe Nordiko Limited N601109EE is a printed circuit board (PCB) extender card manufactured by Nordiko Limited, a UK-based company...
26266
SKU:
26266
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Nordiko Limited
Model:
N601109EE
MPN:
N601109EE
Type:
Extender Board / PCB Card Module
SKU:
26266
Condition:
Used – Inspected and in Good Condition
Jumpers Installed:
No Jumpers
Connector Type:
Gold-pin multi-pin edge connector
Form Factor:
Card / Board Module
Ejector Handles:
Yes – black plastic ejector levers
Seller Notes:
Board only — no jumpers installed. Inspected and in good condition.
Country/Region of Manufacture:
United Kingdom
Condition Notes:
Nordiko Limited N601109EE Extender Board inspected and in good condition. PCB clean, no visible damage. No jumpers installed. Gold-pin connectors intact. Black ejector handles present.
Pacific Precision Labs PPL Tooling Controller circuit card — full top view showing green PCB, multiple ICs, pin headers J1–J8, and edge connectors Pacific Precision Labs Tooling Controller PCB close-up — showing DM74LS138N, UDN5824A, DM7408N ICs, resistor arrays, and labeled J5 connector row
Add to Cart
Quick view

Pacific Precision Labs PPL Tooling Controller Circuit Card PCB Board

PPL

$50.00
Was: $100.00
Pacific Precision Labs PPL Tooling Controller Circuit Card PCB Board This is a used tooling controller circuit card from Pacific Precision Labs designed for industrial automation and tooling control...
28474
SKU:
28474
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Pacific Precision Labs
Model:
Tooling Controller
MPN:
Tooling Controller
Type:
Tooling Controller Circuit Card / PCB
SKU:
28474
Condition:
Used – Inspected and Tested
Seller Notes:
Card only; no additional accessories included.
Form Factor:
Card / PCB Module
Interface Type:
Edge Connector / Pin Headers
Connector Types:
Multiple ribbon/pin headers (J1–J8 visible), edge connectors
Main ICs / Chipset:
DM74LS138N, UDN5824A, DM7408N, DM74GCN
Board Color:
Green PCB
Application:
Industrial Tooling Control / Automation
Compatible With:
Pacific Precision Labs industrial systems (system TBD)
Country/Region of Manufacture:
United States
Condition Notes:
Pacific Precision Labs PPL Tooling Controller circuit card. Inspected and in good condition. PCB is clean; ICs, resistors, caps, and connectors appear intact. Normal wear present.

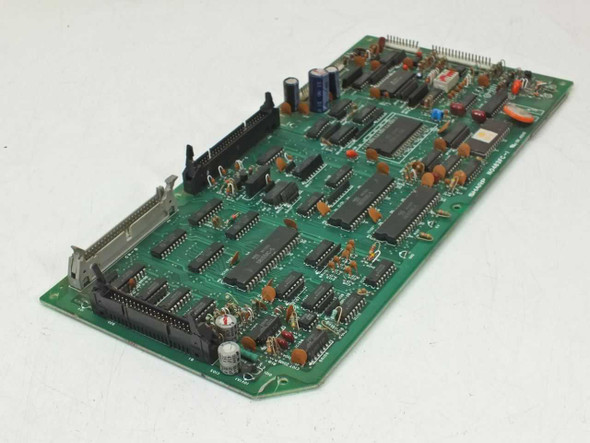

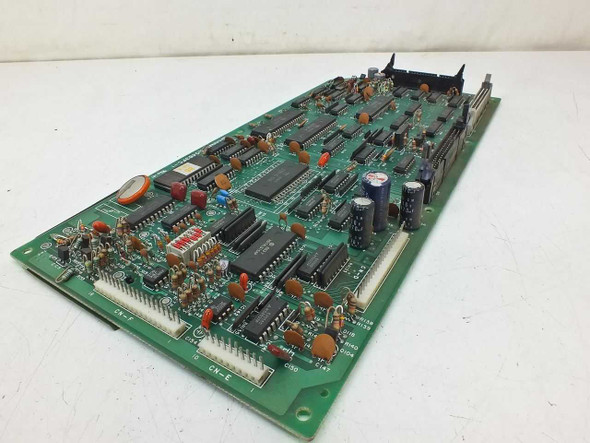

Sharp N0483FC-1 System Board I/O Card — top-side view showing full PCB layout with ICs, connectors, and edge connector Sharp N0483FC-1 I/O Card — angled top view showing component side with DIP ICs, capacitors, and CN-E connector header
