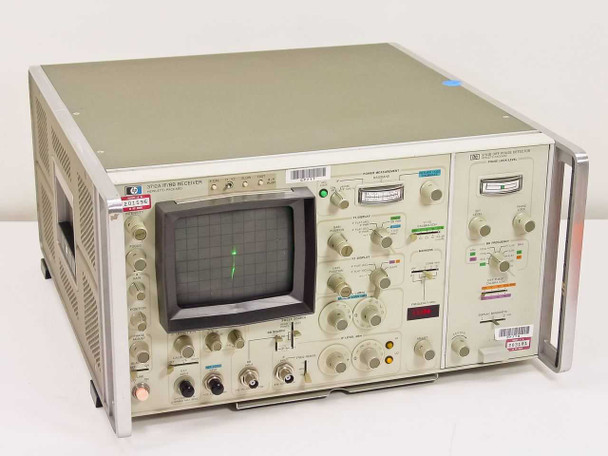

The HP 3712A IF/BB Receiver and HP 3793B Differential Phase Detector together form the receiver portion of the Hewlett-Packard Microwave Link Analyzer system. The 3712A handles intermediate frequency (IF) and baseband (BB) signal reception and display, while the 3793B provides differential phase detection and phase lock/level measurement — both housed in a single integrated benchtop chassis with a built-in CRT oscilloscope display.

Specifications & What's Included

• HP 3712A IF/BB Receiver module
• HP 3793B Differential Phase Detector module
• Combined integrated benchtop chassis with CRT oscilloscope display and graticule
• Power requirements: 220/240V – 1AT or 100/120V – 3AT fuse configurations; 48–66 Hz; 160 VA max

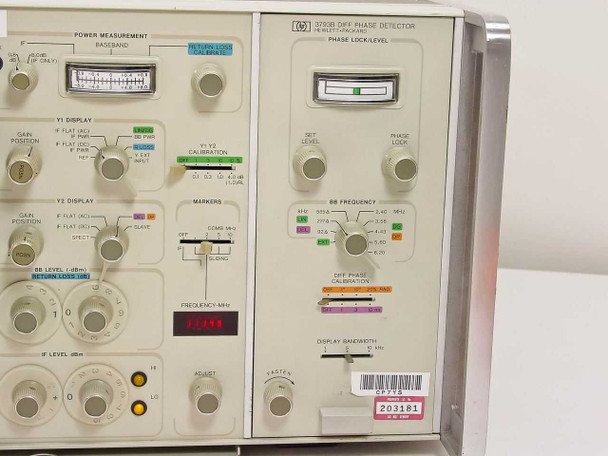

• Front panel: Y1 Display section (Gain, Position, IF Flat, BB Flat, Slave, Y-Ext Input controls)
• Front panel: Y2 Display section (Gain, Position, IF Flat, BB Flat, Slave controls)
• Front panel: BB Level (dBm) digital display with Return Loss indicator
• Front panel: Power Measurement section with analog baseband power meter
• Front panel: Spectrum and Sweep Source selection
• Front panel: IF Level (dBm) control
• Front panel: Digital LED frequency readout (MHz)
• Front panel: Phase Adjust, Blanking, LPIC, Calibration controls (3712A section)
• 3793B section: Phase Lock/Level display, Set Level, Phase Lock, BB Frequency selector
• 3793B section: Diff Phase Calibration controls, Display Bandwidth control
• 3793B section: Markers (Off / Comb MHz / Sliding)
• Rear panel: X-Y Recorder output (5-pin DIN connector)
• Rear panel: Normaliser D-Sub connector
• Rear panel: Slave Y1, Slave Y2, Slave Output, Ext Sweep Input, Y1/Y2 BNC connectors
• Rear panel: IEC AC power inlet with fuse holder
• Rear ventilation fans with air filter (periodic cleaning required per service manual)
