Tau-Tron

Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set Option 03 GPIB

(No reviews yet) Write a Review
SKU:
39757
MPN:
S5104 DS1/DS1C/DS2
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
25.00 LBS
Shipping:
Calculated at Checkout
  • Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set front panel — full view showing Transmitter and Receiver LED displays, Error Inject, Measurement Time, and Receiver Input sections
  • Tau-Tron S5104 front panel close-up — Transmitter Out section (DSX1/DSX1C/DS2H/DSX2), Error Inject section (Freq/BIT/BPV/AMPL), power-on red LED illuminated
  • Tau-Tron S5104 front panel right section close-up — Measurement Time (Untimed/In Proc), Measurements section, Receiver Input (PRBS/UNFRAME/CH1-CH4/DS1/DS2), Receiver LED display active
  • Tau-Tron S5104 model designation close-up — 'S5104 DS1/DS1C/DS2 Digital T' text on chassis, Receiver LED display showing active reading
  • Tau-Tron S5104 rear panel view — Monitor outputs (green BNC), NRZ inputs, receiver inputs, power inlet, and large DB connector visible
  • Tau-Tron S5104 serial number label — 'SER NO. 8409230, OPTION 03, CHELMSFORD MA, MADE IN USA, A Unit of General Signal'

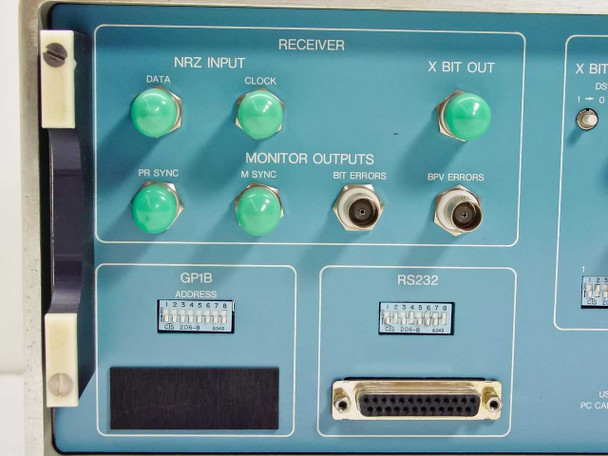

  • Tau-Tron S5104 rear panel left section — NRZ Input (Data, Clock BNC), PR Sync, Monitor Outputs (M Sync, Bit Errors, BPV Errors BNC), GPIB address DIP switches, RS-232 DB-25 connector
  • Tau-Tron S5104 rear panel right section — X Bit Inject, Ext Clk In, DS1 Output (Bipolar BNC), NRZ Output (Data/Clock), Jitter In/Out, Ext Err, Monitor Outputs (Err Sync, M Sync, PR Sync), Programmable Fixed Word DIP switches, fuse drawer, power inlet
$200.00
Was: $400.00
Current Stock: 1

Sold Out

Description

Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set Option 03 GPIB

Benchtop test instrument for DS1, DS1C, and DS2 digital transmission line testing. Measures bit error rate, bipolar violations, jitter, and frame alignment on telecom circuits.

Specifications & What's Included

  • Supports DS1/DS1C/DS2 signal standards with NRZ interface
  • Transmitter outputs: DS1 Bipolar, NRZ Data, NRZ Clock
  • Receiver inputs: DS1/DS1C/DS2, NRZ Data, NRZ Clock
  • Error injection: Frequency, BIT, ERR Free, BPV, AMPL, INT, EXT
  • Measurements: BIT, BPV, Jitter, Frame, Status
  • Remote control via GPIB (IEEE-488) and RS-232
  • Front-panel LED numeric displays and status indicators
  • Connectors: BNC, DB-25 (RS-232), GPIB

Applications

Used in telecommunications and data transmission environments for characterizing DS1 and DS2 circuit performance. Tests transmission lines, identifies signal impairments, and validates equipment compliance with telecom standards. Commonly deployed in carrier network operations centers and equipment labs during the 1980s–2000s for line conditioning and troubleshooting.

Condition: Used
This Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set has been inspected and is in good cosmetic condition. The unit powers on — both the Transmitter and Receiver LED displays light up and are active — but has not been tested further beyond power-on. The chassis shows normal wear consistent with prior lab or field use; the front panel lettering and controls are clean and legible. The rear panel BNC connectors, GPIB interface, and RS-232 DB-25 port all appear intact. This unit was manufactured in Chelmsford, MA and carries Option 03 (serial number 8409230). Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Tau-Tron
Model:
S5104
MPN:
S5104
Type:
Digital Transmission Test Set
SKU:
39757
Option:
Option 03
Serial Number (Internal):
See internal fields
Condition:
Used – Powers On, Untested Further
Seller Notes:
Unit powers on. Includes GPIB and RS-232 interfaces.
Country/Region of Manufacture:
United States
Form Factor:
Benchtop
Manufacturer:
Tau-Tron (A Unit of General Signal)
Signal Standards Supported:
DS1, DS1C, DS2
Interface Type:
DS1, DS1C, DS2, NRZ
Remote Interface:
GPIB (IEEE-488), RS-232
Connector Types:
BNC, DB-25 (RS-232), GPIB
Transmitter Outputs:
DS1/1C/2, DS1 Bipolar, NRZ Data, NRZ Clock
Receiver Inputs:
DS1/1C/2, NRZ Data, NRZ Clock
Monitor Outputs:
PR Sync, M Sync, Bit Errors, BPV Errors
Error Inject:
Freq, BIT, ERR Free, BPV, AMPL, INT, EXT
Measurements:
BIT, BPV, Jitter, Frame, Status, Recall
Measurement Time Modes:
Untimed, Interval, Elapsed, Single, Repeat, Stop, Set, Time, Date
Receiver Input Patterns:
PRBS, UNFRAME, Frame, Fixed, Live, CH1-CH4
Programmable Fixed Word:
Yes — front-panel DIP switch programmable
X Bit Inject/Out:
DS1C/DS2 X Bit Inject and X Bit Out
Additional Inputs:
Ext Clk In, Ext Err, Jitter In/Out
Display Type:
LED numeric displays (Transmitter and Receiver)
Status Indicators:
Loss, Detect, Signal LEDs
Application:
DS1/DS1C/DS2 BER testing, jitter measurement, error injection
Condition Notes:
Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set with Option 03. Inspected, good cosmetic condition. Powers on — Transmitter and Receiver displays active. Not tested further. GPIB and RS-232 ports intact.
