Anritsu

Anritsu ME3401A Digital Transmission Analyzer DS-1 DS-2 DS-3 GPIB Options 02 03

(No reviews yet) Write a Review
SKU:
40600
MPN:
ME3401A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
31.00 LBS
Shipping:
Calculated at Checkout
  • Anritsu ME3401A Digital Transmission Analyzer front panel and right side 3/4 view showing display and controls
  • Anritsu ME3401A rear and right side view showing ventilation, rear connectors, and rack mount ears
  • Anritsu ME3401A front panel close-up showing DS-1 Channel display, status indicators, and Data Input section with DS-1 DS-2 framing buttons
  • Anritsu ME3401A full front panel view showing measurement displays, data input controls, and built-in printer with paper
  • Anritsu ME3401A front panel showing Receiver section with DS-1 Channel, Measurement display reading 100, Data Input and Measurement buttons
  • Anritsu ME3401A front panel right section close-up showing Time/Jitter controls, built-in printer with paper loaded, Print and Feed buttons

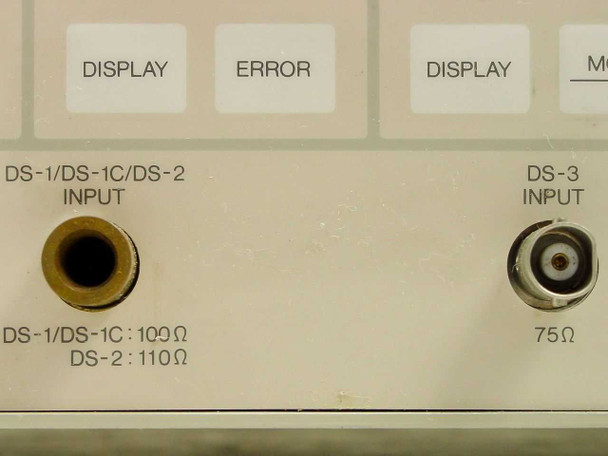

  • Anritsu ME3401A front panel lower-right close-up showing DS-1/DS-1C/DS-2 input connector (100Ω/110Ω) and DS-3 input BNC connector (75Ω)
  • Anritsu ME3401A rear label showing Options 02 03 11 42 installed and serial number M33075, Made in Japan by Anritsu Corp
  • Anritsu ME3401A front panel right-center close-up showing Measurement section, Time section with Mode controls, and Jitter filter section
  • Anritsu ME3401A rear panel close-up showing GP-IB (GPIB/IEEE-488) connector and DIP switch address settings with Options label

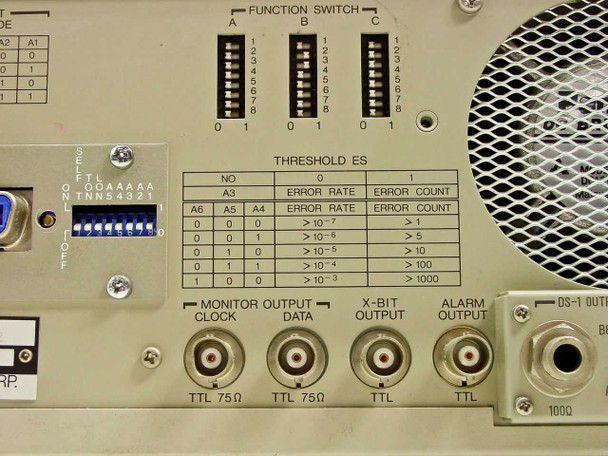

  • Anritsu ME3401A Digital Transmission Analyzer with Options 02, 03, 11 and 42
  • Anritsu ME3401A Digital Transmission Analyzer with Options 02, 03, 11 and 42
  • Anritsu ME3401A Digital Transmission Analyzer with Options 02, 03, 11 and 42
$175.00
Was: $350.00
Current Stock: 1

Sold Out

Description

Anritsu ME3401A Digital Transmission Analyzer DS-1 DS-2 DS-3 GPIB Options 02 03 11 42

Benchtop digital transmission analyzer for testing and measuring DS-1, DS-2, and DS-3 digital signals. Performs bit error rate (BERT) testing, jitter measurement, and transmission quality analysis with built-in thermal printer for data logging.

Specifications & What's Included

  • Model: ME3401A with Options 02, 03, 11, 42 installed
  • Measurement capability: BERT, jitter, DS-1/DS-2/DS-3 analysis
  • Signal compatibility: DS-1, DS-1C, DS-2, DS-3, B8ZS, AMI formats
  • Input impedance: DS-1/DS-1C 100Ω, DS-2 110Ω, DS-3 75Ω
  • Interface: GP-IB (IEEE-488)
  • Framing support: ESF, D4, unframed, framed
  • Built-in thermal/paper tape printer
  • Time/jitter display with hour/year, minute/month, second/day functions
  • Power: AC or DC input

Applications

Used for transmission line testing and maintenance in telecom network environments. Supported DS hierarchy signals (DS-1 through DS-3) for circuit characterization, error analysis, and performance verification. Commonly deployed in carrier facilities, central offices, and service provider test labs for line conditioning and troubleshooting digital circuits. GPIB interface enables integration into automated test systems and remote monitoring setups.

Condition: Used
This Anritsu ME3401A Digital Transmission Analyzer powers on and is in good condition. The unit has Options 02, 03, 11, and 42 installed, as confirmed by the rear panel label. The front panel displays, controls, and built-in printer appear intact with no obvious damage. The chassis shows typical wear for a benchtop instrument of this age — minor scuffs and surface marks on the case — but the front panel labeling is legible and the connectors look clean. The rear GP-IB interface and input BNC/bantam connectors appear in good shape. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Anritsu
Model:
ME3401A
MPN:
ME3401A
Type:
Digital Transmission Analyzer
SKU:
40600
Options:
02, 03, 11, 42
Measurement Type:
Bit Error Rate (BERT), Jitter, DS-1/DS-2/DS-3
Signal Compatibility:
DS-1, DS-1C, DS-2, DS-3
DS-1 Input Impedance:
DS-1/DS-1C: 100Ω; DS-2: 110Ω
DS-3 Input Impedance:
75Ω
Interface:
GP-IB (GPIB / IEEE-488)
Data Input Formats:
Unipolar, DS-1, DS-1C, DS-2, DS-3 H/L, DSX-3 H/L, AMI, B8ZS
Framing:
ESF (DS-1), D4 (DS-1), Unframed, Framed
Built-In Printer:
Yes — integrated thermal/paper tape printer
Measurements:
Errors, Error Rate, % EFS, ES, CRC-6, BIP-V, Frame, Parity, Bit
Time/Jitter Display:
Yes — hour/year, minute/month, second/day; UI p-p, YMD, UMS
Power Input:
AC or DC
Form Factor:
Benchtop
Country/Region of Manufacture:
Japan
Condition:
Used – Powers On, Good Condition
Seller Notes:
Includes unit with built-in printer. Options 02, 03, 11, 42 installed.
Condition Notes:
Anritsu ME3401A Digital Transmission Analyzer powers on and is in good condition. Options 02, 03, 11, 42 installed per rear label. Minor cosmetic wear on chassis typical of benchtop test gear. Please contact us with any questions.
