Tau-Tron

Tau-Tron STX-1101 Bit Error Rate Transmitter GPIB RS-232 120VA 47-440Hz BERT

(No reviews yet) Write a Review
SKU:
36234
MPN:
STX-1101
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
39.00 LBS
Shipping:
Calculated at Checkout
  • Tau-Tron STX-1101 Bit Error Rate Transmitter – three-quarter front-left view showing blue benchtop enclosure with front panel controls and carry handles

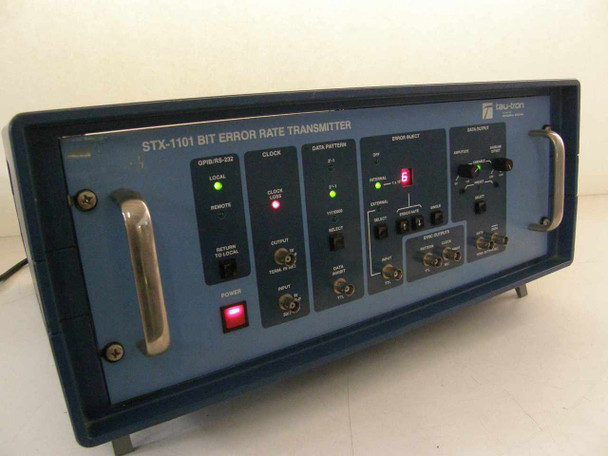

  • Tau-Tron STX-1101 Bit Error Rate Transmitter – straight-on front panel view showing GPIB/RS-232 mode section, Clock, Data Pattern, Error Inject, Sync Outputs, and Data Output controls with indicator LEDs

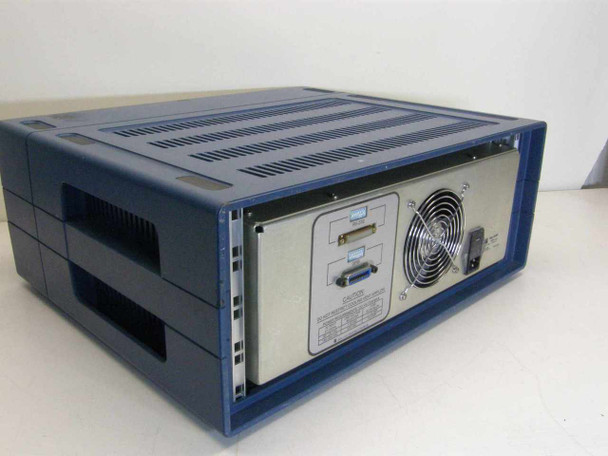

  • Tau-Tron STX-1101 Bit Error Rate Transmitter – rear panel and top view showing two rectangular interface connectors, cooling fan, and ventilation slots

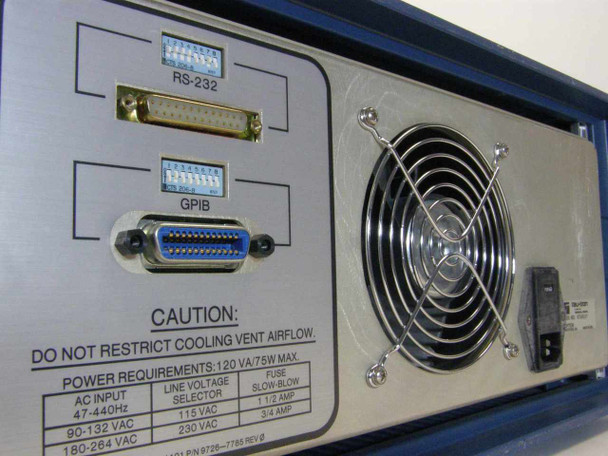

  • Tau-Tron STX-1101 rear panel close-up showing RS-232 connector, GPIB connector, power requirements label (120VA/75W, 47-440Hz), line voltage selector, fuse holders, and cooling fan

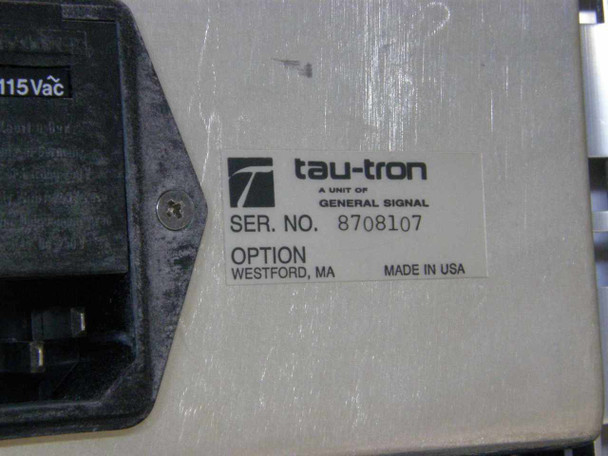

  • Tau-Tron STX-1101 side/bottom label showing 'tau-tron a unit of General Signal', serial number 8708107, Option field, Westford MA, Made in USA

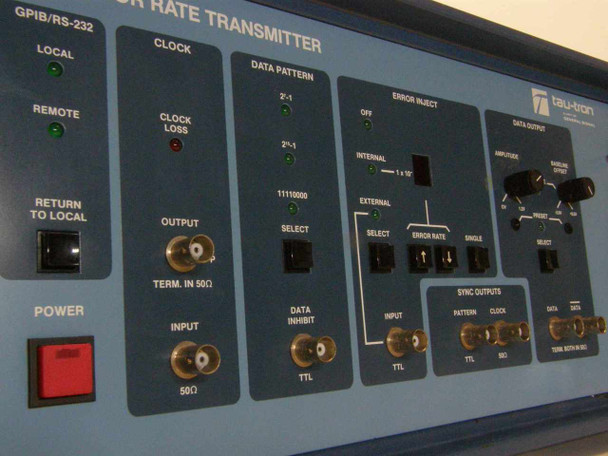

  • Tau-Tron STX-1101 front panel detail showing GPIB/RS-232 Local/Remote controls, Clock section with Clock Loss LED and BNC connectors, Data Pattern selector, Error Inject section, and Sync Outputs

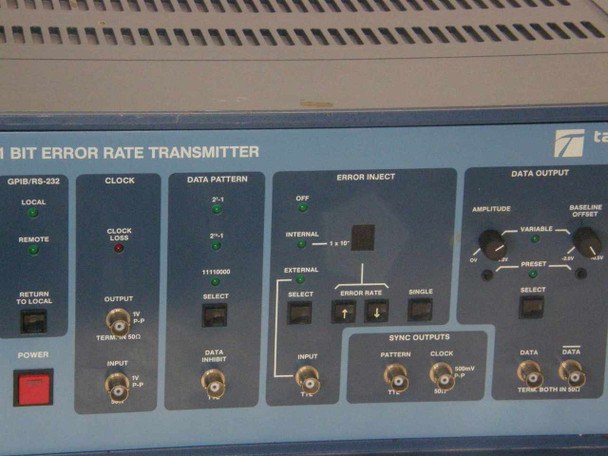

  • Tau-Tron STX-1101 front panel close-up showing Data Pattern (2^6-1, 2^9-1, 11110000), Error Inject (Internal/External, Error Rate, Single), Sync Outputs (Pattern, Clock TTL, Data 50 Ohm), and Data Output (Amplitude, Baseline Offset, Preset/Variable) controls
$300.00
Was: $600.00
Current Stock: 1

Sold Out

Description

Tau-Tron STX-1101 Bit Error Rate Transmitter GPIB RS-232 120VA 47-440Hz BERT

Benchtop bit error rate transmitter used for testing and measuring digital transmission quality in telecom and data communications systems. Generates test patterns and injects errors for BERT analysis on serial data links.

Specifications & What's Included

  • Model: STX-1101 | Manufacturer: Tau-Tron (General Signal)
  • Power: 120 VA / 75 W max, 47–440 Hz AC; accepts 90–132 VAC or 180–264 VAC
  • Interfaces: GPIB and RS-232 with local/remote/return-to-local control modes
  • Data patterns: 2^6-1, 2^9-1, 11110000 (selectable)
  • Error injection: Internal and external with selectable rates and single-error mode
  • Outputs: Pattern, Clock (TTL), and Data (50 Ohm) with adjustable amplitude and baseline offset
  • Additional features: Clock loss indicator, data inhibit (TTL), sync outputs terminated at 50 Ohm
  • Unit only; no accessories included

Applications

BERT instruments like this were used in telecommunications labs and manufacturing test environments to validate modem performance, verify data link integrity, and characterize error rates on serial communications lines. Commonly connected to legacy telecom test systems, data transmission equipment, and serial interface testing setups from the 1980s through early 2000s.

Condition: Used
This Tau-Tron STX-1101 Bit Error Rate Transmitter has been inspected and appears to be in good used condition. It was pulled from a working environment where it was in use and functional. The blue benchtop enclosure shows typical handling wear consistent with lab use. The front panel controls, indicator LEDs, and BNC connectors appear intact. The rear RS-232 and GPIB connectors are present. The line voltage selector is visible on the rear panel. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Tau-Tron
Model:
STX-1101
MPN:
STX-1101
Type:
Bit Error Rate Transmitter (BERT)
SKU:
36234
Parent Company:
General Signal
Country/Region of Manufacture:
United States
Form Factor:
Benchtop
Power Requirements:
120 VA / 75 W Max, 47-440 Hz AC
AC Input Voltage (115V):
90-132 VAC
AC Input Voltage (230V):
180-264 VAC
Fuse (115V):
1-1/2 Amp Slow-Blow
Fuse (230V):
3/4 Amp Slow-Blow
Input Frequency Range:
47-440 Hz
Interface Type:
GPIB, RS-232
Control Modes:
Local, Remote, Return to Local
Data Patterns:
2^6-1, 2^9-1, 11110000 (selectable)
Error Inject:
Internal and External; selectable error rate, single
Sync Outputs:
Pattern, Clock (TTL), Data (50 Ohm), Term Both in 50 Ohm
Clock Features:
Clock Loss indicator; Output and Input (50 Ohm term)
Data Output:
Amplitude and Baseline Offset adjustable; Preset/Variable
Data Inhibit:
TTL
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no accessories observed. Please view photos.
Condition Notes:
Tau-Tron STX-1101 Bit Error Rate Transmitter in good used condition. Pulled from a working environment where it was in use and functional. Inspected; shows normal lab wear. Front panel, BNC connectors, GPIB and RS-232 ports intact.
