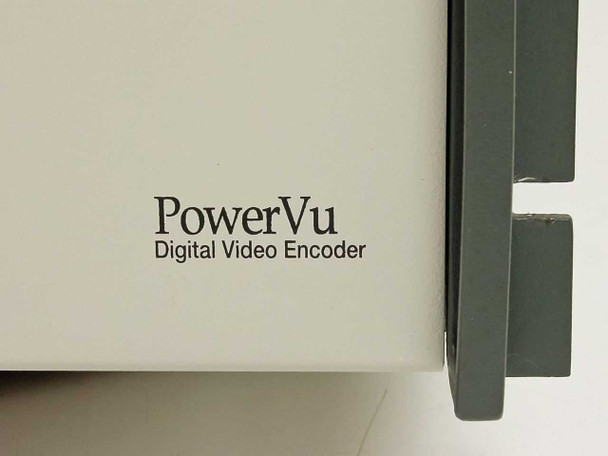

Scientific Atlanta D-9110 PowerVu Digital Video Encoder MPEG2 w/ 5 Modules

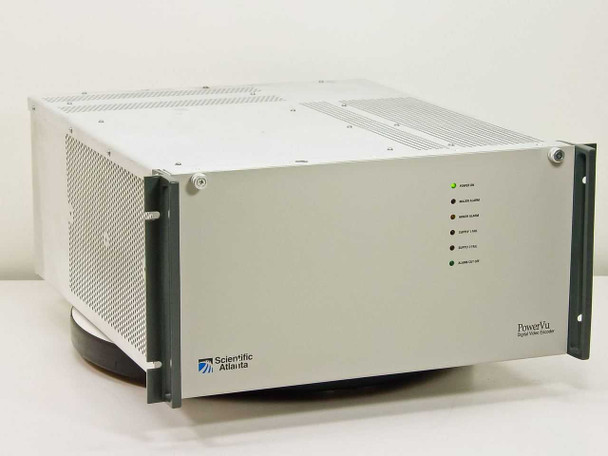

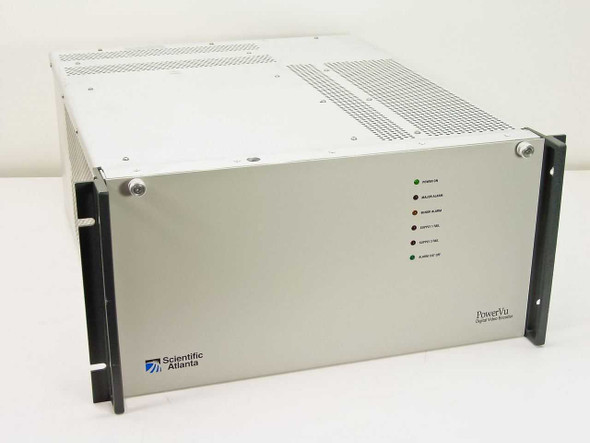

The Scientific Atlanta D-9110 is a modular MPEG-2 digital video encoder chassis from the PowerVu product line, designed for professional satellite broadcast and video distribution applications. This unit comes fully populated with five functional modules and dual redundant power supplies installed in the rack-mount chassis. The D-9110 platform accepts interchangeable plug-in modules that handle distinct stages of the encoding chain, allowing operators to configure the system for their specific signal paths.
Specifications & What's Included
- Manufacturer: Scientific Atlanta, Inc. — Satellite Television Network Division
- Model: D-9110 PowerVu Digital Video Encoder
- Encoding standard: MPEG-2
- Form factor: Rack mount chassis
- Module slots: 5 (all populated)

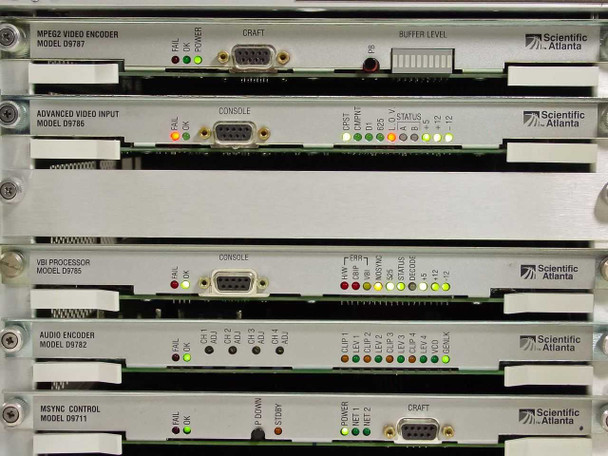

- Included Module 1 — D9787 MPEG2 Video Encoder: front-panel CRAFT DB9 serial port, buffer level bar graph display, FAL/POWER status LEDs
- Included Module 2 — D9786 Advanced Video Input: front-panel CONSOLE DB9, DPST controls, STATUS indicator array
- Included Module 3 — D9785 VBI Processor: front-panel CONSOLE DB9, status LEDs
- Included Module 4 — D9782 Audio Encoder: front-panel CLK/LEV level indicators, VCO and GENLOCK status LEDs
- Included Module 5 — D9711 MSYNC Control: front-panel FAL/ALM, T-DOWN, STDBY indicators; rear CRAFT DB9 serial port

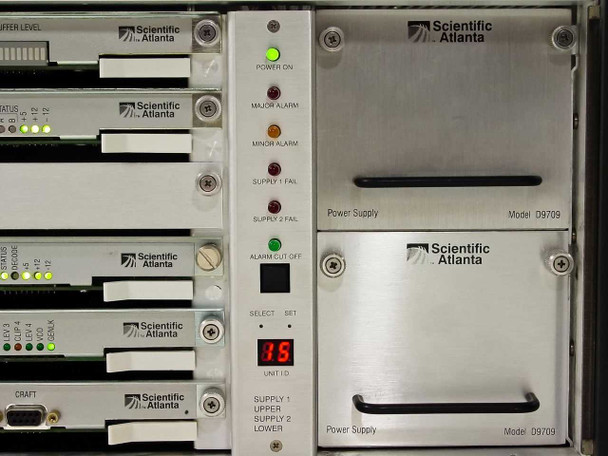

- Power supplies: Two (2) D9709 power supply modules installed (redundant configuration)
- Power input: 100–120V AC, 1A / 230–200V AC, 2A, 50–60Hz
- Power consumption: 480W maximum
- Fuse: T 6.3A 250V

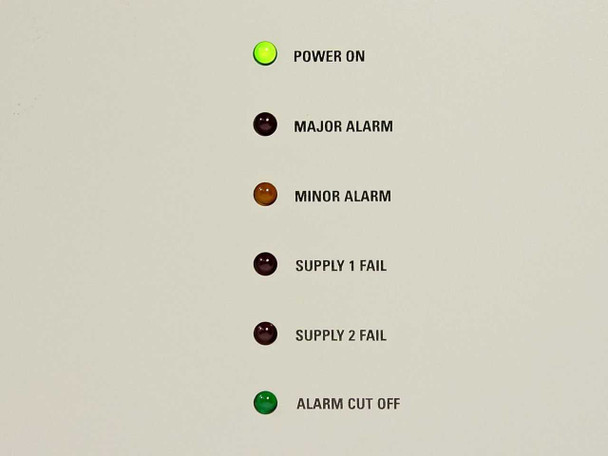

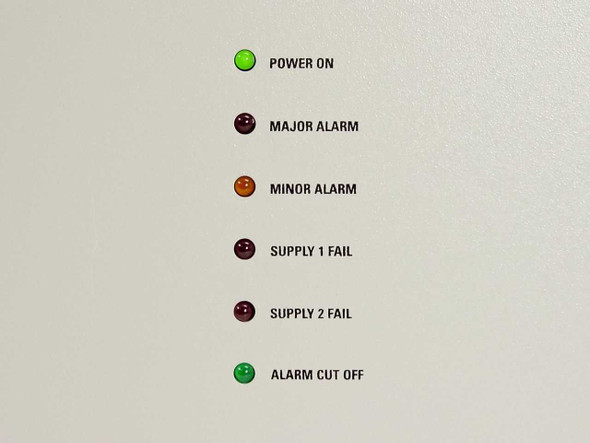

- Front panel status LEDs: Power On, Major Alarm, Minor Alarm, Supply 1 Fail, Supply 2 Fail, Alarm Cut Off
- Unit ID display: 7-segment numeric front panel display

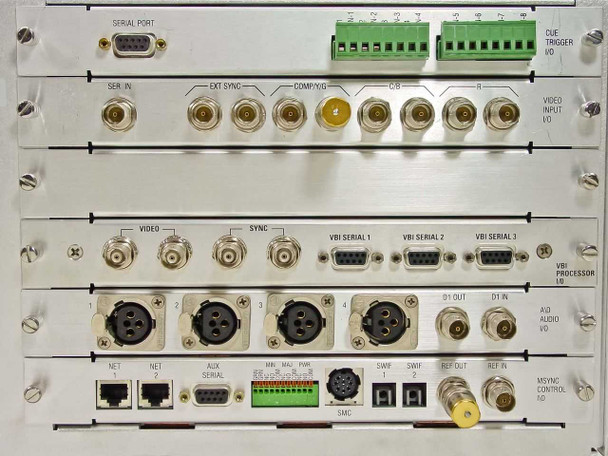

- Rear connectors (visible): BNC video connectors, XLR audio connectors, DB9 serial ports, RJ45 network ports, green terminal block
- Certifications: UL Listed (File 12Y7) Professional Video Equipment; CE marked

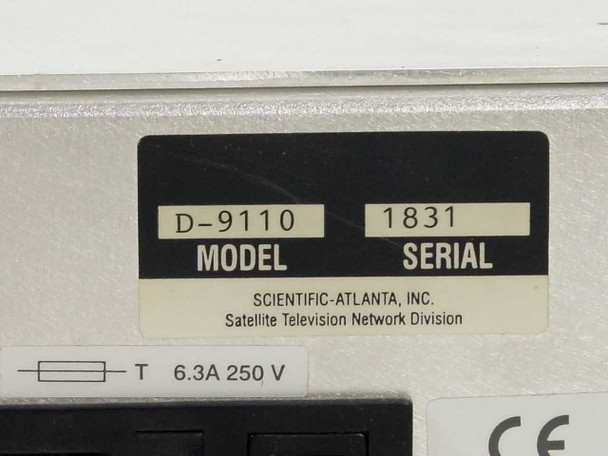

- Serial number: 1831 (see internal fields)
Applications
The Scientific Atlanta PowerVu D-9110 encoder platform was developed for professional satellite broadcast headends and video distribution networks, primarily in the 1990s and early 2000s when MPEG-2 became the standard compression format for direct broadcast satellite (DBS) and cable TV systems. These systems were used by network operators, teleports, and uplink facilities to compress, encode, and multiplex video and audio signals for transmission over satellite transponders. The modular architecture of the D-9110 allowed broadcasters to tailor the encoding chain — combining video, audio, VBI, and sync modules in a single chassis — for efficient headend rack integration. The PowerVu platform was widely deployed across cable TV and satellite distribution infrastructure globally, and D-9110 chassis and their associated modules are still sought after by operators maintaining legacy satellite uplink and encoding infrastructure, as well as by systems integrators and research organizations working with MPEG-2 broadcast workflows.

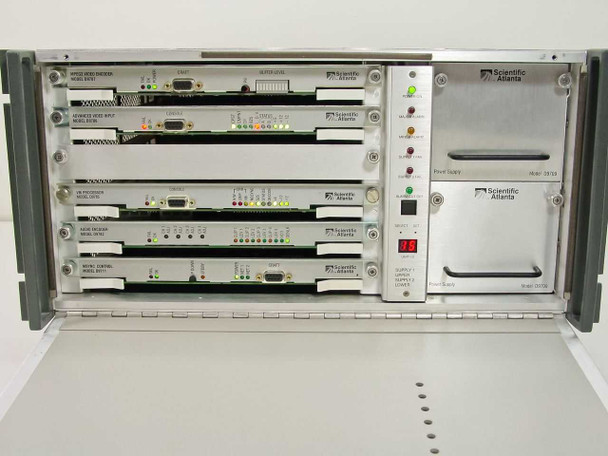

This Scientific Atlanta D-9110 PowerVu Digital Video Encoder has been inspected and is in good condition. All five modules — D9787 MPEG2 Video Encoder, D9786 Advanced Video Input, D9785 VBI Processor, D9782 Audio Encoder, and D9711 MSYNC Control — are installed in the chassis. Both D9709 power supply modules are present. The unit shows normal cosmetic wear consistent with prior rack-mount use; the chassis, panels, and modules appear clean and intact with no notable damage. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Scientific Atlanta |
Model: |
D-9110 |
MPN: |
D-9110 |
Type: |
Digital Video Encoder |
SKU: |
39701 |
Product Line: |
PowerVu |
Encoding Standard: |
MPEG-2 |
Form Factor: |
Rack Mount |
Number of Module Slots: |
5 |
Included Module 1: |
D9787 MPEG2 Video Encoder |
Included Module 2: |
D9786 Advanced Video Input |
Included Module 3: |
D9785 VBI Processor |
Included Module 4: |
D9782 Audio Encoder |
Included Module 5: |
D9711 MSYNC Control |
Power Supply Model: |
D9709 (x2, redundant) |
Power Requirements: |
100-120V 1A / 230-200V 2A, 50-60Hz, 480W |
Fuse Rating: |
T 6.3A 250V |
Application: |
Satellite broadcast video encoding |
Connector Types: |
BNC, DB9, RJ45, XLR, terminal block |
Alarm Indicators: |
Power On, Major Alarm, Minor Alarm, Supply 1 Fail, Supply 2 Fail, Alarm Cut Off |
Certifications: |
UL Listed (12Y7), CE |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Includes 5 installed modules: D9787, D9786, D9785, D9782, D9711; two D9709 power supplies installed |
Condition Notes: |
Scientific Atlanta D-9110 PowerVu Digital Video Encoder inspected and in good condition. All 5 modules (D9787, D9786, D9785, D9782, D9711) and both D9709 power supplies installed. Normal cosmetic wear from prior rack use. |
