Scientific Atlanta
-

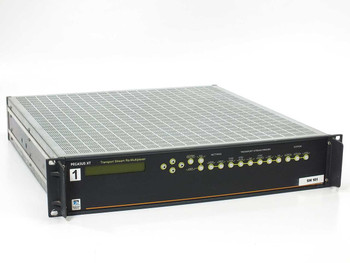

Scientific Atlanta V9526311 Pegasus XT Transport Stream Re-Multiplexer ASI
Scientific Atlanta
$225.00Was: $750.00Scientific Atlanta V9526311 Pegasus XT Transport Stream Re-Multiplexer ASI The Scientific Atlanta Pegasus XT is a professional broadcast-grade MPEG-2 transport stream re-multiplexer designed for...49797- SKU:
- 49797
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 20.00 LBS
- Brand:
- Scientific Atlanta
- Model:
- Pegasus XT
- MPN:
- V9526311
- Type:
- Transport Stream Re-Multiplexer
- SKU:
- 49797
- Condition:
- Used – Powers On, Untested Further
- Form Factor:
- Rack Mount, 2U
- Power Requirements:
- 100-240 VAC, 47-63 Hz, 0.6 A
- Input Interface:
- ASI (Asynchronous Serial Interface), 6 inputs
- Output Interface:
- ASI Out, SPI Out
- Management Interface:
- Ethernet, Status & Control port
- Signal Standard:
- MPEG-2 Transport Stream, DVB-ASI
- Number of Inputs:
- 6 ASI inputs (Input 1–6)
- Front Panel Display:
- LCD display, LED status indicators
- Firmware Version:
- zHV04.00.16 (visible on front panel display)
- Country/Region of Manufacture:
- United States
- Compatible With:
- Broadcast headend systems, DVB/MPEG-2 distribution
- Seller Notes:
- Unit powers on and display is active. Sold as pictured.
- Condition Notes:
- This Scientific Atlanta V9526311 Pegasus XT Transport Stream Re-Multiplexer powers on and the front-panel LCD display is active, showing firmware version zHV04.00.16.
$225.00Was: $750.00 -
Scientific Atlanta 9325 C-Band Block Converter 3.7-4.2 GHz to 950-1450 MHz
Scientific Atlanta
$35.00Was: $70.00Scientific Atlanta 9325 C-Band Block Converter 3.7-4.2 GHz to 950-1450 MHzC-band block converter that shifts satellite downlink signals from 3.7–4.2 GHz to intermediate frequency 950–1450 MHz for...49666- SKU:
- 49666
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Scientific Atlanta
- Model:
- 9325
- MPN:
- 9325
- Type:
- C-Band Block Converter
- SKU:
- 49666
- Input Frequency Range:
- 3.7 – 4.2 GHz
- Output Frequency Range:
- 950 – 1450 MHz
- Frequency Band:
- C-Band
- Input Connector:
- N-Type Female
- Output Connector:
- F-Type Female
- Housing / Enclosure:
- White painted aluminum, weatherproof
- Form Factor:
- Inline / Outdoor Mount
- Seller Notes:
- Unit only; no additional accessories included.
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Inspected, appears in good condition
- Condition Notes:
- Scientific Atlanta 9325 C-Band Block Converter. Inspected and in good condition. Light paint chipping on housing corner. N-type and F-type connectors clean and intact. Label fully legible.
$35.00Was: $70.00 -
Scientific Atlanta 7550A Up-Converter 7550B Video Exciter 5.8-6.4 GHz Satcom
Scientific Atlanta
$175.00Was: $350.00Scientific Atlanta 7550A Up-Converter 7550B Video Exciter 5.8-6.4 GHz SatcomC-Band satellite up-converter and video exciter designed for satellite uplink transmission. Operates across 5.8 to 6.4 GHz...45516- SKU:
- 45516
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 45.00 LBS
- Brand:
- Scientific-Atlanta
- Model:
- 7550A
- Secondary Model:
- 7550B
- MPN:
- 7550CFG
- Configuration Code:
- AGBADAABAA
- SKU:
- 45516
- Type:
- Satellite Up-Converter / Video Exciter
- Frequency Range:
- 5.8 to 6.4 GHz
- Band:
- C-Band
- Application:
- Satellite Uplink / Video Exciter
- Form Factor:
- Rackmount
- Rack Units:
- 4U (approx.)
- Dimensions:
- 28" x 20" x 6"
- Power Requirements:
- 120 VAC / 240 VAC / 100 VAC switchable (QPT-515-ET-66 transformer)
- Fuse Rating:
- 120 VAC: 2A S/B; 240 VAC: 1A S/B
- Plug-in Module 1:
- IF Filter-Amplifier
- Plug-in Module 2:
- Modulator
- Plug-in Module 3:
- Video Baseband Processor
- Plug-in Module 4:
- Subcarrier (x2)
- Plug-in Module 5:
- 750 ATIS Subcarrier
- Synthesizer Module:
- 100 MHz Synthesizer (Assembly 360352, Model 7550A)
- Front Panel Display:
- Blue numeric LED frequency display (5850.000 shown)
- Front Panel Interface:
- Numeric keypad with SF1-SF4, FREQ, XPDR, TEST, MOD keys
- Rear Connectors:
- J1 Power, J2 AUX ALM, J3 DATA, J5 VIDEO, J9 EXT SYNC
- Rear Connectors 2:
- J10 EXT S/C INPUT, J104 RF, J101 SABUS, J102 POWER
- Rear Connectors 3:
- J105 REMOTE, J106 AINFRAME, J107 IF, J6 IF, J7 CONVERTER
- IF Interface:
- BNC (IF Input/Output on rear panel)
- RS-232 Port:
- Yes — DB9 on 750 ATIS Subcarrier module
- Country/Region of Manufacture:
- United States
- Manufacturer Location:
- Atlanta, Georgia 30340
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes installed plug-in modules: IF Filter-Amp, Modulator, Video Baseband Processor, 2x Subcarrier, 750 ATIS Subcarrier
- Condition Notes:
- Scientific Atlanta 7550A Up-Converter / 7550B Video Exciter. Visually inspected, appears in good cosmetic condition. Not powered or tested — sold as-is. All plug-in modules present. Please contact us with questions.
$175.00Was: $350.00 -
Scientific Atlanta 7500-02 Satellite Video Receiver 19" Rackmount Assy 211553
Scientific Atlanta
$130.00Was: $250.00Scientific Atlanta 7500-02 Satellite Video Receiver 19" Rackmount Assy 211553Satellite video receiver designed for earth station and TVRO downlink systems. Housed in a 19-inch rackmount form factor...45849- SKU:
- 45849
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 39.00 LBS
- Brand:
- Scientific Atlanta
- Model:
- 7500-02
- MPN:
- 7500-02
- Secondary Model:
- Assy 211553
- Type:
- Satellite Video Receiver
- SKU:
- 45849
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Missing top cover. Powers on. Sold as-is for parts or repair.
- Form Factor:
- 19" Rackmount
- IF Monitor Impedance:
- 75 Ohm
- Front Panel Display:
- Alphanumeric LCD, numeric keypad
- Front Panel Controls:
- FREQ, MEM, CHAN, LCL/RMT, AGC/MGC select
- Front Panel Indicators:
- ALM, LO, LID, C/N LEDs; C/N analog meter (0-25 dB)
- Rear Outputs:
- Video 1 Output, Video 2 Output, Composite BB Out
- Rear Audio:
- Program Audio A/B, Opt 1/2/3 Audio A/B, GND terminals
- Rear Connectors:
- IF Input, DWN PWR, Auxiliary, -15V/GND/+15V
- AC Power Supply:
- Assy 229000
- Fuse Rating:
- 1.5 AMP
- FSCM Code Ident No:
- 10110
- PN:
- 160296
- Country/Region of Manufacture:
- United States
- Compatible With:
- Satellite earth station / TVRO downlink systems
- Condition Notes:
- Scientific Atlanta 7500-02 Satellite Video Receiver, Assy 211553. Sold as-is for parts or repair. Powers on and lights up; untested beyond that. Top cover missing. Not guaranteed functional.
$130.00Was: $250.00 -

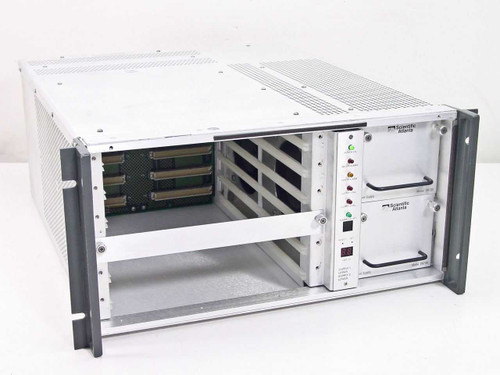

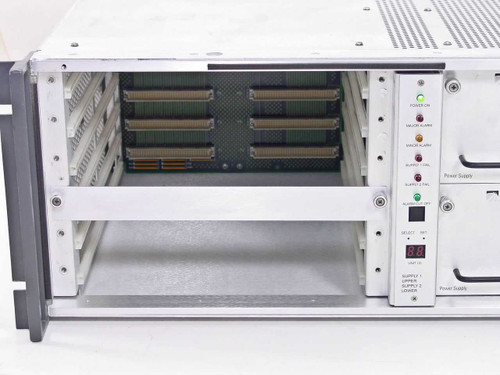

Scientific Atlanta D-9130 Multiplexer Chassis 2x D9709 PSU MSYNC 100-240V
Scientific Atlanta
$150.00Was: $300.00Scientific Atlanta D-9130 Multiplexer Chassis 2x D9709 PSU MSYNC 100-240V5U rackmount multiplexer chassis for satellite television network and satcom applications. Designed to house plug-in modules...44767- SKU:
- 44767
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 40.00 LBS
- Brand:
- Scientific Atlanta
- Model:
- D-9130
- MPN:
- D-9130
- Secondary Model:
- D9709
- SKU:
- 44767
- Type:
- Multiplexer Chassis
- Form Factor:
- Rackmount, 5U
- Power Requirements:
- 100-120V~ 6.3A 125V / 220-240V~ 6.3A 250V
- Power Rating:
- 480W (per PSU)
- Number of PSUs Included:
- 2x D9709 Power Supply Units
- Plug-In Slots:
- Multiple card/plug-in slots (empty — no plug-ins included)
- Included Modules:
- 2x D9709 PSU; 1x MSYNC Control I/O Unit (Slot 1)
- MSYNC Control I/O:
- Included — installed in Slot 1
- Front Panel Indicators:
- Power On, Major Alarm, Supply 1 Fail, Supply 2 Lower, Select
- Rear Connectors (MSYNC):
- 2x RJ-45 (NET), DB-9 (AUX Serial), terminal block, SWF x2, REF OUT, REF IN (BNC)
- Application:
- Satellite Television Network / Satcom Multiplexing
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes 2x D9709 PSUs and 1x MSYNC Control I/O unit; plug-in slots empty
- Country/Region of Manufacture:
- United States
- Compatible With:
- Scientific Atlanta D-9130 series plug-in modules
- Condition Notes:
- Scientific Atlanta D-9130 Multiplexer Chassis, used, inspected, good condition. Pulled from working environment. Includes 2x D9709 PSUs and 1x MSYNC Control I/O unit. Plug-in slots empty — no additional modules included.
$150.00Was: $300.00 -

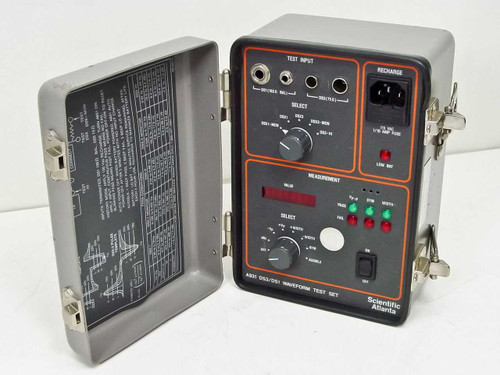

Scientific Atlanta A931 DS3/DS1 Waveform Test Set w/ Travel Case DSX T3 T1
Scientific Atlanta
$95.00Was: $200.00Scientific Atlanta A931 DS3/DS1 Waveform Test Set w/ Travel Case DSX T3 T1 Portable waveform test set for DS3 and DS1 signal analysis. Measures voltage peak-to-peak, symmetry, and pulse width on...41182- SKU:
- 41182
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 12.00 LBS
- Brand:
- Scientific Atlanta
- Model:
- A931
- MPN:
- A931
- Type:
- DS3/DS1 Waveform Test Set
- SKU:
- 41182
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Includes built-in travel case; probes not included
- Country/Region of Manufacture:
- United States
- Form Factor:
- Portable / Handheld Case
- Measurement Type:
- DS3/DS1 Waveform Analysis (Vp-p, Symmetry, Width)
- Signal Standards:
- DS1 (T1), DS3 (T3)
- Input Impedance:
- DS1: 100Ω Balanced; DS3: 75Ω
- Select Modes:
- DSX1, DSX3, DSX1-MON, DSX3-MON, DS3-HI
- Measurement Parameters:
- +Vp, -Vp, +Width, -Width, Symmetry, dBx, Audible
- Display:
- LED numeric readout with PASS/FAIL indicators (Vp-p, SYM, WIDTH)
- Power:
- 120V AC Recharge input; internal battery operation
- Battery Indicator:
- Low Battery LED indicator
- Fuse:
- 1/10 Amp fuse (per front panel label)
- Publication Number:
- PN 328119 (operating guide label)
- Serial Number (Label):
- 689AI
- Compatible With:
- DSX-1 and DSX-3 cross-connect and monitor points
- Includes:
- Integral metal travel case with latches and carry handle
- Probes Included:
- No
- Condition Notes:
- Scientific Atlanta A931 DS3/DS1 Waveform Test Set. Powers on and passes self-test; further signal testing not performed. Good used condition. Metal travel case included; probes not included. Wear consistent with field use.
$95.00Was: $200.00 -
Scientific Atlanta D9786 Advanced Video Input Plug-In Module
Scientific Atlanta
$74.00Was: $145.00Scientific Atlanta D9786 Advanced Video Input Plug-In Module Condition: UsedThis used item has been inspected and appears to be in good condition. It was pulled from a working environment...39936- SKU:
- 39936
- Weight:
- 4.00 LBS
$74.00Was: $145.00 -
Scientific Atlanta D-9708 PowerVu Digital Multiplexer D9732 D9730 D9740 D9711
Scientific Atlanta
$500.00Was: $1,000.00Scientific Atlanta D-9708 PowerVu Digital Multiplexer D9732 D9730 D9740 D9711Rackmount digital multiplexer chassis designed for broadcast and cable television headend operations. Processes and...39702- SKU:
- 39702
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 38.00 LBS
- Brand:
- Scientific Atlanta
- Model:
- D-9708
- MPN:
- D-9708
- Type:
- PowerVu Digital Multiplexer
- SKU:
- 39702
- Condition:
- Used – Inspected
- Form Factor:
- Rackmount
- Power Requirements:
- 100-120V / 220-240V AC, 4A, 50-60Hz
- Power Supply Model:
- D9709 (x2, redundant)
- Included Module 1:
- D9732 Utility Data (x1)
- Included Module 2:
- D9730 SWIF Receive (x3)
- Included Module 3:
- D9740 Conditional Access (x1)
- Included Module 4:
- D9711 MSYNC Control (x1)
- Number of Module Slots:
- 6
- Status Indicators:
- Power On, Major Alarm, Minor Alarm, Supply 1 Fail, Supply 2 Fail, Alarm Cut Off
- Rear Connectors – Utility Data:
- Sync A, Sync B, COM 1–4 (DB-9)
- Rear Connectors – Conditional Access:
- ID, Console, Remote, Ether NET, Expansion, SWF, REF OUT, REF IN
- Rear Connectors – MSYNC Control:
- NET 1, NET 2 (RJ-45), AUX Serial, SMC
- Rear Connectors – SWIF Receive:
- SWF 1–4 per card (SWF I/O)
- FCC Compliance:
- FCC Part 15 compliant; UL Listed Professional Video Equipment
- Country/Region of Manufacture:
- United States
- Application:
- Broadcast/cable TV headend digital multiplexing
- Compatible With:
- Scientific Atlanta PowerVu headend systems
- Seller Notes:
- Includes chassis with D9732, D9730 (x3), D9740, D9711 modules, and dual D9709 power supplies
- Condition Notes:
- Scientific Atlanta D-9708 PowerVu Digital Multiplexer inspected and in good used condition. All modules present: D9732, D9730 (x3), D9740, D9711. Dual D9709 power supplies included. Normal rack wear. Please contact us with any questions.
$500.00Was: $1,000.00
