Description
Scientific Atlanta 7500 Video Receiver Rackmount Satellite C/N Meter IF Input
The Scientific Atlanta 7500 is a rackmount satellite video receiver with integrated C/N (Carrier-to-Noise) metering capabilities. It processes satellite signals and outputs composite and component video with audio for broadcast and telecom applications.
Specifications & What's Included
- Rackmount form factor
- IF Input: 75 Ohm impedance
- C/N Meter: Analog scale, 0–25 dB range
- Video Outputs: 2x BNC connectors
- Composite Output: BNC connector
- Audio Outputs: Program Audio A/B, optional 1/2/3 audio on screw terminals

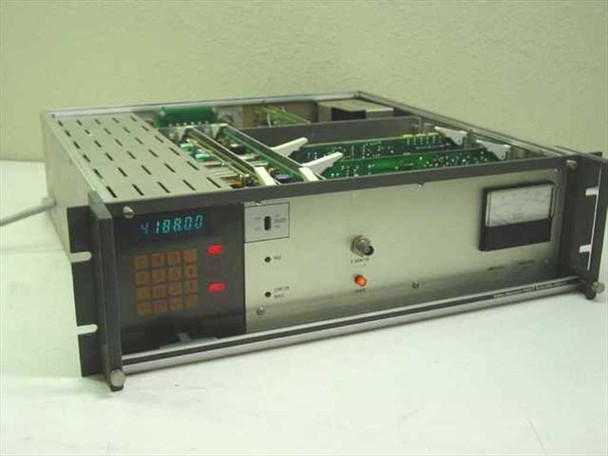

- Front Panel: Blue LED frequency display, keypad control, video and audio level indicators
- Power: AC supply with 1.5 Amp fuse
- Internal card assemblies intact
Applications
The 7500 served in satellite broadcast and telecom infrastructure for signal reception and quality monitoring. Units like this were deployed in headend facilities, master control rooms, and teleport operations to receive and process C-band satellite signals. The integrated C/N meter provided real-time signal quality assessment without external test equipment. Compatible with standard satellite downlink chains and video distribution systems.
This Scientific Atlanta 7500 Video Receiver has been inspected and is in good overall condition. It was pulled from a working environment where it was in active use. The unit is missing its top cover — this is visible in the photos and the price reflects it. Internally, the card assemblies are present and intact. The front panel shows the numeric LED display, keypad, and analog C/N meter. The rear panel connectors, audio terminal blocks, heatsink, and power supply are all present. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Scientific Atlanta |
Model: |
7500 |
MPN: |
7500 |
Type: |
Satellite Video Receiver |
SKU: |
31862 |
Form Factor: |
Rackmount |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit is missing its top cover; otherwise complete with internal card assemblies |
IF Input Impedance: |
75 Ohm |
Signal Meter: |
Analog C/N (Carrier-to-Noise) meter, 0–25 dB scale |

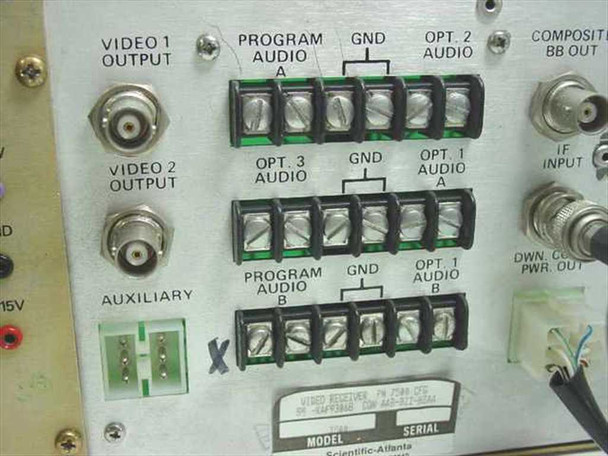

Video Outputs: |
2x BNC (Video 1 Output, Video 2 Output) |
Composite Output: |
Composite BB Out (BNC) |

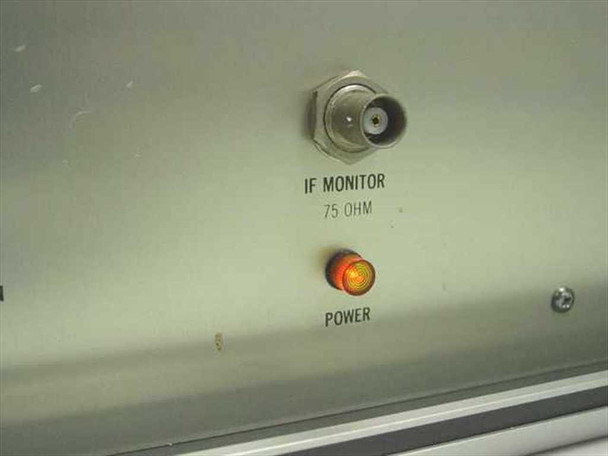

IF Monitor: |
IF Monitor 75 Ohm (BNC) |
RF Input: |
RF Input connector on rear panel |
IF Input: |
IF Input connector on rear panel |
Audio Outputs: |
Program Audio A/B, Opt. 1/2/3 Audio — screw terminal blocks |
Auxiliary Output: |
Auxiliary connector on rear panel |
AC Power Switch: |
A1S1 AC Power toggle switch on rear panel |
Fuse Rating: |
A3F1 1.5 Amp |
AC Power Supply: |
AC Power Supply A3S2 222X00 |
Front Panel Display: |
Blue LED numeric frequency display (e.g. 4188.0) |
Front Panel Controls: |
Keypad with LED indicators; Video Level and Audio Level indicators |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Scientific Atlanta 7500 Video Receiver inspected and in good condition; missing top cover (see photos, priced accordingly). Pulled from a working environment. Internal cards and rear connectors intact. Contact us with questions. |
