Description
Scientific Atlanta 7500 Video Receiver 211553 AAE-ZFZ-AZDA 19" Rackmount 3U
The Scientific Atlanta 7500 is a professional satellite video receiver designed for broadcast and cable headend applications. It demodulates and processes satellite video signals, providing multiple video, audio, and baseband outputs for distribution in cable television, broadcast facility, and satellite downlink environments. This unit carries part number 211553 and is configured with option code AAE-ZFZ-AZDA.
Specifications & What's Included
- Manufacturer: Scientific-Atlanta (Atlanta, Georgia)
- Model: 7500 Video Receiver
- Part Number: 211553
- Option Code: AAE-ZFZ-AZDA
- Form Factor: 19" rackmount, 3U chassis
- AC Power Supply: Assembly ASSY 229000, on/off toggle switch (labeled A1S1 AC POWER)
- Fuse: A1F1, 1.5 Amp
- Front Panel: Numeric keypad (0–9, FREQ, MEM, CHAN, LCL), up/down channel arrows, blue LED frequency display
- Front Panel Indicators: ALM, L.O., VID, C/N, RMT status LEDs

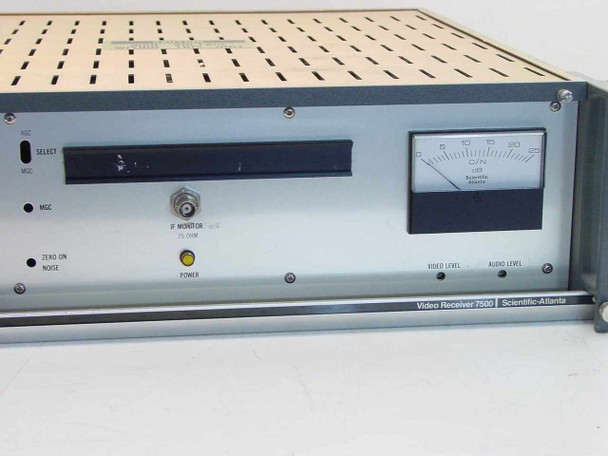

- Front Panel Controls: AGC/MGC select switch, ZERO ON NOISE button, IF MONITOR BNC port

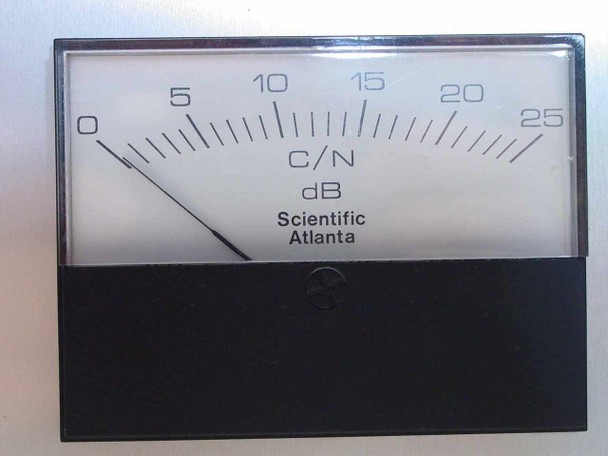

- Analog Meter: C/N (Carrier-to-Noise) meter, 0–25 dB range, Scientific-Atlanta branded

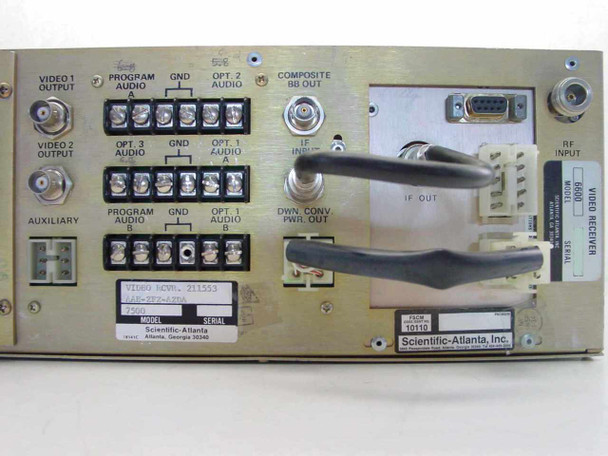

- Rear Video Outputs: Video 1 Out, Video 2 Out, Auxiliary Output (BNC connectors)
- Rear Audio Outputs: Program Audio, Opt 1 Audio, Opt 2 Audio, Opt 3 Audio (terminal block connections, multiple groups labeled A and B)
- Rear Baseband Output: Composite Baseband Out (BNC)
- Rear RF/IF Connections: RF Input, IF Input, IF Out, Down Conv PWR Out
- Additional Rear Connector: DB-15 style connector (IF-related)
- Power Supply Heat Sink: Large finned aluminum heat sink with high-voltage caution label

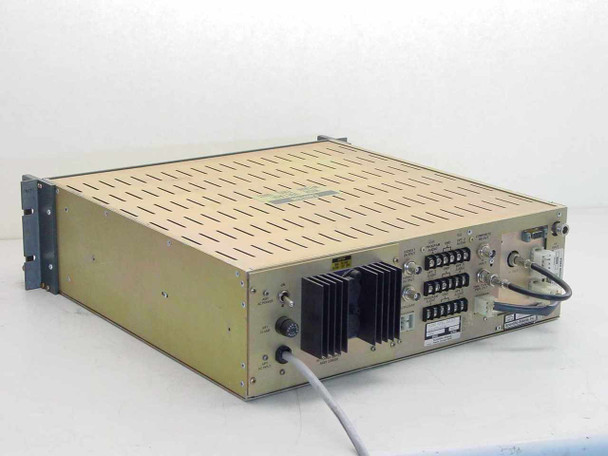

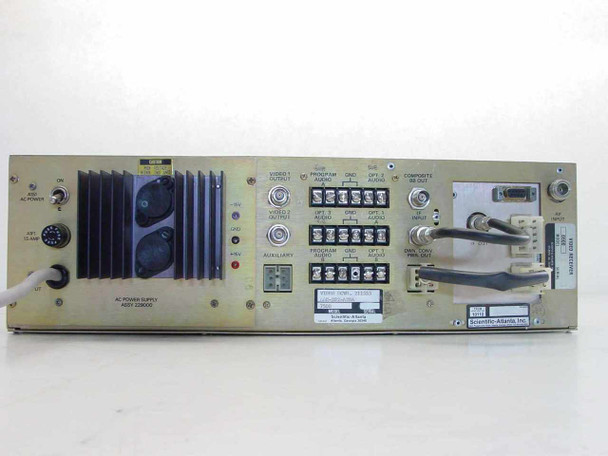

- Rear terminal strip: Multiple screw-terminal audio/GND blocks for program and optional audio channels
Applications
The Scientific-Atlanta 7500 Video Receiver was a widely used piece of headend equipment in cable television and broadcast satellite distribution systems, primarily from the 1980s and early 1990s. Scientific-Atlanta (later acquired by Cisco) was one of the dominant suppliers of satellite ground station and cable headend equipment during this era. The 7500 series receivers were deployed at cable system headend facilities to receive C-band or Ku-band satellite signals carrying video programming and demodulate them for local distribution over the cable plant. The front-panel keypad and LED display allowed operators to tune to specific satellite transponder frequencies and monitor signal quality via the C/N meter. Multiple video and audio outputs made it straightforward to feed downstream distribution amplifiers, modulators, or recording equipment. These receivers are still sought by legacy cable headend operators, satellite earth station technicians, broadcast engineers maintaining period infrastructure, and collectors of professional broadcast equipment.

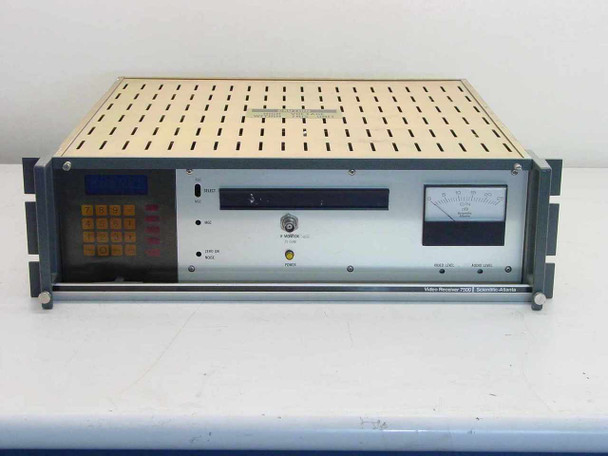

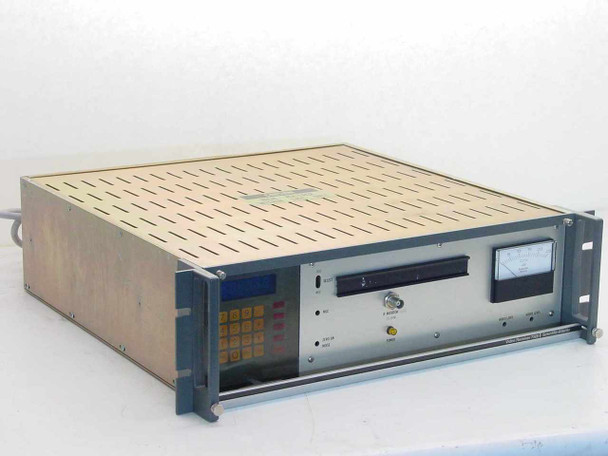

This Scientific Atlanta 7500 Video Receiver (P/N 211553, option AAE-ZFZ-AZDA) powers on and the front panel illuminates, including the blue LED frequency display, power indicator, and analog C/N meter. Beyond confirming power-on, the unit has not been further tested at our facility. The chassis shows normal wear consistent with rack service use. The rear panel connectors, terminal blocks, and BNC ports all appear intact with no obvious physical damage. Please view our photo set and contact us if you have any questions.
