Description
Scientific Atlanta 7500-02 Satellite Video Receiver 19" Rackmount Assy 211553
Satellite video receiver designed for earth station and TVRO downlink systems. Housed in a 19-inch rackmount form factor with dual video outputs and multiple audio channels.
Specifications & What's Included
- 19" rackmount assembly (Assy 211553)

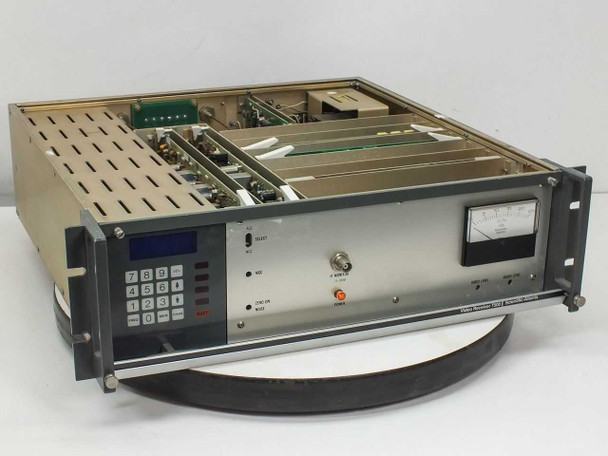

- Front panel: alphanumeric LCD display, numeric keypad, frequency/memory/channel controls
- Dual video outputs plus composite baseband output
- Multiple audio channels: Program Audio A/B, Optional 1/2/3 Audio A/B
- IF input impedance: 75 Ohm
- Status indicators: alarm, local oscillator, lid, carrier-to-noise LEDs; C/N analog meter (0-25 dB)
- AC power supply (Assy 229000), 1.5 AMP fuse rating
Applications
Satellite video receivers like this unit were used in broadcast and telecommunications earth stations to receive and demodulate satellite signals for video and audio content distribution. The 7500-02 series was deployed in TVRO (television receive-only) systems and satellite downlink infrastructure. Compatible with satellite earth station equipment and video distribution networks requiring dual video outputs and multi-channel audio support.
Condition: For Parts or Not Working

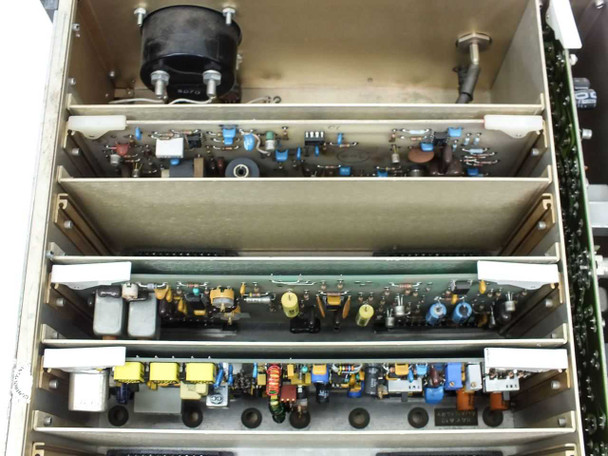

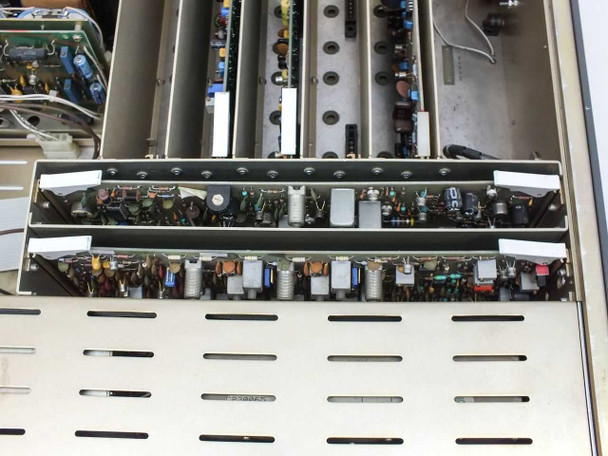

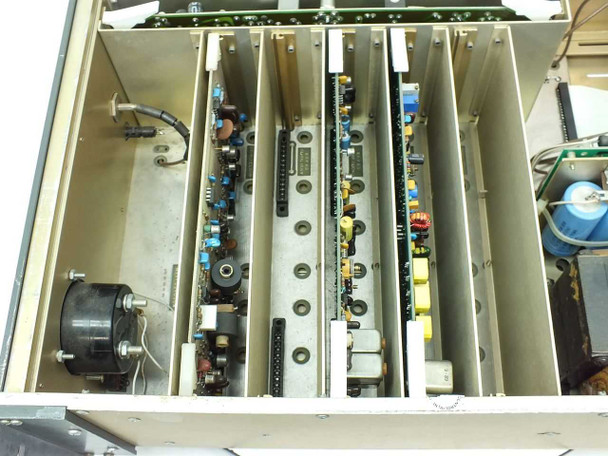

This Scientific Atlanta 7500-02 Satellite Video Receiver (Assy 211553) is being sold as-is for parts or repair. The unit powers on and the front panel lights up, but it has not been tested further and no functionality beyond that is guaranteed. The top cover is missing, leaving the internal card cage exposed. The chassis, rear panel connectors, and front panel controls and display all appear intact based on our photos. This unit is not guaranteed functional and is intended for buyers seeking it for parts, repair, or as a project unit. Please view our photo set and contact us if you have any questions.
This Scientific Atlanta 7500-02 Satellite Video Receiver (Assy 211553) is being sold as-is for parts or repair. The unit powers on and the front panel lights up, but it has not been tested further and no functionality beyond that is guaranteed. The top cover is missing, leaving the internal card cage exposed. The chassis, rear panel connectors, and front panel controls and display all appear intact based on our photos. This unit is not guaranteed functional and is intended for buyers seeking it for parts, repair, or as a project unit. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Scientific Atlanta |
Model: |
7500-02 |
MPN: |
7500-02 |
Secondary Model: |
Assy 211553 |
Type: |
Satellite Video Receiver |
SKU: |
45849 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Missing top cover. Powers on. Sold as-is for parts or repair. |
Form Factor: |
19" Rackmount |
IF Monitor Impedance: |
75 Ohm |
Front Panel Display: |
Alphanumeric LCD, numeric keypad |
Front Panel Controls: |
FREQ, MEM, CHAN, LCL/RMT, AGC/MGC select |
Front Panel Indicators: |
ALM, LO, LID, C/N LEDs; C/N analog meter (0-25 dB) |

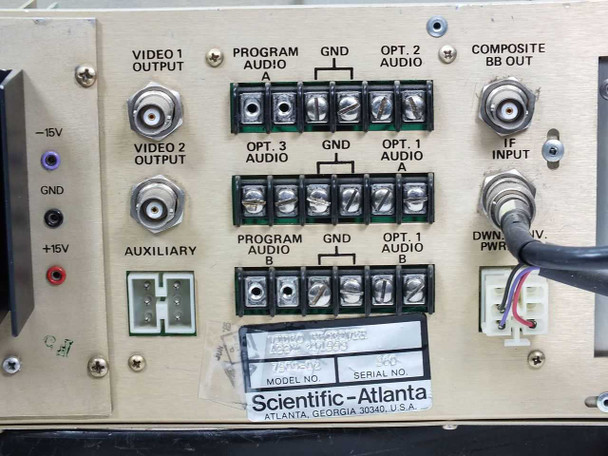

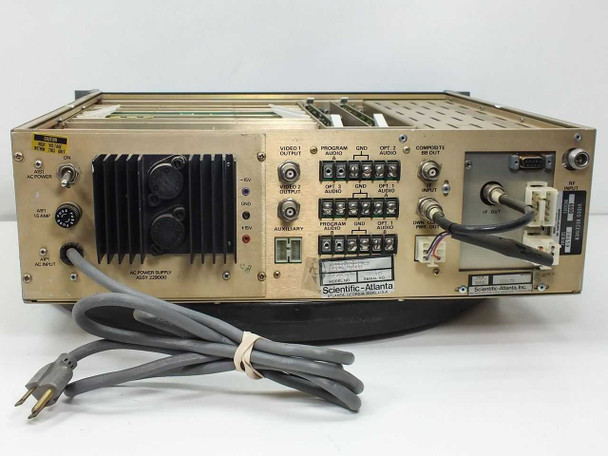

Rear Outputs: |
Video 1 Output, Video 2 Output, Composite BB Out |
Rear Audio: |
Program Audio A/B, Opt 1/2/3 Audio A/B, GND terminals |

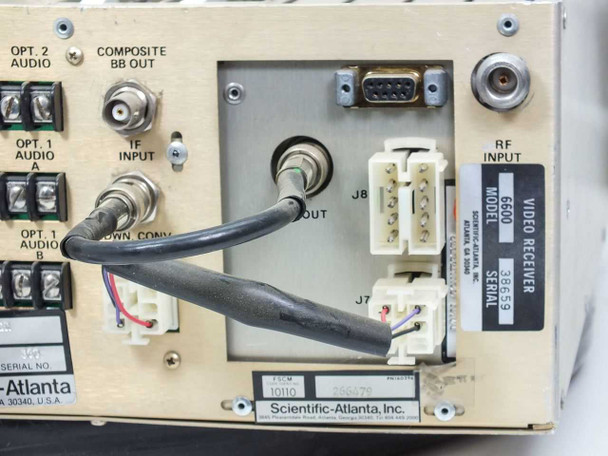

Rear Connectors: |
IF Input, DWN PWR, Auxiliary, -15V/GND/+15V |

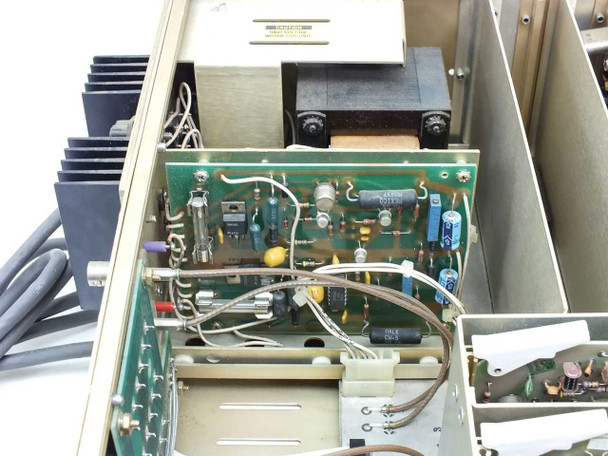

AC Power Supply: |
Assy 229000 |
Fuse Rating: |
1.5 AMP |
FSCM Code Ident No: |
10110 |
PN: |
160296 |
Country/Region of Manufacture: |
United States |
Compatible With: |
Satellite earth station / TVRO downlink systems |
Condition Notes: |
Scientific Atlanta 7500-02 Satellite Video Receiver, Assy 211553. Sold as-is for parts or repair. Powers on and lights up; untested beyond that. Top cover missing. Not guaranteed functional. |
