Description
Scientific Atlanta 7500 CFG Satcom Video Receiver Rackmount IF Input BNC
Rack-mount satellite video receiver for TVRO and broadcast downlink applications. Processes intermediate frequency (IF) signals from satellite dishes and outputs composite video and audio for distribution systems.
Specifications & What's Included
- IF Input: 75 Ohm BNC connector
- Bandwidth: 500 kHz selectable (BW1/BW2)
- Video Outputs: Two BNC video outputs plus composite baseband out
- Audio Outputs: Program Audio A/B and optional channels 1/2/3 (screw terminal)

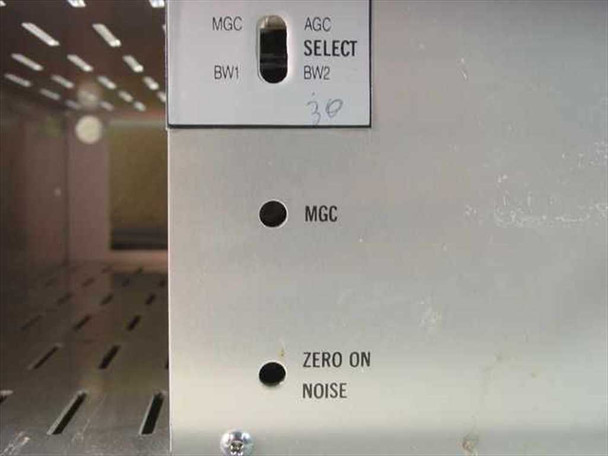

- Control Features: Selectable AGC/MGC, Zero On Noise, IF Monitor
- Internal: 7500 Video Clamp module (PN 211052) installed

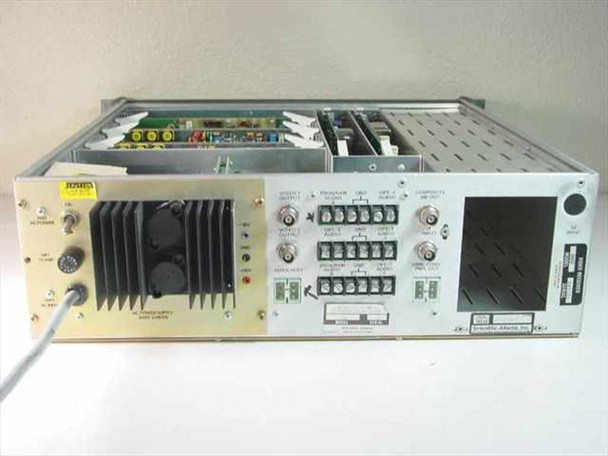

- Power: AC power supply assembly 229000 included
Applications
The 7500 CFG was used in satellite video distribution networks, broadcast television reception, and TVRO (Television Receive Only) systems. These receivers were deployed in cable headends, broadcast facilities, and teleport operations to downconvert and condition satellite-transmitted video signals for local distribution or further processing.
Condition: Used

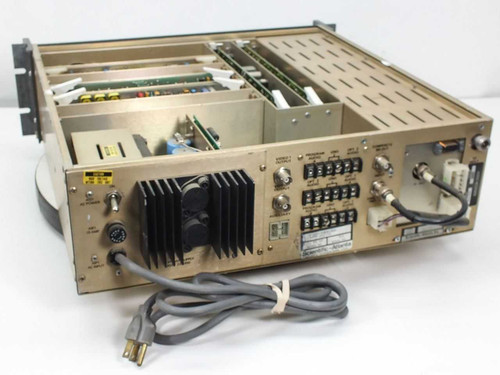

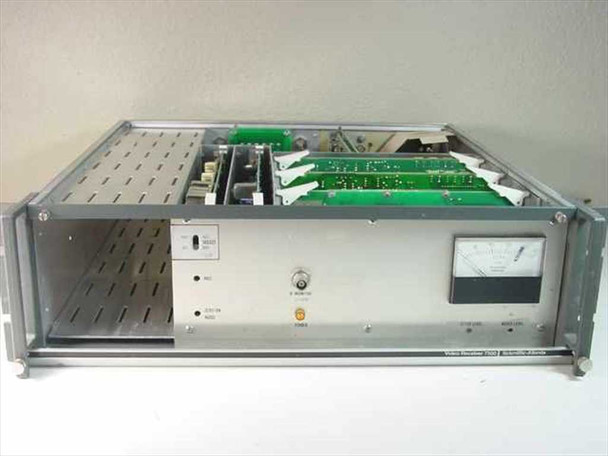

This Scientific-Atlanta 7500 CFG Satcom Video Receiver has been inspected and appears to be in good used condition. The chassis and front panel show normal wear consistent with prior rack service use. The rear panel connectors, BNC outputs, audio terminal blocks, and AC power supply assembly are all present and intact. Internal modules including the 7500 Video Clamp board and the 500 kHz BW module are installed. The unit has not been powered or tested at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Scientific-Atlanta 7500 CFG Satcom Video Receiver has been inspected and appears to be in good used condition. The chassis and front panel show normal wear consistent with prior rack service use. The rear panel connectors, BNC outputs, audio terminal blocks, and AC power supply assembly are all present and intact. Internal modules including the 7500 Video Clamp board and the 500 kHz BW module are installed. The unit has not been powered or tested at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Scientific-Atlanta |
Model: |
7500 CFG |
MPN: |
7500 CFG |
Type: |
Satellite Video Receiver |
SKU: |
31407 |
Form Factor: |
Rack Mount |
Configuration Code: |
CFG AAB-BZZ-HZAA |
AC Power Supply Assembly: |
ASSY 229000 |
IF Input Impedance: |
75 Ohm |
Bandwidth: |

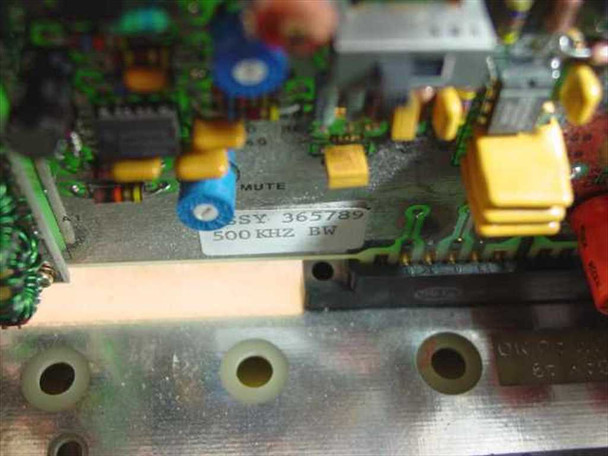

500 kHz BW (module label visible) |
AGC/MGC: |
Selectable AGC / MGC |
Video Outputs: |
Video 1 Output, Video 2 Output (BNC) |
Auxiliary Output: |
Auxiliary BNC Output |
Composite BB Output: |
Composite Baseband Out (BNC) |
IF Input: |
IF Input (BNC) |
Down Converter Power Output: |
DWN. CONV. PWR. OUT |
Audio Outputs: |
Program Audio A/B, OPT 1/2/3 Audio (screw terminal) |

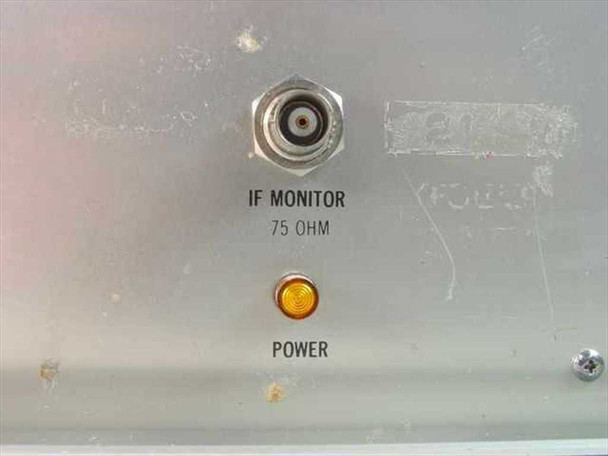

IF Monitor: |
IF Monitor BNC, 75 Ohm |
Zero On Noise: |
Zero On Noise control present |
Bandwidth Select: |
BW1 / BW2 selectable |
Internal Module: |
7500 Video Clamp module (PN 211052 visible) |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes installed modules and AC power supply assembly 229000 |
Country/Region of Manufacture: |
United States |
Application: |
Satellite Downlink, TVRO, Broadcast Video Distribution |
Condition Notes: |
This Scientific-Atlanta 7500 CFG Satcom Video Receiver is in good used condition with normal wear from prior rack use. All rear panel connectors and internal modules are present. Not powered or tested at our facility. |
