Description
Scientific Atlanta 7550 Video Exciter Assembly 262160 Rackmount w/ Empty Slot
The Scientific Atlanta 7550 is a rackmount video exciter designed for cable TV headend and broadcast signal distribution applications. It accepts baseband video and audio inputs and generates a modulated RF output for transmission or distribution across a cable plant or satellite uplink system. The unit is a modular chassis housing one populated module slot and one empty expansion slot, as seen in the photos.
Specifications & What's Included
- Manufacturer: Scientific-Atlanta, Atlanta, Georgia 30340, U.S.A.
- Model: 7550
- Assembly: 262160
- Form Factor: Rackmount chassis (approximately 4U)
- Module Slots: Two total — one populated, one empty

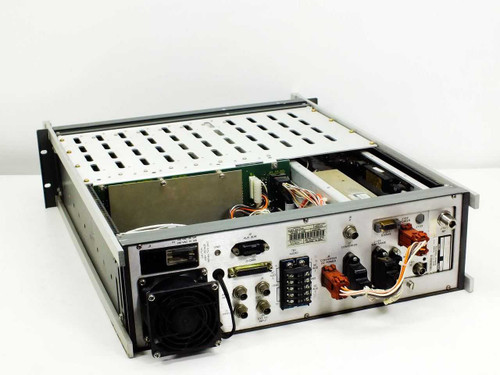

- J1: Fuse / Pull (front-accessible fuse block)
- J2: AUX / ALM — auxiliary/alarm connector
- J3: DATA — D-Sub 25-pin data interface
- J4: VIDEO IN — BNC input connector
- J5: S/C IN — BNC subcarrier input connector
- J6: IF OUT — BNC intermediate frequency output connector
- J7: CONVERTER — multi-pin converter interface connector
- TB1: AUDIO terminal block (SC AUD 1, SC AUD 2, GND x2)
- Rear-mounted cooling fan
- Rack-mount ears installed
Applications
The Scientific-Atlanta 7550 Video Exciter was designed for cable television headend systems, where it converts baseband video and audio signals into a modulated RF channel for distribution over a coaxial cable network. Scientific-Atlanta (now part of Cisco) was one of the dominant suppliers of headend equipment from the 1970s through the 2000s, and the 7550 series was widely deployed in cable franchises across North America during the analog cable era. These exciters were also used in satellite uplink and broadcast distribution environments where a stable, modulated video carrier was required. Today, 7550 units remain in demand for legacy analog cable system maintenance, parts sourcing, and headend restoration projects, as well as for collectors and engineers working with analog broadcast equipment.
This Scientific Atlanta 7550 Video Exciter (Assembly 262160) was pulled from a working cable/broadcast environment where it was in active use and functional. It has been inspected and is in good used condition. The chassis shows normal wear consistent with rack-deployed equipment. One module slot is populated and one slot is empty, as shown. Please review our photos and contact us with any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Scientific-Atlanta |
Model: |
7550 |
MPN: |
262160 |
Secondary Model: |
Assembly 262160 |
SKU: |
31656 |
Type: |
Video Exciter |
Form Factor: |
Rackmount |
Connector Types: |
BNC (Video In, S/C In, IF Out), D-Sub 25-pin, D-Sub connector, terminal block |
Rear Panel Connectors: |
J1 Fuse, J2 AUX/ALM, J3 DATA, J4 Video In (BNC), J5 S/C In (BNC), J6 IF Out (BNC), J7 Converter |
Audio Interface: |
TB1 Audio terminal block (SC AUD 1, SC AUD 2, GND) |
Slots: |
One occupied module slot, one empty slot |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes chassis with one populated module and one empty slot; pulled from working environment |
Condition: |
Used – Pulled from Working Environment |
Application: |
Cable TV headend, broadcast, satellite uplink video transmission |
Compatible With: |
Scientific-Atlanta 7550 series headend systems |
Condition Notes: |
Scientific Atlanta 7550 Video Exciter Assy 262160. Pulled from a working broadcast environment, inspected, good used condition. One module slot populated, one empty. Normal wear. |
