Scientific Atlanta V9526311 Pegasus XT Transport Stream Re-Multiplexer ASI
The Scientific Atlanta Pegasus XT is a professional broadcast-grade MPEG-2 transport stream re-multiplexer designed for digital headend and distribution applications. It accepts multiple ASI (Asynchronous Serial Interface) input streams, filters and remultiplexes the transport stream content, and outputs a single combined transport stream via ASI and SPI interfaces. The Pegasus XT was developed by Scientific Atlanta (subsequently Cisco) as part of their broadcast headend product line for cable, satellite, and terrestrial digital television facilities.
Specifications & What's Included
- Manufacturer: Scientific Atlanta
- Model: Pegasus XT
- Part Number: V9526311
- Type: MPEG-2 Transport Stream Re-Multiplexer
- Form Factor: 2U Rackmount
- Dimensions: 21" W x 19" D x 3.5" H
- Power Input: 100–240 VAC, 47–63 Hz, 0.6 A (IEC inlet, universal input)
- Signal Standard: MPEG-2 Transport Stream, DVB-ASI

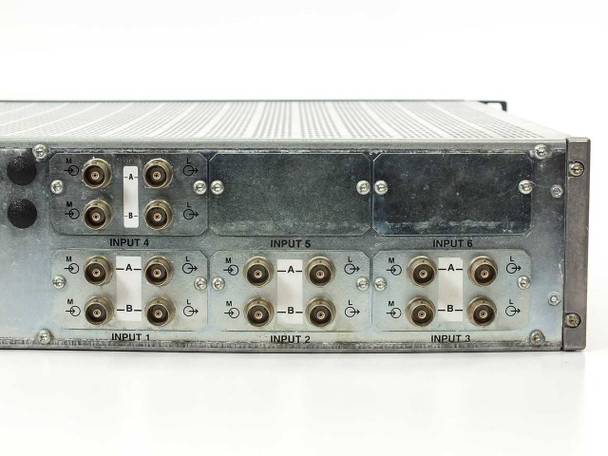

- ASI Inputs: 6 independent ASI input groups (Inputs 1–6), each with A and B ports (BNC)
- ASI Outputs: 2 x ASI Out (BNC, rear panel)
- SPI Output: 1 x SPI Out (D-sub connector, rear panel)
- Reference Input: CLK IN (BNC, rear panel)

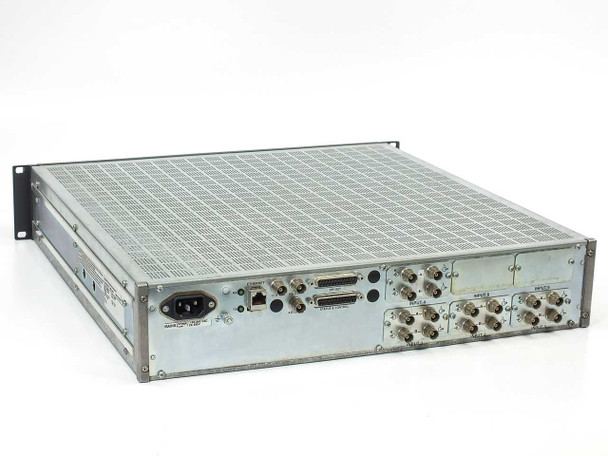

- Management: Ethernet RJ-45 (rear panel); Status & Control D-sub port

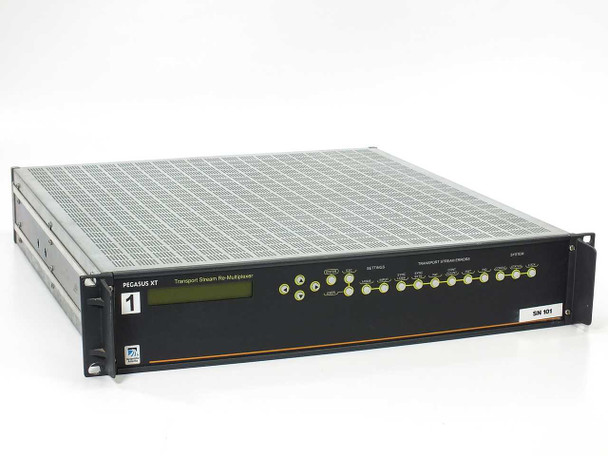

- Front Panel: LCD alphanumeric display, navigation buttons (Enter, ESC, directional), LED indicators for Settings (Mode, Input), Transport Stream Errors (Sync Loss, Sync Byte, PAT, Cont Count, PMT, PID), and System (Config, Lock, Status)
- Firmware: zHV04.00.16 (visible on front panel LCD)

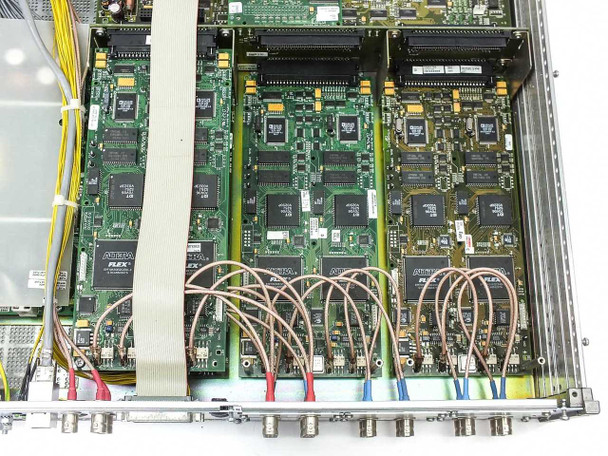

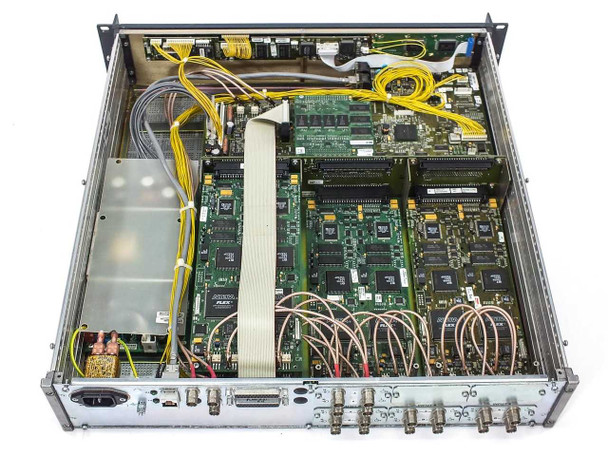

- Internal: Multiple processing PCBs populated with Altera FLEX FPGAs; separate input cards with coaxial connections; internal power supply module
- Unit powers on; LCD display is active
Applications
The Pegasus XT is a transport stream re-multiplexer used in professional broadcast headend environments for cable television, satellite distribution, and digital terrestrial television (DTT) facilities. It is designed to receive multiple MPEG-2 DVB-ASI transport streams, filter program content at the PID level, and re-multiplex selected programs into a single output transport stream for downstream distribution or encoding. This type of equipment was commonly deployed in cable headend rooms and playout facilities to manage bandwidth allocation across multiple digital channels before distribution to subscriber networks. It is also used in broadcast signal contribution, content aggregation, and digital TV channel lineup management. Operators and engineers working with legacy Scientific Atlanta (Cisco) headend ecosystems, or those maintaining or upgrading digital cable headend infrastructure, are the primary audience for this unit.
This Scientific Atlanta V9526311 Pegasus XT Transport Stream Re-Multiplexer powers on and the front-panel LCD display is active, showing firmware version zHV04.00.16. Beyond confirming power-up and display operation, this unit has not been tested further. The chassis is a 2U rackmount unit in typical used condition. The front panel shows moderate wear consistent with prior deployment in a broadcast headend environment, with some scuffing on the panel face. The rear panel connectors — including ASI inputs, ASI/SPI outputs, Ethernet, and the Status & Control port — appear intact and undamaged as visible in our photos. The interior boards and wiring harnesses appear complete and unmodified. Please view our full photo set and contact us if you have any questions before purchasing. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Scientific Atlanta |
Model: |
Pegasus XT |
MPN: |
V9526311 |
Type: |
Transport Stream Re-Multiplexer |
SKU: |
49797 |
Condition: |
Used – Powers On, Untested Further |
Form Factor: |
Rack Mount, 2U |
Power Requirements: |
100-240 VAC, 47-63 Hz, 0.6 A |
Input Interface: |
ASI (Asynchronous Serial Interface), 6 inputs |
Output Interface: |
ASI Out, SPI Out |
Management Interface: |
Ethernet, Status & Control port |
Signal Standard: |
MPEG-2 Transport Stream, DVB-ASI |
Number of Inputs: |
6 ASI inputs (Input 1–6) |
Front Panel Display: |
LCD display, LED status indicators |
Firmware Version: |
zHV04.00.16 (visible on front panel display) |
Country/Region of Manufacture: |
United States |
Compatible With: |
Broadcast headend systems, DVB/MPEG-2 distribution |
Seller Notes: |
Unit powers on and display is active. Sold as pictured. |
Condition Notes: |
Scientific Atlanta V9526311 Pegasus XT Re-Multiplexer powers on; LCD display active showing firmware zHV04.00.16. Not tested beyond power-up. Moderate cosmetic wear. Sold as-is beyond power-on confirmation. Please contact us with questions. |
