Description

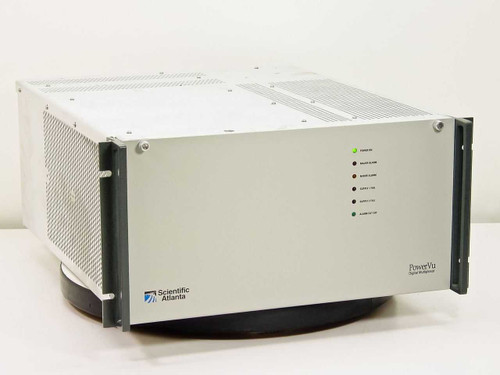

Scientific Atlanta D-9110 PowerVu Digital Multiplexer D9732 D9730 D9740 D9711
Rackmount digital multiplexer chassis for satellite and cable TV headend signal processing. Routes and multiplexes PowerVu-encrypted digital video streams with conditional access control.
Specifications & What's Included
- Model: D-9110; Installed modules: D9732 Utility Data (x1), D9730 SWIF Receive (x3), D9740 Conditional Access (x1), D9711 MSYNC Control (x1)
- Power supplies: D9709 (x2, redundant)
- Power requirements: 100–120V / 220–240V, 4.4A / 2.2A, 50/60Hz, 480W
- Form factor: Rackmount; Fuse: T 6.3A 250V
- Status indicators: Power On, Major/Minor Alarm, Supply 1/2 Fail, Alarm Cut Off
- Certifications: UL Listed, CE, FCC Part 15
Applications
This multiplexer was used in broadcast headend facilities to combine and process encrypted digital video signals for distribution. The D-9110 series handled PowerVu conditional access control and signal synchronization. Typical installations included cable and satellite TV providers managing multiple digital program streams. Redundant power supplies provided operational continuity in critical broadcast environments.
Condition: Used
This Scientific Atlanta D-9110 PowerVu Digital Multiplexer has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The chassis and module faceplates show normal wear consistent with rack-mounted broadcast equipment. All six modules — one D9732 Utility Data, three D9730 SWIF Receive, one D9740 Conditional Access, and one D9711 MSYNC Control — are installed and present, along with the two D9709 redundant power supply modules. Please view our photo set and contact us if you have any questions.
This Scientific Atlanta D-9110 PowerVu Digital Multiplexer has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The chassis and module faceplates show normal wear consistent with rack-mounted broadcast equipment. All six modules — one D9732 Utility Data, three D9730 SWIF Receive, one D9740 Conditional Access, and one D9711 MSYNC Control — are installed and present, along with the two D9709 redundant power supply modules. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Scientific Atlanta |
Model: |
D-9110 |
MPN: |
D-9110 |
Type: |
PowerVu Digital Multiplexer |
SKU: |
39700 |
Seller Notes: |
Includes D9732 (x1), D9730 (x3), D9740 (x1), D9711 (x1), D9709 power supplies (x2) |
Country/Region of Manufacture: |
United States |
Form Factor: |
Rackmount |
Power Requirements: |
100-120V 4.4A / 220-240V 2.2A, 50/60Hz, 480W |
Installed Module 1: |
D9732 Utility Data (x1) |
Installed Module 2: |
D9730 SWIF Receive (x3) |
Installed Module 3: |
D9740 Conditional Access (x1) |
Installed Module 4: |
D9711 MSYNC Control (x1) |
Power Supply Module: |
D9709 Power Supply (x2, redundant) |
Status Indicators: |
Power On, Major Alarm, Minor Alarm, Supply 1 Fail, Supply 2 Fail, Alarm Cut Off |
Application: |
Satellite/cable TV headend digital signal multiplexing |
Compatible With: |
PowerVu D-9110 series modules and chassis |
Fuse Rating: |
T 6.3A 250V |
Certifications: |
UL Listed, CE, FCC Part 15 |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
Scientific Atlanta D-9110 PowerVu Digital Multiplexer in good used condition. Pulled from a working environment. All modules present: D9732 (x1), D9730 (x3), D9740 (x1), D9711 (x1), D9709 PSU (x2). Normal rack wear. |
