Scientific Atlanta A931 DS3/DS1 Waveform Test Set w/ Travel Case DSX T3 T1
Portable waveform test set for DS3 and DS1 signal analysis. Measures voltage peak-to-peak, symmetry, and pulse width on telecom transmission lines.
Specifications & What's Included
- DS1 input impedance: 100Ω Balanced; DS3 input impedance: 75Ω
- Measurement modes: DSX1, DSX3, DSX1-MON, DSX3-MON, DS3-HI
- Parameters: +Vp, -Vp, +Width, -Width, Symmetry, dBx, Audible
- LED numeric display with PASS/FAIL indicators
- 120V AC recharge input with internal battery operation
- Includes integral metal travel case with latches and carry handle
- Probes not included
Applications
Used for field testing and troubleshooting of DS1 (T1) and DS3 (T3) digital telecom circuits. Compatible with DSX-1 and DSX-3 cross-connect and monitor points. Designed for technicians performing waveform analysis and signal verification on carrier transmission equipment.
Condition: Used

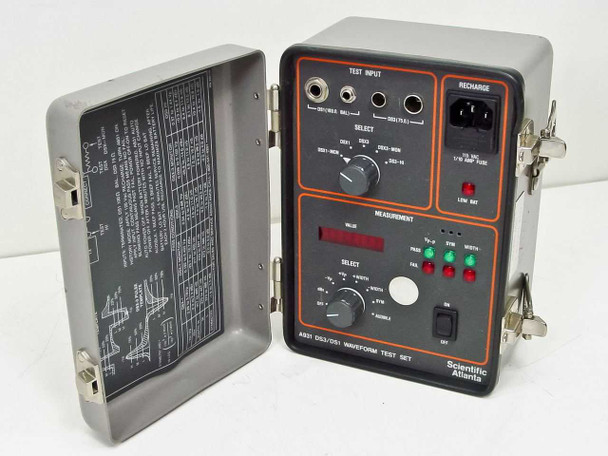

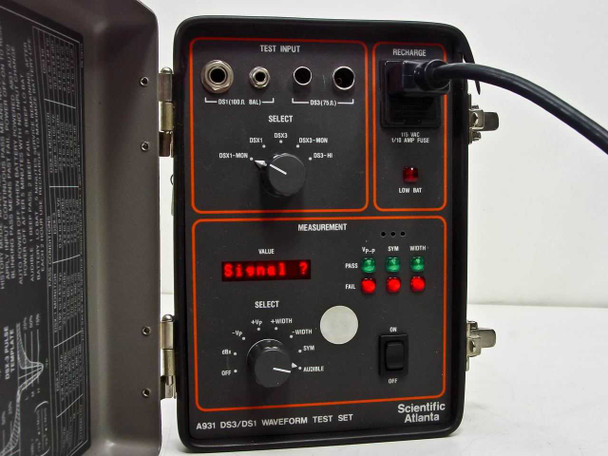

This Scientific Atlanta A931 DS3/DS1 Waveform Test Set has been inspected and is in good used condition. The unit powers on and passes its self-test functions; we were not able to perform further signal-level testing beyond that. The front panel controls, SELECT knob, LED measurement display, and PASS/FAIL indicators all appear intact. The metal travel case is included with functional latches and carry handle — the case exterior shows general wear consistent with field use, and there is a handwritten notation in red marker on the front of the case. Probes are not included. Please view our photo set and contact us if you have any questions.
This Scientific Atlanta A931 DS3/DS1 Waveform Test Set has been inspected and is in good used condition. The unit powers on and passes its self-test functions; we were not able to perform further signal-level testing beyond that. The front panel controls, SELECT knob, LED measurement display, and PASS/FAIL indicators all appear intact. The metal travel case is included with functional latches and carry handle — the case exterior shows general wear consistent with field use, and there is a handwritten notation in red marker on the front of the case. Probes are not included. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Scientific Atlanta |
Model: |
A931 |
MPN: |
A931 |
Type: |
DS3/DS1 Waveform Test Set |
SKU: |
41182 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Includes built-in travel case; probes not included |
Country/Region of Manufacture: |
United States |
Form Factor: |
Portable / Handheld Case |
Measurement Type: |
DS3/DS1 Waveform Analysis (Vp-p, Symmetry, Width) |
Signal Standards: |
DS1 (T1), DS3 (T3) |
Input Impedance: |
DS1: 100Ω Balanced; DS3: 75Ω |
Select Modes: |
DSX1, DSX3, DSX1-MON, DSX3-MON, DS3-HI |
Measurement Parameters: |
+Vp, -Vp, +Width, -Width, Symmetry, dBx, Audible |
Display: |
LED numeric readout with PASS/FAIL indicators (Vp-p, SYM, WIDTH) |
Power: |
120V AC Recharge input; internal battery operation |
Battery Indicator: |
Low Battery LED indicator |
Fuse: |
1/10 Amp fuse (per front panel label) |
Publication Number: |
PN 328119 (operating guide label) |

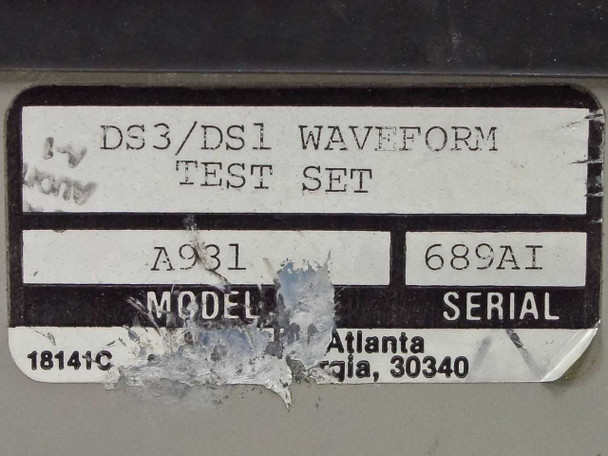

Serial Number (Label): |
689AI |
Compatible With: |
DSX-1 and DSX-3 cross-connect and monitor points |
Includes: |
Integral metal travel case with latches and carry handle |
Probes Included: |
No |
Condition Notes: |
Scientific Atlanta A931 DS3/DS1 Waveform Test Set. Powers on and passes self-test; further signal testing not performed. Good used condition. Metal travel case included; probes not included. Wear consistent with field use. |
