Tele-Path Industries

Tele-Path Industries 108-DS1 DS1 Test Access Module ESF B8ZS AMI TPI w/ Case

(No reviews yet) Write a Review
SKU:
39217
MPN:
108-DS1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • Tele-Path Industries TPI 108-DS1 DS1 Test Access Module in blue enclosure shown alongside gray TPI branded carry case — front and side view
  • Close-up of Tele-Path Industries Inc. logo label and multi-pin DIN power connector on top of TPI 108-DS1 module
  • TPI 108-DS1 front panel detail showing Signaling Bits A B C D LED indicators, red LED channel display, Up/Down Channel buttons, and Enable Drop and Insert button
  • TPI 108-DS1 DS1 Signal section showing East Primary and West Aux bantam jack access ports, Frame and B8ZS Rec'd LED indicators, line coding selector switches for East, VF, ESF, B8ZS, West, DDS, SF, SLC1, AMI
  • TPI 108-DS1 side panel showing ELD port, Clock connector, and RT II RCY/XMT, DDS TX/RX, and VF TX/RX Out/In bantam jack access points
  • Rear view of TPI 108-DS1 blue module and gray TPI carry case showing side profiles and overall form factor
  • Tele-Path Industries Inc. product label on TPI 108-DS1 showing Model 108-DS1, DS1 Access Module designation, serial number 94DS1913, and Roanoke VA address
  • TPI 108-DS1 DS1 Test Access Module fully inserted into open gray TPI soft carry case showing Velcro closure and padded interior
$55.00
Was: $100.00
Current Stock: 1

Sold Out

Description

Tele-Path Industries 108-DS1 DS1 Test Access Module ESF B8ZS AMI TPI w/ Case

Portable DS1/T1 test access module for monitoring and troubleshooting digital signal circuits. Provides drop-and-insert functionality with dual TX/RX access on East (primary) and West (auxiliary) spans.

Specifications & What's Included

  • Model: 108-DS1; Type: DS1 Test Access Module
  • Line Coding: ESF, SF, B8ZS, AMI, DDS, VF, SLC1
  • Signal Access: East and West span TX/RX pairs
  • Signaling: A, B, C, D bits with LED indicators
  • Connectors: Bantam jacks (DS1), Mini DIN power
  • Interface: T1/DS1 circuits
  • Includes gray TPI carry case

Applications

Used in telecommunications infrastructure for T1/DS1 circuit testing, maintenance, and diagnostics. Typical deployment in carrier networks, central offices, and telecom equipment rooms for signal monitoring and troubleshooting on digital voice and data circuits. Supports both East/West span access for redundancy testing and signal analysis.

Condition: Used
This Tele-Path Industries 108-DS1 DS1 Test Access Module has been inspected and appears to be in good used condition. The blue enclosure is clean with light surface marks consistent with field use. Front-panel LED indicators, channel display, selector switches, and bantam jack access ports all appear intact and undamaged. The gray TPI carry case is included and shows normal wear on the exterior fabric. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Tele-Path Industries
Model:
108-DS1
MPN:
108-DS1
SKU:
39217
Type:
DS1 Test Access Module
Condition:
Used – Inspected
Seller Notes:
Includes gray TPI branded carry case
Form Factor:
Portable / Handheld
Country/Region of Manufacture:
United States
Interface Type:
DS1 / T1
Line Coding:
ESF, SF, B8ZS, AMI, DDS, VF, SLC1
Signal Access:
East (Primary) and West (Aux.) TX/RX
Function:
Drop & Insert, DS1 Signal Monitoring
Signaling:
A, B, C, D Signaling Bits with LED indicators
Channel Selection:
Up/Down Channel buttons with LED display
Connector Type:
Mini DIN power, bantam jacks (DS1 access)
Compatible With:
T1/DS1 circuits, East/West span access
Includes:
Gray TPI carry case
Condition Notes:
Tele-Path Industries 108-DS1 DS1 Test Access Module inspected and in good used condition. Blue enclosure shows light wear. All front-panel controls and ports appear intact. Includes gray TPI carry case. Please contact us with any questions.
View AllClose

Related Products

Related Products

Scientific Atlanta A931 DS3/DS1 Waveform Test Set open in travel case showing front panel controls, LED display, and SELECT knob Scientific Atlanta A931 Waveform Test Set rear view of travel case showing hinges, carry handle, and label stickers
Add to Cart
Quick view

Scientific Atlanta A931 DS3/DS1 Waveform Test Set w/ Travel Case DSX T3 T1

Scientific Atlanta

$95.00
Was: $200.00
Scientific Atlanta A931 DS3/DS1 Waveform Test Set w/ Travel Case DSX T3 T1 Portable waveform test set for DS3 and DS1 signal analysis. Measures voltage peak-to-peak, symmetry, and pulse width on...
41182
SKU:
41182
Availability:
Usually ships within 1-2 business days.
Weight:
12.00 LBS
Brand:
Scientific Atlanta
Model:
A931
MPN:
A931
Type:
DS3/DS1 Waveform Test Set
SKU:
41182
Condition:
Used – Inspected and Tested
Seller Notes:
Includes built-in travel case; probes not included
Country/Region of Manufacture:
United States
Form Factor:
Portable / Handheld Case
Measurement Type:
DS3/DS1 Waveform Analysis (Vp-p, Symmetry, Width)
Signal Standards:
DS1 (T1), DS3 (T3)
Input Impedance:
DS1: 100Ω Balanced; DS3: 75Ω
Select Modes:
DSX1, DSX3, DSX1-MON, DSX3-MON, DS3-HI
Measurement Parameters:
+Vp, -Vp, +Width, -Width, Symmetry, dBx, Audible
Display:
LED numeric readout with PASS/FAIL indicators (Vp-p, SYM, WIDTH)
Power:
120V AC Recharge input; internal battery operation
Battery Indicator:
Low Battery LED indicator
Fuse:
1/10 Amp fuse (per front panel label)
Publication Number:
PN 328119 (operating guide label)
Serial Number (Label):
689AI
Compatible With:
DSX-1 and DSX-3 cross-connect and monitor points
Includes:
Integral metal travel case with latches and carry handle
Probes Included:
No
Condition Notes:
Scientific Atlanta A931 DS3/DS1 Waveform Test Set. Powers on and passes self-test; further signal testing not performed. Good used condition. Metal travel case included; probes not included. Wear consistent with field use.
Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set front panel — full view showing Transmitter and Receiver LED displays, Error Inject, Measurement Time, and Receiver Input sections Tau-Tron S5104 front panel close-up — Transmitter Out section (DSX1/DSX1C/DS2H/DSX2), Error Inject section (Freq/BIT/BPV/AMPL), power-on red LED illuminated
Add to Cart
Quick view

Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set Option 03 GPIB

Tau-Tron

$200.00
Was: $400.00
Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set Option 03 GPIBBenchtop test instrument for DS1, DS1C, and DS2 digital transmission line testing. Measures bit error rate, bipolar violations,...
39757
SKU:
39757
Availability:
Usually ships within 1-2 business days.
Weight:
25.00 LBS
Brand:
Tau-Tron
Model:
S5104
MPN:
S5104
Type:
Digital Transmission Test Set
SKU:
39757
Option:
Option 03
Serial Number (Internal):
See internal fields
Condition:
Used – Powers On, Untested Further
Seller Notes:
Unit powers on. Includes GPIB and RS-232 interfaces.
Country/Region of Manufacture:
United States
Form Factor:
Benchtop
Manufacturer:
Tau-Tron (A Unit of General Signal)
Signal Standards Supported:
DS1, DS1C, DS2
Interface Type:
DS1, DS1C, DS2, NRZ
Remote Interface:
GPIB (IEEE-488), RS-232
Connector Types:
BNC, DB-25 (RS-232), GPIB
Transmitter Outputs:
DS1/1C/2, DS1 Bipolar, NRZ Data, NRZ Clock
Receiver Inputs:
DS1/1C/2, NRZ Data, NRZ Clock
Monitor Outputs:
PR Sync, M Sync, Bit Errors, BPV Errors
Error Inject:
Freq, BIT, ERR Free, BPV, AMPL, INT, EXT
Measurements:
BIT, BPV, Jitter, Frame, Status, Recall
Measurement Time Modes:
Untimed, Interval, Elapsed, Single, Repeat, Stop, Set, Time, Date
Receiver Input Patterns:
PRBS, UNFRAME, Frame, Fixed, Live, CH1-CH4
Programmable Fixed Word:
Yes — front-panel DIP switch programmable
X Bit Inject/Out:
DS1C/DS2 X Bit Inject and X Bit Out
Additional Inputs:
Ext Clk In, Ext Err, Jitter In/Out
Display Type:
LED numeric displays (Transmitter and Receiver)
Status Indicators:
Loss, Detect, Signal LEDs
Application:
DS1/DS1C/DS2 BER testing, jitter measurement, error injection
Condition Notes:
Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set with Option 03. Inspected, good cosmetic condition. Powers on — Transmitter and Receiver displays active. Not tested further. GPIB and RS-232 ports intact.

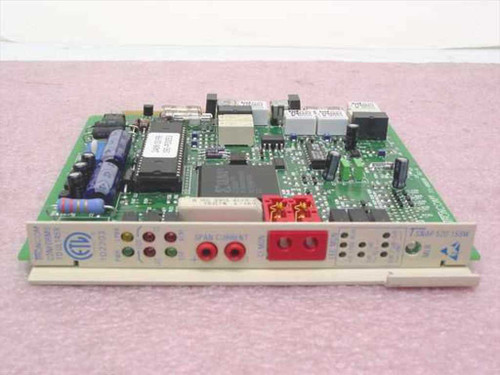

Troncom T-SNAP 520 15SW DS1 Digital NIU module — front panel and top-side PCB view showing LED indicators and board components Troncom T-SNAP 520 15SW — close-up of front faceplate showing model label, AIS/LPBK/RCV/XMT markings, dB settings, and MLB logo
