Troncom T-SNAP 520 15SW DS1 Digital NIU Network Interface Unit Module

Troncom T-SNAP 520 15SW DS1 Digital NIU Network Interface Unit Module

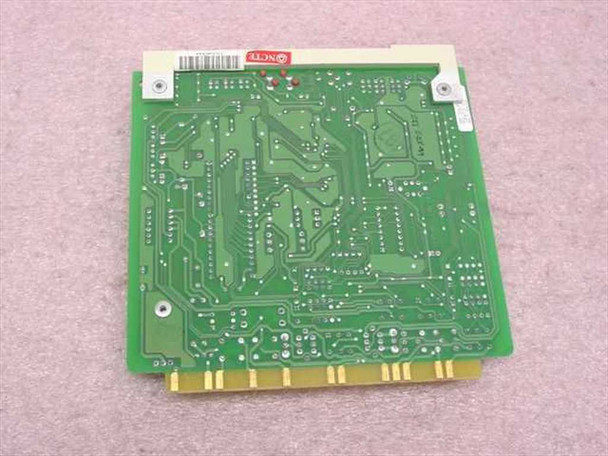

The Troncom T-SNAP 520 15SW is a DS1 digital Network Interface Unit (NIU) designed as a plug-in module for T1 access and multiplexer systems. NIU modules of this type serve as the demarcation and interface point between customer premises equipment and the DS1 (T1) network, handling line termination, loopback testing, and signal conditioning on 1.544 Mbps DS1 circuits. The board carries a Xilinx FPGA as its main controller and is marked with PCB assembly number 771-00002M REV-B, with a date code indicating manufacture in May 1999.

Specifications & What's Included

• Model: T-SNAP 520 15SW
• PCB Assembly: 771-00002M REV-B
• Type: DS1 Digital Network Interface Unit (NIU) — plug-in module
• Interface: DS1 / T1 at 1.544 Mbps
• Main Controller: Xilinx FPGA (large center IC, clearly visible on PCB)
• Loopback / AIS support: AIS, LPBK — both RCV (receive) and XMT (transmit) directions
• Line Build Out options: 0 dB / 7.5 dB (RCV); 0 dB / 7.5 dB / 15 dB (XMT) — selectable via front-panel switches
• Front panel: LED indicators for AIS, LPBK, and status; labeled dB setting switches; MLB designation
• Form factor: Plug-in card/module for chassis or shelf mounting
• PCB date code: 2A99 / May 1999
• Included: Module/board only — no chassis, no external cables

Applications

DS1 NIU modules like the T-SNAP 520 15SW are used in T1 network access equipment — typically deployed in telephone central offices, competitive local exchange carrier (CLEC) facilities, and enterprise telecom rooms to terminate and condition DS1 circuits. The NIU provides the network demarcation point, allowing technicians to perform loopback tests (both customer-side and network-side) to isolate faults on T1 lines without dispatching to the remote end. The AIS (Alarm Indication Signal) and configurable line build-out settings are standard features for carrier-grade DS1 applications. Equipment of this generation — late 1990s plug-in module format — was commonly deployed in T1 multiplexers, channel banks, and access concentrators from that era, and surplus units are still sought for system maintenance, lab testing, and legacy network support.
