Description
Scientific Atlanta 7530I L-Band International Video Receiver Rackmount RS-232
L-Band satellite video receiver designed for earth station and SATCOM applications. Receives and demodulates L-Band satellite signals for video downlink operations in international configurations.
Specifications & What's Included
- Model: 7530I | Configuration: AAAA-AA
- Form Factor: 19-inch rackmount, 2U height with installed rack ears
- Frequency Band: L-Band International
- Power Requirements: 90–260 VAC, 2A Slo-Blo Fuse
- Video Outputs: Composite Video (3x BNC), Monitor outputs (VIDEO MON, IF MON)
- Audio Outputs: SC1, SC2, SC3 Audio channels
- Remote Interfaces: RS-232, SAbus Remote, Contact Closure

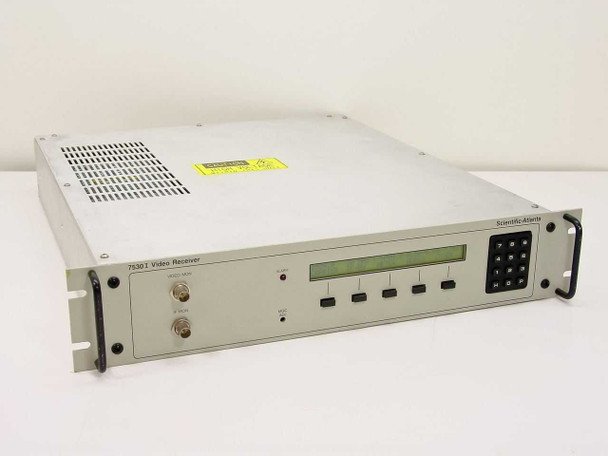

- Front Panel: LCD display, numeric keypad, ALARM and MGC/ADJ indicators
- IF Loop and LNB Power outputs (70 MHz)
Applications
Used in satellite earth stations for video signal reception and distribution. Designed for international L-Band satellite downlink systems commonly deployed in broadcast, telecommunications, and data relay operations. Compatible with SAbus and RS-232 remote control systems typical of Scientific Atlanta network infrastructure.
Condition: Used
This Scientific Atlanta 7530I L-Band International Video Receiver was removed from an earth station and has been inspected. It appears to be in good used condition and was pulled from a working environment where it was in active use. The chassis and front panel show typical wear consistent with rack-mounted field use. The LCD display, front-panel keypad, and BNC monitor connectors are intact. Rear-panel connectors — including video BNC outputs, audio terminal blocks, RS-232, SAbus Remote, and IEC AC inlet — appear undamaged. The 19-inch rack ears are installed. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Scientific Atlanta 7530I L-Band International Video Receiver was removed from an earth station and has been inspected. It appears to be in good used condition and was pulled from a working environment where it was in active use. The chassis and front panel show typical wear consistent with rack-mounted field use. The LCD display, front-panel keypad, and BNC monitor connectors are intact. Rear-panel connectors — including video BNC outputs, audio terminal blocks, RS-232, SAbus Remote, and IEC AC inlet — appear undamaged. The 19-inch rack ears are installed. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Scientific-Atlanta |
Model: |
7530I |
MPN: |
7530I |
Assembly Number: |
7530ICFG |
Configuration: |
AAAA-AA |
Type: |
L-Band International Satellite Video Receiver |
SKU: |
39443 |
Description (Label): |
Receiver, L Band Intl |
Form Factor: |
Rack Mount, 19-inch, 2U |
Power Requirements: |
90 to 260 VAC, 2A Slo-Blo Fuse |
Frequency Band: |
L-Band |
Interface Type: |
RS-232 Remote, SAbus Remote |
Video Outputs: |
Composite Video, Video 1, Video 2 (BNC) |
Monitor Outputs: |
VIDEO MON (BNC), IF MON (BNC) |
IF Output: |
IF OUT (BNC) |
IF Loop: |
70 MHz Loop (BNC) |
Audio Outputs: |
SC1 Audio, SC2 Audio, SC3 Audio |
LNB Power: |
LNB PWR SELECT (V +VDC, H +VDC) |
Remote Interfaces: |
RS-232 Remote, SAbus Remote, Contact Closure |
Port Configuration: |
Port 1 Vert, Port 2 Horz |
Front Panel: |
LCD display, numeric keypad, ALARM, MGC/ADJ indicators |
Included Accessories: |
19-inch rackmount ears installed |
Seller Notes: |
Includes installed 19-inch rack ears. Pulled from working earth station. |
Country/Region of Manufacture: |
United States |
Manufacturer Location: |
Scientific Atlanta, Network Systems Group, Norcross, GA |
Condition: |
Used – Pulled from Working Environment |
Application: |
Earth Station, SATCOM, Satellite Video Downlink |
Condition Notes: |
Scientific Atlanta 7530I L-Band Video Receiver pulled from a working earth station. Inspected and in good used condition; was in active use. Rack ears installed. Typical field wear. Please contact us with any questions. |
