CCI Duplexer 190-CU391-F1V6 FC3062607505 RF N-Type TNC Cavity Filter

(No reviews yet) Write a Review
SKU:
40914
MPN:
190-CU391-F1V6
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
14.00 LBS
Shipping:
Calculated at Checkout
  • CCI Duplexer 190-CU391-F1V6 – angled front-left view showing aluminum enclosure and red-capped N-type RF ports on right side
  • CCI Duplexer 190-CU391-F1V6 – angled rear-left view showing aluminum enclosure and small coaxial connector on rear edge

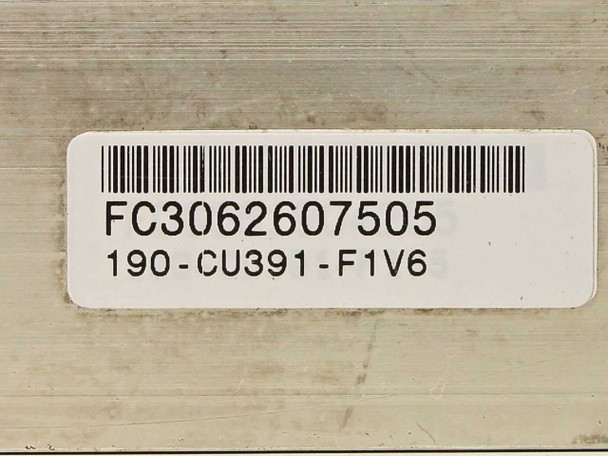

  • CCI Duplexer 190-CU391-F1V6 – label closeup showing barcoded serial number FC3062607505 and part number 190-CU391-F1V6
  • CCI Duplexer 190-CU391-F1V6 – engraved marking WB102-A0054/A on aluminum chassis edge
  • CCI Duplexer 190-CU391-F1V6 – bottom view showing four large N-type coaxial port connectors and orange inspection sticker
  • CCI Duplexer 190-CU391-F1V6 – closeup of two TNC-style coaxial connectors on one end panel
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

CCI Duplexer 190-CU391-F1V6 FC3062607505 RF N-Type TNC Cavity Filter

RF cavity duplexer for signal separation and filtering in telecom and base station applications. Aluminum enclosure construction with N-type and TNC connectors.

Specifications & What's Included

  • Brand: CCI
  • Model: 190-CU391-F1V6 / FC3062607505
  • Type: RF Cavity Duplexer
  • Connectors: N-Type, TNC
  • Enclosure: Aluminum cavity module
  • Manufactured: United States
  • Unit only; no cables or accessories included

Applications

Cavity duplexers are used in RF systems to separate transmit and receive signals on shared antennas. This unit is compatible with base station and telecom infrastructure requiring signal filtering and diplexing. Commonly deployed in cellular and radio communication systems where simultaneous duplex operation is required on a single antenna feed.

Condition: Used
This CCI Duplexer 190-CU391-F1V6 has been inspected and is in good used condition. The aluminum enclosure shows light surface soiling and minor scuffs consistent with prior installation use. The N-type ports on the side and the four N-type ports on the bottom appear intact, and the TNC connectors on the end panel are present and undamaged. The red protective caps are in place on the side ports. No cracks, dents, or structural damage are noted. Unit only — no cables or accessories are included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
CCI
Model:
190-CU391-F1V6
MPN:
190-CU391-F1V6
Secondary Model:
FC3062607505
Type:
RF Cavity Duplexer
SKU:
40914
Condition:
Used – Inspected
Connector Type:
N-Type, TNC
Construction:
Aluminum cavity enclosure
Seller Notes:
Unit only; no cables or accessories included.
Form Factor:
Flat panel / cavity module
Application:
RF signal separation, base station, telecom
Country/Region of Manufacture:
United States
Condition Notes:
CCI Duplexer 190-CU391-F1V6 inspected and in good used condition. Aluminum enclosure shows light surface soiling and minor scuffs. N-type and TNC connectors intact. Unit only, no cables included.
View AllClose

Related Products

Related Products

CCI 190-CU391-F1V6 RF Duplexer — top and front view showing cavity housing with brass tuning screws and four 7/16 DIN connectors with red protective caps, hardware kit bag alongside Hardware kit FC3062604905 label showing part number 192-00687, contents 157-00118 qty 4 and 157-00115 qty 15, with Torx fasteners laid out on burlap bag
Add to Cart
Quick view

CCI 190-CU391-F1V6 RF Duplexer UMTS Cositing Microwave Satcom 192-00687

CCI

$275.00
Was: $550.00
CCI 190-CU391-F1V6 RF Duplexer UMTS Cositing Microwave Satcom 192-00687RF duplexer cavity filter for UMTS/3G and satellite communication systems. Four 7/16 DIN coaxial RF ports; machined aluminum...
36506
SKU:
36506
Availability:
Usually ships within 1–2 business days.
Weight:
14.00 LBS
Brand:
CCI
Model:
190-CU391-F1V6
MPN:
190-CU391-F1V6
Secondary Model:
FC6061916720
Kit Part Number:
192-00687
Kit FC Number:
FC3062604905
Hardware Part 1:
157-00118 (qty 4)
Hardware Part 2:
157-00115 (qty 15)
SKU:
36506
Type:
RF Duplexer
Application:
UMTS Cositing, Microwave Satcom
Technology:
UMTS / 3G
Connector Type:
7/16 DIN (large coaxial RF connectors)
Number of RF Ports:
4 (visible on connector face)
Construction:
Cavity filter / duplexer, machined aluminum housing
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes hardware kit FC3062604905 (P/N 192-00687): 157-00118 x4, 157-00115 x15
Form Factor:
Standalone Module / Flat-Pack Cavity Assembly
Condition Notes:
CCI 190-CU391-F1V6 RF Duplexer pulled from a working UMTS satcom environment, in use and functional. Inspected; housing shows surface oxidation/patina from field use. All RF connectors intact. Hardware kit 192-00687 included.

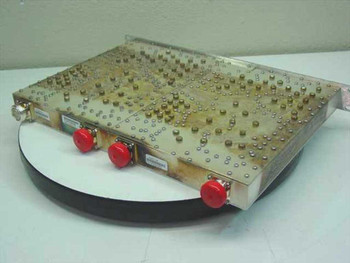

CCI DDP-1819-HP-1 Dual Duplexer angled top view showing full rackmount chassis and RF filter assembly with red connector caps CCI DDP-1819-HP-1 Dual Duplexer top-down view showing exposed RF filter cavity array and three red-capped SMA connectors on rear edge
