Description
CCI 190-CU391-F1V6 RF Duplexer UMTS Cositing Microwave Satcom 192-00687

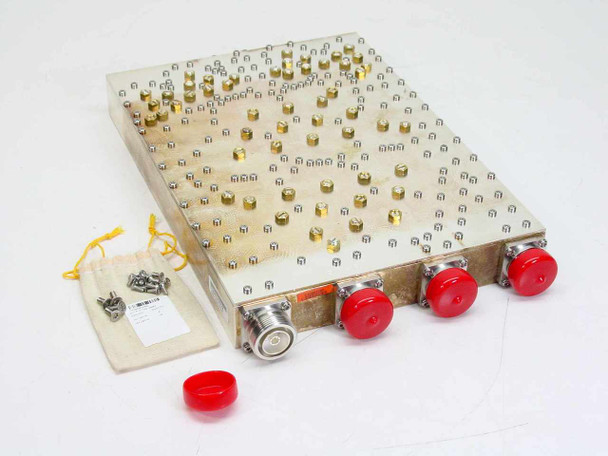

RF duplexer cavity filter for UMTS/3G and satellite communication systems. Four 7/16 DIN coaxial RF ports; machined aluminum housing construction.
Specifications & What's Included
- Model: 190-CU391-F1V6 (Secondary: FC6061916720)
- Type: RF Duplexer / Cavity Filter
- Application: UMTS Cositing, Microwave Satcom
- Connector: 7/16 DIN (4 RF ports)
- Construction: Machined aluminum
- Includes hardware kit 192-00687: 157-00118 (qty 4), 157-00115 (qty 15)
Applications
RF duplexers separate transmit and receive signals in colocated UMTS base stations and satellite ground terminals. Used in multicarrier deployments to isolate frequency bands and reduce interference between adjacent transmitters and receivers. Common in legacy 3G infrastructure and satcom earth stations requiring band-specific filtering.
Condition: Used

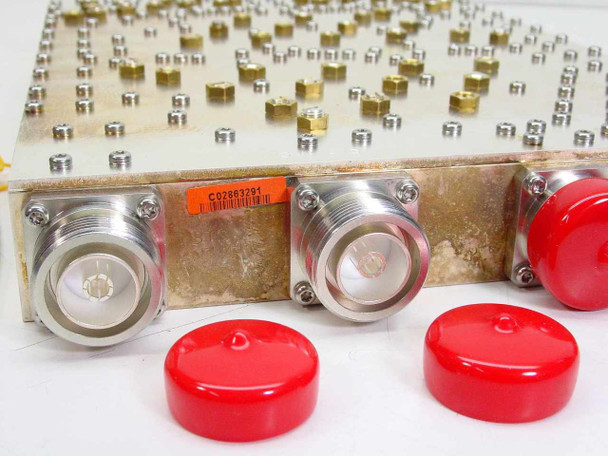

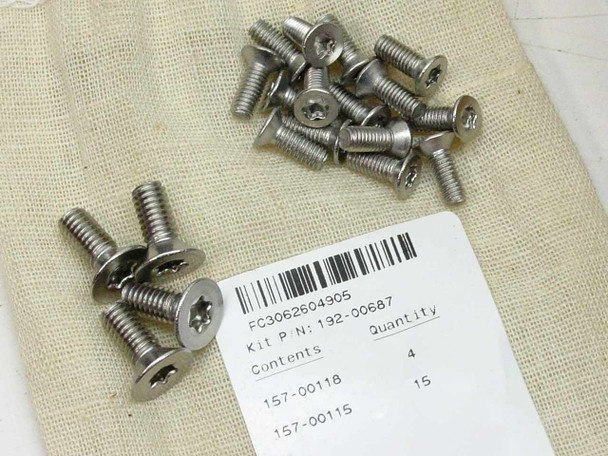

This CCI 190-CU391-F1V6 RF Duplexer for UMTS cositing was pulled from a working microwave satcom environment where it was in active use. It has been inspected and appears to be in good condition. The machined aluminum cavity housing shows surface oxidation and age-related patina consistent with field service use, most visible on the connector face and sides. All four large coaxial RF connectors are present and intact. The hardware kit (P/N 192-00687 / FC3062604905), containing Torx fasteners 157-00118 (qty 4) and 157-00115 (qty 15), is included in the original burlap bag. Red protective caps are in place on the RF ports. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This CCI 190-CU391-F1V6 RF Duplexer for UMTS cositing was pulled from a working microwave satcom environment where it was in active use. It has been inspected and appears to be in good condition. The machined aluminum cavity housing shows surface oxidation and age-related patina consistent with field service use, most visible on the connector face and sides. All four large coaxial RF connectors are present and intact. The hardware kit (P/N 192-00687 / FC3062604905), containing Torx fasteners 157-00118 (qty 4) and 157-00115 (qty 15), is included in the original burlap bag. Red protective caps are in place on the RF ports. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
CCI |
Model: |
190-CU391-F1V6 |
MPN: |
190-CU391-F1V6 |
Secondary Model: |
FC6061916720 |
Kit Part Number: |
192-00687 |
Kit FC Number: |
FC3062604905 |
Hardware Part 1: |
157-00118 (qty 4) |
Hardware Part 2: |
157-00115 (qty 15) |
SKU: |
36506 |
Type: |
RF Duplexer |
Application: |
UMTS Cositing, Microwave Satcom |
Technology: |
UMTS / 3G |
Connector Type: |
7/16 DIN (large coaxial RF connectors) |
Number of RF Ports: |
4 (visible on connector face) |
Construction: |
Cavity filter / duplexer, machined aluminum housing |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes hardware kit FC3062604905 (P/N 192-00687): 157-00118 x4, 157-00115 x15 |
Form Factor: |
Standalone Module / Flat-Pack Cavity Assembly |
Condition Notes: |
CCI 190-CU391-F1V6 RF Duplexer pulled from a working UMTS satcom environment, in use and functional. Inspected; housing shows surface oxidation/patina from field use. All RF connectors intact. Hardware kit 192-00687 included. |
