Fiplex DDBP 1622 Mobile Duplexer 12-Cavity 160-219.5 MHz N-Type VHF RF

(No reviews yet) Write a Review
SKU:
49953
MPN:
DDBP 1622
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

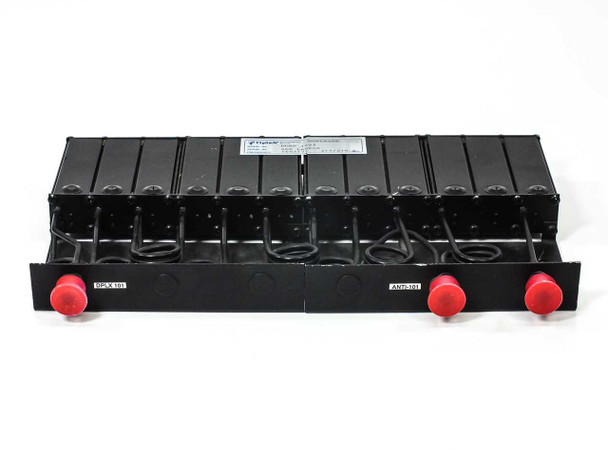

  • Fiplex DDBP 1622 12-cavity VHF mobile duplexer – front panel view showing DPLX 101 and ANTI-101 port labels with red dust caps installed

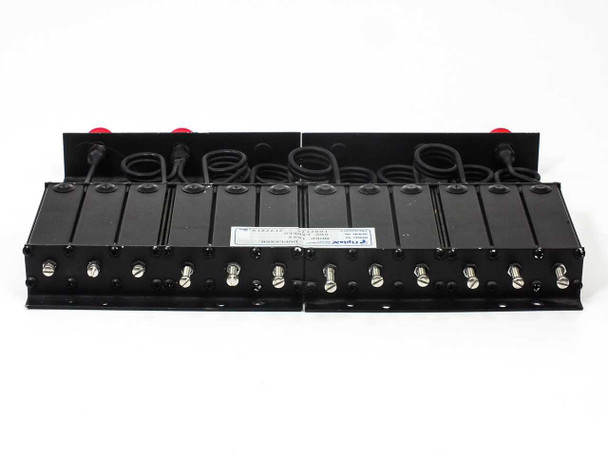

  • Fiplex DDBP 1622 mobile duplexer – rear view showing row of N-type female connectors across the 12 cavity modules with interconnecting cables
  • Fiplex DDBP 1622 duplexer – close-up of label showing model number DDBP 1622, frequency 160/171–217/219.5 MHz, and Fiplex Electromagnetic Devices branding
  • Fiplex DDBP 1622 duplexer – front panel angled view with N-type connectors on DPLX 101 and ANTI-101 ports and red protective caps visible
  • Fiplex DDBP 1622 duplexer – close-up of DPLX 101 port with N-type female connector on black front panel

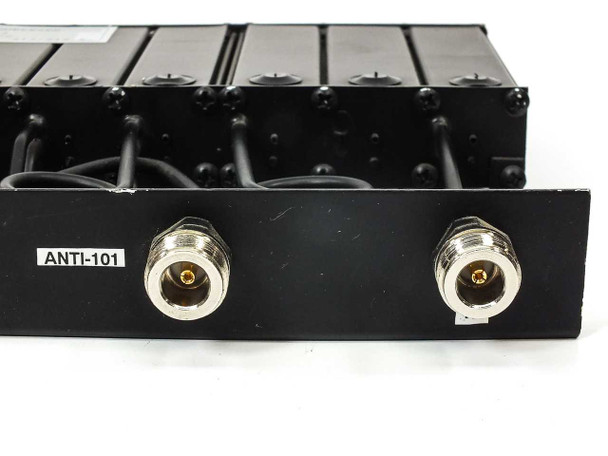

  • Fiplex DDBP 1622 duplexer – close-up of ANTI-101 port section showing two N-type female connectors on black front panel

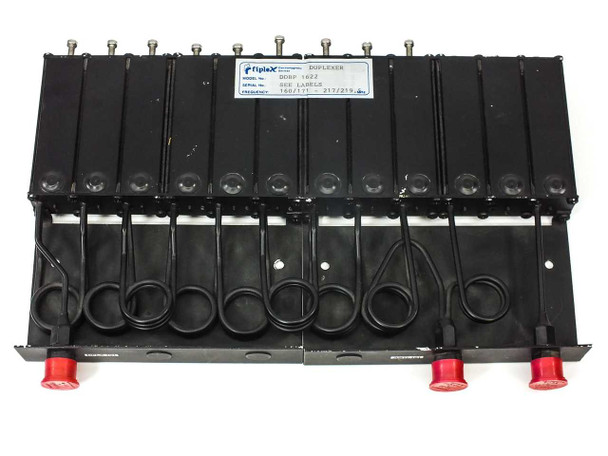

  • Fiplex DDBP 1622 duplexer – top view showing 12 individual cavity modules with tuning screws and inter-cavity coaxial jumper cables
  • Fiplex DDBP 1622 duplexer – bottom view showing rackmount chassis underside with red port caps on ends
  • Fiplex DDBP 1622 duplexer – inverted view showing rear N-type connector row and Fiplex label across the 12-cavity assembly
$150.00
Was: $300.00
Current Stock: 5

Sold Out

Description

Fiplex DDBP 1622Mobile Duplexer 12-Cavity 160-219.5 MHz N-Type VHF RF

12-cavity band-pass duplexer for VHF mobile radio and repeater systems. Operates across 160/171–217/219.5 MHz with N-type female connectors and dual antenna ports.

Specifications & What's Included

  • Model: DDBP 1622
  • Frequency Range: 160/171–217/219.5 MHz
  • 12-Cavity Configuration
  • Connector Type: N-Type (Female)
  • Ports: DPLX 101 (duplex), ANTI-101 (antenna x2)
  • Form Factor: Rackmount
  • Port caps included

Applications

Used in VHF repeater systems and mobile radio installations where signal separation and filtering are required. Compatible with standard two-way radio infrastructure operating in the VHF band. Typical deployment includes base station and repeater rack installations for commercial, public safety, and industrial communications networks.

Condition: Used
This Fiplex DDBP 1622 12-cavity VHF mobile duplexer has been inspected and is in good used condition. It was pulled from a working environment where it was actively in service. The chassis and cavity modules show typical surface wear consistent with field use, but no damage is apparent. All N-type connectors on the DPLX 101 and ANTI-101 ports are present and intact. Red dust caps are included as shown. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Fiplex
Model:
DDBP 1622
MPN:
DDBP 1622
Type:
12-Cavity Mobile Duplexer
SKU:
49953
Frequency Range:
160/171 – 217/219.5 MHz
Number of Cavities:
12
Connector Type:
N-Type (female)
Port Labels:
DPLX 101 (duplex), ANTI-101 (antenna x2)
Filter Type:
Band Pass Duplexer
Band:
VHF
Form Factor:
Rackmount
Application:
Mobile Radio, Repeater Systems, VHF RF
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; port caps included as shown in photos.
Country/Region of Manufacture:
Spain
Condition Notes:
Fiplex DDBP 1622 12-cavity VHF mobile duplexer. Inspected, in good used condition. Pulled from a working environment where it was actively in service. N-type connectors intact; port caps included. Normal surface wear.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

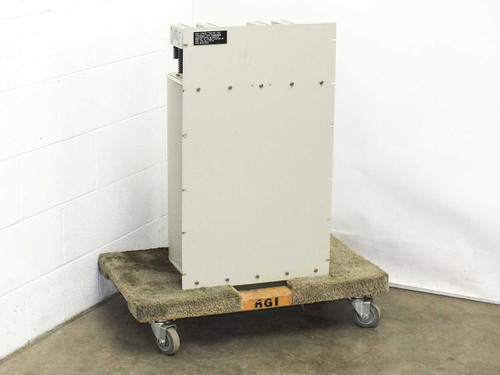

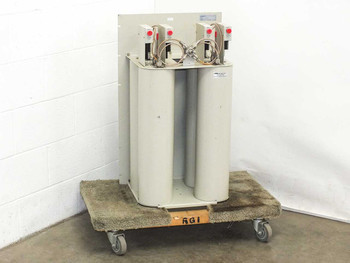

Fiplex TC 25-4B1 TX Combiner system front view showing four cavity columns and dual junction isolators mounted on top Fiplex TC 25-4B1 TX Combiner rear panel view showing enclosure and label area on upper section
