Varian 01000031 Rev H Control Logic Board HPA Satcom RF Transmitter PCB

(No reviews yet) Write a Review
SKU:
41342
MPN:
01000031 Rev H
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

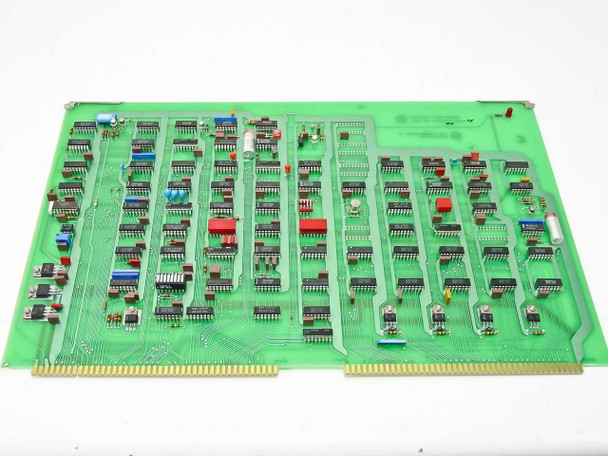

  • Varian 01000031 Rev H Control Logic Board – component side top view showing populated PCB with ICs and gold-edge connector

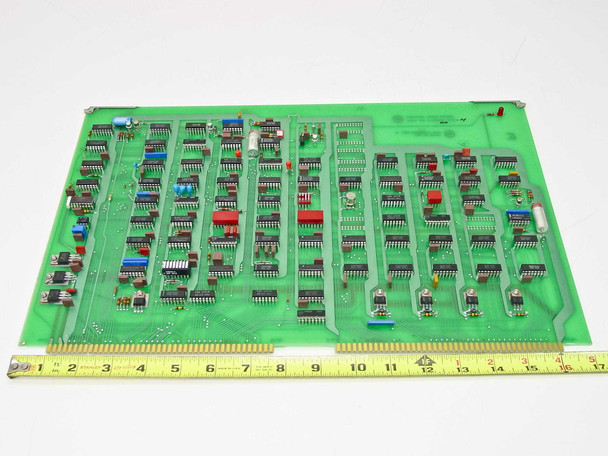

  • Varian 01000031 Rev H Control Logic Board – component side angled view with ruler showing board approximately 15 inches long

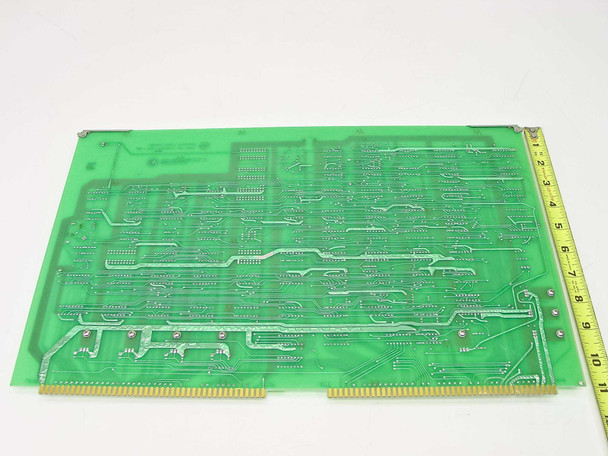

  • Varian 01000031 Rev H Control Logic Board – solder/reverse side showing trace routing and gold-edge connector

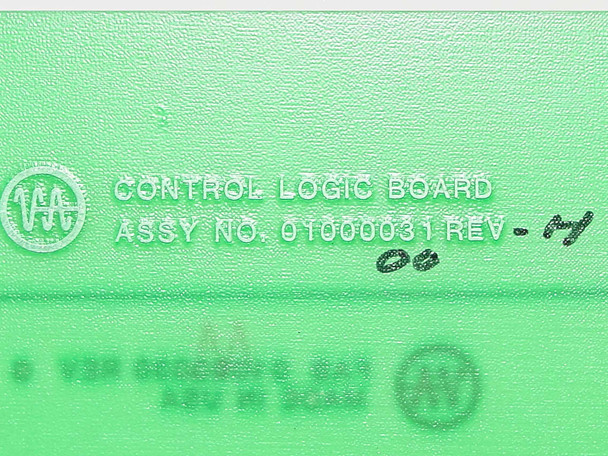

  • Varian 01000031 Rev H Control Logic Board – close-up of board label reading CONTROL LOGIC BOARD ASSY NO. 01000031 REV H
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Varian 01000031 Rev H Control Logic Board HPA Satcom RF Transmitter PCB

Control logic board designed for Varian HPA Satcom RF transmitter systems. This PCB module manages transmitter operation and RF signal control functions within satellite communication equipment.

Specifications & What's Included

  • Brand: Varian
  • Model: 01000031 Rev H
  • Type: Control Logic Board / PCB Card Module
  • Connector: Gold-edge card connector
  • Application: HPA Satcom RF Transmitter Control
  • Manufactured: United States
  • Board only; no additional components included

Applications

This control logic board is used in Varian HPA (High Power Amplifier) Satcom RF transmitter systems for managing and controlling RF transmission parameters. These boards are found in satellite communication infrastructure, ground stations, and earth station equipment. The board functions as the control interface for transmitter operation in C-band and Ku-band satellite uplink systems.

Condition: Used
This Varian 01000031 Rev H Control Logic Board for HPA Satcom RF Transmitter has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional. The board shows normal handling wear consistent with service use; the PCB surface, components, and gold-edge connector all appear clean and intact with no visible damage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Varian
Model:
01000031
MPN:
01000031
Secondary Model:
01000031 Rev H
Hardware Revision:
Rev H
Type:
Control Logic Board / PCB
SKU:
41342
Compatible With:
Varian HPA Satcom RF Transmitter
Application:
HPA Satcom RF Transmitter Control
Form Factor:
PCB Card / Module
Connector Type:
Gold-edge card connector
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from a working HPA Satcom RF Transmitter
Country/Region of Manufacture:
United States
Condition Notes:
Varian 01000031 Rev H Control Logic Board for HPA Satcom RF Transmitter. Inspected and in good used condition. Pulled from a working environment where it was in active use and functional. Board and gold-edge connector appear clean and intact.
