Varian Control Logic Board Assy 01002543-00 Rev M PCB Card Module

(No reviews yet) Write a Review
SKU:
39482
MPN:
01002543-00
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Varian 01002543-00 Control Logic Board Rev M — front side showing dense DIP IC population and 50-pin D-sub connector
  • Varian 01002543-00 Control Logic Board Rev M — rear side showing solder side of pink PCB with gold edge connector

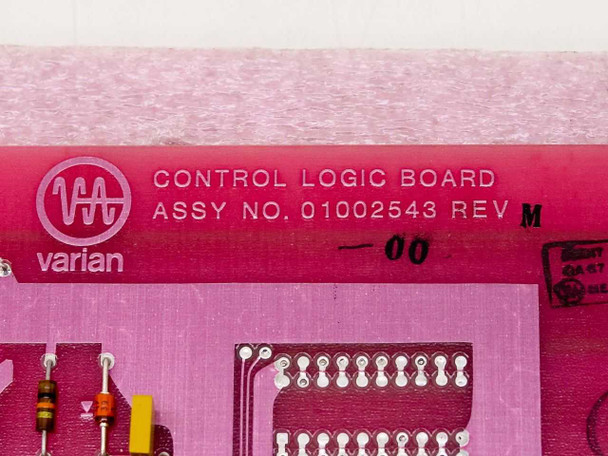

  • Varian Control Logic Board close-up of silk-screen label reading ASSY NO. 01002543 REV M with Varian logo
  • Varian 01002543-00 Control Logic Board — close-up of 50-pin female D-sub connector on board edge
$95.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Varian Control Logic Board Assy 01002543-00 Rev M PCB Card Module

Control logic board assembly used in Varian industrial and telecom equipment. This PCB card module manages signal processing and system control functions within the host instrument.

Specifications & What's Included

  • Model: 01002543-00 Rev M
  • Type: Control Logic Board PCB Assembly
  • Connector: 50-pin D-sub (female)
  • PCB Color: Pink/Red
  • Form Factor: PCB Card Module
  • Manufacturer: Varian, United States
  • Board only—no accessories included

Applications

This control board type was used in Varian vacuum systems, analytical instruments, and telecom equipment manufactured through the 1990s and 2000s. The 50-pin D-sub interface connects to backplane or main chassis harnesses. Board functions include signal relay, logic switching, and instrument state management. Compatible with Varian legacy systems requiring Rev M-level board specifications.

Condition: Used
This Varian Control Logic Board (Assy 01002543-00 Rev M) has been inspected and appears to be in good condition. The PCB shows normal handling wear consistent with prior installation and removal, but the board surface, traces, and components look clean with no visible damage, corrosion, or missing parts. The 50-pin D-sub connector is intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Varian
Model:
01002543-00
MPN:
01002543-00
Secondary Model:
01002543 Rev M
Type:
Control Logic Board / PCB Assembly
SKU:
39482
Revision:
Rev M
Assembly Number:
Assy No. 01002543-00
Form Factor:
PCB Card / Module
Connector Type:
50-pin D-sub (female)
PCB Color:
Pink / Red
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Board only — no additional accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
Varian Control Logic Board 01002543-00 Rev M inspected and in good condition. PCB shows normal handling wear. No visible damage, corrosion, or missing components. 50-pin D-sub connector intact.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

Extender Board Logic 114473-001 Rev B PCB module — top view showing green PCB body and gold-finger edge connector along top edge Extender Board Logic 114473-001 Rev B PCB module — reverse side view showing blue card-edge connector along bottom and partial label in upper left
Add to Cart
Quick view

Extender Board Logic PCB Module Assy 114473-001 Rev B Logic Analyzer Card

Extender Board Logic

$65.00
Was: $125.00
Extender Board Logic PCB Module Assy 114473-001 Rev B Logic Analyzer CardThis is an Extender Board Logic PCB module, Assembly 114473-001, Revision B. PCB extender boards like this one are passive...
40094
SKU:
40094
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Unbranded
Model:
114473-001
MPN:
114473-001
Type:
PCB Extender Board
SKU:
40094
Revision:
Rev B
Assembly Number:
Assy 114473-001
Form Factor:
Card / Module
Connector Type:
Gold-finger edge connector; blue card-edge connector
PCB Color:
Green
Condition:
Used – Inspected and Tested
Seller Notes:
Extender board only; no additional accessories included.
Condition Notes:
Extender Board Logic 114473-001 Rev B PCB module. Inspected and in good used condition. PCB clean and intact; gold-finger and blue card-edge connectors show no damage or corrosion.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

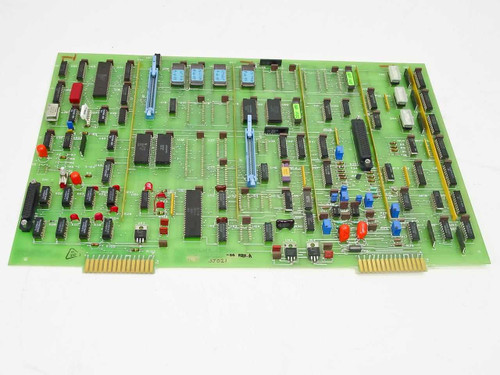

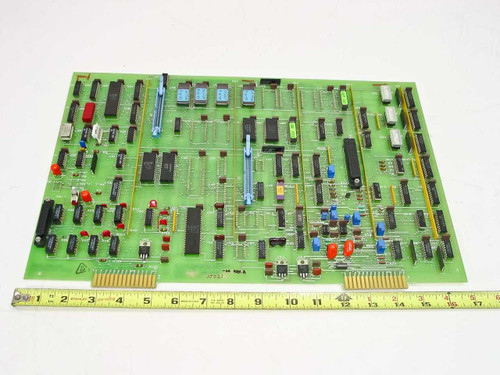

Varian Digital Interface PCB 01002375-00 Rev A – top side component view showing ICs, relays, and gold edge connectors Varian Digital Interface PCB 01002375-00 – top side with ruler showing approximately 11 inches board length
