Varian VJW6703AR00 TWTA HPA Remote Control Unit Satcom Directional Switch

(No reviews yet) Write a Review
SKU:
49646
MPN:
VJW6703AR00
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout
  • Varian VJW6703AR00 TWTA HPA Remote Control Unit – front panel angled view showing power switch, lamp test button, status/alarm indicators, and directional switch diagram
  • Varian VJW6703AR00 remote control unit – rear/bottom view showing Varian label, two blue D-sub connectors (J1 and J3), and internal PCB assembly
  • Varian VJW6703AR00 label closeup – showing part number 01007246-00, model VJW6703AR00, serial number 607, and 'Remote Control' designation; made in USA

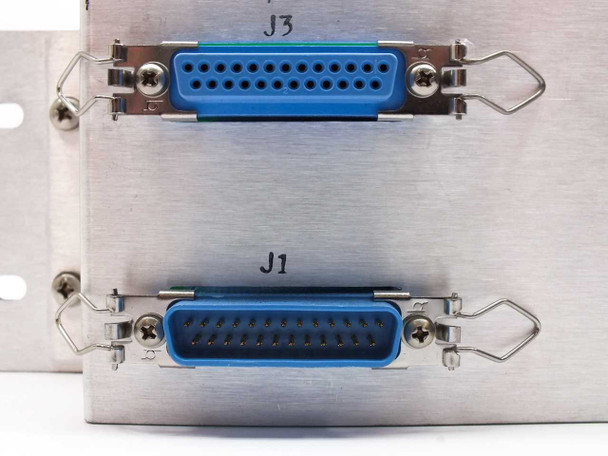

  • Varian VJW6703AR00 rear connector detail – close view of blue 25-pin D-sub female connectors labeled J3 (top) and J1 (bottom) with locking bail hardware

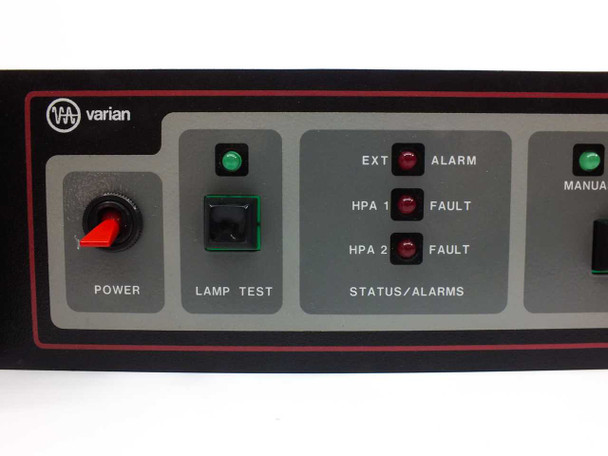

  • Varian VJW6703AR00 front panel left section – power rocker switch (red) and lamp test button with green status LED
  • Varian VJW6703AR00 front panel center section – STATUS/ALARMS area with EXT ALARM, HPA 1 FAULT, HPA 2 FAULT indicator LEDs and CONTROL section with Manual/Auto/Local/Remote LEDs

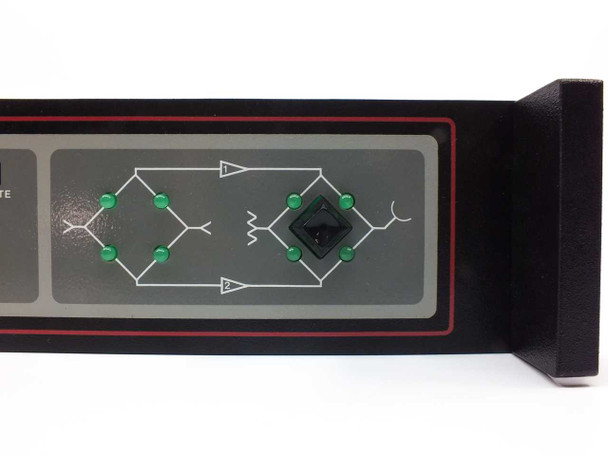

  • Varian VJW6703AR00 front panel right section – directional switch schematic diagram with green LEDs indicating switch path positions 1 and 2
  • Varian VJW6703AR00 interior top view – showing two blue ribbon-cable D-sub connectors mounted to chassis and green PCB assembly with solder points

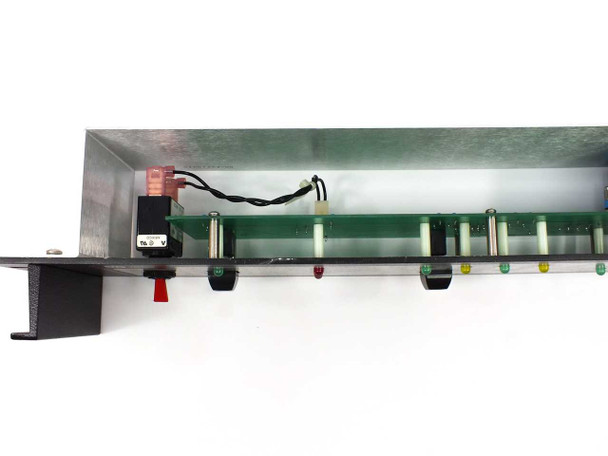

  • Varian VJW6703AR00 interior bottom/side view – showing green PCB assembly with red power switch, multicolored indicator LEDs, and wiring harness
$275.00
Was: $550.00
Current Stock: 1

Sold Out

Description

Varian VJW6703AR00 TWTA HPA Remote Control Unit Satcom Directional Switch 01007246

Remote control unit for TWTA (Traveling Wave Tube Amplifier) and HPA (High Power Amplifier) systems in satellite communications. Manages amplifier operation across manual, auto, local, and remote modes with status monitoring via front-panel indicators.

Specifications & What's Included

  • Model: VJW6703AR00 | MPN: 01007246-00 | Secondary Assembly: 01007250
  • Connector Type: D-Sub 25-pin (J1, J3)
  • Control Modes: Manual, Auto, Local, Remote
  • Status Indicators: EXT Alarm, HPA 1 Fault, HPA 2 Fault, Power, Lamp Test
  • Form Factor: Rackmount chassis with PCB assembly
  • Manufactured: United States
  • Cables not included

Applications

Used in satellite ground stations and earth terminals to control and monitor TWTA/HPA subsystems. Typical in C-band, Ku-band, and Ka-band satcom uplink equipment. Supports redundant HPA configurations with dual fault monitoring. Common in teleport, maritime, and fixed-station satcom infrastructure where amplifier health and operational control are critical.

Condition: Used
This Varian VJW6703AR00 TWTA HPA Remote Control Unit has been inspected and is in good used condition. It was pulled from a working satcom environment where it was in active use and functional. The front panel shows normal light wear consistent with rack service use; all indicator LEDs, the power rocker switch, the lamp test button, and the directional switch panel are intact and show no damage. The rear D-sub connectors (J1 and J3) are clean with no bent pins. The internal PCB assembly appears clean and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Varian
Model:
VJW6703AR00
MPN:
01007246-00
Secondary Model:
01007250
SKU:
49646
Type:
TWTA HPA Remote Control Unit / Directional Switch
Condition:
Used – Pulled from Working Environment
Form Factor:
Rackmount
Connector Type:
D-Sub 25-pin (J1, J3)
Application:
Satellite Communications (Satcom) TWTA/HPA Control
Control Modes:
Manual, Auto, Local, Remote
Status Indicators:
EXT Alarm, HPA 1 Fault, HPA 2 Fault, Power, Lamp Test
Country/Region of Manufacture:
United States
Seller Notes:
Includes rackmount chassis with PCB assembly 01007250; no cables included.
Condition Notes:
This Varian VJW6703AR00 TWTA HPA Remote Control Unit has been inspected and is in good used condition. Pulled from a working satcom environment where it was in active use and functional.
View AllClose

Related Products

Related Products

Varian VJW6769H1 Remote Control Unit VJW-6769H – front panel with LED display and control switches, 19-inch 3U rack chassis Varian VJW6769H1 Remote Control Unit – rear panel showing two DB-25 connectors and attached AC power cable, top cover removed
Add to Cart
Quick view

Varian VJW6769H1 Remote Control Unit VJW-6769H HPA Satcom Microwave 01014870-00

Varian

$150.00
Was: $300.00
Varian VJW6769H1 Remote Control Unit VJW-6769H HPA Satcom Microwave 01014870-0019" rack-mount remote control unit for Varian High Power Amplifier (HPA) systems. Provides operator control and status...
49639
SKU:
49639
Availability:
Usually ships within 1-2 business days.
Weight:
12.00 LBS
Brand:
Varian
Model:
VJW6769H1
MPN:
01014870-00
Secondary Model:
VJW-6769H
Type:
HPA Remote Control Unit
SKU:
49639
Form Factor:
19" Rack Mount, 3U
Application:
High Power Amplifier (HPA) Control, Satcom / Microwave
Front Panel Controls:
Power, Gain Increase/Decrease, Units, Beam On/Off Reset, High Voltage Control, Lamp Test
HPA Status Indicators:
Panel Enbl/Dsbl, Heater Time Dly, Stby, Beam On, Sum Fault, RF PWR Low/High, RFL PWR
Display:
3-digit LED numeric display (dBW / Watts / Peak Power / MTR RDNG)
Rear Connectors:
Two DB-25 connectors (J1, J3/J4) on rear panel
Internal Assembly:
Remote Control Display Assy 59782-01014860
Internal Transformer:
250V, 50/60Hz AC input transformer on control board
Condition:
Used – Powers On; Not Fully Tested
Country/Region of Manufacture:
United States
Seller Notes:
Unit powers on. Not fully tested at our facility. See photos for detail.
Condition Notes:
Varian VJW6769H1 HPA Remote Control Unit powers on and front panel LEDs light up, but was not fully tested at our facility. Good cosmetic condition. Sold as-inspected. See photos. Contact us with questions.

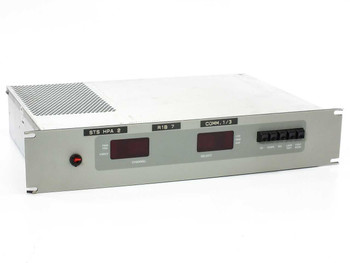

Varian VJW1454R1 Remote Channel Selector – front panel showing dual red LED displays and five control buttons, three-quarter view Varian VJW1454R1 Remote Channel Selector – close-up front panel showing CHANNEL and SELECT LED displays and UP DOWN SEL LAMP TEST CONT MODE buttons
