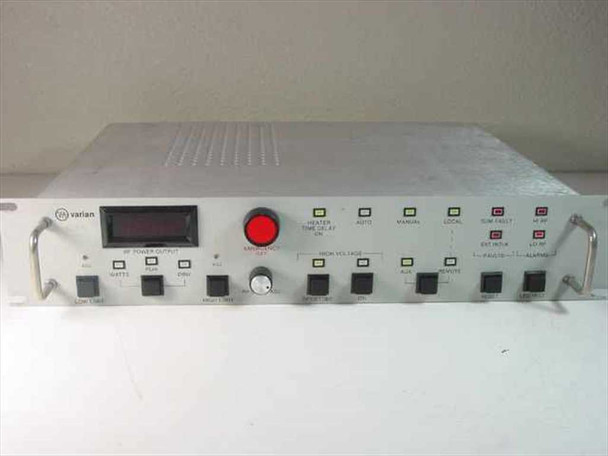

The Varian VJW-2722H is a 2U 19-inch rackmount remote control unit built by Varian's Microwave Equipment Division in Santa Clara, California. It is designed to provide remote monitoring and control of Varian microwave amplifier systems — most likely traveling wave tube (TWT) amplifier chains used in satellite communications (satcom) and microwave transmission systems. The front panel includes a multi-digit LED display for RF power output, discrete controls for RF drive and power limits, high-voltage sequencing, heater time delay, and Auto/Manual/Local/Remote mode selection, along with fault and alarm indicator LEDs and an Emergency Off button.

Specifications & What's Included

• Manufacturer: Varian Microwave Equipment Division, Santa Clara, CA
• Model: VJW-2722H
• Part Number: 010002850-01 (label reads 01002850-00)
• Form Factor: 2U, 19" rackmount

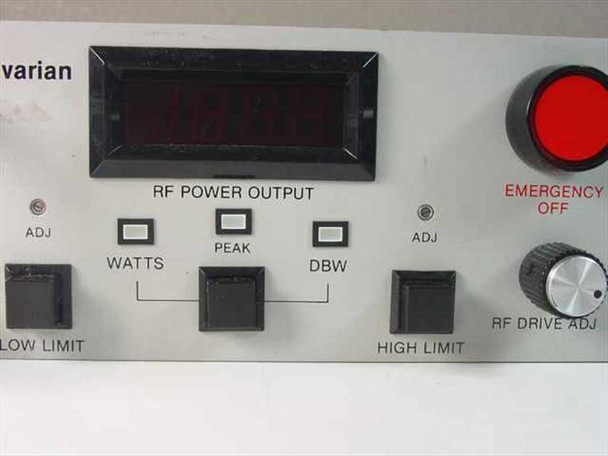

• Front Panel Display: Multi-digit LED display — RF Power Output (Watts, Peak, dBW selectable)
• RF Power Controls: Watts / Peak / dBW mode select buttons; Low Limit and High Limit adjust; RF Drive Adj rotary knob
• High Voltage Controls: Off/Stdby and On pushbuttons with LED status indicators

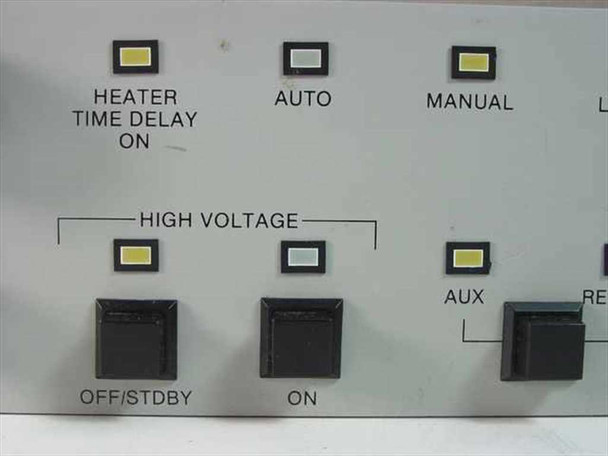

• Heater / Sequencing: Heater Time Delay On button with LED indicator
• Mode Selection: Auto, Manual, Local, Remote pushbuttons with LED indicators
• Fault Indicators: Sum Fault, Ext Intlk (external interlock) — red LED indicators
• Alarm Indicators: Hi RF, Lo RF — red LED indicators
• Additional Controls: Reset, LED Test, Aux
• Emergency Control: Large red Emergency Off pushbutton (front panel)

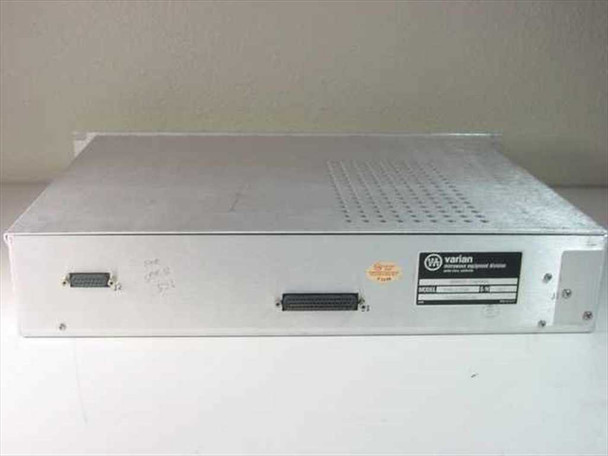

• Rear Connectors: Two multi-pin D-sub style connectors for system interface cabling
• Country of Manufacture: USA
• Included: Unit only; no interface cables or accessories included

Applications
