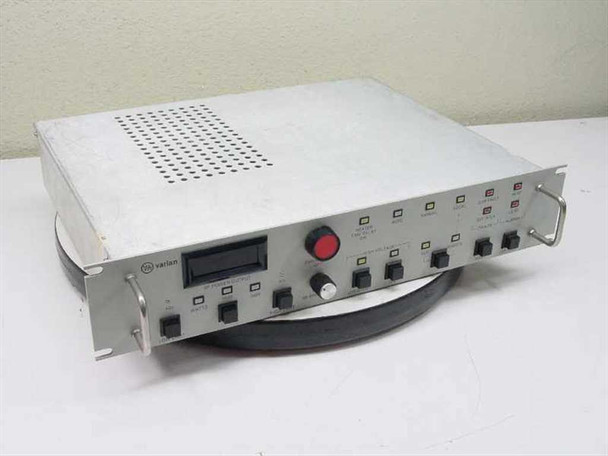

Varian VJW-2722H1 Remote Control Unit 010002850-01 Microwave RF Satcom 2U Rack
2U rackmount remote control unit for RF power management in satellite communications and microwave systems. Provides operator interface for monitoring and controlling RF output levels with multiple operating modes and fault detection.
Specifications & What's Included
- Brand: Varian Microwave Equipment Division

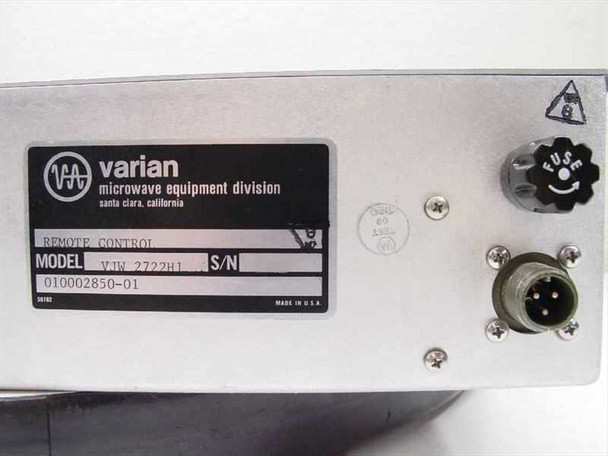

- Model: VJW-2722H1 | MPN: 010002850-01

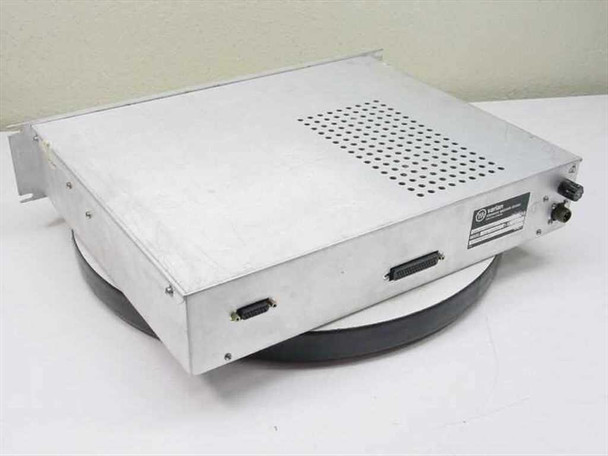

- Form Factor: 2U Rackmount

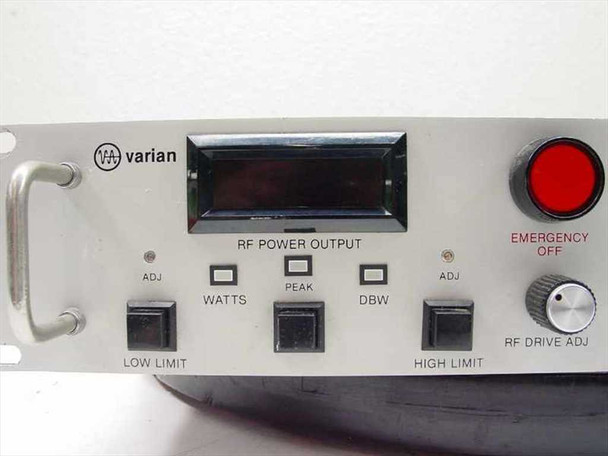

- Front Panel Display: RF Power Output (Watts, Peak, dBW)

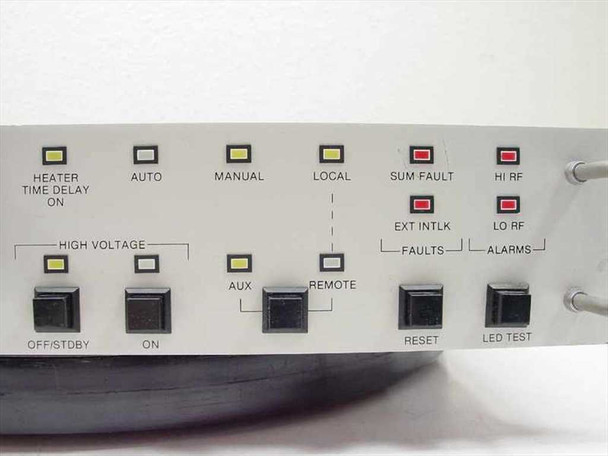

- Operating Modes: Auto, Manual, Local, Remote
- Controls: RF Drive Adjust, Low/High Limit, Emergency Off, Heater Time Delay
- Fault Indicators: Sum Fault, Ext Intlk, Hi/Lo RF Alarm

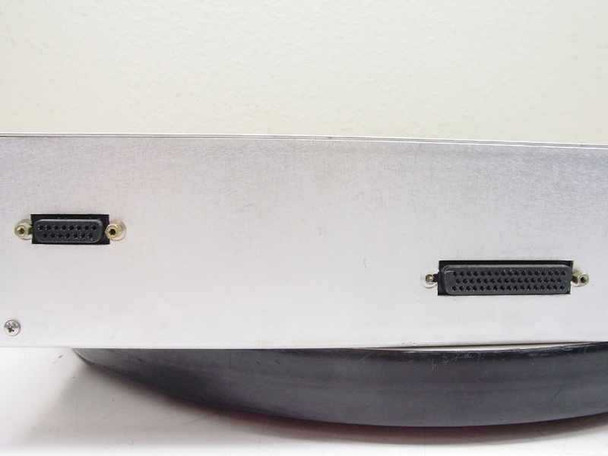

- Rear Connectors: DB15, 50-pin D-sub, multi-pin circular connector
- Unit only—no additional accessories included
Applications
Satcom and microwave RF power control systems used in ground stations and telecommunications infrastructure. This unit functions as the operator control interface for high-power RF amplifier systems, allowing remote and local supervision of output power, temperature management, and system faults. Commonly deployed in satellite uplink/downlink stations and fixed RF installations requiring precise power regulation and monitoring from a central rack position.
This Varian VJW-2722H1 Microwave RF Remote Control Unit has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional. The chassis shows light scuffing and surface wear typical of rack-mounted equipment, but there is no significant damage. Rear connectors appear intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Varian |
Model: |
VJW-2722H1 |
MPN: |
010002850-01 |
Secondary Model: |
VJW2722H1 |
Type: |
Remote Control Unit |
SKU: |
35911 |
Manufacturer Division: |
Varian Microwave Equipment Division |
Country/Region of Manufacture: |
United States |
Form Factor: |
2U Rackmount |
Application: |
Satcom / Microwave / RF Power Control |
Front Panel Display: |
RF Power Output numeric display (Watts, Peak, dBW) |
Front Panel Controls: |
RF Drive Adj knob, Low Limit, High Limit, Emergency Off |
Fault Indicators: |
Sum Fault, Ext Intlk, Hi RF Alarm, Lo RF Alarm |
High Voltage Controls: |
Off/Stby and On switches with indicator LEDs |
Additional Controls: |
Heater Time Delay On, AUX, Reset, LED Test |
Rear Connectors: |
DB15 (approx), 50-pin D-sub connector, multi-pin circular connector |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only — no additional accessories observed in photos. |
Condition Notes: |
Varian VJW-2722H1 Microwave RF Remote Control Unit. Inspected, in good used condition. Pulled from a working environment where it was in use and functional. Light surface wear typical of rack equipment. No significant damage. |
