Varian

Varian VJW2722H1 Satcom TWT RF Amplifier Remote Control 010002850-01

(No reviews yet) Write a Review
SKU:
36030
MPN:
VTW2722H1
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
14.00 LBS
Shipping:
Calculated at Checkout
  • Varian VJW2722H1 TWT RF Amplifier Remote Control – front panel view showing RF power output display, emergency off button, and control switches
  • Varian VJW2722H1 Remote Control – rear panel showing two DB25 connectors and two circular mil-spec connectors

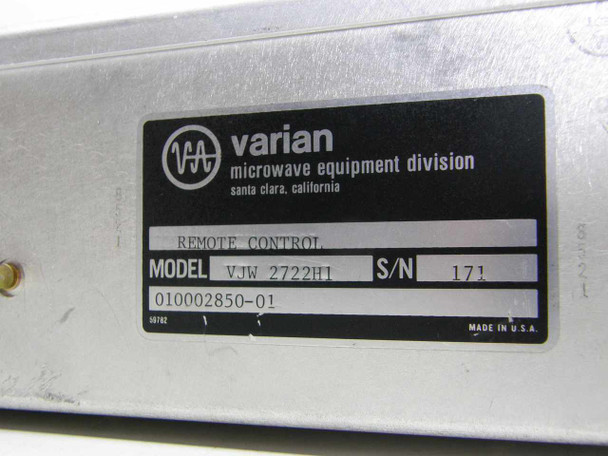

  • Varian VJW2722H1 rear label showing model VJW2722H1, P/N 010002850-01, S/N 171, Varian Microwave Equipment Division, Santa Clara California, Made in USA
  • Varian VJW2722H1 TWT Remote Control – close-up of front panel right side showing heater time delay, auto/manual, high voltage, RF drive adjust, and status indicator LEDs
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Varian VJW2722H1 Satcom TWT RF Amplifier Remote Control 010002850-01

Remote control unit for Varian TWT RF amplifiers used in satellite communications systems. Provides operator interface for amplifier monitoring and adjustment from a distance.

Specifications & What's Included

  • Model: VJW2722H1 / VTW2722H1
  • MPN: 010002850-01
  • Manufacturer: Varian Microwave Equipment Division
  • Form Factor: Rackmount
  • Front Panel: RF Power Output meter display
  • Controls: Emergency Off, RF Drive Adjust, High Limit, Watts/Peak/DBW select
  • Indicators: Heater Time Delay, Auto, Manual, status LEDs
  • Rear Connectors: DB25 (x2), circular mil-spec connectors (x2)
  • Unit only; no accessories included

Applications

Used in satellite ground stations and uplink facilities to control and monitor high-power TWT RF amplifiers. This remote control unit allows operators to manage amplifier output power, set operating limits, and monitor system status during satellite communications operations. Commonly deployed in C-band, Ku-band, and Ka-band satcom earth stations.

Condition: For Parts or Not Working
This Varian VJW2722H1 TWT RF Amplifier Remote Control has been inspected and appears to be in good used condition. It was pulled from a working satcom environment. The front panel, display, controls, and indicators show normal wear consistent with professional use. The chassis is intact with no significant damage visible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Varian
Model:
VJW2722H1
MPN:
010002850-01
Secondary Model:
VTW2722H1
Type:
TWT RF Amplifier Remote Control
SKU:
36030
Manufacturer Division:
Varian Microwave Equipment Division
Country/Region of Manufacture:
United States
Form Factor:
Rackmount
Application:
Satellite Communications (Satcom) TWT Amplifier Control
Compatible With:
Varian TWT RF Amplifiers
Front Panel Display:
RF Power Output meter display
Controls:
Emergency Off, RF Drive Adj, High Limit, Watts/Peak/DBW select
Indicators:
Heater Time Delay, Auto, Manual, status LEDs
Rear Connectors:
DB25 (x2), circular mil-spec connectors (x2)
Seller Notes:
Unit only; no accessories included.
Condition:
Used – Pulled from Working Environment
Condition Notes:
Varian VJW2722H1 TWT RF Amplifier Remote Control (010002850-01). Pulled from a working satcom environment. Inspected and in good used condition. Normal wear. Please view photos and contact us with questions.
View AllClose
