Varian

Varian VJC6767S2CMU RF Satcom Control Interface 01008831-02 01008951

(No reviews yet) Write a Review
SKU:
50414
MPN:
VJC6767S2CMU
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
11.00 LBS
Shipping:
Calculated at Checkout

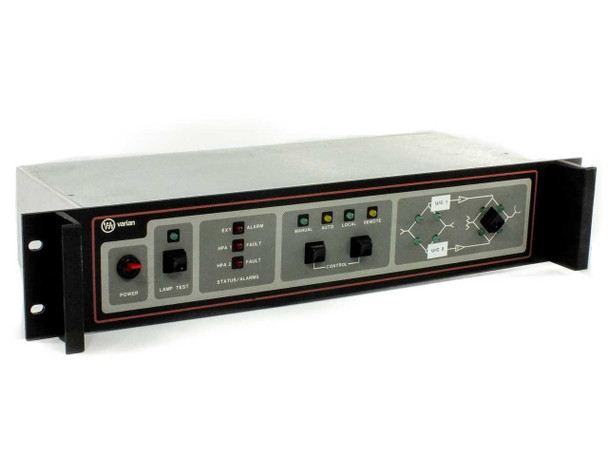

  • Varian VJC6767S2CMU RF Satcom Control Interface – front panel view showing Power, Lamp Test, Status/Alarms, and upconverter switching section
  • Varian VJC6767S2CMU model label showing part number 01008831-02, model VJC6767S2CMU, and secondary number 01008951 – Made in USA, Santa Clara CA
  • Varian VJC6767S2CMU front panel close-up – U/C 1 and U/C 2 upconverter switching diagram with green LED indicators and center toggle switch

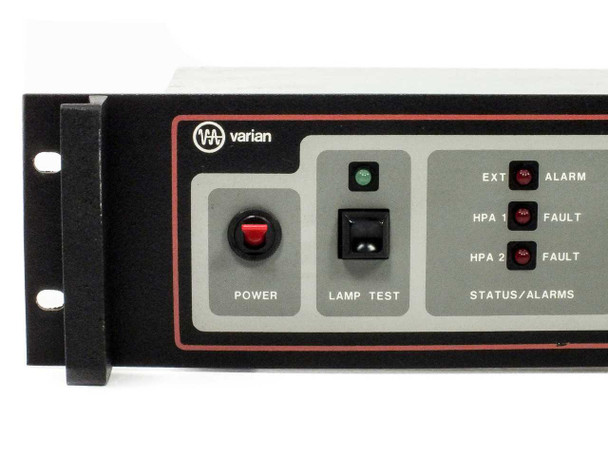

  • Varian VJC6767S2CMU front panel close-up – Power button and Lamp Test button on left, EXT Alarm, HPA 1 Fault, HPA 2 Fault LED indicators on right
  • Varian VJC6767S2CMU front panel close-up – Manual, Auto, Local, Remote LED indicator buttons and Control section toggle switches

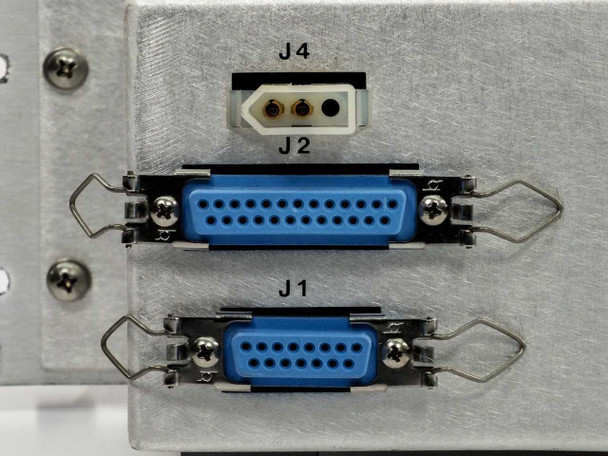

  • Varian VJC6767S2CMU rear panel – three connectors visible: J4 (3-pin), J2 (DB-25 female), and J1 (DB-15 female)
  • Varian VJC6767S2CMU full rear and side view – aluminum chassis, rear connectors J1 J2 J4, and model label on rear panel
$175.00
Was: $350.00
Current Stock: 1

Sold Out

Description

Varian VJC6767S2CMU RF Satcom Control Interface 01008831-02 01008951

Rackmount control interface for satellite earth station HPA and upconverter management. Provides switching and status monitoring for high-power amplifier and upconverter subsystems in satellite communication stations.

Specifications & What's Included

  • Model: VJC6767S2CMU (MPN 01008831-02)
  • Rackmount form factor
  • Connectors: DB-25 (J1, J2), 3-pin (J4)
  • Front panel controls: Power, Lamp Test, Manual/Auto/Local/Remote switches
  • Status indicators: EXT Alarm, HPA 1 Fault, HPA 2 Fault LEDs
  • Upconverter switching: U/C 1 and U/C 2 with indicator LEDs
  • Manufactured in United States

Applications

This control interface manages HPA and upconverter operations in satellite earth stations. It supports redundant HPA configurations and dual upconverter switching, commonly deployed in C-band and Ku-band satellite communication networks. The unit integrates with standard earth station control systems to provide local and remote command capability for transmit chain subsystems.

Condition: Used
This Varian VJC6767S2CMU RF Satcom Control Interface was pulled from a working satellite earth station and is in good used condition. The front panel controls, LED status indicators, and upconverter switching section all appear intact and undamaged. The chassis shows normal wear consistent with rackmount use — some light surface scuffing on the aluminum top cover and rack ears. Rear connectors (J1, J2, J4) are present and appear clean. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Varian
Model:
VJC6767S2CMU
MPN:
01008831-02
Secondary Model:
01008951
SKU:
50414
Type:
RF Satcom Control Interface
Condition:
Used – Pulled from Working Environment
Form Factor:
Rackmount
Application / Use Case:
Satellite Earth Station HPA & Upconverter Control
Connector Type:
DB-25 (J1, J2), 3-pin connector (J4)
Front Panel Controls:
Power, Lamp Test, Manual/Auto/Local/Remote switches
Status Indicators:
EXT Alarm, HPA 1 Fault, HPA 2 Fault LED indicators
Upconverter Switching:
U/C 1 and U/C 2 with switching diagram and indicator LEDs
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; pulled from a working Satcom earth station.
Condition Notes:
Varian VJC6767S2CMU RF Satcom Control Interface pulled from a working satellite earth station. Good used condition with normal rack wear. Front panel controls and LEDs intact. Rear connectors present and clean.
View AllClose

Related Products

Related Products

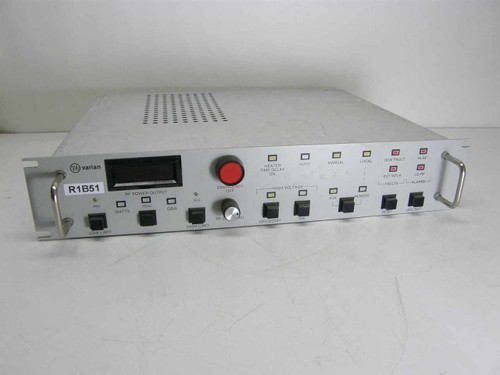

Varian VJW2722H1 TWT RF Amplifier Remote Control – front panel view showing RF power output display, emergency off button, and control switches Varian VJW2722H1 Remote Control – rear panel showing two DB25 connectors and two circular mil-spec connectors
Add to Cart
Quick view

Varian VJW2722H1 Satcom TWT RF Amplifier Remote Control 010002850-01

Varian

$150.00
Was: $300.00
Varian VJW2722H1 Satcom TWT RF Amplifier Remote Control 010002850-01Remote control unit for Varian TWT RF amplifiers used in satellite communications systems. Provides operator interface for...
36030
SKU:
36030
Availability:
Usually ships within 1–2 business days.
Weight:
14.00 LBS
Brand:
Varian
Model:
VJW2722H1
MPN:
010002850-01
Secondary Model:
VTW2722H1
Type:
TWT RF Amplifier Remote Control
SKU:
36030
Manufacturer Division:
Varian Microwave Equipment Division
Country/Region of Manufacture:
United States
Form Factor:
Rackmount
Application:
Satellite Communications (Satcom) TWT Amplifier Control
Compatible With:
Varian TWT RF Amplifiers
Front Panel Display:
RF Power Output meter display
Controls:
Emergency Off, RF Drive Adj, High Limit, Watts/Peak/DBW select
Indicators:
Heater Time Delay, Auto, Manual, status LEDs
Rear Connectors:
DB25 (x2), circular mil-spec connectors (x2)
Seller Notes:
Unit only; no accessories included.
Condition:
Used – Pulled from Working Environment
Condition Notes:
Varian VJW2722H1 TWT RF Amplifier Remote Control (010002850-01). Pulled from a working satcom environment. Inspected and in good used condition. Normal wear. Please view photos and contact us with questions.

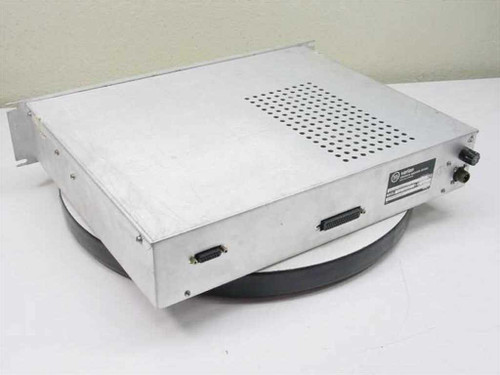

Varian VJW-2722H1 Remote Control Unit front panel with RF power output display and controls — 2U rackmount chassis, slight scuffing on top surface Varian VJW-2722H1 Remote Control Unit right-side and top view showing ventilation perforations and rear panel connectors
Add to Cart
Quick view

Varian VJW-2722H1 Remote Control Unit 010002850-01 Microwave RF Satcom 2U Rack

Varian

$175.00
Was: $350.00
Varian VJW-2722H1 Remote Control Unit 010002850-01 Microwave RF Satcom 2U Rack2U rackmount remote control unit for RF power management in satellite communications and microwave systems. Provides...
35911
SKU:
35911
Availability:
Usually ships within 1-2 business days.
Weight:
14.00 LBS
Brand:
Varian
Model:
VJW-2722H1
MPN:
010002850-01
Secondary Model:
VJW2722H1
Type:
Remote Control Unit
SKU:
35911
Manufacturer Division:
Varian Microwave Equipment Division
Country/Region of Manufacture:
United States
Form Factor:
2U Rackmount
Application:
Satcom / Microwave / RF Power Control
Front Panel Display:
RF Power Output numeric display (Watts, Peak, dBW)
Front Panel Controls:
RF Drive Adj knob, Low Limit, High Limit, Emergency Off
Operating Modes:
Auto, Manual, Local, Remote
Fault Indicators:
Sum Fault, Ext Intlk, Hi RF Alarm, Lo RF Alarm
High Voltage Controls:
Off/Stby and On switches with indicator LEDs
Additional Controls:
Heater Time Delay On, AUX, Reset, LED Test
Rear Connectors:
DB15 (approx), 50-pin D-sub connector, multi-pin circular connector
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only — no additional accessories observed in photos.
Condition Notes:
Varian VJW-2722H1 Microwave RF Remote Control Unit. Inspected, in good used condition. Pulled from a working environment where it was in use and functional. Light surface wear typical of rack equipment. No significant damage.

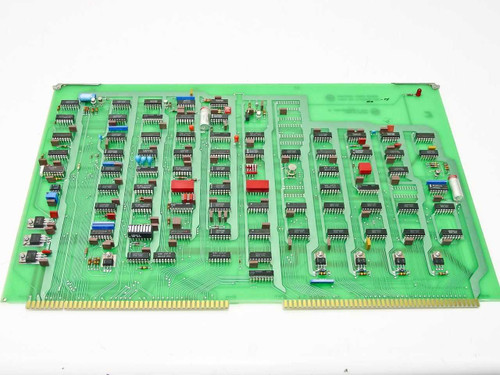

Varian 01000031 Rev H Control Logic Board – component side top view showing populated PCB with ICs and gold-edge connector Varian 01000031 Rev H Control Logic Board – component side angled view with ruler showing board approximately 15 inches long
Add to Cart
Quick view

Varian 01000031 Rev H Control Logic Board HPA Satcom RF Transmitter PCB

Varian

$150.00
Was: $300.00
Varian 01000031 Rev H Control Logic Board HPA Satcom RF Transmitter PCBControl logic board designed for Varian HPA Satcom RF transmitter systems. This PCB module manages transmitter operation and RF...
41342
SKU:
41342
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Brand:
Varian
Model:
01000031
MPN:
01000031
Secondary Model:
01000031 Rev H
Hardware Revision:
Rev H
Type:
Control Logic Board / PCB
SKU:
41342
Compatible With:
Varian HPA Satcom RF Transmitter
Application:
HPA Satcom RF Transmitter Control
Form Factor:
PCB Card / Module
Connector Type:
Gold-edge card connector
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from a working HPA Satcom RF Transmitter
Country/Region of Manufacture:
United States
Condition Notes:
Varian 01000031 Rev H Control Logic Board for HPA Satcom RF Transmitter. Inspected and in good used condition. Pulled from a working environment where it was in active use and functional. Board and gold-edge connector appear clean and intact.

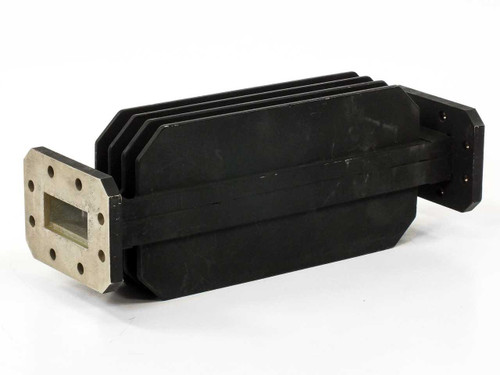

Varian F137CA6 WR-137 C-Band waveguide load with fins – angled view showing Varian label and finned body Varian F137CA6 WR-137 C-Band waveguide load – left-side three-quarter view showing full finned aluminum body
