Description
Varian VJW6769H1 Remote Control Unit VJW-6769H HPA Satcom Microwave 01014870-00
19" rack-mount remote control unit for Varian High Power Amplifier (HPA) systems. Provides operator control and status monitoring for satellite communication and microwave HPA equipment.
Specifications & Features

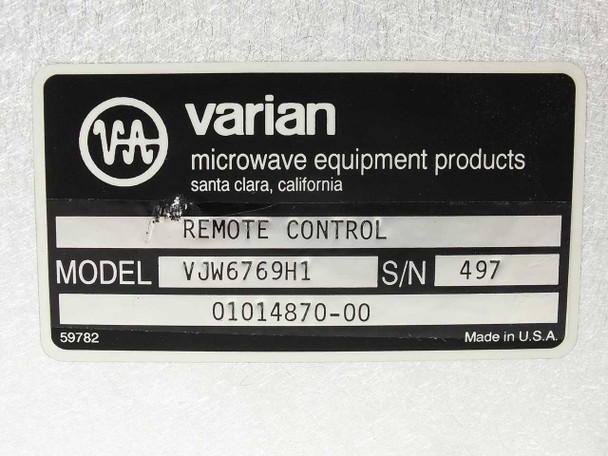

- Model: VJW6769H1 (MPN: 01014870-00)
- Form Factor: 19" Rack Mount, 3U

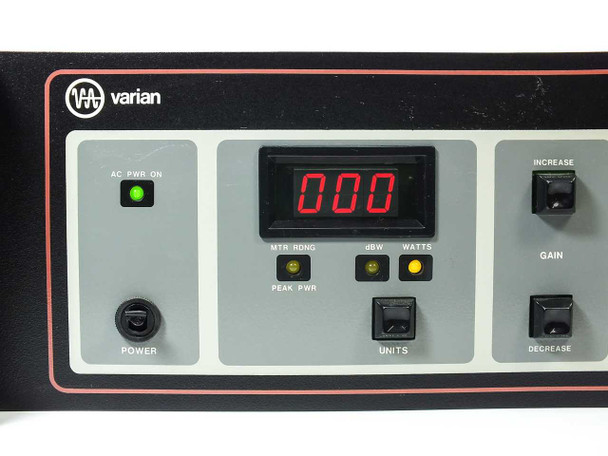

- Front Panel Controls: Power, Gain Increase/Decrease, Units, Beam On/Off, Reset, High Voltage Control, Lamp Test

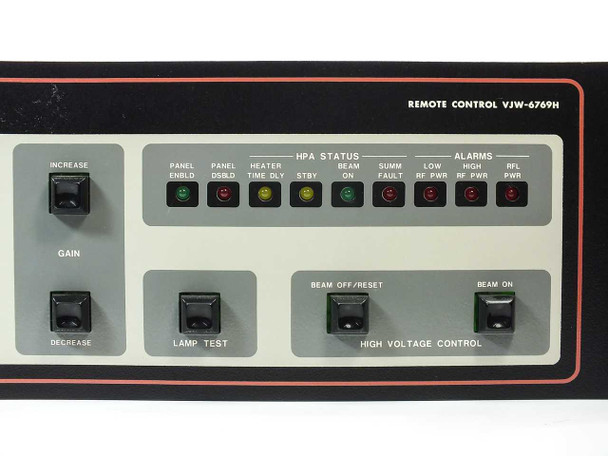

- Status Indicators: Panel Enable/Disable, Heater Time Delay, Standby, Beam On, Sum Fault, RF Power Low/High, Reflected Power
- Display: 3-digit LED numeric display (dBW/Watts/Peak Power/Meter Reading)

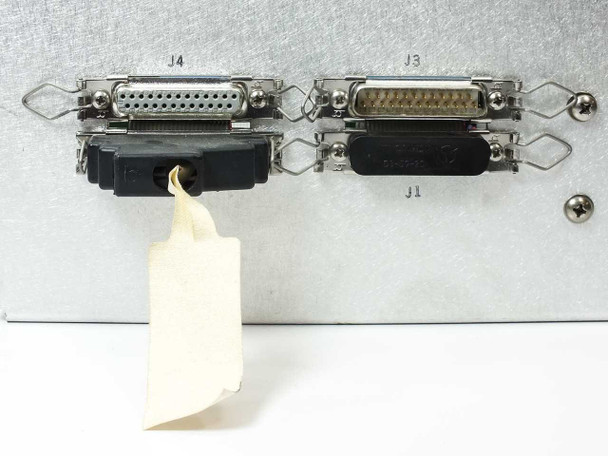

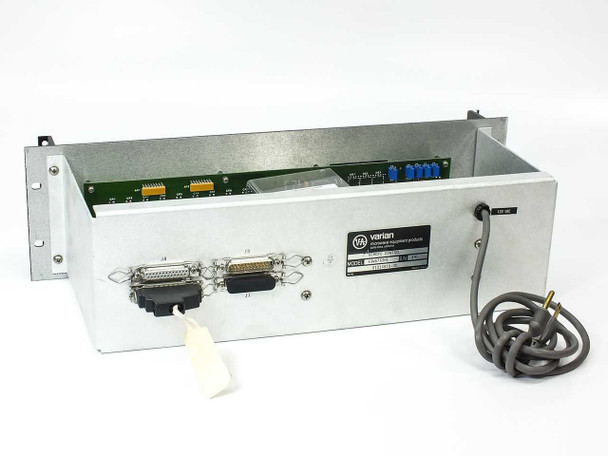

- Rear Connectors: Two DB-25 connectors (J1, J3/J4)
- Input: 250V, 50/60Hz AC transformer
Applications
Remote control units of this type are used to operate and monitor Varian high-power amplifiers in satellite uplink stations, microwave communication systems, and earth station networks. These controllers manage amplifier gain, beam switching, and high voltage supply while providing real-time status feedback through LED indicators and numeric displays.
Condition: Used
This Varian VJW6769H1 Remote Control Unit (VJW-6769H) powers on and the front panel LEDs illuminate, but we were not able to run a full functional test at our facility. It is being sold in as-inspected condition. The unit is in good cosmetic shape overall — the front panel faceplate, controls, and LED display area show normal wear consistent with rack service use. The rear DB-25 connectors appear intact with no bent or missing pins. The internal PCB and components are visible in the photos and appear undamaged. Please review the full photo set carefully and contact us with any questions before purchasing. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Varian VJW6769H1 Remote Control Unit (VJW-6769H) powers on and the front panel LEDs illuminate, but we were not able to run a full functional test at our facility. It is being sold in as-inspected condition. The unit is in good cosmetic shape overall — the front panel faceplate, controls, and LED display area show normal wear consistent with rack service use. The rear DB-25 connectors appear intact with no bent or missing pins. The internal PCB and components are visible in the photos and appear undamaged. Please review the full photo set carefully and contact us with any questions before purchasing. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Varian |
Model: |
VJW6769H1 |
MPN: |
01014870-00 |
Secondary Model: |
VJW-6769H |
Type: |
HPA Remote Control Unit |
SKU: |
49639 |
Form Factor: |
19" Rack Mount, 3U |
Application: |
High Power Amplifier (HPA) Control, Satcom / Microwave |
Front Panel Controls: |
Power, Gain Increase/Decrease, Units, Beam On/Off Reset, High Voltage Control, Lamp Test |
HPA Status Indicators: |
Panel Enbl/Dsbl, Heater Time Dly, Stby, Beam On, Sum Fault, RF PWR Low/High, RFL PWR |
Display: |
3-digit LED numeric display (dBW / Watts / Peak Power / MTR RDNG) |
Rear Connectors: |
Two DB-25 connectors (J1, J3/J4) on rear panel |
Internal Assembly: |

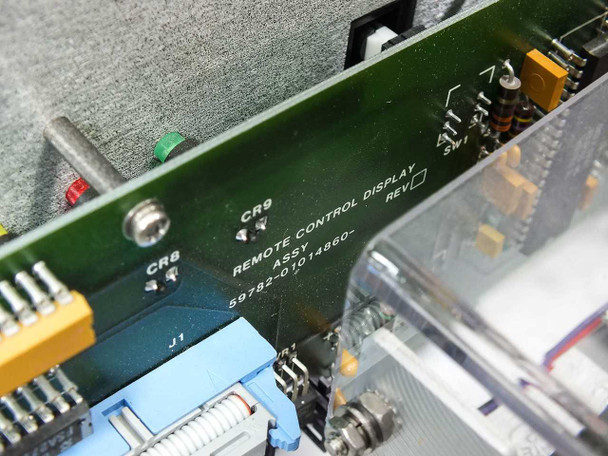

Remote Control Display Assy 59782-01014860 |
Internal Transformer: |

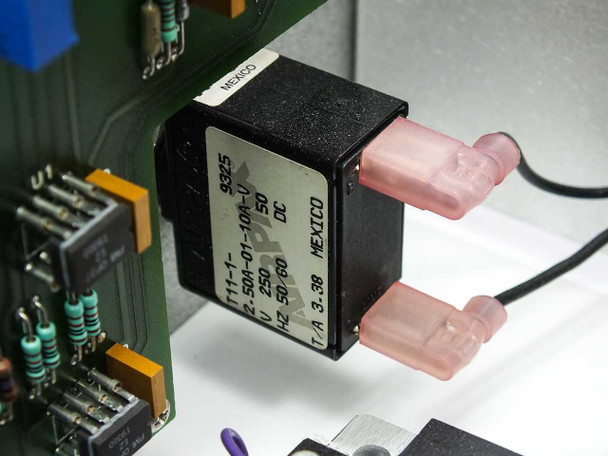

250V, 50/60Hz AC input transformer on control board |
Condition: |
Used – Powers On; Not Fully Tested |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Unit powers on. Not fully tested at our facility. See photos for detail. |
Condition Notes: |
Varian VJW6769H1 HPA Remote Control Unit powers on and front panel LEDs light up, but was not fully tested at our facility. Good cosmetic condition. Sold as-inspected. See photos. Contact us with questions. |
