Varian 01002599 MUX Adapter PCB Card Rev B Teltec 01V 01002598A

(No reviews yet) Write a Review
SKU:
41340
MPN:
01002599
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

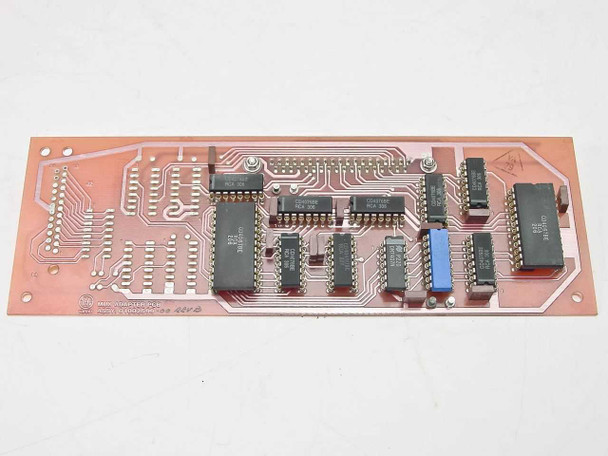

  • Varian 01002599 MUX Adapter PCB Card — component side showing ICs, DIP chips, and blue trimmer
  • Varian 01002599 MUX Adapter PCB — solder side showing multi-pin D-sub connector and trace routing

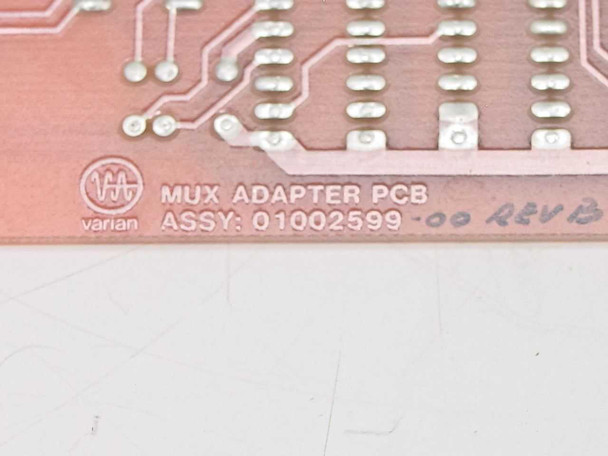

  • Varian MUX Adapter PCB label closeup — Assy 01002599-00 Rev B silkscreen marking

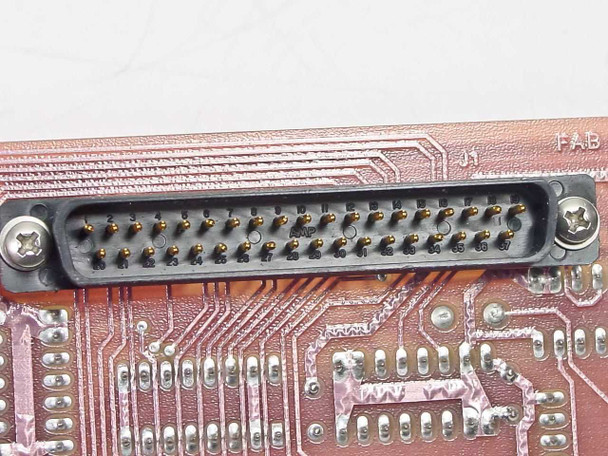

  • Varian 01002599 PCB — closeup of multi-pin D-sub edge connector (J1) with gold-pin contacts
$75.00
Was: $150.00
Current Stock: 2

Sold Out

Description

Varian 01002599 MUX Adapter PCB Card Rev B Teltec 01V 01002598A

The Varian 01002599 is a MUX (Multiplexer) Adapter PCB card used in Varian Teltec 01V systems. Assembly number 01002598A, the board carries the silkscreen designation "MUX ADAPTER PCB" with assembly number 01002599-00 Rev B. It is a bare card-format PCB that routes multiplexed signal lines between system modules via a multi-pin D-sub style connector mounted on the solder side of the board.

Specifications & What's Included

  • Manufacturer: Varian
  • Assembly Part Number: 01002599-00
  • Secondary Part Number / Assy Reference: 01002598A
  • Board Designation: MUX ADAPTER PCB
  • Revision: Rev B
  • Compatible System: Varian Teltec 01V
  • Form Factor: PCB card / module
  • Connector: Multi-pin D-sub style edge connector (approx. 36-pin, gold contacts) — designated J1
  • Onboard ICs: Multiple DIP-package ICs and logic chips; blue trimmer component visible on component side
  • PCB Color: Pink/red substrate
  • Includes: PCB card only

Applications

Varian is a major manufacturer of semiconductor processing and vacuum equipment, producing ion implanters, sputter deposition systems, and related instrumentation used in semiconductor fabrication. The Teltec product line encompassed control and signal-routing electronics used within these systems. A MUX Adapter PCB of this type serves as a signal multiplexing interface between the main system controller and peripheral subsystems or sensors, allowing multiple signal channels to be routed over a shared bus or connector. These boards are typically found in Varian ion implant machines or deposition system control assemblies from the 1980s and 1990s. Demand for these parts today comes primarily from semiconductor fabs and equipment refurbishers maintaining legacy Varian systems that remain in production use.

Condition: Used
This Varian 01002599 MUX Adapter PCB Card (Assy 01002598A, Rev B) has been inspected and is in good used condition. It was pulled from a working Varian Teltec system where it was in active use. The board shows normal light wear consistent with service use. The multi-pin D-sub connector contacts appear clean and intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
