Satcom
Satcom, short for satellite communication, refers to the transmission of data, voice, and video through satellite systems. Satcom technology utilizes satellites in geostationary or low earth orbit to provide global coverage for communication purposes. It enables long-distance communication without the need for physical infrastructure on the ground. Satcom is used in various industries such as aviation, maritime, military, and broadcasting for reliable and secure communication. The use of Satcom is expanding rapidly with advancements in technology, offering high-speed internet access, telecommunication services, and remote monitoring capabilities. Satcom plays a crucial role in connecting remote areas and ensuring seamless communication worldwide.
-

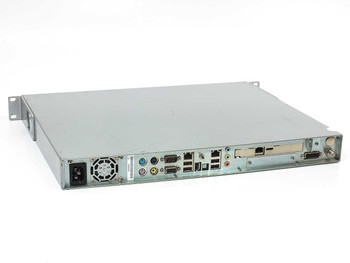

International Datacasting SFX3101R 92080190 SuperFlex DVB-S/S2 Pro Audio
International Datacasting
$125.00Was: $250.00International Datacasting SFX3101R 92080190 SuperFlex DVB-S/S2 Pro Audio Receiver 1U1U rackmount satellite audio receiver for DVB-S and DVB-S2 broadcast standards. Processes satellite-delivered audio...49830- SKU:
- 49830
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 16.00 LBS
- Brand:
- International Datacasting
- Model:
- SFX3101R
- MPN:
- 92080190 V1.2
- Secondary Model:
- DA-604
- Type:
- DVB-S/DVB-S2 Satellite Audio Receiver
- Series:
- SuperFlex SFX Series
- SKU:
- 49830
- Condition:
- Used – Powers On, Not Fully Tested
- Seller Notes:
- Unit only; powers on. Please view photos and contact us with questions.
- Country/Region of Manufacture:
- Canada
- Form Factor:
- 1U Rackmount
- Rack Size:
- 1U
- Dimensions:
- 19" x 14.5" x 1.75"
- Power Requirements:
- 100-240V AC, 4A Max, 60-50Hz
- Tuner:
- Single Tuner
- Number of Audio Channels:
- 4
- Standard:
- DVB-S / DVB-S2
- Interface:
- DVB-S / DVB-S2
- Ethernet Ports:
- 2x RJ-45 (ETH0, ETH1)
- SAT Input:
- F-type coaxial (rear panel)
- Video Output:
- Composite, S-Video, VGA (DB-15)
- Audio Output:
- Analog RCA stereo, additional audio outputs on rear
- Serial Port:
- DB-9 RS-232
- USB Ports:
- Multiple USB ports on rear panel
- FireWire:
- 1x FireWire (IEEE 1394) port visible on rear
- Display:
- LCD alphanumeric display with navigation buttons
- Front Panel Indicators:
- Lock, Status, Control, Network, Options LEDs
- Date of Manufacture:
- 09/2006
- Compatible With:
- DVB-S/DVB-S2 satellite broadcast systems
- Application:
- Broadcast audio distribution, satellite content delivery
- Condition Notes:
- International Datacasting SFX3101R SuperFlex satellite receiver. Inspected, good used condition. Powers on; not fully tested beyond power-up. Light cosmetic wear. View photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$125.00Was: $250.00 -
Telecomm Engineering 142001-1 Network Mimic Panel RF Satcom 4-HPA Rackmount
Telecomm Engineering Corp
$325.00Was: $650.00Telecomm Engineering 142001-1 Network Mimic Panel RF Satcom 4-HPA RackmountThe Telecomm Engineering 142001-1 is a rackmount Network Mimic Panel designed for RF satellite communications ground station...49800- SKU:
- 49800
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 36.00 LBS
- Brand:
- Telecomm Engineering Corp
- Model:
- 142001-1
- MPN:
- 142001-1
- SKU:
- 49800
- Type:
- Network Mimic Panel
- Application:
- RF Satcom HPA Switching & Status Monitoring
- Form Factor:
- Rackmount, 3U
- Dimensions:
- 20" W x 19" D x 5.5" H
- Power Requirements:
- 28VDC
- Number of HPA Outputs:
- 4 (HPA 1, HPA 2, HPA 3, HPA 4)
- Antenna Paths:
- LHPOL (Left-Hand Polarization), RHPOL (Right-Hand Polarization)
- RF Switching Components:
- Magic T combiners, LH/RH waveguide path indicators
- Status Indicators:
- Green LED lamp indicators per HPA path; Lamp Test button
- Power Supplies:
- Dual: PS1, PS2 (redundant); NORMAL status indicator
- Fuses:
- F1-6A, F2-6A, F3-3A, F4-3A
- Terminal Blocks:
- TB1 (rear, 16-position), TB2 (rear, 16-position)
- Connector - Power:
- IEC C14 AC inlet (rear panel)
- Grounding:
- GND lug on rear panel
- Country/Region of Manufacture:
- United States
- Manufacturer Location:
- Melbourne, Florida 32935
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; no accessories. Pulled from a working RF satcom ground station environment.
- Condition Notes:
- Telecomm Engineering 142001-1 Network Mimic Panel in good used condition. Inspected; pulled from a working RF satcom environment. Front panel and rear terminals intact, normal wear. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$325.00Was: $650.00 -
LNR 506011300-2 Redundant Baseball Switch Control RF Satcom 1U Rackmount
LNR
$250.00Was: $500.00LNR 506011300-2 Redundant Baseball Switch Control RF Satcom 1U Rackmount1U rackmount redundant switching controller for RF satellite communications systems. Provides manual baseball-style...49790- SKU:
- 49790
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 9.00 LBS
- Brand:
- LNR Communications
- Model:
- 506011300-2
- MPN:
- 506011300-2
- SKU:
- 49790
- Type:
- Redundant Baseball Switch Controller
- Application:
- RF Satellite Communications (Satcom) Redundancy Switching
- Form Factor:
- 1U Rackmount
- Rack Size:
- 19-inch
- Dimensions:
- 22" x 19" x 2" (D x W x H)
- Front Panel Controls:
- SELECT (Normal/Cross), ALARMS (Unit 1/Unit 2), MODE switch
- Switch Positions:
- Normal, Cross (baseball-style waveguide/coax switch)
- Alarm Indicators:
- Unit 1 and Unit 2 LED alarm indicators
- Mode:
- Manual (MAN) mode switch on front panel
- RF Connector Type:
- BNC (Inputs: Unit 1, Unit 2; Outputs: Unit 1, Unit 2)
- Number of RF Ports:
- 4 BNC (2 inputs, 2 outputs)
- Rear Interfaces:
- Remote Control and Monitor (D-Sub), Conv 1 (DB-15), Conv 2 (DB-9)
- Remote Control Interface:
- D-Sub multi-pin connector (Remote Control and Monitor)
- Converter Interfaces:
- Conv 1 (DB-15), Conv 2 (DB-9)
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; pulled from working satcom system. No accessories included.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- LNR 506011300-2 Redundant Baseball Switch Control, inspected and in good used condition. Pulled from a working satcom environment. Shows light rack wear; front panel, switch, and connectors intact. Photos available.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$250.00Was: $500.00 -
ARG 2400 Series 2402-EQ48K-BOM G.703 DS3 Protection Switch 44.736 Mbps 1U
ARG
$70.00Was: $150.00ARG 2400 Series 2402-EQ48K-BOM G.703 DS3 Protection Switch 44.736 Mbps 1U A 1U rackmount DS3 protection switch supporting 1+1 path protection for 44.736 Mbps telecom signals. Provides automatic...49782- SKU:
- 49782
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 16.00 LBS
- Brand:
- ARG
- Model:
- 2400 Series
- MPN:
- 2402-EQ48K-BOM
- Type:
- G.703 DS3 Protection Switch
- SKU:
- 49782
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts; front panel LEDs do not illuminate
- Country/Region of Manufacture:
- United Kingdom
- Form Factor:
- 1U Rackmount
- Standards Compliance:
- ITU-T G.703
- Signal Type:
- DS3
- Data Rate:
- 44.736 Mb/s
- Number of Inputs:
- 2 (Input A, Input B)
- Number of Outputs:
- 2 (Output 1, Output 2)
- Input Signal:
- 44.736 Mb/s DS3 via Relay Bypass Module
- Protection Type:
- 1+1 DS3 Path Protection with Relay Bypass
- Power Fail Behavior:
- Input A to Output 1 and Input B to Output 2 continue under power fail
- Key Switch Feature:
- Channel Override Key Switch included
- Web Board Option:
- Fitted
- Power Requirements:
- 100-240V AC, 50/60Hz, 1 Phase, Fuse 2A(T)
- Power Supply:
- Dual redundant IEC power supplies
- Rear Connectors:
- BNC coaxial (numbered 1-8), D-sub Alarms, IEC Remote
- Front Panel Indicators:
- PSU 1, PSU 2, Alarm, I/P A, I/P Active, I/P B, L.O.S., L.F.A., A.I.S.
- Serial Number:
- 333
- Factory Code:
- 2402-EQ48K-BOM
- Certifications:
- CE
- Condition Notes:
- ARG 2400 Series 2402-EQ48K-BOM G.703 DS3 Protection Switch operating at 44.736 Mbps in 1U rackmount form. This used unit includes dual IEC AC power supply, BNC coaxial ports, D-sub Alarms connector, and Remote port.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$70.00Was: $150.00 -
ARG 2400 Series 2402-EQ49K-BOM G.703 DS3 Protection Switch Dual Output
ARG
$150.00Was: $300.00ARG 2400 Series 2402-EQ49K-BOM G.703 DS3 Protection Switch Dual Output 45.368Mb/sThe ARG 2400 Series G.703 Protection Switch is a 1U rackmount unit designed to provide automatic signal protection...49781- SKU:
- 49781
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 16.00 LBS
- Brand:
- ARG
- Model:
- 2400 Series
- MPN:
- 2402-EQ49K-BOM
- Type:
- G.703 DS3 Protection Switch
- SKU:
- 49781
- Data Rate:
- 45.368 Mb/s (DS3)
- Standards Compliance:
- ITU-T G.703
- Number of Inputs:
- 2 (Input A and Input B)
- Number of Outputs:
- 2 (Output 1 and Output 2)
- Input Signal:
- DS3 (45.368 Mb/s) via Relay Bypass Module
- Output Signal:
- Dual DS3; Input A to Output 1 continues under power fail
- Channel Override:
- Keyswitch Channel Override
- Bypass Module:
- Relay Bypass Module
- Alarm Interface:
- ALARMS port (DB-15 connector, rear panel)
- Remote Interface:
- REMOTE port (rear panel); Web Server Option Fitted
- Connector Type:
- BNC (coaxial), DB-15, IEC AC inlet
- Power Supply:
- Dual redundant PSUs (PSU 1 and PSU 2)
- Power Requirements:
- 100-250V AC, 50/60Hz (per rear label)
- Form Factor:
- 1U Rackmount
- Front Panel Indicators:
- ALARM, RESET, I/P A Active, I/P B, L.O.S., L.F.A., A.I.S. LEDs; PSU 1 & PSU 2 indicators
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit includes keys for keyswitch. No accessories listed.
- Country/Region of Manufacture:
- United Kingdom
- Condition Notes:
- ARG 2400 Series G.703 DS3 Protection Switch 2402-EQ49K-BOM. Inspected, good used condition. Pulled from an active working telecom environment. Surface wear on chassis. Keys present. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00 -

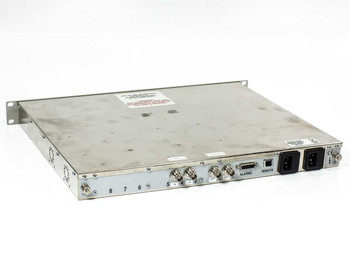

ARG 2400 Series G.703 DS3 Protection Switch Dual Output 34.568 Mbps 1U Rackmount
ARG
$275.00Was: $550.00ARG 2400 Series G.703 DS3 Protection Switch Dual Output 34.568 Mbps 1U RackmountG.703 DS3 protection switch with dual inputs and dual outputs, rated for 34.568 Mbps transmission. Provides 1+1...49780- SKU:
- 49780
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 16.00 LBS
- Brand:
- ARG
- Model:
- 2400 Series
- MPN:
- 2400-EQ49K-BOM
- Type:
- G.703 DS3 Protection Switch
- SKU:
- 49780
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes key. Pulled from working environment.
- Country/Region of Manufacture:
- United Kingdom
- Form Factor:
- 1U Rackmount
- Power Requirements:
- 100-250V AC, 50/60Hz, dual IEC inlets
- Standards Compliance:
- ITU-T G.703
- Data Rate:
- 34.568 Mbps (DS3)
- Interface Type:
- DS3 / BNC
- Number of Inputs:
- 2 (Input A and Input B)
- Number of Outputs:
- 2 (Dual DS3 Outputs)
- Signal Type:
- DS3 34.568 Mb/s
- Protection Type:
- 1+1 Protection Switching with Relay Bypass
- Override:
- Key Switch Channel Override
- Power Fail Continuity:
- Channel 1 continues under power fail
- Alarm Interface:
- DB-15 Alarms connector (rear)
- Remote Interface:
- RJ-45 Remote connector (rear)
- Power Supply:
- Dual redundant IEC power inlets (PSU 1 / PSU 2)
- Front Panel Indicators:
- PSU 1, PSU 2, Alarm, Reset, I/P A, I/P Active, I/P B, LOS, LFA, AIS
- Compatible With:
- G.703 DS3 telecom / satcom transmission systems
- Condition Notes:
- ARG 2400 Series G.703 DS3 Protection Switch, pulled from a working environment. Inspected and in good condition. Shows light surface wear typical of rack-deployed equipment. Key included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$275.00Was: $550.00 -
ARG 2400-EQ504-BOM DS3 44.736 Mbps Distribution Amplifier Splitter 1U Rackmount
ARG
$150.00Was: $300.00ARG 2400-EQ504-BOM DS3 44.736 Mbps Distribution Amplifier Splitter 1U RackmountDS3 distribution amplifier and splitter for telecom and data center environments. Takes one DS3 input signal and...49779- SKU:
- 49779
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 16.00 LBS
- Brand:
- ARG
- Model:
- 2400-EQ504-BOM
- MPN:
- 2400-EQ504-BOM
- Type:
- DS3 Distribution Amplifier / Splitter
- SKU:
- 49779
- Series:
- ARG 2400 Series
- Signal Type:
- DS3
- Data Rate:
- 44.736 Mb/s
- Input:
- 1x BNC (DS3 coax, Input A)
- Outputs:
- 3x BNC (DS3 coax, Outputs 1–3)
- Output Under Power Fail:
- Output 1 continues under power fail via relay bypass
- Interface / Connector:
- BNC coaxial
- Alarm Port:
- DB-15 ALARMS connector (rear panel)
- Remote Port:
- RJ-45 REMOTE connector (rear panel)
- Power Supply:
- Dual redundant PSU (PSU 1 and PSU 2)
- Power Requirements:
- 100–240 VAC, 8W Max, 1 Phase
- Fuse:
- 2A(T)
- Form Factor:
- 1U Rackmount
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; no accessories included.
- Country/Region of Manufacture:
- United Kingdom
- Condition Notes:
- ARG 2400-EQ504-BOM DS3 Distribution Amplifier. Used, pulled from a working environment, inspected and in good condition. Minor rack wear; all connectors and ports appear intact. PSU indicators illuminated in photos.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00 -
ARG 2400-EQ390-BOM ASI Distribution Amplifier Splitter 1x4 Rackmount 1U
ARG
$125.00Was: $250.00ARG 2400-EQ390-BOM ASI Distribution Amplifier Splitter 1x4 Rackmount 1UThe ARG 2400-EQ390-BOM is a 1U rackmount ASI (Asynchronous Serial Interface) distribution amplifier and splitter from ARG's 2400...49777- SKU:
- 49777
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 16.00 LBS
- Brand:
- ARG
- Model:
- 2400-EQ390-BOM
- MPN:
- 2400-EQ390-BOM
- Type:
- ASI Distribution Amplifier / Splitter
- SKU:
- 49777
- Series:
- ARG 2400 Series
- Form Factor:
- 1U Rackmount
- Number of Inputs:
- 1 (ASI copper)
- Number of Outputs:
- 4 (ASI copper, identical)
- Signal Type:
- ASI (Asynchronous Serial Interface) — copper
- Relay Bypass:
- Yes — relay bypass module on input
- Power Fail Protection:
- Output 1 continues under power fail
- Power Supplies:
- Dual PSU (PSU 1 and PSU 2)
- Alarm:
- Alarm output connector and Alarm Reset button on front
- Remote Interface:
- REMOTE connector (rear panel)
- Outputs Connector:
- DB-15 OUTPUTS connector (rear panel)
- BNC Connectors:
- Multiple BNC connectors on rear panel
- AC Inlet:
- Dual IEC C14 AC inlets (rear panel)
- Front Panel Indicators:
- PSU 1 LED, PSU 2 LED, Input 1 LED, Input 2 LED
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; pulled from a working broadcast environment.
- Country/Region of Manufacture:
- United Kingdom
- Condition Notes:
- This ARG 2400-EQ390-BOM ASI Distribution Amplifier/Splitter is in good used condition. Pulled from a working broadcast environment where it was in active use and functional. Shows normal rack service wear. All connectors present.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$125.00Was: $250.00 -
ARG 1900 1945-EQTW1-BOM T3/DS3 ASI Media Combiner Transmitter Dual 44.736Mb/s
ARG
$183.00Was: $500.00ARG 1900 1945-EQTW1-BOM T3/DS3 ASI Media Combiner Transmitter Dual 44.736Mb/s The ARG 1900 is a 1U rackmount T3/DS3 media combiner and transmitter designed for broadcast and telecom distribution...49775- SKU:
- 49775
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 16.00 LBS
- Brand:
- ARG
- Model:
- 1900
- MPN:
- 1945-EQTW1-BOM
- Secondary Model:
- 1945-EQTW1-BOM
- SKU:
- 49775
- Type:
- T3/DS3 ASI Media Combiner Transmitter
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Unit appears to power on; LCD display is faulty. Sold as-is for parts or repair.
- Form Factor:
- 1U Rackmount
- Telecom Port Output:
- Dual 44.736 Mb/s T3/DS3 B3ZS Framed / Unframed
- Number of Inputs:
- 8 (Inputs 1–8: ASI Copper)
- Input Type:
- ASI (Copper)
- Output Type:
- Dual T3/DS3 B3ZS (Framed and Unframed)
- Data Rate:
- 44.736 Mb/s
- Protocol:
- T3/DS3 B3ZS
- Power Requirements:
- 100–240V AC, 50–60Hz, 2A, 1 Phase
- Power Supply:
- Dual Supply System
- Network Option:
- Web Option Fitted (10 Base-T)
- Interface Type:
- ASI (BNC), 10 Base-T (RJ-45), DB9 Serial
- Connector Types:
- BNC (ASI inputs/outputs), RJ-45, DB9
- Standards Compliance:
- CE
- Country/Region of Manufacture:
- United Kingdom
- Condition Notes:
- This ARG 1900 T3/DS3 ASI Media Combiner Transmitter (factory code 1945-EQTW1-BOM) is being sold as-is for parts or repair. The unit appears to power on, but the LCD display is faulty and does not function correctly.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$183.00Was: $500.00 -
ARG ElectroDesign 1945-EQTX2-BOM 1900 Transmitter T3/DS3 B3ZS ASI
ARG
$275.00Was: $550.00ARG ElectroDesign 1945-EQTX2-BOM 1900 Transmitter T3/DS3 B3ZS ASI1U rackmount T3/DS3 transmitter and network adapter for telecom and broadcast applications. Converts 8 ASI (copper) inputs to dual 44...49773- SKU:
- 49773
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 15.00 LBS
- Brand:
- ARG ElectroDesign
- Model:
- 1900 Transmitter
- MPN:
- 1945-EQTX2-BOM
- Type:
- T3/DS3 Transmitter / Network Adapter / Media Combiner
- SKU:
- 49773
- Form Factor:
- 1U Rackmount
- Telecom Port Output:
- Dual 44.736 Mb/s T3/DS3 B3ZS Framed / Unframed
- Input Type:
- ASI (Copper), Inputs 1–8
- Number of Inputs:
- 8
- Data Rate:
- 44.736 Mb/s (T3/DS3)
- Protocol:
- T3/DS3 B3ZS Framed and Unframed
- Network Option:
- 10BASE-T (rear panel option port visible)
- Power Requirements:
- 100–240V AC, 50–60Hz, 2A, 1 Phase (dual supply)
- Power Supply Configuration:
- Dual supply — Mains A and Mains B, Fuse 2A(T) each
- Rear Connectors:
- BNC (Telecom ports), DB9, RJ45, Dual IEC AC inlets
- Front Panel:
- LCD display, FAIL/ALARM/POWER LEDs, navigation keypad
- Display:
- LCD alphanumeric, shows '1900 Transmitter / ARG ElectroDesign'
- Factory Code:
- 1945-EQTX2-BOM
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Unit only; no accessories. Powers on and appears to function normally.
- Country/Region of Manufacture:
- United Kingdom
- Condition Notes:
- ARG ElectroDesign 1945-EQTX2-BOM 1900 Transmitter powers on and appears to function normally. Top cover shows surface soiling and scuffs from prior use. Rear connectors and front panel intact. Used condition.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$275.00Was: $550.00 -
ARG 1900 Receiver 1945-EQRX3-BOM T3/DS3 B3ZS Dual 44.736Mb/s ASI Rackmount
ARG
$275.00Was: $550.00ARG 1900 Receiver 1945-EQRX3-BOM T3/DS3 B3ZS Dual 44.736Mb/s ASI RackmountT3/DS3 to ASI media receiver and combiner. Accepts dual T3/DS3 B3ZS telecom inputs and outputs to eight ASI (copper) ports...49774- SKU:
- 49774
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 15.00 LBS
- Brand:
- ARG
- Model:
- 1900 Receiver
- MPN:
- 1945-EQRX3-BOM
- Type:
- T3/DS3 to ASI Media Receiver / Media Combiner
- SKU:
- 49774
- Factory Code:
- 1945-EQRX3-BOM
- Telecom Port Input:
- Dual 44.736 Mb/s T3/DS3 B3ZS Framed/Unframed
- Data Outputs:
- Outputs 1–8: ASI (Copper)
- Number of Output Ports:
- 8
- Output Connector Type:
- BNC (ASI Copper)
- Telecom Port Connector:
- BNC
- Data Rate:
- 44.736 Mb/s (T3/DS3)
- Signal Standard:
- T3/DS3 B3ZS Framed and Unframed
- Network / Management Port:
- 10BASE-T (rear panel)
- Additional Interfaces:
- Alarm Outputs, Description/Diagnostics port (DB9)
- Power Requirements:
- 100–240V AC, 50–60Hz, 1 Phase, 2A (dual supply)
- Form Factor:
- 1U Rackmount
- Front Panel Display:
- LCD alphanumeric status display
- Front Panel Controls:
- Navigation keys: Left, Right, Up, Down, Home, Enter
- Front Panel Indicators:
- Fail, Alarm, Power LEDs
- Condition:
- Used – Powers On, Appears Functional
- Seller Notes:
- Unit powers on and appears to function normally.
- Country/Region of Manufacture:
- United Kingdom
- Condition Notes:
- ARG 1900 Receiver 1945-EQRX3-BOM powers on and appears to function normally. LCD active; Fail/Alarm LEDs lit as expected with no TX source connected. Light rack wear cosmetically. Ports intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$275.00Was: $550.00 -
Varian VZC-6967D8T6 VZC-6967D8A2 Dual TWT Amplifier Subsystem Operating &
Varian
$250.00Was: $500.00Varian VZC-6967D8T6 VZC-6967D8A2 Dual TWT Amplifier Subsystem Operating & Service ManualThis is the complete two-volume Operating & Service Manual for the Varian Dual TWT (Traveling Wave Tube)...49766- SKU:
- 49766
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 14.00 LBS
- Brand:
- Varian
- Model:
- VZC-6967D8T6
- Secondary Model:
- VZC-6967D8A2
- MPN:
- VZC-6967D8T6 / VZC-6967D8A2
- SKU:
- 49766
- Type:
- Operating & Service Manual
- Document Type:
- Operating & Service Manual
- For Make/Model:
- Varian VZC-6967D8T6 & VZC-6967D8A2 Dual TWT Amplifier
- Number of Volumes:
- 2
- Series / Configuration:
- G-II & G-III
- Publication / Print Date:
- 07/09/86
- Language:
- English
- Format:
- Print / Binder
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Complete two-volume set covering VZC-6967D8T6 and VZC-6967D8A2
- Country/Region of Manufacture:
- United States
- Application / Use Case:
- Satellite communications TWT amplifier systems
- Condition Notes:
- Varian VZC-6967D8T6/D8A2 Dual TWT Amplifier Subsystem Operating & Service Manual. Complete two-volume set in good used condition. Pages are clean and legible; binder covers show normal shelf wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$250.00Was: $500.00 -
I.F. Engineering MC-1200-2X32-F/B-UG 32-Port L-Band Distribution Box
I.F Engineering
$250.00Was: $500.00I.F. Engineering MC-1200-2X32-F/B-UG 32-Port L-Band Distribution BoxRack-mount L-band satellite distribution amplifier with 32 BNC output ports. Distributes satellite L-band signals across multiple...49728- SKU:
- 49728
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 20.00 LBS
- Brand:
- I.F. Engineering
- Model:
- MC-1200-2X32-F/B-UG
- MPN:
- MC-1200-2X32-F/B-UG
- Secondary Model:
- MC-1200-2X32-F/B
- Type:
- L-Band Satellite Distribution Box
- SKU:
- 49728
- Number of Ports:
- 32
- Connector Type:
- BNC
- Form Factor:
- Rack Mount
- Power Requirements:
- 105–132 VAC, 47–420 Hz
- Option:
- Option 3
- Included Component 1:
- 2x AAK Corporation CM242 Regulated DC Power Supply
- Included Component 2:
- 2x I.F. Engineering AM-701-014-B RF Amplifier Module
- Included Component 3:
- 2x I.F. Engineering PD-16-LBAND-B L-Band Splitter
- Power Supply Model:
- AAK Corporation CM242
- Power Supply Output:
- 24VDC, 2A
- Power Supply Input Voltage:
- 105–132 VAC, 47–420 Hz
- Power Supply Output Accuracy:
- 1% Fixed
- Power Supply Input Isolation:
- 50 Megohms
- RF Amplifier Model:
- I.F. Engineering AM-701-014-B
- Amplifier Interface:
- BNC (RF IN / RF OUT)
- Application:
- Satellite L-Band Signal Distribution
- Caution Note:
- DC Blocks required on output of this unit
- Condition:
- Used – Pulled from Working Environment
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Includes 2x AAK CM242 PSUs, 2x AM-701-014-B amplifiers, 2x PD-16-LBAND-B splitters
- Condition Notes:
- I.F. Engineering MC-1200-2X32-F/B-UG 32-Port L-Band Distribution Box. Inspected, in good used condition. Pulled from a working satcom environment. All sub-components present. DC blocks required on outputs.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$250.00Was: $500.00 -
I.F. Engineering MC-1200-2X32-F/B-UG 2-Channel 32-Port L-Band Distribution Box
I.F Engineering
$600.00Was: $1,200.00I.F. Engineering MC-1200-2X32-F/B-UG 2-Channel 32-Port L-Band Distribution Box 2UThe I.F. Engineering MC-1200-2X32-F/B-UG is a 2-channel, 32-port L-Band RF signal distribution box housed in a 2U...49691- SKU:
- 49691
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 14.00 LBS
- Brand:
- I.F. Engineering
- Model:
- MC-1200-2X32-F/B-UG
- MPN:
- MC-1200-2X32-F/B-UG
- Type:
- L-Band RF Signal Distribution Box
- SKU:
- 49691
- Number of Channels:
- 2
- Number of Ports:
- 32 output (BNC), 2 input (SMA/F-type)
- Form Factor:
- 2U Rackmount
- Connector Type (Output):
- BNC
- Connector Type (Input):
- SMA / F-type (A and B inputs)
- Frequency Band:
- L-Band
- DC Blocking:
- Yes — internal DC blocking
- Signal Path:
- 1-to-16 splitter per channel (14 dB amplifier + splitter tree)
- Sub-Module 1:
- I.F. Engineering PD-16-LBAND-B (qty 2)
- Sub-Module 2:
- I.F. Engineering AM-701-014-B (qty 2)
- Dimensions:
- 19" x 15" x 3.5"
- Application:
- Satellite IF / SatCom / Microwave / RF signal distribution
- Condition:
- Used – Pulled from Working Environment
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Includes 2x PD-16-LBAND-B and 2x AM-701-014-B sub-modules installed
- Condition Notes:
- I.F. Engineering MC-1200-2X32-F/B-UG L-Band Distribution Box. Powered on and inspected — passed power-on test. Pulled from a working SatCom/RF test environment. All 32 BNC outputs and both inputs intact. Good condition.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$600.00Was: $1,200.00 -
I.F. Engineering MC-8X32-LB1-F-2 L-Band Multi-Coupler 950-1450MHz 8x32 2U
I.F Engineering
$375.00Was: $750.00I.F. Engineering MC-8X32-LB1-F-2 L-Band Multi-Coupler 950-1450MHz 8x32 2UEight-input, thirty-two-output L-band signal distribution amplifier for satellite and microwave RF applications. Each of the 8...49690- SKU:
- 49690
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 17.00 LBS
- Brand:
- I.F. Engineering
- Model:
- MC-8X32-LB1-F-2
- MPN:
- MC-8X32-LB1-F-2
- Type:
- L-Band Multi-Coupler / Signal Distribution Amplifier
- SKU:
- 49690
- Frequency Range:
- 950 – 1450 MHz (L-Band)
- Number of Inputs:
- 8
- Number of Outputs:
- 32
- Distribution Configuration:
- 8 x 32 (each input split to 4 outputs)
- Form Factor:
- 2U Rackmount
- Power Requirements:
- 120V AC, 50/60 Hz (IEC inlet)
- Connector Type:
- F-Type (female)
- Number of Power Supplies:
- 2 (redundant)
- Power Supply Model:
- Volgen SX100U-24S AC/DC (x2)
- Amplifier Module:
- I.F. Engineering AM-LB2-7 x8 (+12 to +24V)
- Splitter Module:
- I.F. Engineering PD-4X16-LB2-F x2
- Application:
- Satellite IF / SatCom / Microwave / RF Signal Distribution
- Front Panel Indicators:
- 2x PS LED indicators (PS1, PS2 green LEDs)
- Date Code:
- 0118
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes 2x PD-4X16-LB2-F splitters, 8x AM-LB2-7 amplifiers, 2x Volgen SX100U-24S PSUs
- Condition Notes:
- I.F. Engineering MC-8X32-LB1-F-2 L-Band multi-coupler. Inspected, powers on. Pulled from active SatCom/RF test environment. Good condition with light rack wear. All internal sub-components (8x AM-LB2-7, 2x PD-4X16-LB2-F, 2x Volgen PSUs) present.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$375.00Was: $750.00 -
Varian VJC6767S1AKY HPA Controller 01008831-00 115VAC 2U Rackmount Satcom
Varian
$200.00Was: $400.00Varian VJC6767S1AKY HPA Controller 01008831-00 115VAC 2U Rackmount SatcomThe Varian VJC6767S1AKY is a 2U rackmount High Power Amplifier (HPA) controller made by Varian Microwave Equipment Products of...49688- SKU:
- 49688
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 11.00 LBS
- Brand:
- Varian
- Model:
- VJC6767S1AKY
- MPN:
- 01008831-00
- Secondary Model:
- 010008831-00
- Type:
- HPA Controller / Satcom Control Unit
- SKU:
- 49688
- Form Factor:
- 2U Rackmount
- Power Requirements:
- 115VAC
- Power Connector:
- Military-style circular connector (J3)
- Rear Connectors:
- DB15 x2 (J1, J4), large 50-pin D-sub, J3 circular
- Control Modes:
- Manual, Auto, Local, Remote
- Status / Alarms:
- EXT Alarm, HPA 1 Fault, HPA 2 Fault indicators
- Front Panel Controls:
- Power switch, Lamp Test, Control mode switches
- Hardware Revision:
- Rev B (visible on internal module label 010075200)
- Country/Region of Manufacture:
- United States
- Manufacturer Location:
- Santa Clara, California
- Application:
- Satellite Uplink / HPA Monitoring and Control
- Condition:
- Used – Inspected
- Seller Notes:
- Includes attached ribbon cables and power cable harness
- Condition Notes:
- Varian VJC6767S1AKY HPA Controller — inspected and in good condition. Chassis shows light handling wear. Front panel switches and indicators intact. Rear connectors and ribbon cables present. Power cable included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$200.00Was: $400.00 -
Merrimac PDM-81M-3.95G 8-Way Microwave Power Divider 3.6-4.2 GHz SMA
Merrimac
$45.00Was: $90.00Merrimac PDM-81M-3.95G 8-Way Microwave Power Divider 3.6-4.2 GHz SMA8-way power divider/splitter for C-band microwave applications. Splits a single input signal across eight output ports with SMA...49684- SKU:
- 49684
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Merrimac
- Model:
- PDM-81M-3.95G
- MPN:
- PDM-81M-3.95G
- Type:
- 8-Way Microwave Power Divider / Splitter
- SKU:
- 49684
- Code:
- 596017
- FSCM:
- 12457
- Frequency Range:
- 3.6 to 4.2 GHz
- Center Frequency:
- 3.95 GHz
- Frequency Band:
- C-Band
- Number of Ports:
- 8 Output + 1 Input (9 total SMA ports)
- Connector Type:
- SMA (Female)
- Number of Ways:
- 8-Way
- Dimensions:
- 5.25" x 4.25" x 0.5"
- Form Factor:
- Benchtop / Panel Mount
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; no cables or accessories included.
- Condition Notes:
- Merrimac PDM-81M-3.95G 8-Way Microwave Power Divider. Used, inspected, pulled from a working environment. Housing shows minor surface wear; all SMA connectors appear intact. Good used condition.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$45.00Was: $90.00 -
MCS 4009-0000G1 Microwave Waveguide Port Assembly X-Ku Band WR-75 w/Fans
MCS
$275.00Was: $550.00MCS 4009-0000G1 Microwave Waveguide Port Assembly X-Ku Band WR-75 w/FansMicrowave waveguide port assembly featuring four WR-75 ports operating across the X-Ku band frequency range. Includes two Sunon...49682- SKU:
- 49682
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 15.00 LBS
- Brand:
- MCS (Microwave Components and Systems Inc.)
- Model:
- 4009-0000G1
- MPN:
- 4009-0000G1
- Type:
- Microwave Waveguide Port Assembly
- SKU:
- 49682
- Frequency Range:
- 10 to 15 GHz (X-Ku Band)
- Waveguide Size:
- WR-75
- Waveguide Aperture:
- 19.05 mm x 9.525 mm
- Number of Waveguide Ports:
- 4
- Cooling Fans:
- 2x Sunon Electric Cooling Fans
- Fan Voltage:
- 115V AC, 50/60 Hz
- Fan Make:
- Sunon
- Frequency Band:
- X-Band / Ku-Band
- Port Labels:
- Port A, Port B, Port C (labeled on assembly)
- Center Frequency (Fo):
- 12769 MHz (labeled on assembly)
- Bandwidth (BW):
- 36 MHz (labeled on assembly)
- Country/Region of Manufacture:
- United States (Marlboro, MA)
- Condition:
- Used – Inspected
- Seller Notes:
- Includes 4 WR-75 waveguide ports and 2 Sunon cooling fans mounted on baseplate
- Form Factor:
- Panel/Baseplate Assembly
- Application:
- Satellite Communications, Microwave RF Systems
- Condition Notes:
- MCS 4009-0000G1 WR-75 X-Ku Band Waveguide Port Assembly inspected and in good used condition. Flanges intact, fans present. Light surface wear and one flange contact mark visible. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$275.00Was: $550.00 -
Scientific Atlanta 9325 C-Band Block Converter 3.7-4.2 GHz to 950-1450 MHz
Scientific Atlanta
$35.00Was: $70.00Scientific Atlanta 9325 C-Band Block Converter 3.7-4.2 GHz to 950-1450 MHzC-band block converter that shifts satellite downlink signals from 3.7–4.2 GHz to intermediate frequency 950–1450 MHz for...49666- SKU:
- 49666
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Scientific-Atlanta
- Model:
- 9325
- MPN:
- 9325
- Type:
- C-Band Block Converter
- SKU:
- 49666
- Input Frequency Range:
- 3.7 – 4.2 GHz
- Output Frequency Range:
- 950 – 1450 MHz
- Frequency Band:
- C-Band
- Input Connector:
- N-Type Female
- Output Connector:
- F-Type Female
- Housing / Enclosure:
- White painted aluminum, weatherproof
- Form Factor:
- Inline / Outdoor Mount
- Seller Notes:
- Unit only; no additional accessories included.
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Inspected, appears in good condition
- Condition Notes:
- Scientific Atlanta 9325 C-Band Block Converter. Inspected and in good condition. Light paint chipping on housing corner. N-type and F-type connectors clean and intact. Label fully legible.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$35.00Was: $70.00 -
DX Antenna DSA-543 C-Band RF Down Converter 3.7-4.2GHz to 950-1450MHz Satcom
DX Antenna
$60.00Was: $125.00DX Antenna DSA-543 C-Band RF Down Converter 3.7-4.2GHz to 950-1450MHz SatcomThe DX Antenna DSA-543 is a C-Band RF down converter designed to receive signals from geostationary C-Band satellites. It...49664- SKU:
- 49664
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- DX Antenna
- Model:
- DSA-543
- MPN:
- DSA-543
- Type:
- C-Band RF Down Converter
- SKU:
- 49664
- Input Frequency Range:
- 3.7 ~ 4.2 GHz
- Output Frequency Range:
- 950 ~ 1450 MHz
- Input Impedance:
- 50 Ohm
- Output Impedance:
- 75 Ohm
- DC Power Supply:
- +15 ~ +24 VDC
- Input Connector:
- N-Type Female
- Output Connector:
- F-Type or N-Type (see photos)
- Frequency Band:
- C-Band
- Form Factor:
- Outdoor Weatherproof Enclosure
- Enclosure Material:
- Die-Cast Aluminum
- Country/Region of Manufacture:
- Japan
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; pulled from a working satellite installation. No cables included.
- Condition Notes:
- DX Antenna DSA-543 C-Band RF Down Converter. Inspected, in good used condition. Pulled from a working satellite installation. Enclosure shows light wear from outdoor use; connectors intact. No cables included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$60.00Was: $125.00
