LNR 506011300-2 Redundant Baseball Switch Control RF Satcom 1U Rackmount

(No reviews yet) Write a Review
SKU:
49790
MPN:
506011300-2
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Shipping:
Calculated at Checkout
  • LNR 506011300-2 Redundant Baseball Switch Control – front panel and top cover, 1U rackmount angled view

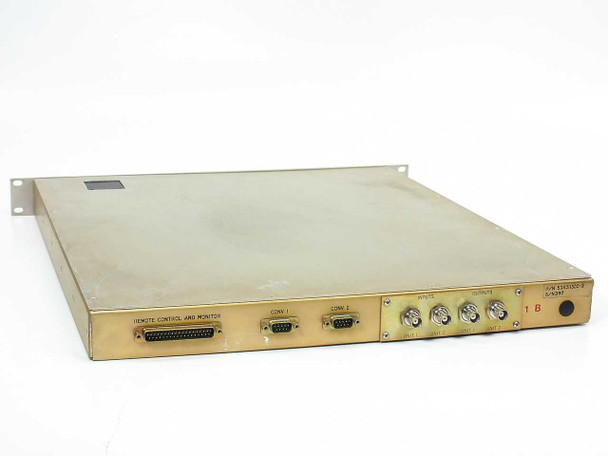

  • LNR 506011300-2 Redundant Switch Control – rear panel showing Remote Control and Monitor D-Sub, Conv 1 DB-15, Conv 2 DB-9, and BNC connectors

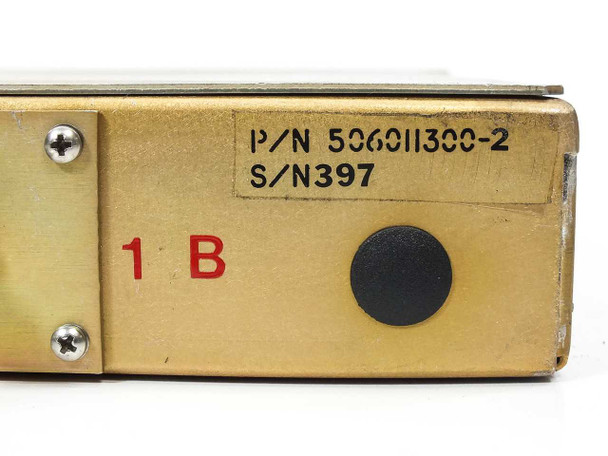

  • LNR 506011300-2 side label showing P/N 506011300-2, S/N 397, and 1B designation

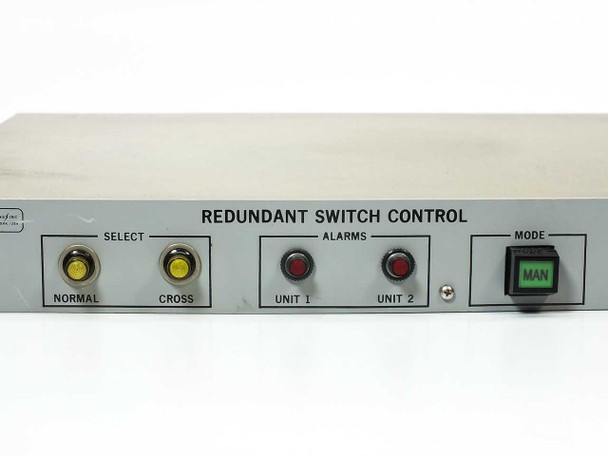

  • LNR 506011300-2 front panel close-up – SELECT (Normal/Cross), ALARMS (Unit 1/Unit 2), and MODE (MAN) switch

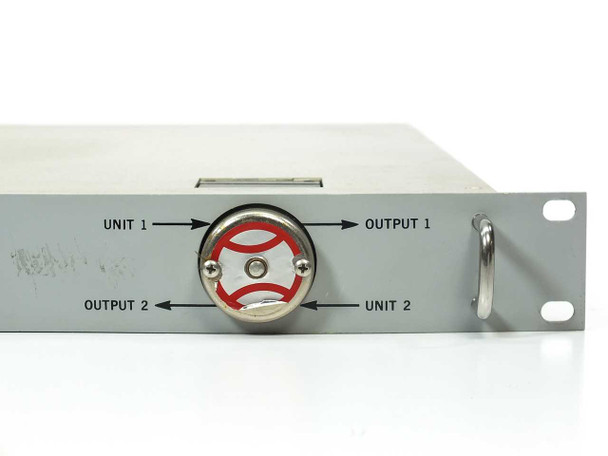

  • LNR 506011300-2 right-side front panel – baseball-style RF switch with Unit 1/2 inputs and Output 1/2 ports

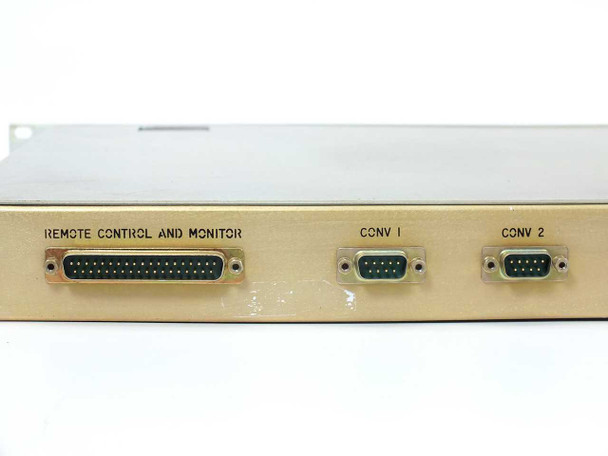

  • LNR 506011300-2 rear panel left section – Remote Control and Monitor D-Sub port, Conv 1 and Conv 2 DB connectors

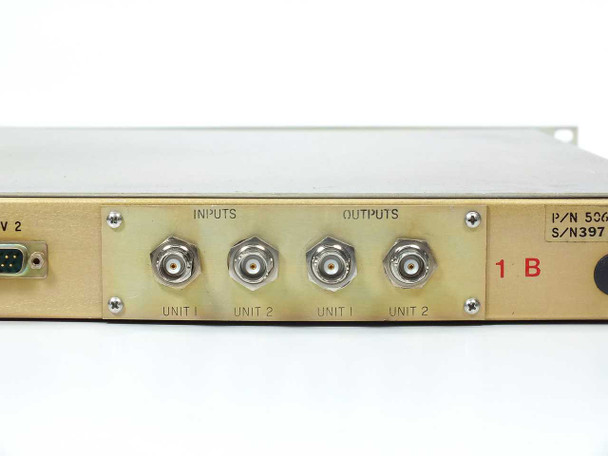

  • LNR 506011300-2 rear panel right section – BNC Inputs (Unit 1, Unit 2) and Outputs (Unit 1, Unit 2), P/N and S/N label
$250.00
Was: $500.00
Current Stock: 2

Sold Out

Description

LNR 506011300-2 Redundant Baseball Switch Control RF Satcom 1U Rackmount

1U rackmount redundant switching controller for RF satellite communications systems. Provides manual baseball-style waveguide/coax switching between two redundant signal paths with front-panel controls and remote monitoring capability.

Specifications & What's Included

  • Model: LNR 506011300-2 (MPN 506011300-2)
  • Form Factor: 19-inch 1U rackmount (22" D x 19" W x 2" H)
  • RF Connectors: 4x BNC ports (2 inputs, 2 outputs)
  • Switch Modes: Normal/Cross baseball-style redundant switching
  • Front Panel: SELECT switch, ALARMS indicators (Unit 1/Unit 2), MODE (MAN) switch
  • Rear Interfaces: D-Sub Remote Control and Monitor, DB-15 Conv 1, DB-9 Conv 2
  • Unit only; no accessories included

Applications

Baseball switches are standard redundancy controllers in RF and satellite uplink/downlink systems, allowing operators to switch between primary and backup signal paths. Used in earth stations, teleport facilities, and broadcast satellite operations. Interfaces with converters and remote control systems for managed redundancy switching in critical communications infrastructure.

Condition: Used
This LNR 506011300-2 Redundant Baseball Switch Control has been inspected and is in good used condition. It was pulled from a working satcom environment where it was in active use. The chassis and front panel show typical light wear consistent with rack service — some scuffing and minor surface discoloration on the gold-tone rear and side panels, with the front panel and labels remaining clean and legible. The baseball-style RF switch mechanism, front panel indicators, and mode switch all appear intact. BNC connectors and rear D-Sub and DB interfaces are present and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
LNR Communications
Model:
506011300-2
MPN:
506011300-2
SKU:
49790
Type:
Redundant Baseball Switch Controller
Application:
RF Satellite Communications (Satcom) Redundancy Switching
Form Factor:
1U Rackmount
Rack Size:
19-inch
Dimensions:
22" x 19" x 2" (D x W x H)
Front Panel Controls:
SELECT (Normal/Cross), ALARMS (Unit 1/Unit 2), MODE switch
Switch Positions:
Normal, Cross (baseball-style waveguide/coax switch)
Alarm Indicators:
Unit 1 and Unit 2 LED alarm indicators
Mode:
Manual (MAN) mode switch on front panel
RF Connector Type:
BNC (Inputs: Unit 1, Unit 2; Outputs: Unit 1, Unit 2)
Number of RF Ports:
4 BNC (2 inputs, 2 outputs)
Rear Interfaces:
Remote Control and Monitor (D-Sub), Conv 1 (DB-15), Conv 2 (DB-9)
Remote Control Interface:
D-Sub multi-pin connector (Remote Control and Monitor)
Converter Interfaces:
Conv 1 (DB-15), Conv 2 (DB-9)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; pulled from working satcom system. No accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
LNR 506011300-2 Redundant Baseball Switch Control, inspected and in good used condition. Pulled from a working satcom environment. Shows light rack wear; front panel, switch, and connectors intact. Photos available.
View AllClose

Related Products

Related Products

LNR Communications 506010000-4 C-Band Upconverter front panel and top cover view showing 1U rackmount chassis with PAM-C05 602 Circular label and front-panel controls LNR Communications 506010000-4 C-Band Upconverter rear panel view showing BNC connector, DB-25 connector, and AC power cord
Add to Cart
Quick view

LNR Communications 506010000-4 C-Band Upconverter PAM-C05 602 RF Satcom 1U

LNR Communications

$1,100.00
Was: $2,200.00
LNR Communications 506010000-4 C-Band Upconverter PAM-C05 602 RF Satcom 1UC-Band RF upconverter module designed for satellite communication uplink applications. Converts baseband or intermediate...
49652
SKU:
49652
Availability:
Usually ships within 1-2 business days.
Weight:
22.00 LBS
Brand:
LNR Communications
Model:
506010000-4
MPN:
506010000-4
Secondary Model:
PAM-C05 602
Type:
C-Band RF Upconverter
SKU:
49652
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes AC power cord. Pulled from working INTELSAT environment.
Country/Region of Manufacture:
United States
Form Factor:
1U Rackmount
Polarization:
Circular
Frequency Band:
C-Band
Signal Type:
RF / Satellite
Application:
Satellite Communications (Satcom) Uplink
Front Panel Controls:
XTAL ADJ, PLO ADJ, FREQ MON, XTAL ADJ1, XTAL ADJ2
Hardware Revision:
Rev. M
Compatible With:
INTELSAT satellite uplink systems
Rear Connectors:
BNC, DB-25 parallel connector, AC inlet
Condition Notes:
LNR Communications 506010000-4 C-Band Upconverter. Inspected and in good condition; pulled from a working INTELSAT satcom environment. Light rack-service wear. AC power cord included.

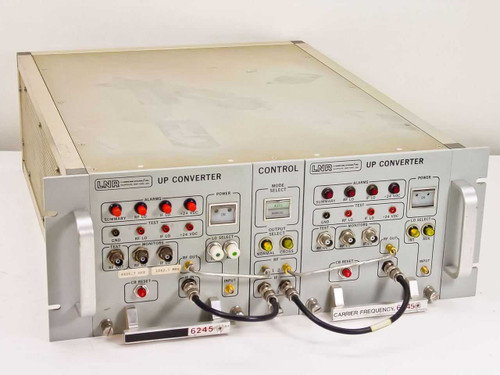

LNR UC6-D1 dual C-Band redundant upconverter system front panel view showing two UP CONVERTER modules and center CONTROL section LNR UC6-D1 left upconverter front panel close-up showing alarm indicators, BNC test and monitor ports, LO select, power switch, and 4826.7 MHz / 1042.5 MHz LO frequency labels
