LNR Communications 506010000-4 C-Band Upconverter PAM-C05 602 RF Satcom 1U

(No reviews yet) Write a Review
SKU:
49652
MPN:
056010000-4
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
22.00 LBS
Shipping:
Calculated at Checkout
  • LNR Communications 506010000-4 C-Band Upconverter front panel and top cover view showing 1U rackmount chassis with PAM-C05 602 Circular label and front-panel controls

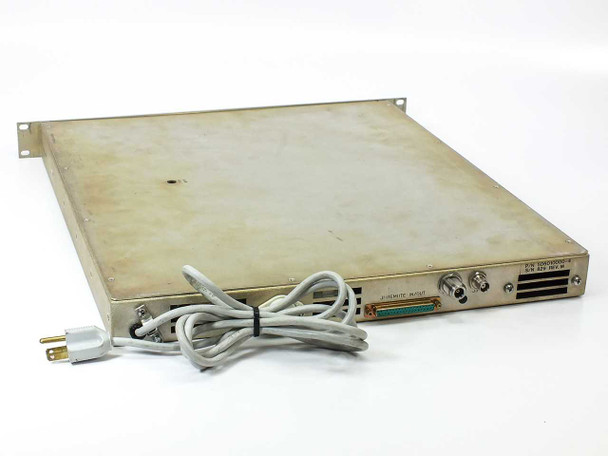

  • LNR Communications 506010000-4 C-Band Upconverter rear panel view showing BNC connector, DB-25 connector, and AC power cord

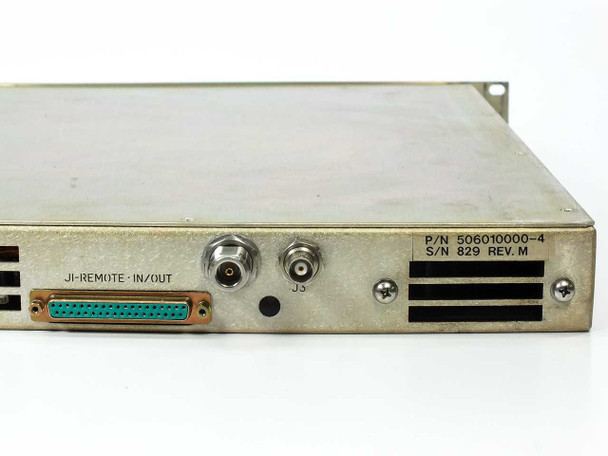

  • LNR Communications 506010000-4 C-Band Upconverter label closeup showing part number P/N 506010000-4, S/N 829, Rev. M
  • LNR Communications 506010000-4 C-Band Upconverter front panel left section closeup showing LNR Communications Inc logo, UP CONVERTER label, XTAL ADJ, PLO ADJ, FREQ MON controls, and INTELSAT asset tag
  • LNR Communications 506010000-4 C-Band Upconverter front panel center-right closeup showing PAM-C05 602 Circular label, RF LO section, PLO ADJ, FREQ MON, XTAL ADJ1, and XTAL ADJ2 controls
  • LNR Communications 056010000-4 LNR C-Band Upconverter RF Satcom Communication
  • LNR Communications 056010000-4 LNR C-Band Upconverter RF Satcom Communication
  • LNR Communications 056010000-4 LNR C-Band Upconverter RF Satcom Communication
$1,100.00
Was: $2,200.00
Current Stock: 2

Sold Out

Description

LNR Communications 506010000-4 C-Band Upconverter PAM-C05 602 RF Satcom 1U

C-Band RF upconverter module designed for satellite communication uplink applications. Converts baseband or intermediate frequency signals to C-Band RF for transmission to satellites.

Specifications & What's Included

  • Model: 506010000-4 (PAM-C05 602)
  • Type: C-Band RF Upconverter, 1U rackmount
  • Polarization: Circular
  • Signal Type: RF / Satellite
  • Front Panel Controls: XTAL ADJ, PLO ADJ, FREQ MON, XTAL ADJ1, XTAL ADJ2
  • Rear Connectors: BNC, DB-25 parallel connector, AC inlet
  • Hardware Revision: Rev. M
  • Includes AC power cord

Applications

Used in satellite uplink systems for ground stations and teleport facilities. Operates within INTELSAT satellite networks for transmission of voice, video, and data signals. Typically integrated into C-Band uplink chains where it converts lower frequency signals to transmission frequency for satellite relay. Compatible with INTELSAT satcom infrastructure.

Condition: Used
This LNR Communications 506010000-4 C-Band Upconverter has been inspected and appears to be in good condition. It was pulled from a working INTELSAT environment where it was actively in use. The chassis and front panel show light wear and surface soiling consistent with rack-mounted service life — the top cover shows general aging and minor marks, and there is a small INTELSAT asset tag on the front panel left section. The rear connectors and front-panel controls appear intact. An AC power cord is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
