LNR UC6-D1 C-Band Redundant Satcom Upconverter System 004003-1 004003-2

LNR UC6-D1 C-Band Redundant Satcom Upconverter System 004003-1 004003-2

The LNR Communications UC6-D1 is a dual 1:1 redundant C-Band satellite upconverter system manufactured by LNR Communications Inc. of Hauppauge, New York. The system houses two independent UC6-D1 upconverter modules (P/N 004003-1 and P/N 004003-2) in a single rackmount chassis along with an integrated Control section that manages automatic or manual switchover between the two upconverter paths. This type of redundant upconverter system converts an intermediate frequency (IF) signal to a C-Band RF transmit frequency for satellite earth station uplinks.

Specifications & What's Included

• Manufacturer: LNR Communications Inc., Hauppauge, New York, USA
• Model: UC6-D1
• Up Converter P/N 004003-1 (Module 1)
• Up Converter P/N 004003-2 (Module 2)
• Configuration: 1:1 redundant dual upconverter with integrated switchover control
• Frequency band: C-Band
• LO frequencies visible on front panel: 4826.7 MHz and 1042.5 MHz
• Carrier frequency label — Module 1: 6245 MHz
• Carrier frequency label — Module 2: 6045 MHz
• Power: 120V AC, 60Hz (standard 3-prong AC inlet)
• Chassis dimensions: 27" x 19" x 7"
• Form factor: Rackmount

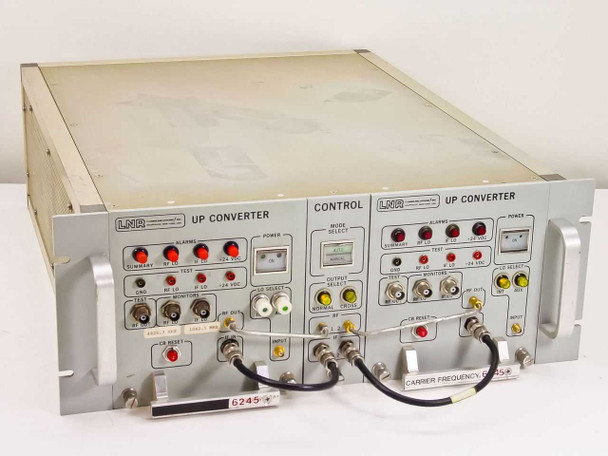

• Front panel alarms: Summary, RF LO, IF LO, +24 VDC (per upconverter)
• Front panel test/monitor BNC ports: RF Out, RF LO, IF LO (per upconverter)
• Control section: Mode Select (Auto / Manual), Output Select (Normal / Cross)
• LO Select: Internal / Auxiliary (per upconverter)

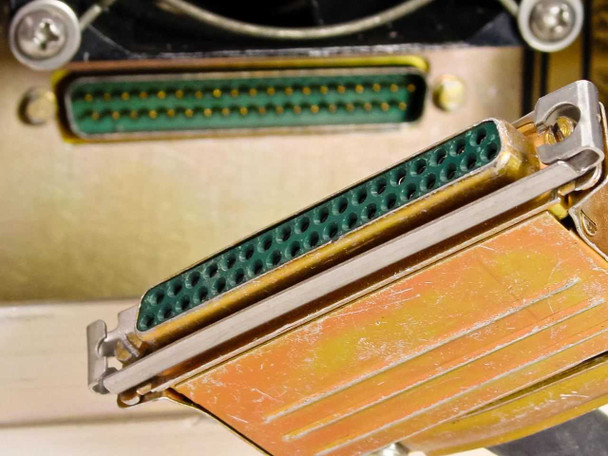

• Rear panel connectors: IF Norm, IF Cross, RF Norm, RF Cross (BNC), Ext Mon (D-Sub), Aux LO
• Internal switchover relay assembly with Normal/Cross selector and CH1/CH2 indicators
• Tune adjustment points accessible from top of chassis
• Two cooling fans on rear chassis
• CB Reset push-button on front panel of each upconverter module

Applications

C-Band redundant upconverter systems like the LNR UC6-D1 are used at satellite earth stations and teleport facilities to convert IF signals (typically 50–90 MHz or 70/140 MHz) to C-Band transmit frequencies (5.850–6.425 GHz for standard C-Band FSS uplinks) before the signal is amplified by a high-power amplifier (HPA) and fed to the dish. The 1:1 redundant configuration keeps a standby upconverter online at all times; if the primary path develops a fault, the control section can switch the signal path to the backup unit — either automatically or under manual command — with minimal service interruption. LNR Communications was a recognized manufacturer of satcom upconverter and downconverter equipment for commercial and government earth stations. This system dates from the era when dedicated rackmount redundancy controllers of this type were standard infrastructure at broadcast uplink facilities, teleports, and military SATCOM ground terminals. These systems are still sought after for legacy earth station maintenance, spare-parts sourcing, and low-volume C-Band uplink operations.
