LNR Communications

LNR Communications 506013332 DC-P2 Remote Switch Control Monitor SatCom RF

(No reviews yet) Write a Review
SKU:
31398
MPN:
506013332
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
  • LNR Communications 506013332 DC-P2 Remote Switch Control and Monitor – front panel view showing Select, Alarms, Mode, and Enabled indicators on 1U rackmount chassis
  • LNR Communications 506013332 DC-P2 Remote Switch Control Monitor – rear view showing DB25 connector and part number label on gold-tone chassis
  • LNR Communications 506013332 part number label close-up – P/N 506013332 handwritten label on rear panel

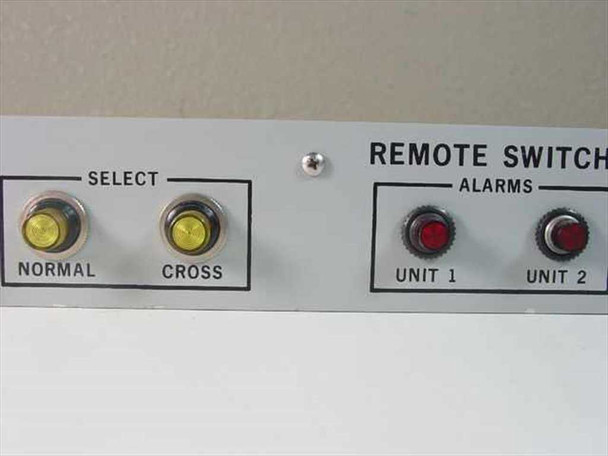

  • LNR Communications DC-P2 front panel close-up – Normal and Cross Select pushbuttons with yellow indicators, Unit 1 and Unit 2 Alarm indicators in red

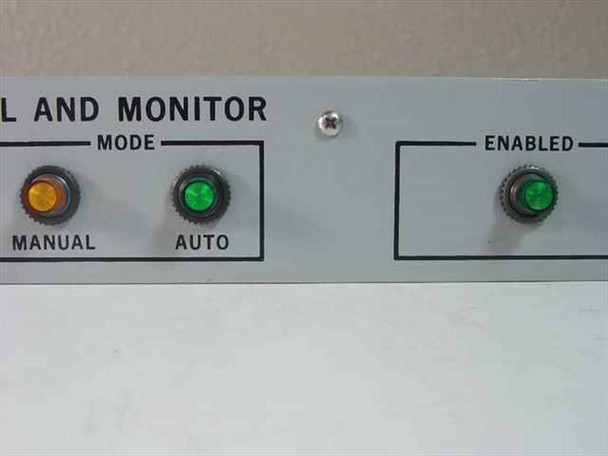

  • LNR Communications DC-P2 front panel close-up – Manual and Auto Mode indicators with Mode legend, Enabled indicator in green
$150.00
Was: $300.00
Current Stock: 2

Sold Out

Description

LNR Communications 506013332 DC-P2 Remote Switch Control Monitor SatCom RF

Remote control and monitoring unit for satellite communications RF switch systems. Provides manual and automatic switching control with alarm monitoring capabilities via front panel interface and rear DB25 connector.

Specifications & What's Included

  • Model: DC-P2 | MPN: 506013332
  • Form Factor: 1U Rackmount
  • Switch Positions: Normal, Cross
  • Operating Modes: Manual, Auto
  • Alarm Inputs: Unit 1, Unit 2
  • Rear Connector: DB25 female (25-pin D-sub)
  • Front Panel: Normal/Cross Select, Unit 1/Unit 2 Alarms, Manual/Auto Mode, Enabled controls
  • Unit only; no accessories included

Applications

Used in satellite communications and RF switching systems for remote switching control and fault monitoring. The DC-P2 integrates with LNR Communications SatCom RF switch architectures to enable operators to select between normal and cross-connect switch states and monitor alarm conditions across dual units from a central location. Typical deployment in telecom earth stations and satellite ground facilities requiring redundant RF path management.

Condition: Used
This LNR Communications 506013332 DC-P2 Remote Switch Control and Monitor has been inspected and appears to be in good condition. The front panel indicators and pushbuttons are intact, the chassis shows light shelf wear consistent with normal use, and the rear DB25 connector appears undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
LNR Communications
Model:
DC-P2
MPN:
506013332
SKU:
31398
Type:
Remote Switch Control and Monitor
Application:
Satellite Communications (SatCom) / RF Switch Control
Form Factor:
1U Rackmount
Front Panel Controls:
Normal/Cross Select, Unit 1/Unit 2 Alarms, Manual/Auto Mode, Enabled
Rear Connector:
DB25 female (25-pin D-sub)
Switch Positions:
Normal, Cross
Alarm Inputs:
Unit 1, Unit 2
Operating Modes:
Manual, Auto
Condition:
Used – Inspected and in Good Condition
Compatible With:
LNR Communications SatCom RF switch systems
Seller Notes:
Unit only; no additional accessories observed.
Country/Region of Manufacture:
United States
Condition Notes:
LNR Communications 506013332 DC-P2 Remote Switch Control and Monitor. Inspected and in good condition. Front panel controls and indicators intact. Light shelf wear on chassis. No damage to rear connector.
