Description
International Datacasting SFX3101R 92080190 SuperFlex DVB-S/S2 Pro Audio Receiver 1U
1U rackmount satellite audio receiver for DVB-S and DVB-S2 broadcast standards. Processes satellite-delivered audio content with four audio channels and supports both legacy and modern satellite transmission formats.
Specifications & What's Included

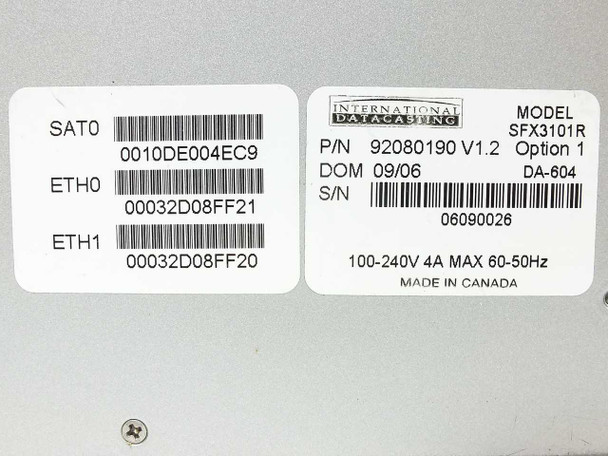

- Model: SFX3101R (MPN 92080190 V1.2); manufactured 09/2006
- Single tuner, 4 audio channels, DVB-S/DVB-S2 compliant

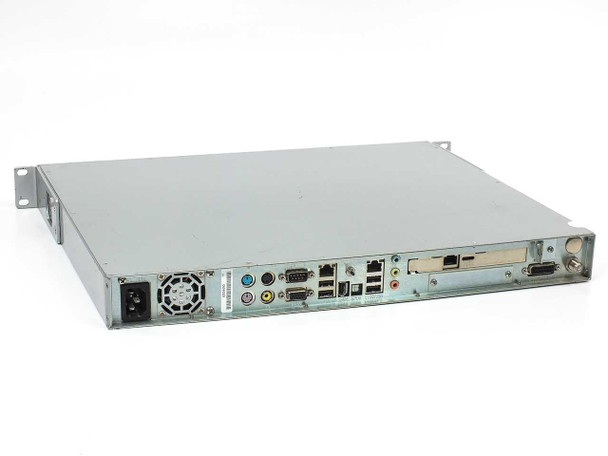

- Connections: SAT input (F-type), 2x Ethernet RJ-45, composite/S-Video/VGA video outputs, RCA audio, RS-232 serial, USB, FireWire
- LCD alphanumeric display with navigation controls; status LEDs
- Power: 100-240V AC, 4A max, 50-60Hz
- Dimensions: 19" x 14.5" x 1.75"; unit only
Applications
The SFX3101R was designed for broadcast audio distribution networks receiving satellite-delivered content. This product type typically serves television stations, radio networks, and media facilities requiring reliable satellite reception and audio extraction from DVB-S/S2 streams. It connects to satellite dishes and integrates into broadcast infrastructure for content delivery and monitoring.
Condition: Used
This International Datacasting SFX3101R SuperFlex DVB-S/DVB-S2 Pro Audio Receiver has been inspected and is in good used condition. The unit powers on. It has not been fully tested beyond power-up, so functionality beyond that has not been confirmed at our facility. Cosmetically the unit is clean overall with light surface wear consistent with normal rack use. Please view our photo set and contact us if you have any questions.
This International Datacasting SFX3101R SuperFlex DVB-S/DVB-S2 Pro Audio Receiver has been inspected and is in good used condition. The unit powers on. It has not been fully tested beyond power-up, so functionality beyond that has not been confirmed at our facility. Cosmetically the unit is clean overall with light surface wear consistent with normal rack use. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
International Datacasting |
Model: |
SFX3101R |
MPN: |
92080190 V1.2 |
Secondary Model: |
DA-604 |
Type: |
DVB-S/DVB-S2 Satellite Audio Receiver |
Series: |
SuperFlex SFX Series |
SKU: |
49830 |
Condition: |
Used – Powers On, Not Fully Tested |
Seller Notes: |
Unit only; powers on. Please view photos and contact us with questions. |
Country/Region of Manufacture: |
Canada |
Form Factor: |
1U Rackmount |
Rack Size: |
1U |
Dimensions: |
19" x 14.5" x 1.75" |
Power Requirements: |
100-240V AC, 4A Max, 60-50Hz |
Tuner: |
Single Tuner |
Number of Audio Channels: |
4 |
Standard: |
DVB-S / DVB-S2 |
Interface: |
DVB-S / DVB-S2 |
Ethernet Ports: |
2x RJ-45 (ETH0, ETH1) |
SAT Input: |
F-type coaxial (rear panel) |
Video Output: |
Composite, S-Video, VGA (DB-15) |
Audio Output: |
Analog RCA stereo, additional audio outputs on rear |
Serial Port: |
DB-9 RS-232 |
USB Ports: |
Multiple USB ports on rear panel |
FireWire: |
1x FireWire (IEEE 1394) port visible on rear |
Display: |
LCD alphanumeric display with navigation buttons |
Front Panel Indicators: |
Lock, Status, Control, Network, Options LEDs |
Date of Manufacture: |
09/2006 |
Compatible With: |
DVB-S/DVB-S2 satellite broadcast systems |
Application: |
Broadcast audio distribution, satellite content delivery |
Condition Notes: |
International Datacasting SFX3101R SuperFlex satellite receiver. Inspected, good used condition. Powers on; not fully tested beyond power-up. Light cosmetic wear. View photos and contact us with questions. |
