Varian VZC-6967D8T6 VZC-6967D8A2 Dual TWT Amplifier Subsystem Operating & Service Manual

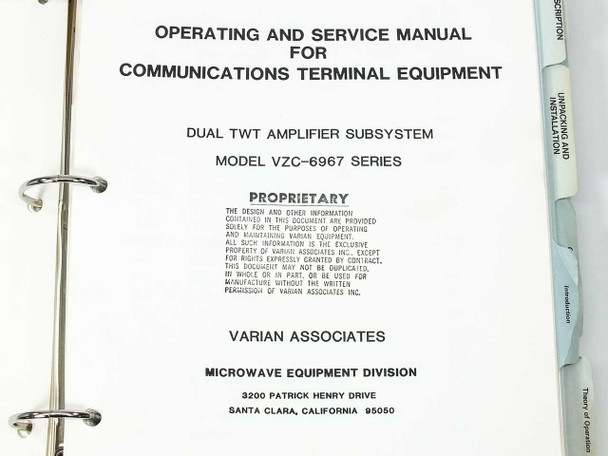

This is the complete two-volume Operating & Service Manual for the Varian Dual TWT (Traveling Wave Tube) Amplifier Subsystem, covering models VZC-6967D8T6 (G-II & G-III configuration) and VZC-6967D8A2. Together, the two binders provide the full operating, installation, theory of operation, maintenance, troubleshooting, and schematic documentation for these high-power satellite communications amplifier subsystems. The print date on Volume 2 reads 07/09/86.

Specifications & What's Included

• Manufacturer: Varian
• Models covered: VZC-6967D8T6 and VZC-6967D8A2
• Configuration series: G-II & G-III
• Document type: Operating & Service Manual
• Format: Two printed binders (Volumes 143 and 144)
• Language: English
• Publication/print date: 07/09/86 (noted on Volume 2 spine)

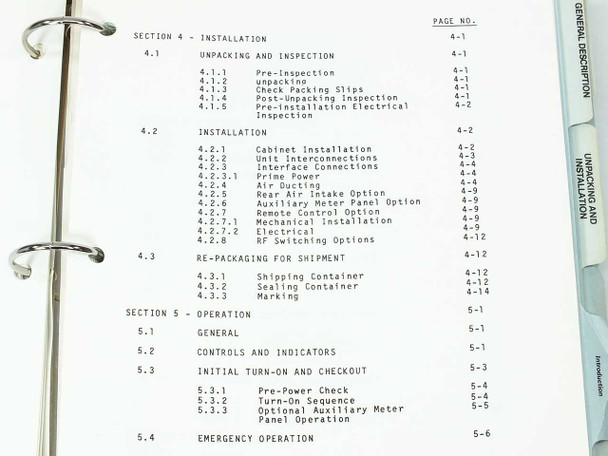

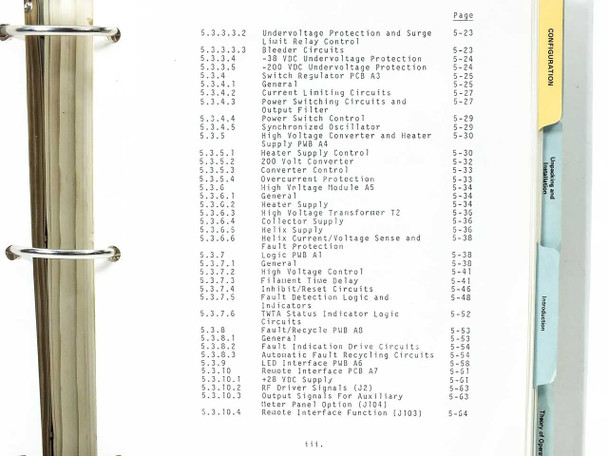

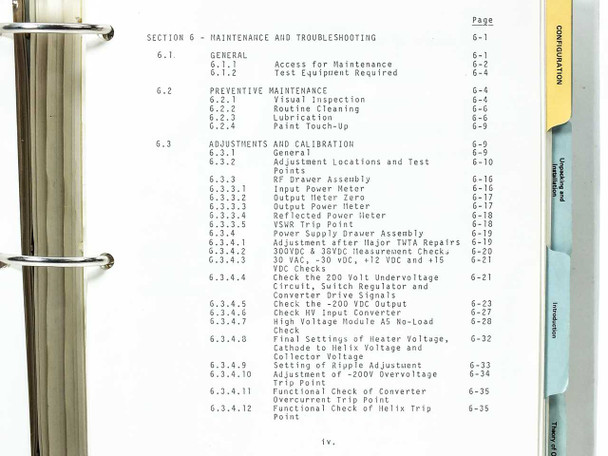

• Sections covered: Introduction & Specifications, Functional Description, Unpacking & Installation, Operation, Theory of Operation, Maintenance & Troubleshooting, Drawings & Schematics, Special Features, Supplementary Data
• Subsystems documented: RF Drawer Assembly, Power Supply Drawer Assembly (including Logic, Oscillator/Bias, Regulator, Switch Regulator, High Voltage Converter/Heater, and High Voltage Module PCBs), Remote Interface, Fault/Recycling Logic, Status Indicator Display

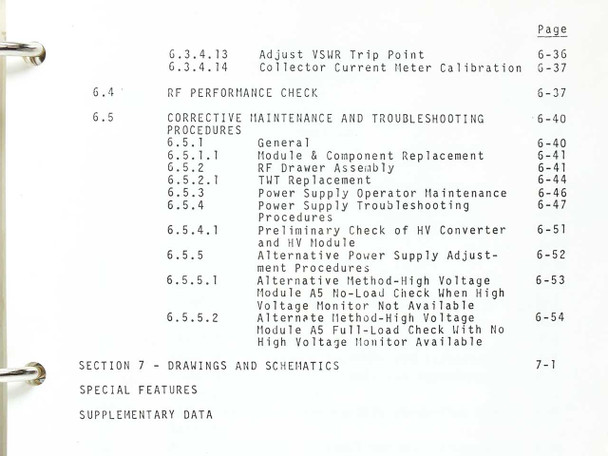

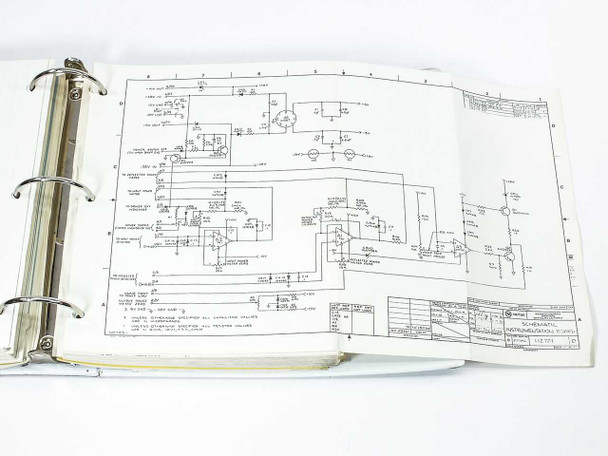

• Includes: Adjustment and calibration procedures, RF performance check procedures, corrective maintenance and TWT replacement procedures, functional block diagrams, simplified schematics, and interconnect drawings

Applications

Traveling Wave Tube amplifiers are used in high-power microwave and satellite communications ground stations to amplify uplink RF signals — typically in the C-band, X-band, or Ku-band frequency ranges — before transmission to a satellite. Varian was one of the leading manufacturers of TWT and TWT amplifier (TWTA) subsystems for satellite earth station use from the 1960s through the 1980s, supplying systems to military, government, and commercial satellite operators worldwide. The VZC-6967 series dual TWTA is a rack-mounted subsystem designed for satellite uplink earth station installations, incorporating redundant or dual-tube configurations to support high-availability link requirements. This manual set is an essential reference for engineers and technicians maintaining, troubleshooting, or repairing this subsystem, and is particularly valuable given that original Varian documentation for 1980s-era TWTA hardware is increasingly hard to source. It covers the full depth of the system — from initial rack installation and electrical interconnection through high-voltage power supply theory, helix and collector circuits, fault detection and automatic recycling logic, and field-level TWT replacement procedures.
