ARG 2400-EQ504-BOM DS3 44.736 Mbps Distribution Amplifier Splitter 1U Rackmount

(No reviews yet) Write a Review
SKU:
49779
MPN:
2400-EQ504-BOM
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
16.00 LBS
Shipping:
Calculated at Checkout
  • ARG 2400-EQ504-BOM DS3 Distribution Amplifier front panel view showing PSU 1 and PSU 2 indicator LEDs and 1U rackmount chassis
  • ARG 2400 Series Distribution Amplifier rear panel showing BNC connectors, DB-15 ALARMS port, RJ-45 REMOTE port, and dual IEC power inlets
  • ARG 2400-EQ504-BOM specification label showing DS3 44.736 Mb/s signal input, factory code, serial number, and relay bypass module detail
  • ARG 2400 Distribution Amplifier front-left panel close-up showing PSU 1 and PSU 2 LED status indicators illuminated
  • ARG 2400-EQ504-BOM rear panel close-up showing Input A BNC, Output 1–3 BNC connectors, and DB-15 ALARMS port
  • ARG 2400 Distribution Amplifier rear panel right section showing DB-15 ALARMS port, RJ-45 REMOTE port, and dual IEC C14 power inlets with CE mark
  • ARG 2400-EQ504-BOM power label showing dual supply system, 100–240 VAC, 8W max, 1 phase, Fuse 2A(T), and dual IEC power connectors
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

ARG 2400-EQ504-BOM DS3 44.736 Mbps Distribution Amplifier Splitter 1U Rackmount

DS3 distribution amplifier and splitter for telecom and data center environments. Takes one DS3 input signal and distributes it to three separate BNC outputs with signal conditioning and equalization.

Specifications & What's Included

  • Model: ARG 2400-EQ504-BOM; Signal: DS3 44.736 Mbps
  • Input: 1x BNC (DS3 coax); Outputs: 3x BNC (DS3 coax)
  • Output 1 continues under power fail via relay bypass
  • Connectors: BNC coaxial; DB-15 alarm port; RJ-45 remote port
  • Dual redundant PSU, 100–240 VAC, 8W max, 2A fuse
  • 1U rackmount form factor; made in United Kingdom
  • Unit only; no accessories included

Applications

DS3 distribution amplifiers were standard in telecom carrier networks and financial trading floors for signal distribution and monitoring. Used in T3/DS3 multiplexing systems, telecom cross-connect facilities, and legacy data transmission environments. Serves as a multi-drop splitter for DS3 signals requiring equalization and relay backup capability on primary outputs.

Condition: Used
This ARG 2400-EQ504-BOM DS3 Distribution Amplifier has been inspected and is in good used condition. It was pulled from a working environment where it was previously in active use. The chassis shows minor surface wear consistent with normal rack service. Both PSU status LEDs were observed illuminated (amber) in the photos. The rear-panel BNC connectors, DB-15 ALARMS port, RJ-45 REMOTE port, and dual IEC power inlets all appear intact with no visible damage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ARG
Model:
2400-EQ504-BOM
MPN:
2400-EQ504-BOM
Type:
DS3 Distribution Amplifier / Splitter
SKU:
49779
Series:
ARG 2400 Series
Signal Type:
DS3
Data Rate:
44.736 Mb/s
Input:
1x BNC (DS3 coax, Input A)
Outputs:
3x BNC (DS3 coax, Outputs 1–3)
Output Under Power Fail:
Output 1 continues under power fail via relay bypass
Interface / Connector:
BNC coaxial
Alarm Port:
DB-15 ALARMS connector (rear panel)
Remote Port:
RJ-45 REMOTE connector (rear panel)
Power Supply:
Dual redundant PSU (PSU 1 and PSU 2)
Power Requirements:
100–240 VAC, 8W Max, 1 Phase
Fuse:
2A(T)
Form Factor:
1U Rackmount
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no accessories included.
Country/Region of Manufacture:
United Kingdom
Condition Notes:
ARG 2400-EQ504-BOM DS3 Distribution Amplifier. Used, pulled from a working environment, inspected and in good condition. Minor rack wear; all connectors and ports appear intact. PSU indicators illuminated in photos.
View AllClose

Related Products

Related Products

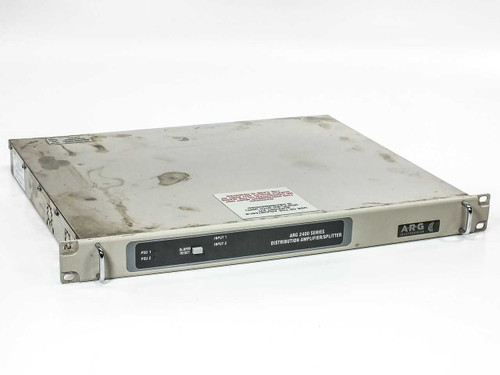

ARG 2400-EQ390-BOM Distribution Amplifier Splitter — 1U rackmount front panel, angled top view showing front label and rack ears ARG 2400-EQ390-BOM Distribution Amplifier — rear panel view showing BNC connectors, DB-15 OUTPUTS port, REMOTE connector, ALARM port, and dual IEC AC inlets
