ARG 2400 Series G.703 DS3 Protection Switch Dual Output 34.568 Mbps 1U Rackmount

(No reviews yet) Write a Review
SKU:
49780
MPN:
2400-EQ49K-BOM
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
16.00 LBS
Shipping:
Calculated at Checkout

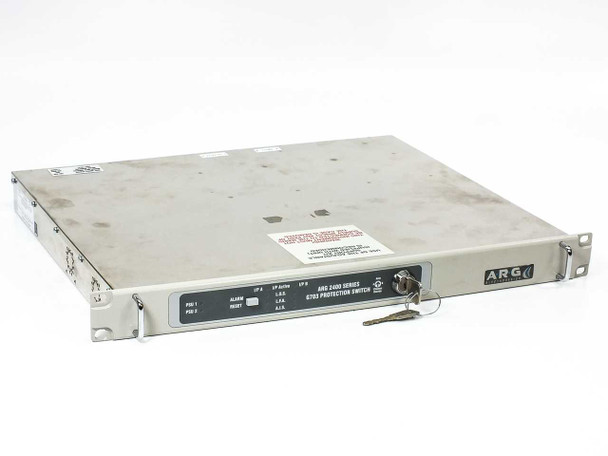

  • ARG 2400 Series G.703 DS3 Protection Switch front panel and top view with key inserted, 1U rackmount chassis

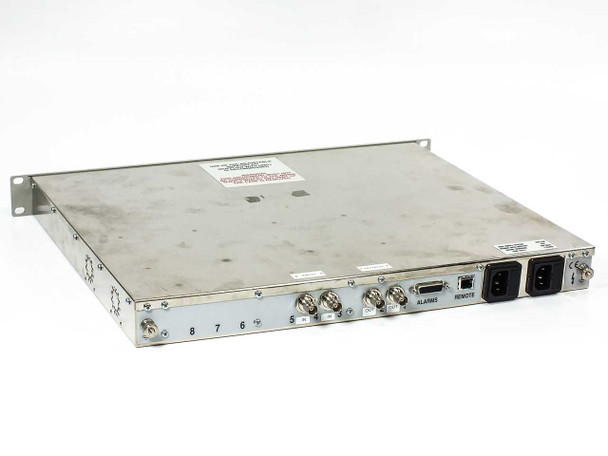

  • ARG 2400 Series G.703 Protection Switch rear panel showing BNC connectors, DB-15 alarms port, remote port, and dual IEC power inlets

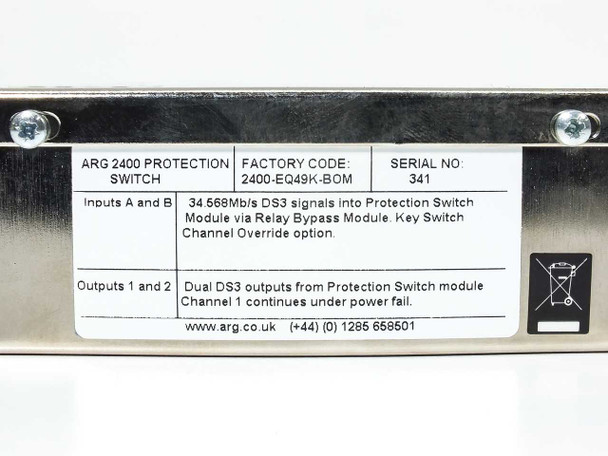

  • ARG 2400-EQ49K-BOM specification label showing serial number 341, DS3 input/output descriptions, and ARG contact information

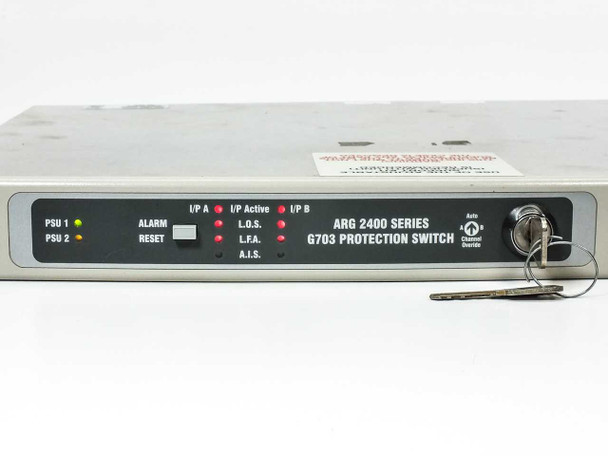

  • ARG 2400 Series G.703 Protection Switch front panel close-up showing PSU 1, PSU 2, Alarm, Reset, I/P A, I/P Active, I/P B, LOS, LFA, AIS indicators and key switch

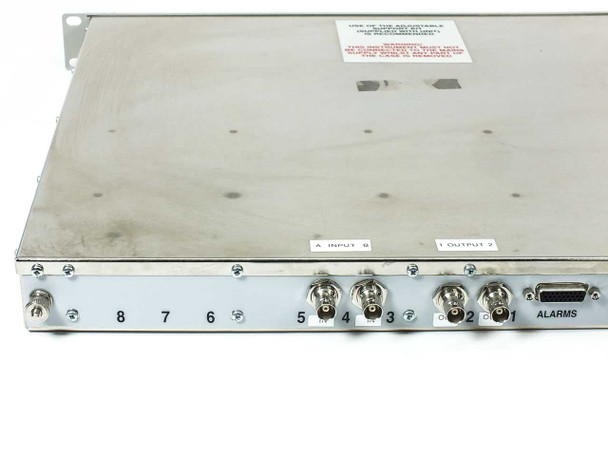

  • ARG 2400 Series Protection Switch rear panel close-up showing BNC A/B input and DS3 output connectors, alarms DB-15 port, labeled Input A/B and Output 1/2

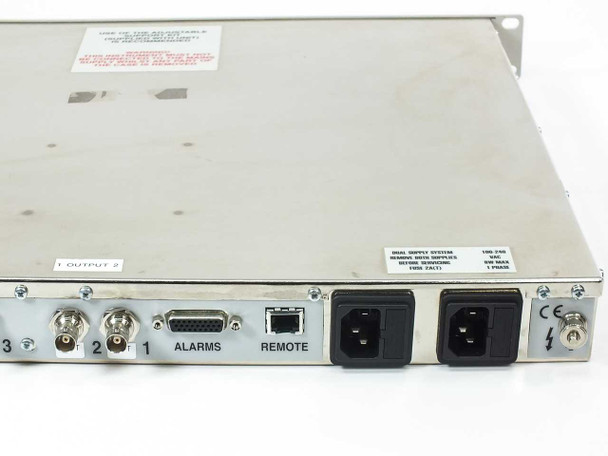

  • ARG 2400 Series G.703 Protection Switch rear panel close-up showing dual IEC AC power inlets, remote RJ-45 port, alarms connector, and dual supply warning label
$275.00
Was: $550.00
Current Stock: 1

Sold Out

Description

ARG 2400 Series G.703 DS3 Protection Switch Dual Output 34.568 Mbps 1U Rackmount

G.703 DS3 protection switch with dual inputs and dual outputs, rated for 34.568 Mbps transmission. Provides 1+1 automatic protection switching with relay bypass and manual channel override via key switch.

Specifications & What's Included

  • Model: ARG 2400 Series (MPN: 2400-EQ49K-BOM)
  • Data Rate: DS3 34.568 Mbps
  • Inputs: 2 (Input A and Input B)
  • Outputs: 2 Dual DS3 Outputs
  • Interface: DS3 / BNC connectors
  • Form Factor: 1U Rackmount
  • Power: Dual redundant IEC inlets, 100–250V AC, 50/60Hz
  • Standards: ITU-T G.703 compliant
  • Features: 1+1 Protection Switching, Relay Bypass, Key Switch Override, DB-15 Alarm connector, RJ-45 Remote interface
  • Includes key

Applications

DS3 protection switches are used in telecom and satcom transmission systems to provide automatic failover between redundant transmission paths. The ARG 2400 series supports G.703 standard DS3 circuits commonly deployed in carrier networks and point-to-point microwave systems. It monitors both input paths and automatically switches to the active input while maintaining continuity on Channel 1 during power loss. Alarms are provided via rear DB-15 connector for network management integration.

Condition: Used
This ARG 2400 Series G.703 DS3 Protection Switch (2400-EQ49K-BOM) has been inspected and is in good condition. It was pulled from a working environment where it was actively in use. The chassis shows light surface soiling and typical wear consistent with rack-deployed telecom equipment. The front panel indicators, key switch, and rear BNC, alarms, and remote connectors all appear intact. Both IEC power inlets and the dual PSU slots are present. The key is included as shown in the photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ARG
Model:
2400 Series
MPN:
2400-EQ49K-BOM
Type:
G.703 DS3 Protection Switch
SKU:
49780
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes key. Pulled from working environment.
Country/Region of Manufacture:
United Kingdom
Form Factor:
1U Rackmount
Power Requirements:
100-250V AC, 50/60Hz, dual IEC inlets
Standards Compliance:
ITU-T G.703
Data Rate:
34.568 Mbps (DS3)
Interface Type:
DS3 / BNC
Number of Inputs:
2 (Input A and Input B)
Number of Outputs:
2 (Dual DS3 Outputs)
Signal Type:
DS3 34.568 Mb/s
Protection Type:
1+1 Protection Switching with Relay Bypass
Override:
Key Switch Channel Override
Power Fail Continuity:
Channel 1 continues under power fail
Alarm Interface:
DB-15 Alarms connector (rear)
Remote Interface:
RJ-45 Remote connector (rear)
Power Supply:
Dual redundant IEC power inlets (PSU 1 / PSU 2)
Front Panel Indicators:
PSU 1, PSU 2, Alarm, Reset, I/P A, I/P Active, I/P B, LOS, LFA, AIS
Compatible With:
G.703 DS3 telecom / satcom transmission systems
Condition Notes:
ARG 2400 Series G.703 DS3 Protection Switch, pulled from a working environment. Inspected and in good condition. Shows light surface wear typical of rack-deployed equipment. Key included.
View AllClose

Related Products

Related Products

ARG 2400 Series G.703 Protection Switch – rear panel close-up showing BNC ports 1-2, Alarms D-sub, Remote IEC port, dual IEC AC inlets, and power label indicating 100-240V 1-phase dual supply ARG 2400 Series G.703 Protection Switch 2402-EQ48K-BOM – front panel view with key switch and LED indicators
Add to Cart
Quick view

ARG 2400 Series 2402-EQ48K-BOM G.703 DS3 Protection Switch 44.736 Mbps 1U

ARG

$70.00
Was: $150.00
ARG 2400 Series 2402-EQ48K-BOM G.703 DS3 Protection Switch 44.736 Mbps 1U A 1U rackmount DS3 protection switch supporting 1+1 path protection for 44.736 Mbps telecom signals. Provides automatic...
49782
SKU:
49782
Availability:
Usually ships within 1-2 business days.
Weight:
16.00 LBS
Brand:
ARG
Model:
2400 Series
MPN:
2402-EQ48K-BOM
Type:
G.703 DS3 Protection Switch
SKU:
49782
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is for parts; front panel LEDs do not illuminate
Country/Region of Manufacture:
United Kingdom
Form Factor:
1U Rackmount
Standards Compliance:
ITU-T G.703
Signal Type:
DS3
Data Rate:
44.736 Mb/s
Number of Inputs:
2 (Input A, Input B)
Number of Outputs:
2 (Output 1, Output 2)
Input Signal:
44.736 Mb/s DS3 via Relay Bypass Module
Protection Type:
1+1 DS3 Path Protection with Relay Bypass
Power Fail Behavior:
Input A to Output 1 and Input B to Output 2 continue under power fail
Key Switch Feature:
Channel Override Key Switch included
Web Board Option:
Fitted
Power Requirements:
100-240V AC, 50/60Hz, 1 Phase, Fuse 2A(T)
Power Supply:
Dual redundant IEC power supplies
Rear Connectors:
BNC coaxial (numbered 1-8), D-sub Alarms, IEC Remote
Front Panel Indicators:
PSU 1, PSU 2, Alarm, I/P A, I/P Active, I/P B, L.O.S., L.F.A., A.I.S.
Serial Number:
333
Factory Code:
2402-EQ48K-BOM
Certifications:
CE
Condition Notes:
ARG 2400 Series 2402-EQ48K-BOM G.703 DS3 Protection Switch operating at 44.736 Mbps in 1U rackmount form. This used unit includes dual IEC AC power supply, BNC coaxial ports, D-sub Alarms connector, and Remote port.
ARG 2400 Series G.703 DS3 Protection Switch 2402-EQ49K-BOM – front panel with keyswitch and indicator labels, 1U rackmount chassis ARG 2400 Series G.703 Protection Switch – rear panel showing BNC coaxial ports, DB-15 ALARMS connector, REMOTE port, and dual IEC AC inlets
Add to Cart
Quick view

ARG 2400 Series 2402-EQ49K-BOM G.703 DS3 Protection Switch Dual Output

ARG

$150.00
Was: $300.00
ARG 2400 Series 2402-EQ49K-BOM G.703 DS3 Protection Switch Dual Output 45.368Mb/sThe ARG 2400 Series G.703 Protection Switch is a 1U rackmount unit designed to provide automatic signal protection...
49781
SKU:
49781
Availability:
Usually ships within 1–2 business days.
Weight:
16.00 LBS
Brand:
ARG
Model:
2400 Series
MPN:
2402-EQ49K-BOM
Type:
G.703 DS3 Protection Switch
SKU:
49781
Data Rate:
45.368 Mb/s (DS3)
Standards Compliance:
ITU-T G.703
Number of Inputs:
2 (Input A and Input B)
Number of Outputs:
2 (Output 1 and Output 2)
Input Signal:
DS3 (45.368 Mb/s) via Relay Bypass Module
Output Signal:
Dual DS3; Input A to Output 1 continues under power fail
Channel Override:
Keyswitch Channel Override
Bypass Module:
Relay Bypass Module
Alarm Interface:
ALARMS port (DB-15 connector, rear panel)
Remote Interface:
REMOTE port (rear panel); Web Server Option Fitted
Connector Type:
BNC (coaxial), DB-15, IEC AC inlet
Power Supply:
Dual redundant PSUs (PSU 1 and PSU 2)
Power Requirements:
100-250V AC, 50/60Hz (per rear label)
Form Factor:
1U Rackmount
Front Panel Indicators:
ALARM, RESET, I/P A Active, I/P B, L.O.S., L.F.A., A.I.S. LEDs; PSU 1 & PSU 2 indicators
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit includes keys for keyswitch. No accessories listed.
Country/Region of Manufacture:
United Kingdom
Condition Notes:
ARG 2400 Series G.703 DS3 Protection Switch 2402-EQ49K-BOM. Inspected, good used condition. Pulled from an active working telecom environment. Surface wear on chassis. Keys present. Please view photos and contact us with questions.
ARG 2400-EQ504-BOM DS3 Distribution Amplifier front panel view showing PSU 1 and PSU 2 indicator LEDs and 1U rackmount chassis ARG 2400 Series Distribution Amplifier rear panel showing BNC connectors, DB-15 ALARMS port, RJ-45 REMOTE port, and dual IEC power inlets
Add to Cart
Quick view

ARG 2400-EQ504-BOM DS3 44.736 Mbps Distribution Amplifier Splitter 1U Rackmount

ARG

$150.00
Was: $300.00
ARG 2400-EQ504-BOM DS3 44.736 Mbps Distribution Amplifier Splitter 1U RackmountDS3 distribution amplifier and splitter for telecom and data center environments. Takes one DS3 input signal and...
49779
SKU:
49779
Availability:
Usually ships within 1-2 business days.
Weight:
16.00 LBS
Brand:
ARG
Model:
2400-EQ504-BOM
MPN:
2400-EQ504-BOM
Type:
DS3 Distribution Amplifier / Splitter
SKU:
49779
Series:
ARG 2400 Series
Signal Type:
DS3
Data Rate:
44.736 Mb/s
Input:
1x BNC (DS3 coax, Input A)
Outputs:
3x BNC (DS3 coax, Outputs 1–3)
Output Under Power Fail:
Output 1 continues under power fail via relay bypass
Interface / Connector:
BNC coaxial
Alarm Port:
DB-15 ALARMS connector (rear panel)
Remote Port:
RJ-45 REMOTE connector (rear panel)
Power Supply:
Dual redundant PSU (PSU 1 and PSU 2)
Power Requirements:
100–240 VAC, 8W Max, 1 Phase
Fuse:
2A(T)
Form Factor:
1U Rackmount
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no accessories included.
Country/Region of Manufacture:
United Kingdom
Condition Notes:
ARG 2400-EQ504-BOM DS3 Distribution Amplifier. Used, pulled from a working environment, inspected and in good condition. Minor rack wear; all connectors and ports appear intact. PSU indicators illuminated in photos.
ARG 2400-EQ390-BOM Distribution Amplifier Splitter — 1U rackmount front panel, angled top view showing front label and rack ears ARG 2400-EQ390-BOM Distribution Amplifier — rear panel view showing BNC connectors, DB-15 OUTPUTS port, REMOTE connector, ALARM port, and dual IEC AC inlets
Add to Cart
Quick view

ARG 2400-EQ390-BOM ASI Distribution Amplifier Splitter 1x4 Rackmount 1U

ARG

$125.00
Was: $250.00
ARG 2400-EQ390-BOM ASI Distribution Amplifier Splitter 1x4 Rackmount 1UThe ARG 2400-EQ390-BOM is a 1U rackmount ASI (Asynchronous Serial Interface) distribution amplifier and splitter from ARG's 2400...
49777
SKU:
49777
Availability:
Usually ships within 1–2 business days.
Weight:
16.00 LBS
Brand:
ARG
Model:
2400-EQ390-BOM
MPN:
2400-EQ390-BOM
Type:
ASI Distribution Amplifier / Splitter
SKU:
49777
Series:
ARG 2400 Series
Form Factor:
1U Rackmount
Number of Inputs:
1 (ASI copper)
Number of Outputs:
4 (ASI copper, identical)
Signal Type:
ASI (Asynchronous Serial Interface) — copper
Relay Bypass:
Yes — relay bypass module on input
Power Fail Protection:
Output 1 continues under power fail
Power Supplies:
Dual PSU (PSU 1 and PSU 2)
Alarm:
Alarm output connector and Alarm Reset button on front
Remote Interface:
REMOTE connector (rear panel)
Outputs Connector:
DB-15 OUTPUTS connector (rear panel)
BNC Connectors:
Multiple BNC connectors on rear panel
AC Inlet:
Dual IEC C14 AC inlets (rear panel)
Front Panel Indicators:
PSU 1 LED, PSU 2 LED, Input 1 LED, Input 2 LED
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; pulled from a working broadcast environment.
Country/Region of Manufacture:
United Kingdom
Condition Notes:
This ARG 2400-EQ390-BOM ASI Distribution Amplifier/Splitter is in good used condition. Pulled from a working broadcast environment where it was in active use and functional. Shows normal rack service wear. All connectors present.

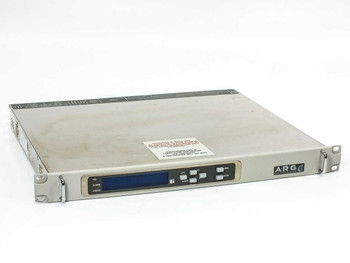

ARG 1900 Receiver 1945-EQRX3-BOM – front panel angled view showing ARG logo, LCD display, and rack ears ARG 1900 Receiver – rear panel showing BNC ASI output ports, telecom BNC input, DB9, RJ45, and dual IEC power inlets
