ARG 2400 Series 2402-EQ49K-BOM G.703 DS3 Protection Switch Dual Output

ARG 2400 Series 2402-EQ49K-BOM G.703 DS3 Protection Switch Dual Output 45.368Mb/s

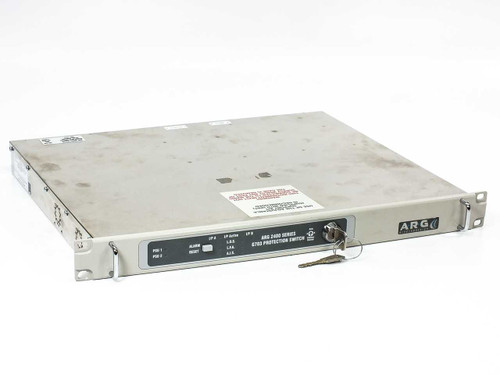

The ARG 2400 Series G.703 Protection Switch is a 1U rackmount unit designed to provide automatic signal protection switching for DS3 digital circuits operating at 45.368 Mb/s. It accepts two DS3 input signals (Input A and Input B) through a relay bypass module and routes them to dual DS3 outputs, ensuring continuity of the primary signal path — Input A to Output 1 continues to pass signal even under a power failure condition. A front-panel keyswitch provides manual channel override capability for operator control.

Specifications & What's Included

• Model: ARG 2400 Series — Factory Code 2402-EQ49K-BOM
• Signal Standard: ITU-T G.703
• Signal Type: DS3 (45.368 Mb/s)
• Inputs: Two DS3 inputs (Input A and Input B) via Relay Bypass Module
• Outputs: Dual DS3 outputs (Output 1 and Output 2)
• Power Fail Protection: Input A to Output 1 signal path maintained under power fail
• Channel Override: Keyswitch-operated manual channel override (keys included)

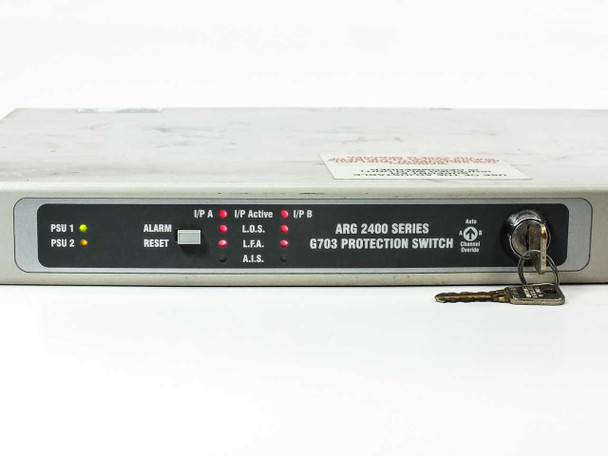

• Front Panel Indicators: PSU 1 / PSU 2 status, ALARM, RESET button, I/P A Active, I/P B Active, L.O.S. (Loss of Signal), L.F.A. (Loss of Frame Alignment), A.I.S. (Alarm Indication Signal) LEDs

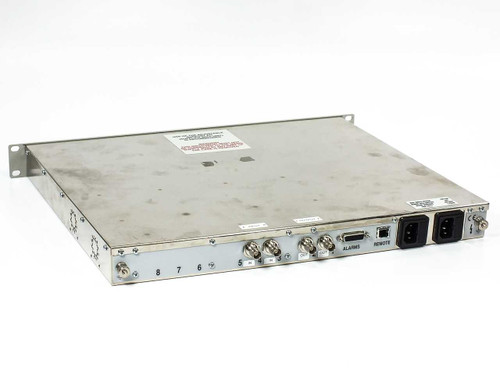

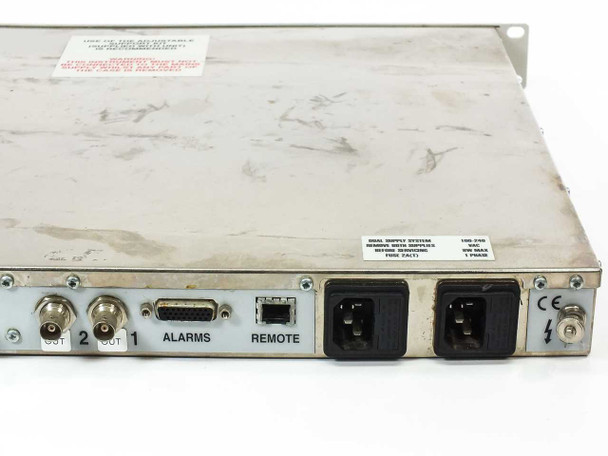

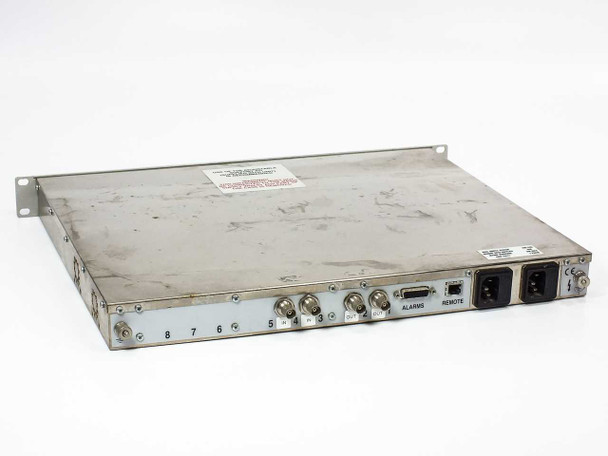

• Rear Panel Connectors: Numbered BNC coaxial ports (positions 1–8), DB-15 ALARMS port, REMOTE interface port
• Power Supply: Dual redundant PSUs (PSU 1 and PSU 2); dual IEC AC inlets on rear panel
• Power Requirements: 100–250V AC, 50/60Hz (per rear label)
• Remote Management: Web Server option fitted; REMOTE interface on rear panel
• Form Factor: 1U Rackmount
• Manufacturer: ARG (UK) —
• Includes: Unit with both keyswitch keys
