ARG 1900 Receiver 1945-EQRX3-BOM T3/DS3 B3ZS Dual 44.736Mb/s ASI Rackmount

(No reviews yet) Write a Review
SKU:
49774
MPN:
1945-EQRX3-BOM
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
15.00 LBS
Shipping:
Calculated at Checkout

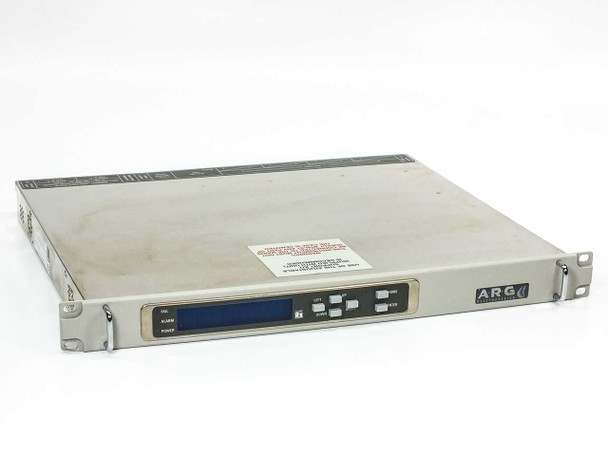

  • ARG 1900 Receiver 1945-EQRX3-BOM – front panel angled view showing ARG logo, LCD display, and rack ears
  • ARG 1900 Receiver – rear panel showing BNC ASI output ports, telecom BNC input, DB9, RJ45, and dual IEC power inlets

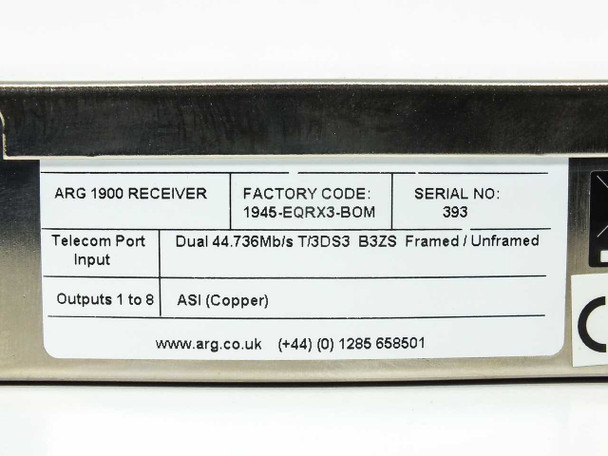

  • ARG 1900 Receiver label showing factory code 1945-EQRX3-BOM, serial number 393, T3/DS3 B3ZS telecom input, and ASI copper outputs 1–8
  • ARG 1900 Receiver front panel LCD display showing 'Trying to lock to 1900TX / Not connected! Waiting..' with Fail and Alarm LEDs illuminated

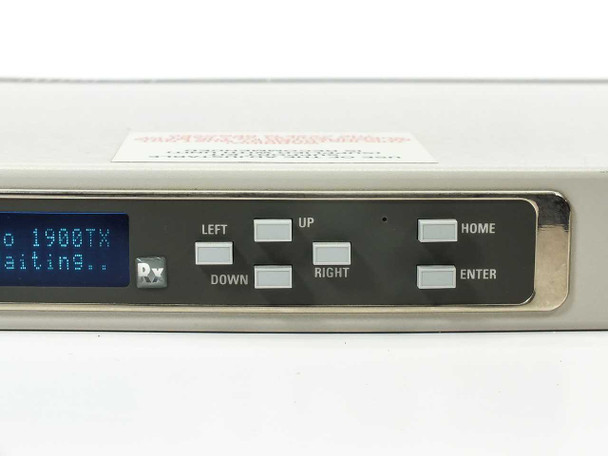

  • ARG 1900 Receiver front panel close-up showing navigation buttons: Left, Right, Up, Down, Home, Enter, and Rx button
  • ARG 1900 Receiver rear panel close-up showing numbered BNC data ports 1–8 labeled as Data Ports with Master BNC telecom port
  • ARG 1900 Receiver rear panel detail showing Telecoms Port, 10BASE-T Network Option, Alarm Outputs, DB9 diagnostics port, and dual Mains IEC inlets with warning label
$275.00
Was: $550.00
Current Stock: 2

Sold Out

Description

ARG 1900 Receiver 1945-EQRX3-BOM T3/DS3 B3ZS Dual 44.736Mb/s ASI Rackmount

T3/DS3 to ASI media receiver and combiner. Accepts dual T3/DS3 B3ZS telecom inputs and outputs to eight ASI (copper) ports for broadcast and media distribution applications.

Specifications & What's Included

  • Dual 44.736 Mb/s T3/DS3 B3ZS inputs (framed/unframed)
  • 8 x ASI BNC copper outputs
  • 10BASE-T management port
  • LCD alphanumeric status display with navigation controls
  • Fail, Alarm, and Power LEDs
  • 1U rackmount form factor
  • 100–240V AC, 50–60Hz power input
  • Alarm and diagnostics outputs (DB9)

Applications

T3/DS3 receivers convert high-speed telecom signals to ASI format for broadcast distribution, playout, and media infrastructure. Commonly used in television stations, cable headends, and broadcast centers to interface telecom circuits with ASI-based routing and switching equipment. Supports both framed and unframed T3/DS3 signals with B3ZS line coding.

Condition: Used
This ARG 1900 Receiver (1945-EQRX3-BOM) T3/DS3 to ASI media receiver powers on and appears to function normally. The front panel LCD is active and the unit displays its standard status messages on boot. Cosmetically the chassis shows light surface wear and minor scuffing consistent with prior rack use. The rear BNC ports and connectors appear intact and undamaged. Note that the front panel shows the Fail and Alarm LEDs lit, which is expected behavior when the unit is not connected to a 1900TX transmitter — the display reads 'Trying to lock to 1900TX / Not connected! Waiting..', which is normal standalone operation. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ARG
Model:
1900 Receiver
MPN:
1945-EQRX3-BOM
Type:
T3/DS3 to ASI Media Receiver / Media Combiner
SKU:
49774
Factory Code:
1945-EQRX3-BOM
Telecom Port Input:
Dual 44.736 Mb/s T3/DS3 B3ZS Framed/Unframed
Data Outputs:
Outputs 1–8: ASI (Copper)
Number of Output Ports:
8
Output Connector Type:
BNC (ASI Copper)
Telecom Port Connector:
BNC
Data Rate:
44.736 Mb/s (T3/DS3)
Signal Standard:
T3/DS3 B3ZS Framed and Unframed
Network / Management Port:
10BASE-T (rear panel)
Additional Interfaces:
Alarm Outputs, Description/Diagnostics port (DB9)
Power Requirements:
100–240V AC, 50–60Hz, 1 Phase, 2A (dual supply)
Form Factor:
1U Rackmount
Front Panel Display:
LCD alphanumeric status display
Front Panel Controls:
Navigation keys: Left, Right, Up, Down, Home, Enter
Front Panel Indicators:
Fail, Alarm, Power LEDs
Condition:
Used – Powers On, Appears Functional
Seller Notes:
Unit powers on and appears to function normally.
Country/Region of Manufacture:
United Kingdom
Condition Notes:
ARG 1900 Receiver 1945-EQRX3-BOM powers on and appears to function normally. LCD active; Fail/Alarm LEDs lit as expected with no TX source connected. Light rack wear cosmetically. Ports intact.
View AllClose

Related Products

Related Products

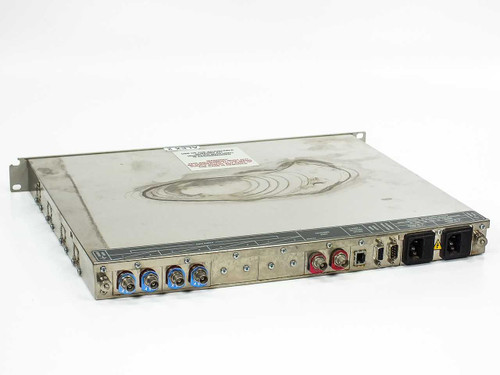

ARG ElectroDesign 1900 Transmitter 1945-EQTX2-BOM – front panel view showing LCD display, LED indicators, and navigation buttons in 1U rackmount chassis ARG 1900 Transmitter 1945-EQTX2-BOM – rear and top angled view showing BNC connectors, IEC power inlets, DB9, and RJ45 ports with visible surface wear on top cover
