ARG ElectroDesign 1945-EQTX2-BOM 1900 Transmitter T3/DS3 B3ZS ASI

(No reviews yet) Write a Review
SKU:
49773
MPN:
1945-EQTX2-BOM
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
15.00 LBS
Shipping:
Calculated at Checkout
  • ARG ElectroDesign 1900 Transmitter 1945-EQTX2-BOM – front panel view showing LCD display, LED indicators, and navigation buttons in 1U rackmount chassis

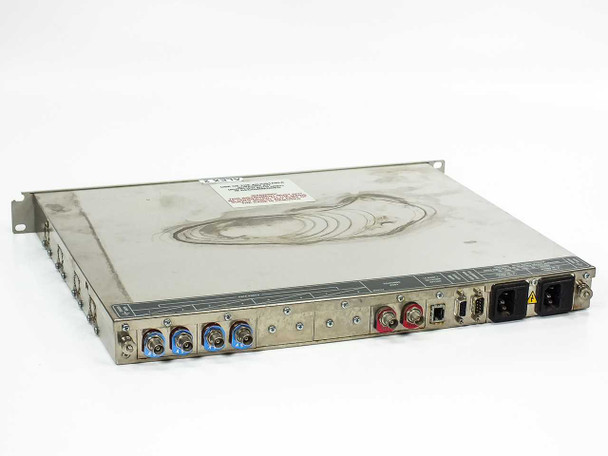

  • ARG 1900 Transmitter 1945-EQTX2-BOM – rear and top angled view showing BNC connectors, IEC power inlets, DB9, and RJ45 ports with visible surface wear on top cover

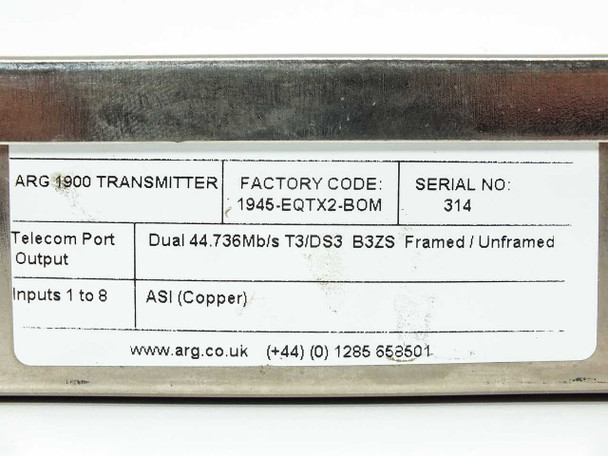

  • ARG 1900 Transmitter rating label – showing factory code 1945-EQTX2-BOM, serial number 314, dual T3/DS3 B3ZS telecom output specs, and ASI copper inputs 1–8

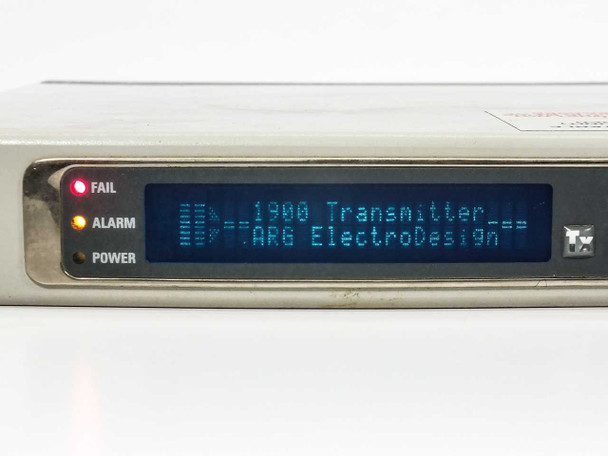

  • ARG 1900 Transmitter front panel LCD close-up – display reading '1900 Transmitter / ARG ElectroDesign' with FAIL, ALARM, and POWER LED indicators

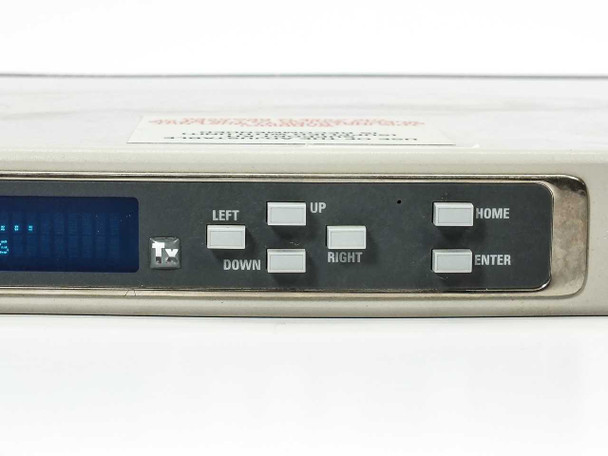

  • ARG 1900 Transmitter front panel navigation keypad close-up – LEFT, UP, DOWN, RIGHT, HOME, and ENTER buttons

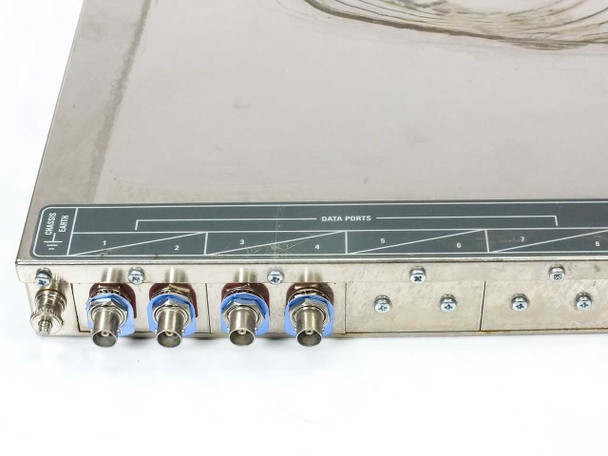

  • ARG 1900 Transmitter rear panel left section close-up – data ports with 8 BNC connectors labeled 1–8 for ASI copper inputs

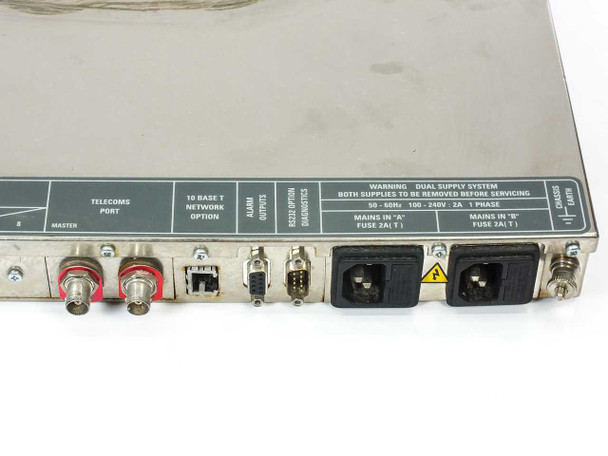

  • ARG 1900 Transmitter rear panel right section – telecom BNC ports, 10BASE-T network option port, DB9, alarm outputs, dual IEC AC power inlets with fuse holders and voltage label
$275.00
Was: $550.00
Current Stock: 2

Sold Out

Description

ARG ElectroDesign 1945-EQTX2-BOM 1900 Transmitter T3/DS3 B3ZS ASI

1U rackmount T3/DS3 transmitter and network adapter for telecom and broadcast applications. Converts 8 ASI (copper) inputs to dual 44.736 Mb/s T3/DS3 outputs with B3ZS encoding.

Specifications & What's Included

  • Model: ARG ElectroDesign 1900 Transmitter, MPN 1945-EQTX2-BOM
  • 8 ASI inputs at 44.736 Mb/s; dual T3/DS3 BNC outputs (framed/unframed)
  • B3ZS protocol; optional 10BASE-T network port
  • Dual redundant power supply: 100–240V AC, 50–60Hz, 2A per supply
  • Front LCD display, LED indicators (POWER/FAIL/ALARM), DB9 and RJ45 connectors
  • Unit only; no accessories included

Applications

T3/DS3 transmitters route high-bandwidth digital signals in telecom carrier networks and broadcast infrastructure. This model bridges ASI streams to T3/DS3 circuit standards, commonly used for video distribution, satellite uplink facilities, and legacy telecom backbone systems where 44.736 Mb/s framed transmission is required. Compatible with standard T3/DS3 network equipment and monitoring systems.

Condition: Used
This ARG ElectroDesign 1945-EQTX2-BOM 1900 Series Transmitter powers on and appears to function normally. The top cover shows noticeable surface soiling and ring marks consistent with long-term storage or rack use, and there are some light scuffs on the chassis. The rear BNC connectors, IEC inlets, and port area are intact and appear undamaged. The front panel LCD, LEDs, and navigation buttons are all present and visible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ARG ElectroDesign
Model:
1900 Transmitter
MPN:
1945-EQTX2-BOM
Type:
T3/DS3 Transmitter / Network Adapter / Media Combiner
SKU:
49773
Form Factor:
1U Rackmount
Telecom Port Output:
Dual 44.736 Mb/s T3/DS3 B3ZS Framed / Unframed
Input Type:
ASI (Copper), Inputs 1–8
Number of Inputs:
8
Data Rate:
44.736 Mb/s (T3/DS3)
Protocol:
T3/DS3 B3ZS Framed and Unframed
Network Option:
10BASE-T (rear panel option port visible)
Power Requirements:
100–240V AC, 50–60Hz, 2A, 1 Phase (dual supply)
Power Supply Configuration:
Dual supply — Mains A and Mains B, Fuse 2A(T) each
Rear Connectors:
BNC (Telecom ports), DB9, RJ45, Dual IEC AC inlets
Front Panel:
LCD display, FAIL/ALARM/POWER LEDs, navigation keypad
Display:
LCD alphanumeric, shows '1900 Transmitter / ARG ElectroDesign'
Factory Code:
1945-EQTX2-BOM
Condition:
Used – Inspected and Tested
Seller Notes:
Unit only; no accessories. Powers on and appears to function normally.
Country/Region of Manufacture:
United Kingdom
Condition Notes:
ARG ElectroDesign 1945-EQTX2-BOM 1900 Transmitter powers on and appears to function normally. Top cover shows surface soiling and scuffs from prior use. Rear connectors and front panel intact. Used condition.
View AllClose
